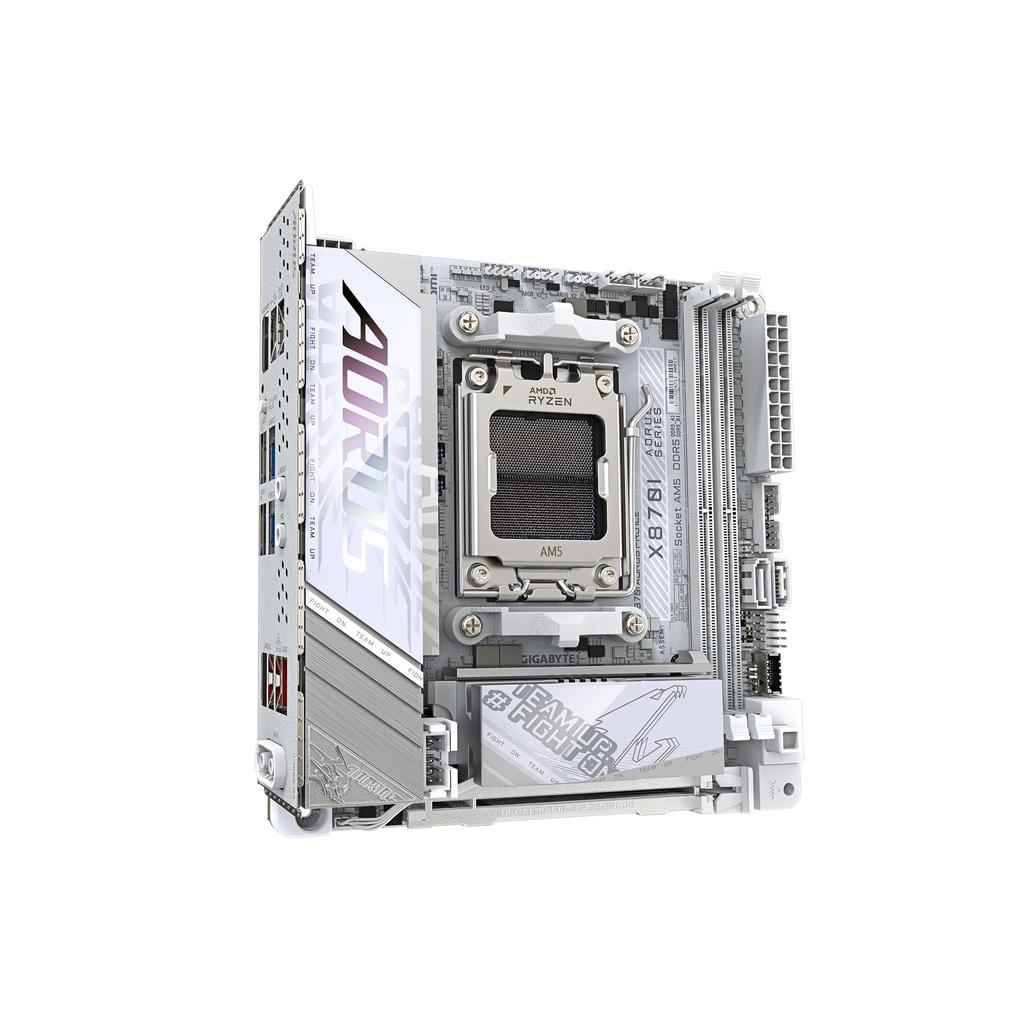

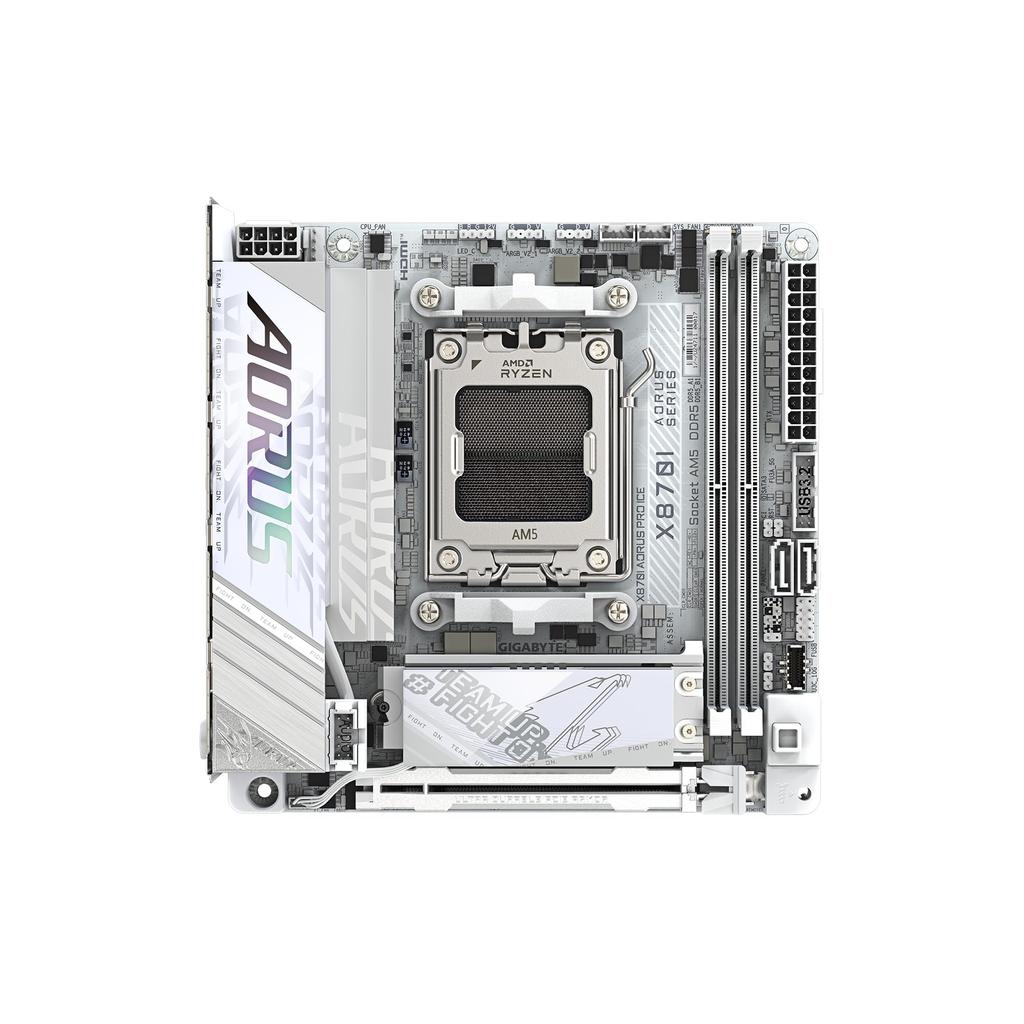

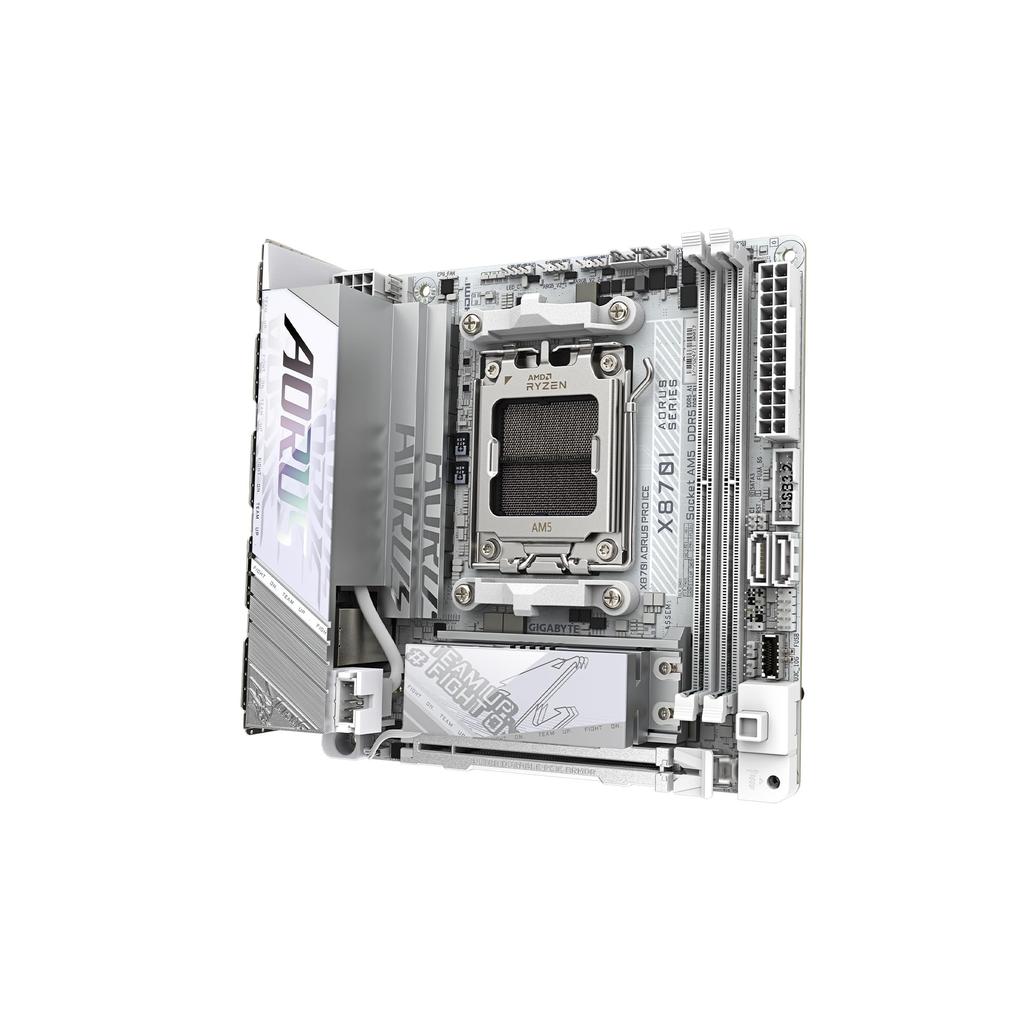

This Mini-ITX motherboard is equipped with the AMD X870 chipset and is compatible with AMD Ryzen 9000/8000/7000 series processors.

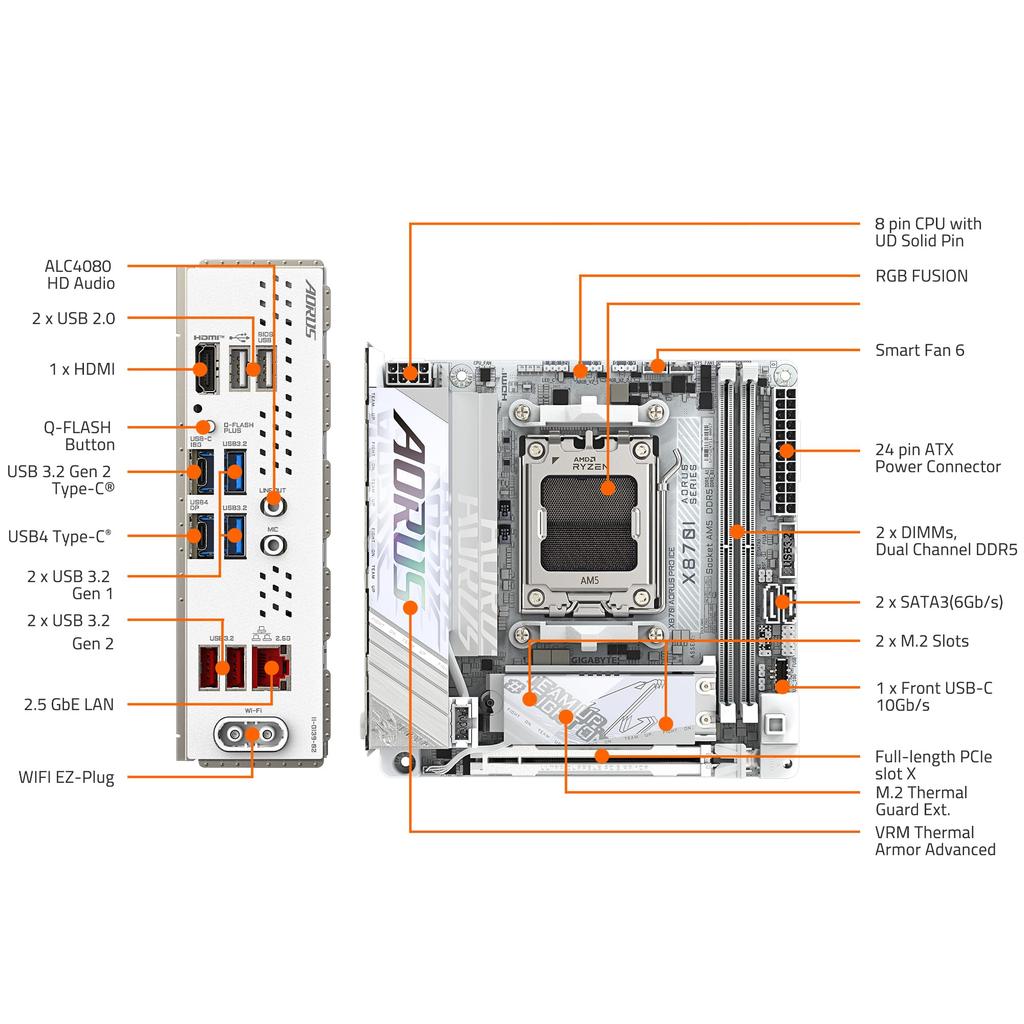

Form Factor: Mini-ITX (170 x 170mm)
Chipset: AMD X870
CPU Socket/Supported CPUs: AMD Socket AM5, AMD Ryzen 9000/8000/7000 Series Processors
Power Phases: 8+2+1 110A SPS Power Phases
Memory Sockets: 2 DDR5 DIMM Slots (Max. 128GB)
Memory Support: DDR5 4400-8800 (OC), AMD EXPO/XMP (Intel XMP3.0) Compatible
Expansion Slots: 1 PCIe 5.0 x16
Storage: 2 M.2 (1 PCIe 5.0, 1 PCIe 4.0), 2 SATA 3
Video Output: 1 USB4 Type-C (DP-Alt), 1 HDMI 2.1

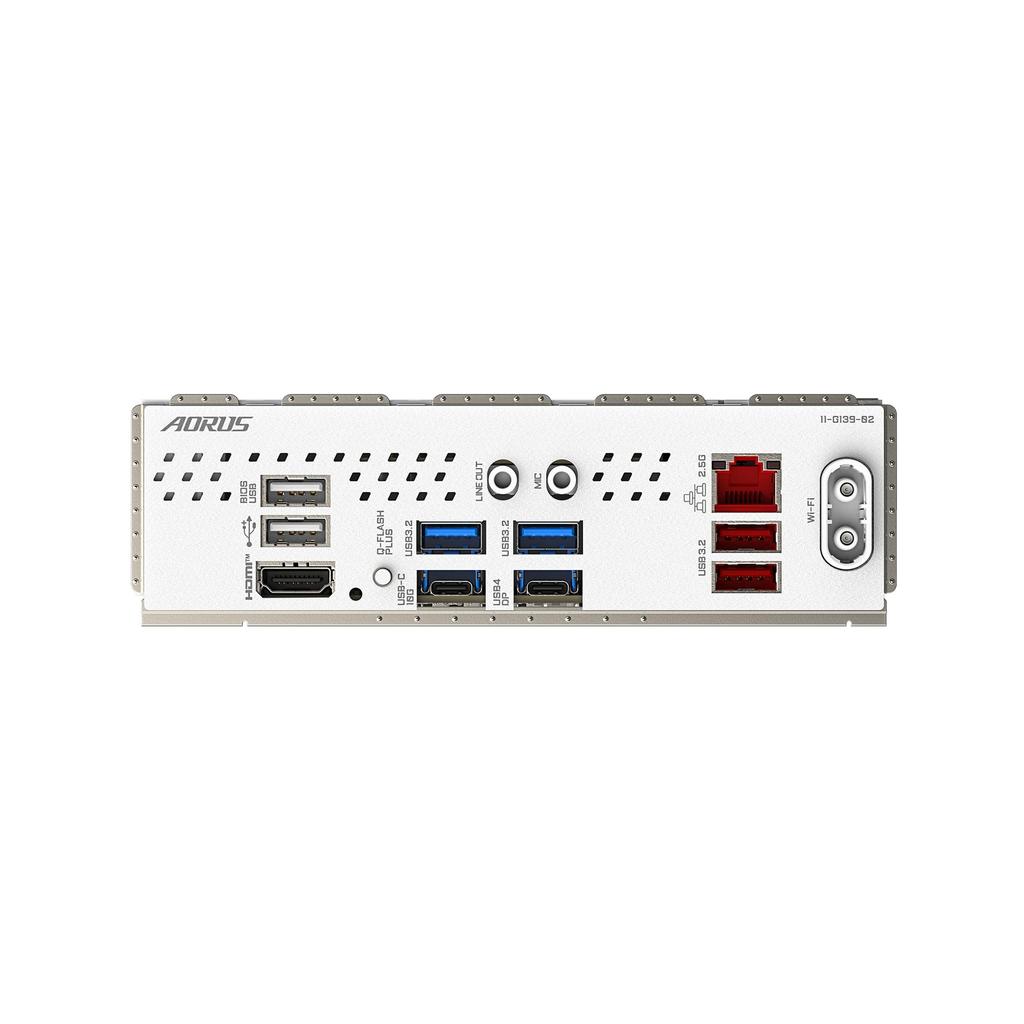

USB (Rear): 1 USB4 Type-C, 1 USB 3.2 Gen 2 1 x Type-C, 2 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Type-A
●USB (Front): 1 x USB 3.2 Gen2 Type-C header, 2 x USB 3.2 Gen1 headers, 2 x USB 2.0 headers
●Sound: 2-channel HD Audio Codec (Realtek ALC4080)
●Network: 2.5GbE Wired LAN, Wi-Fi 7 Wireless LAN, Bluetooth 5.4
●Supported OS: Windows 11 64-bit

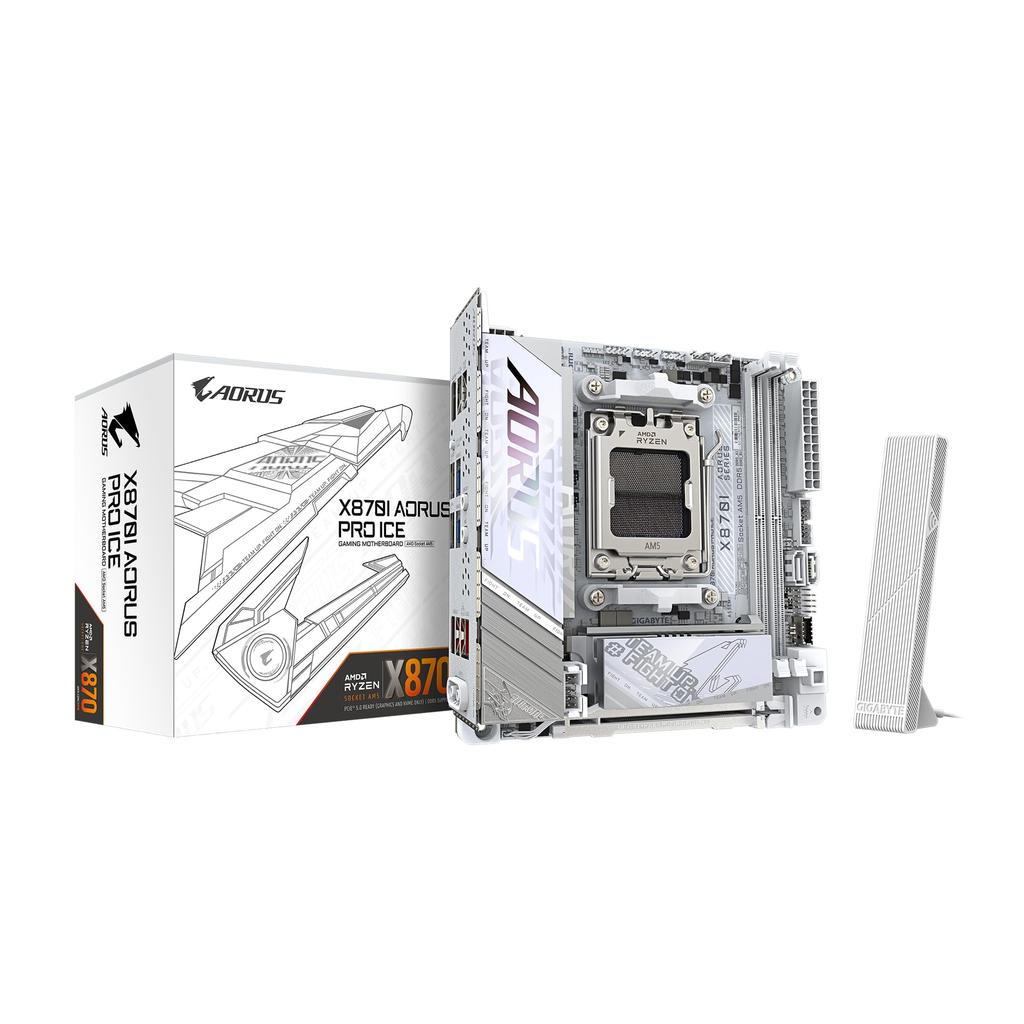

●Accessories: Quick Installation Guide, WiFi Antenna, 2 x SATA Cables, 2 x Fan Power Extension Cables, Case Screws, M.2 Screws, Thermal Pad Kit
MB6574 Authorized Japanese Distributor Product, 3-Year Warranty

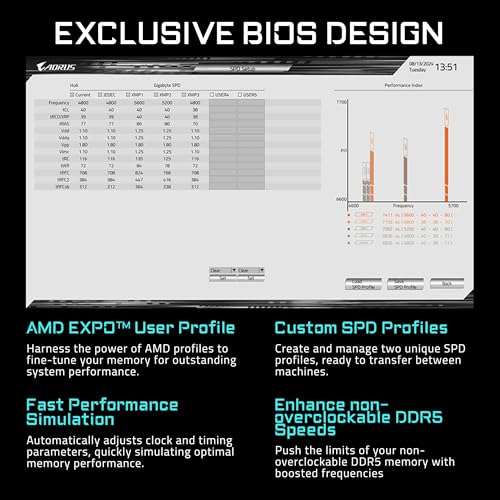

Real-time analysis enables AI processing, accelerating the system and improving performance. Various safety mechanisms are also included to reduce power consumption and optimize power efficiency, protecting the motherboard. Equipped with the X870 chipset, this card supports AMD Ryzen 9000/8000/7000 series CPUs and APUs. It also supports DDR5 memory, allowing for a high-speed system environment.
It delivers ultra-fast and reliable transfer speeds of up to 40 Gbps. Its wide compatibility, efficient charging, and Ultra HD DisplayPort connectivity make it ideal for video editing, large file transfers, and data-intensive tasks.
It supports 2.5GbE wired LAN, Wi-Fi 7, and Bluetooth 5.4 for stable, high-speed network connections.
