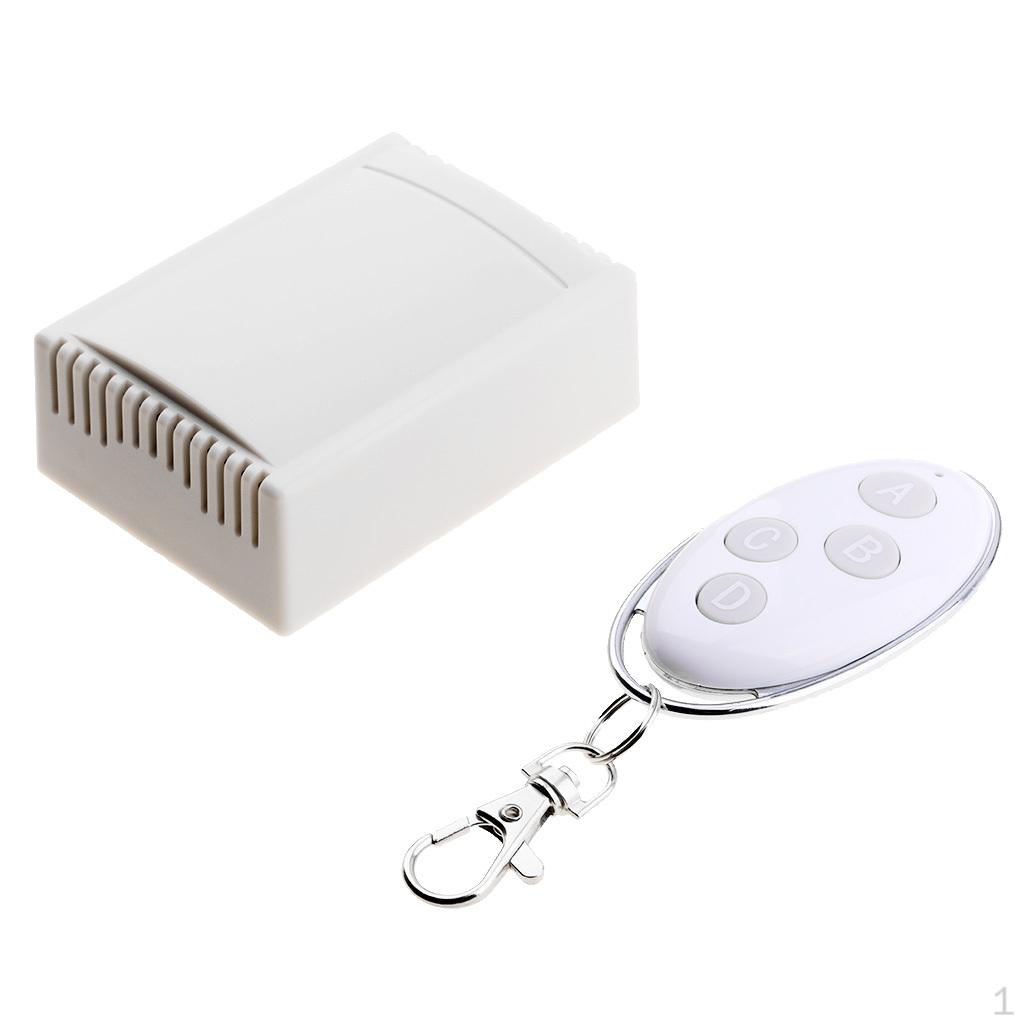

4-Channel 315MHz DC12V Wireless Relay Switch with 4-Button Control

Description:

- DC12V 4-channel remote control switch with 4-button remote control

- Application: lights, electrically operated doors, windows, lifting device, motor control, water pump, lifter and security industry,etc

Specification:

- Remote Control: Approx. 6.8 x 3.8 x 1.5cm/2.7 x 1.5 x 0.6 inch

- Remote Switch : Approx. 7.5 x 5.5 x 2.6cm/3 x 2.2 x 1 inch

- Operating Voltage: DC12V

- Working Frequency: 315MHz

- Quiescent Current: ≤10mA

- Standby Current: 10mA

- Remote Distance: 20-200m (according to different remote control)

- Receive Sensitivity: -105dBm

- Compatible with 2262/2260/1527/2240, etc chips and remote control with different code

- Can learn remote control up to 12 with 315MHz

- Working Mode: self-locking, jog, interlock

- Self-locking:

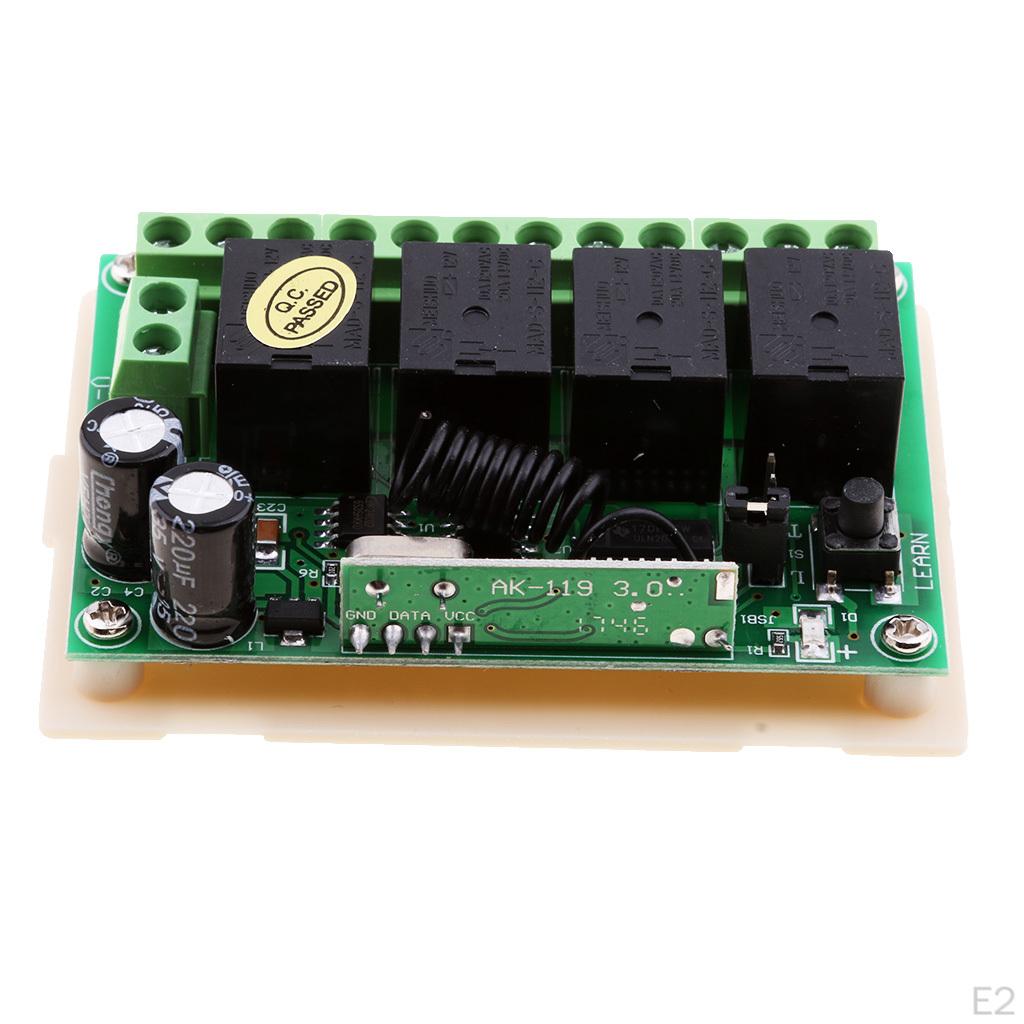

- use short circuit to connect JP1 position (plug insert in the middle

- and the direction of the inner side of the circuit board); Jog: short

- circuit does not connect; Interlocking - use short circuit to connect

- JP2 position (plug cap insert middle and outside of the board)

- Remote control learning method and internal code clear method:

- Pressing

- learing button, indicator lights out and press any button on the remote

- control, the indicator light flashes five times and long bright, which

- shows learning succesfully.

- Pressing learning button for around 8 seconds, the indicator light off to on, which shows deletion is done

Package Includes: 1 Piece Remote Switch 1 Piece 4-Button Remote Control
