LED Display Timer Relay Automation Control Module (24V)

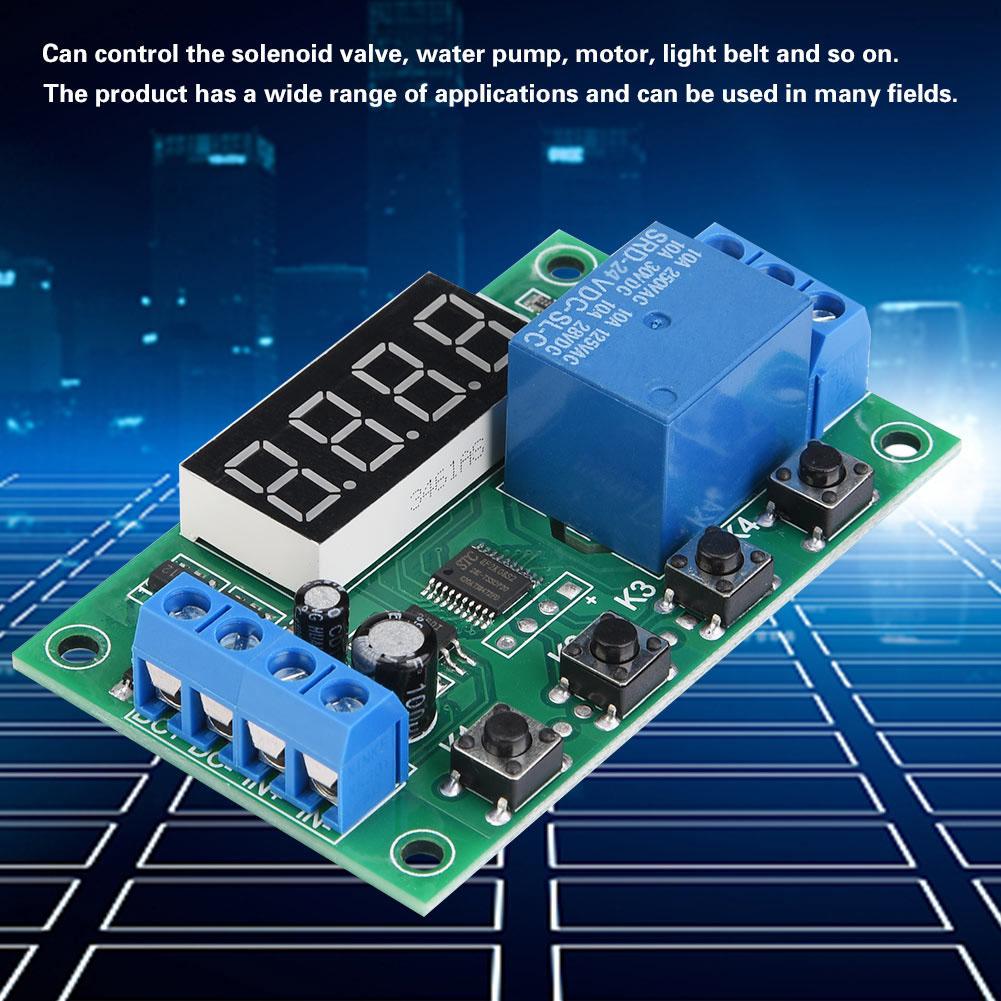

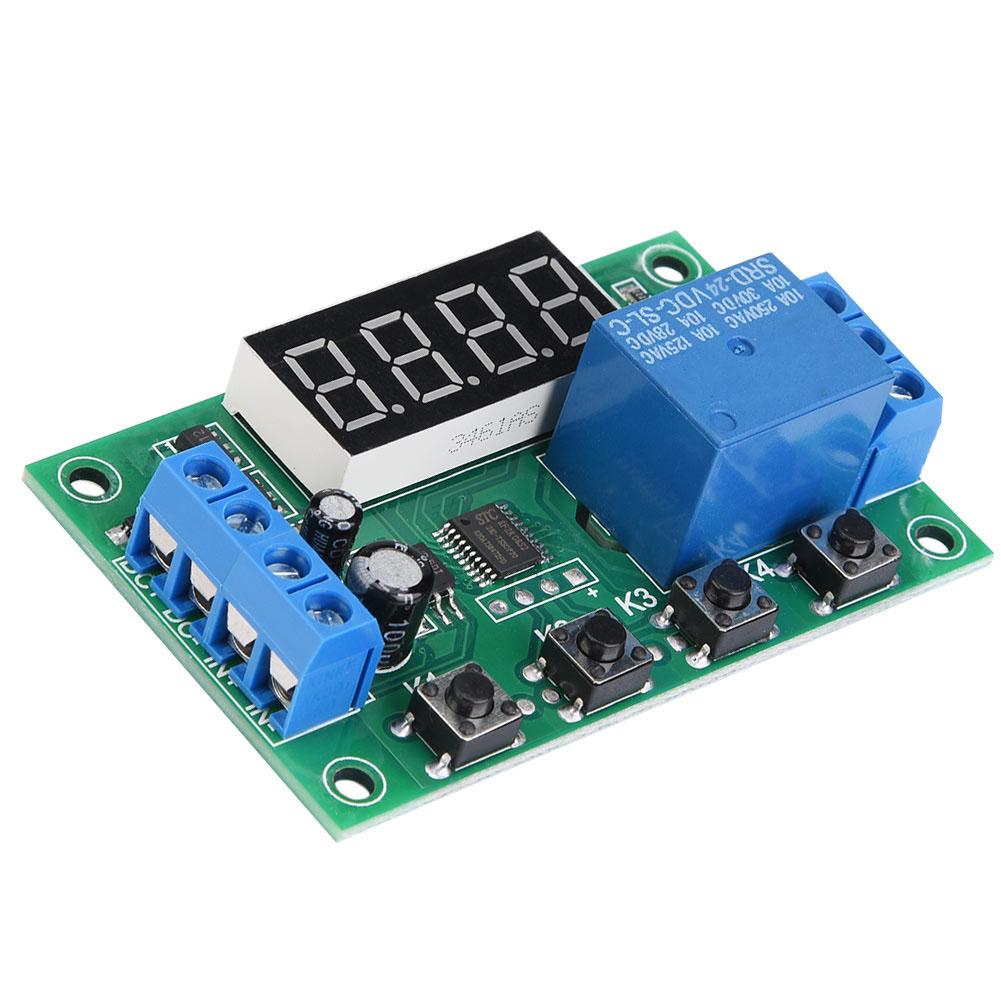

Made of high quality material, in use. It has 24 common functions to meet more application requirements Can control the solenoid valve, , motor, light belt and so on. Features: Made of high quality material, in use. It has 24 common functions to meet more application requirements Can control the solenoid valve, , motor, light belt and so on. Low power consumption, performance. The product has a wide range of applications and can be used in many fields. Specification: Model: YYC-2S Material: Plastic Weight: 30gCelsius1.1oz Voltage: 5V, 12V, 24V (Optional) Output power: or AC load within 5A can be controlled Time range: 0.01 seconds to minutes can be adjusted at any time Description of wiring port: 1. + : input the positive pole of power supply 2, - : input power supply cathode 3. IN+ : signal input is positive 4, IN- : signal input terminal negative 5. NO: the relay normally opens the interface, and the relay is suspended before absorption, and is connected with COM short after absorption 6. COM: relay public interface 7. NC: the relay normally closes the interface, and the relay is short connected with COM before absorbing and suspended after absorbing. Key setting instructions:  Power on display ------- means to enter standby state; Press K1 for the first time (it takes more than 1 second to be effective to prevent false triggering), and it shows: p-11: adjusts the main mode, K3K4 adjusts the function Press K1 the second time, the screen will show: a001: and K3 to adjust the first time A and K4 to adjust the decimal point (time unit). Press K1 for the third time, and the screen will show: b001: and K3 to adjust the second time B and K4 to adjust the decimal point (time unit). Press K1 for the fourth time, and -- indicates standby state Press K4 in standby state to permanently closeCelsiusopen the display and to low-power mode. Description of decimal point time unit: X.XX decimal point in place, timing range: 0.01 seconds to 9.99 seconds XX.X decimal point in the tens place, timing range: 0.1 seconds to 99.9 seconds XXX has no decimal point, timing range: 1 second . seconds XXX. Decimal point in the place, timing range: 1 minute to minutes. Package List: 1 x Timer Relay
