【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------

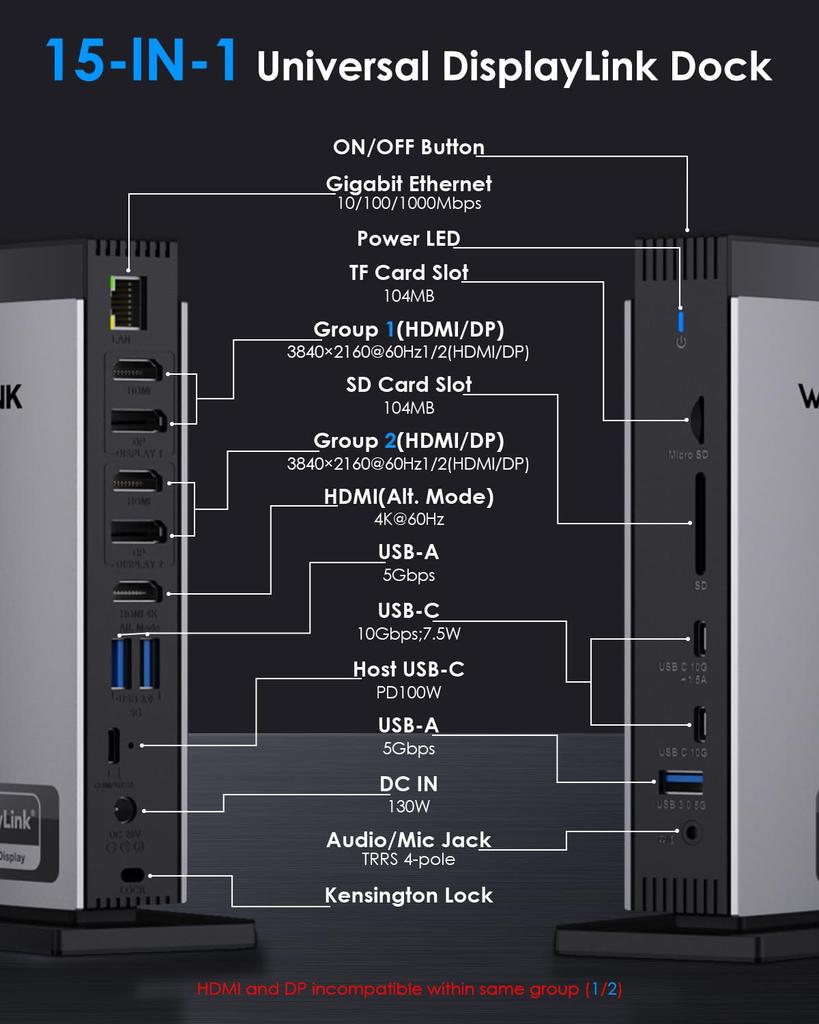

[15 Ports for Maximum Connectivity] With a single USB-C (C-C) connection, you can expand your laptop's Type-C port to include three HDMI ports, two DisplayPort ports, one host USB-C port, two USB-C ports, three USB-A ports, an RJ45 wired LAN port, an SD/TF card slot, and a 4-pole audio jack. Perfect for home or office workstations. Note: To use HDMI (Alt Mode), the Type-C port on your connected PC must support video output (DisplayPort Alt Mode).
[Multitasking for Increased Productivity - Triple 4K Support] Easily connect up to three 4K monitors. The HDMI (Alt Mode) port supports 4K@60Hz output, making it ideal for video editing and high-resolution work. The DisplayLink-6950 chipset enables up to two 4K@60Hz output displays via the DISPLAY 1/2 (HDMI/DP) ports, supporting screen expansion for M1/M2/M3 Macs. This card is designed for web browsing and office work; gaming is not recommended.

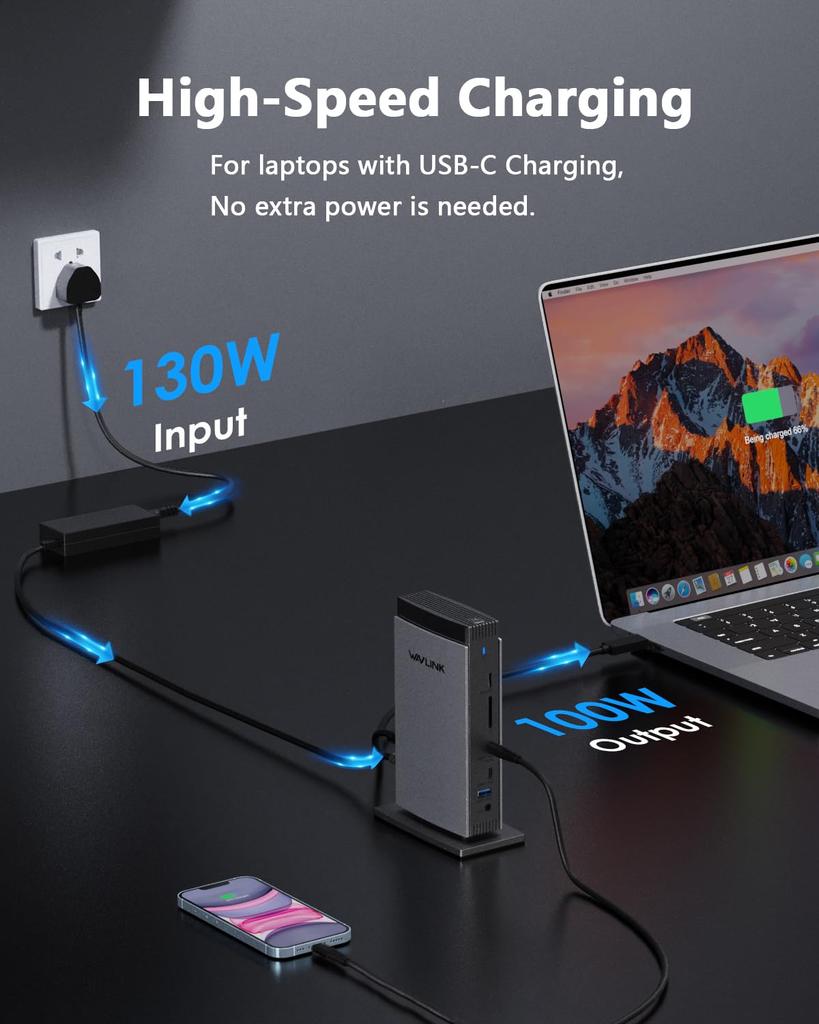

[Supports up to 100W of power delivery and includes a high-output power supply] Includes a 130W AC power adapter. Charge your laptop with up to 100W of power from the host USB-C port while simultaneously powering peripherals, outputting video, and transferring data. Enjoy peace of mind even during extended work sessions. *The host Type-C port must support Power Delivery.

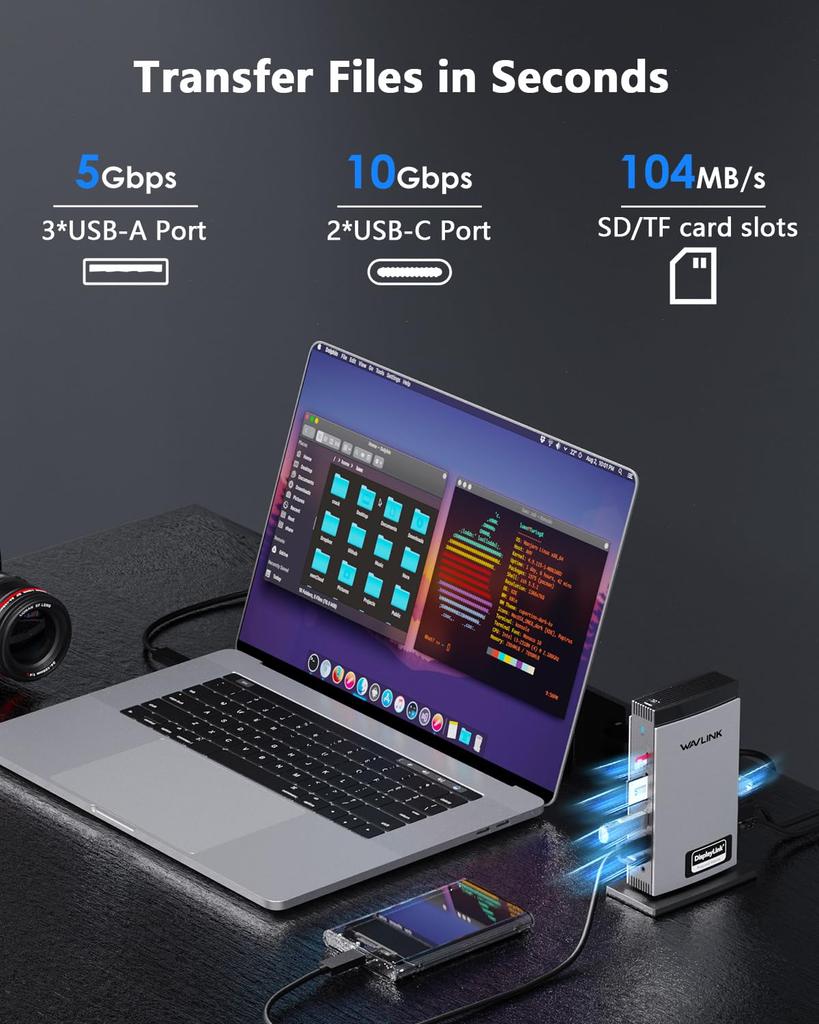

High-Speed Data Transfer & Stable Wired LAN Connection: Equipped with three USB-A (5Gbps) and two USB-C (10Gbps) ports, it allows for high-speed data transfer with external SSDs and various USB devices. The SD/TF card slot supports data transfers up to 104MB/s, making it ideal for importing photos and videos. The RJ45 Gigabit LAN port provides a stable wired network connection.
Wide Compatibility (Driver Required): Compatible with laptops equipped with a full-featured Type-C port or Thunderbolt 3/4. Supports Windows 11/10/8.1/8/7/XP/Vista, macOS 10.14-14.x and later, Chrome OS, Ubuntu, Android, and Harmony OS. *Not compatible with Unix-based operating systems, Linux, iOS, or iPadOS. *Since it does not support Plug & Play, the latest DisplayLink driver must be installed.
About video output methods (differences between Alt Mode and DisplayLink and precautions) This product uses two types of video output methods (USB-C DisplayPort Alt Mode and DisplayLink). Each has different operating conditions and uses, so please check the following. ■ About the HDMI (Alt Mode) port [Compatibility check required] The HDMI (Alt Mode) port can only be used if the USB-C port on your laptop supports DisplayPort Alt Mode (video output). If it does not support it, video will not be output. No driver is required, and it has low latency and high compatibility, making it suitable for video editing, high-resolution displays and some gaming applications. The maximum resolution depends on the DP standard (DP1.2 / DP1.4) of the connected PC. ■ About Display 1 / Display 2 (DisplayLink ports) [Driver required] The Display 1 / Display 2 ports use video output via DisplayLink technology. Installing the DisplayLink driver is required.
A 4K@60Hz extended display is required. Because it uses USB communication, video output is possible via USB-A, USB-C, or Thunderbolt connections, enabling multi-display even on PCs that do not support Alt Mode. Even M1, M2, or M3 Macs can display up to two 4K@60Hz extended displays.

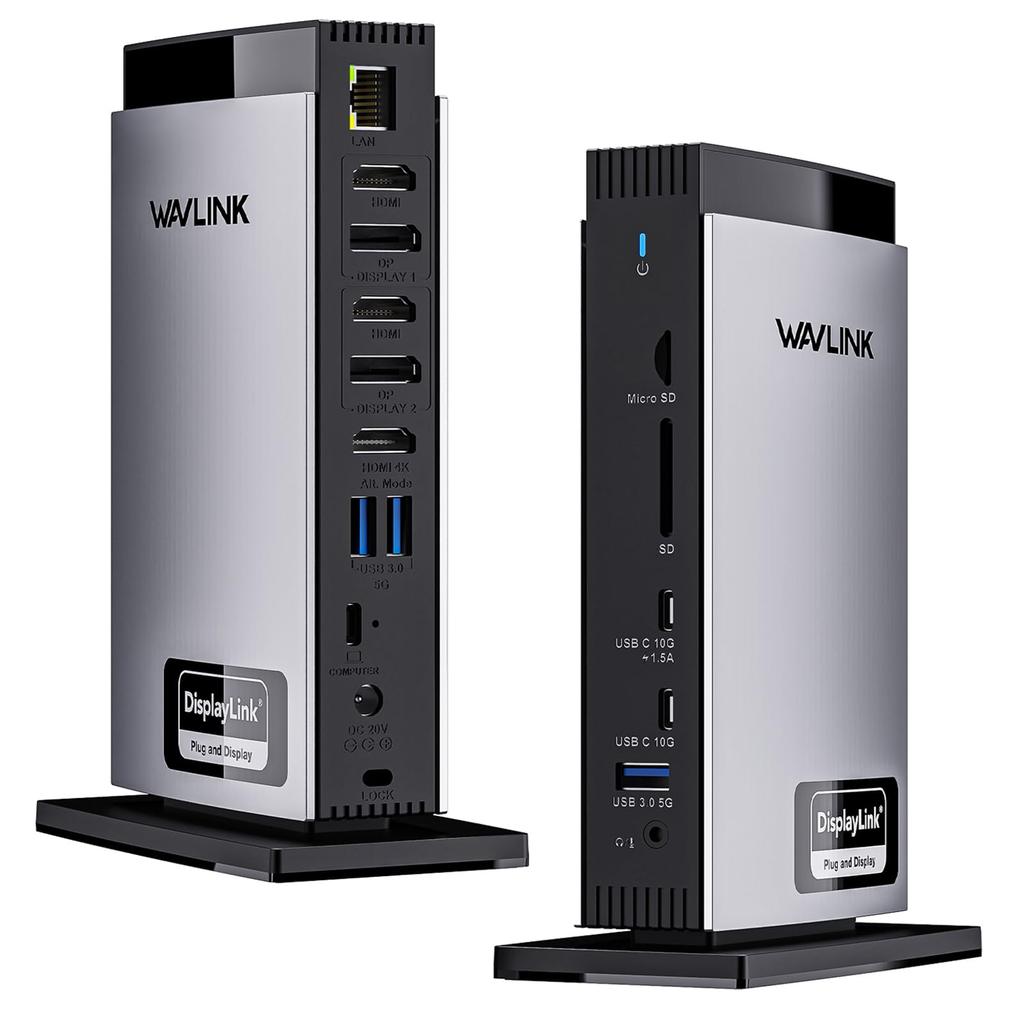

WAVLINK 15-in-1 Triple 4K DisplayLink Universal Docking Station. This universal docking station is compatible with full-featured Type-C laptops, allowing you to mirror your screen or extend your display to up to three external displays. It consolidates all your wired network and peripheral connections into one unit. Equipped with two DisplayPort and three HDMI ports, it supports up to triple 4K@60Hz display. It also supports up to 100W of laptop charging, with three USB-A (5Gbps) and two USB-C (10Gbps) ports. The included 130W power adapter allows simultaneous docking and charging, reducing the need for power adapters in the office or on the go. Equipped with a high-performance DisplayLink chipset. The DisplayLink DL-6950 chipset provides high compatibility with a wide range of operating systems. It's ideal for multitasking and expanding your workspace using multiple displays. Designed for M1, M2, and M3 Macs. Even with M1, M2, or M3-equipped MacBooks, it can support up to three external monitors, each with a different display.
Enables a single screen display**, dramatically improving work efficiency and productivity. Supports a variety of display modes: Extend or duplicate your Windows or macOS laptop screen on an external 4K monitor. Supports rotated display and clamshell mode. *Requires macOS 12.x or later. Fast, reliable charging solution: Use the 130W power adapter to charge your laptop from the host USB-C port at up to 100W. Stable power supply ensures reliable power delivery even during heavy workloads. High-speed data transfer completed in seconds: Three USB-A (5Gbps) and two USB-C (10Gbps) ports allow for fast transfer of large files, dramatically improving work efficiency. Card reader for photographers: The SD/TF card reader supports transfer speeds of up to 104MB/s, allowing for smooth data import, editing, and saving. Gigabit wired LAN port: Supports RJ45 Gigabit Ethernet (1000/100/10Mbps) for stable, high-speed wired network connections. 2-in-1 Audio & Microphone Equipped with a TRRS 4-pole audio jack, it allows you to easily connect headphones or a microphone.

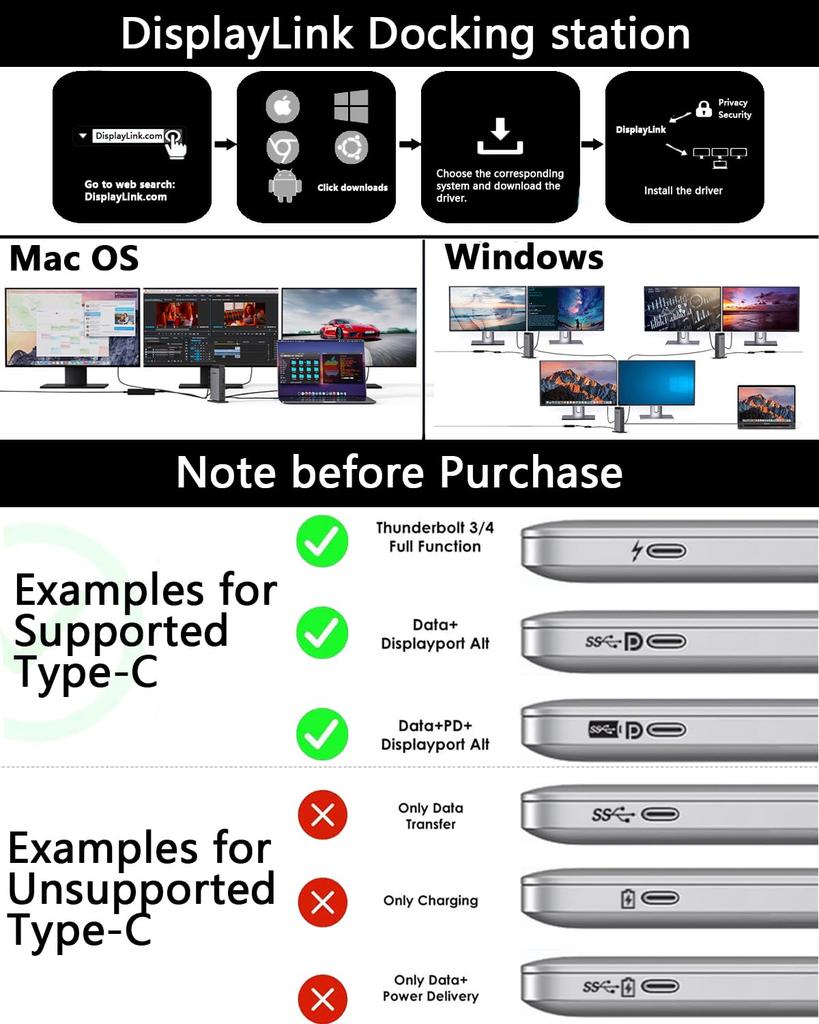

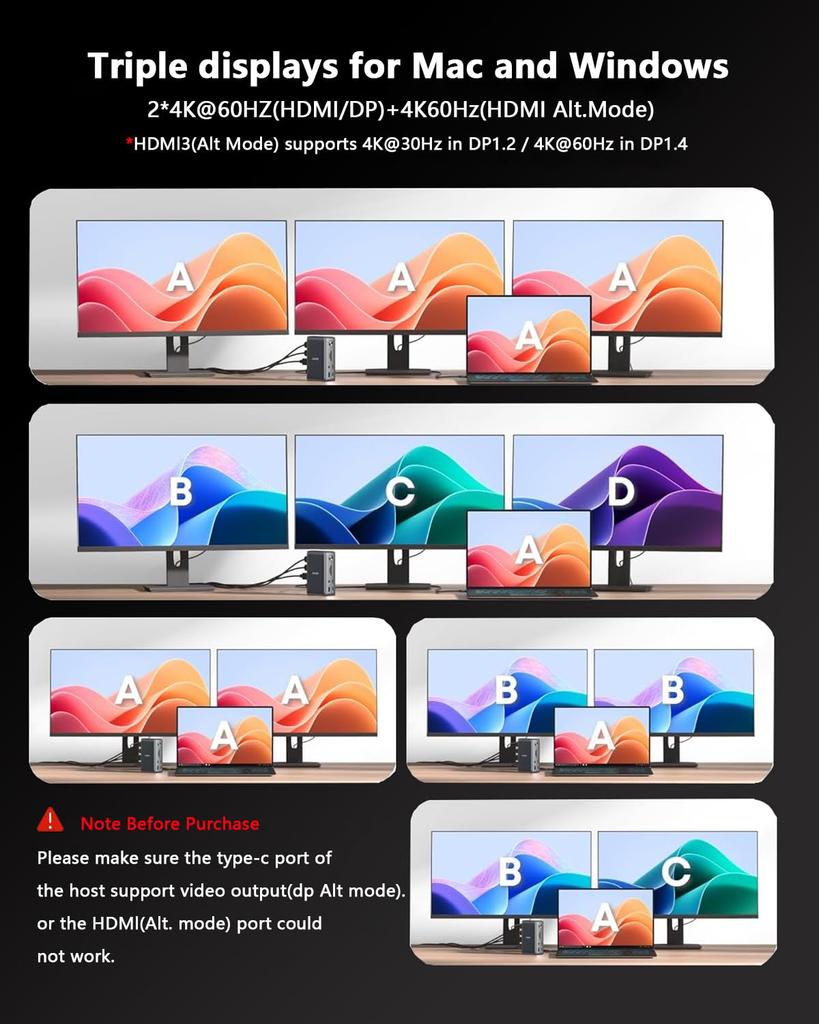

Yes. Supports calls, recording, and audio playback. Thoughtful design * Anti-slip rubber pads for improved stability * Kensington lock compatible for theft prevention * Ventilated design for efficient heat dissipation * Power ON/OFF button included * Power LED for instant confirmation of operating status --- How to install the DisplayLink driver 1. Visit the website "displaylink.com" 2. Search for the driver that corresponds to your OS 3. Download and install 4. Ready to use after setup Maximum supported resolution ① Single display * DP1.2 source: HDMI (Alt Mode): 3840 x 2160 @ 30 Hz Display 1/2 (HDMI/DP): 3840 x 2160 @ 60 Hz * DP1.4 source: HDMI (Alt Mode): 3840 x 2160 @ 60 Hz Display 1/2 (HDMI/DP): 3840 x 2160 @ 60 Hz ② Dual display * HDMI (Alt Mode) + Display 1/2: DP1.2: 3840×2160@30Hz＋3840×2160@6
0Hz DP1.4: 3840×2160@60Hz + 3840×2160@60Hz * Display 1 + Display 2: DP1.2/1.4: 3840×2160@60Hz + 3840×2160@60Hz ③ Triple display * HDMI (Alt Mode) + Display 1 + Display 2: DP1.2: 3840×2160@30Hz + 3840×2160@60Hz + 3840×2160@60Hz DP1.4: 3840×2160@60Hz + 3840×2160@60Hz + 3840×2160@60Hz Compatible OS * Windows 11 / 10 / 8.1 / 8 / 7 / XP / Vista * macOS 10.14 to 14.x or later * Android 5.0 or higher (USB OTG compatible) * Ubuntu 20.04 / 22.04 / 23.04 / 24.04 * Chrome OS / Harmony OS Main specifications * Model number: WL-UG69PD13Pro * Size: 12.2 × 6.6 × 18.5 cm * Weight: 570g * Material: ABS resin *
Power LED: Blue (The terminal configuration, cable length, and function list have been fully translated by clicking on your original text and omitted here) Important Notes * Not compatible with Linux / Unix / iOS / iPadOS * Not compatible with Plug & Play, requires DisplayLink driver * Type-C port must support power supply and video output * Mirror mode only for Android (up to 1080P) * Not compatible with HDCP protected content (Netflix, etc.) * DISPLAY 1/2 are for office use, not recommended for gaming Package Contents * Docking station x 1 * USB-C to C cable (E-mark) x 1 * 130W power adapter x 1 * Cable holder x 1 * Screwdriver x 1 * Quick start guide x 1
