HOZAN Stereo Zoom Total Zoom Working Bright and Sharp For Precision Work L-46 Microscope, Type, Magnification 7-45x, Ratio 6.4, Distance 84mm,

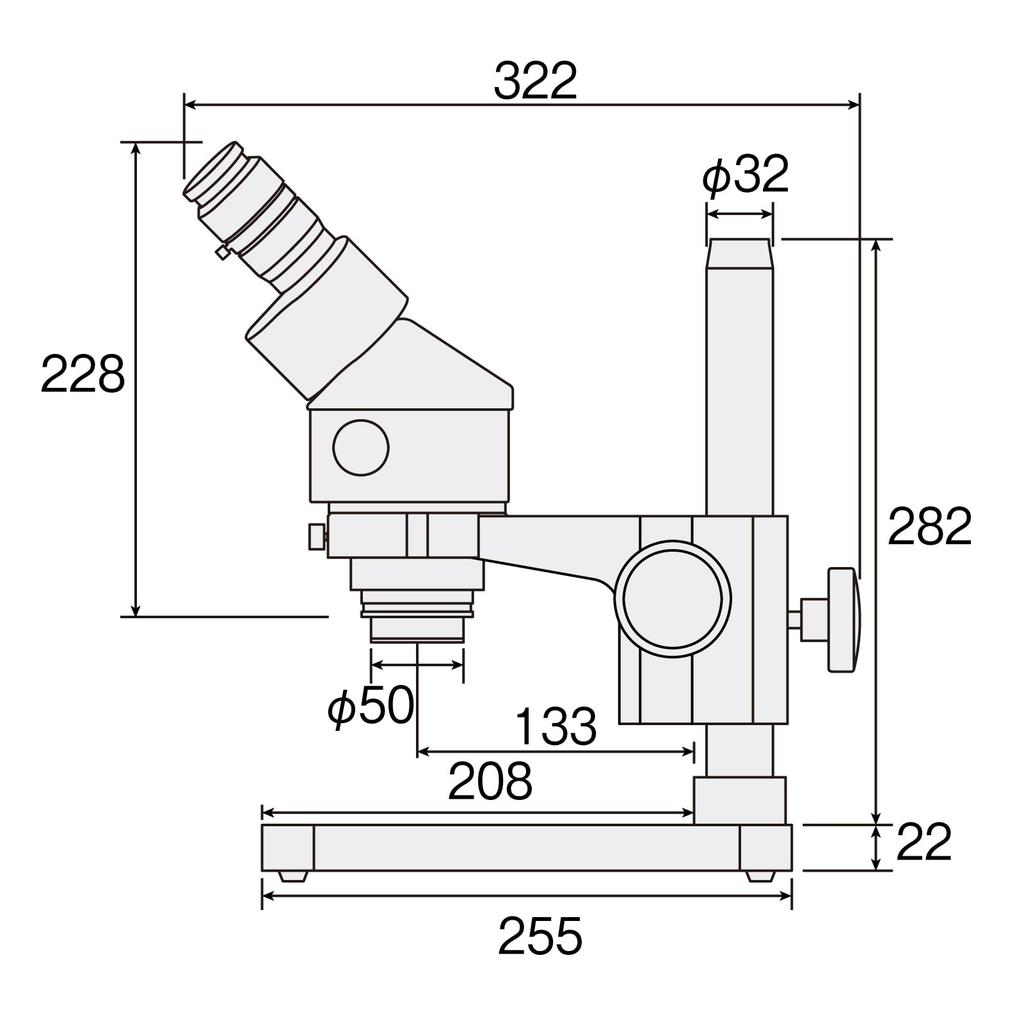

This zoom stereo microscope is specialized for precision work. Its bright, sharp images and large depth of field allow for more accurate inspection and assembly of small parts, as well as other detailed work. The magnification can be adjusted continuously from 7x to 45x. By combining eyepieces and conversion lenses, a wider range of magnifications and fields of view can be accommodated. The long working distance of 84 mm makes it easy to ensure a sufficient distance between the object being observed and the lens, providing a large working space.In addition, the distance from the support to the center of the lens is 133 mm, allowing for comfortable working posture. Total Magnification: 7-45X Objective Lens: 0.7-4.5X (Zoom Ratio: 6.4) Eyepiece: WF10X (L-546-10) Field of View: 28.5-4.4mmφ Diopter Adjustment: Independent left and right, ±5 diopter adjustment Working Distance: 84mm (with lens filter/ring attached) Focus Adjustment: Up and down tube (movable range: 50mm) Tube Type: Binocular 45° Inclined Tube Interpupillary Adjustment Range: 54-75mm, linked left and right Base Dimensions: 200 (W) x 255 (D) mm Support Height: 282mm Distance from Center of Lens to Support: 133mm Weight: 3.9kg [Uses] Inspection and assembly of electronic components: For inspecting and soldering small parts such as IC chips, resistors, and capacitors. Assembly of precision machinery: For assembling precision machinery such as watches, cameras, and medical equipment. Biological observation: For observing small insects and plants.
