Upgraded Battery Capacity Indicator with Voltage Alarm & Thermometer DC 10-100V Li-ion Lifepo4 Lead acid Battery Monitor 12V 24V 36V 48V 96V
Upgraded features:
Low power activates buzzer alarm
High temperature activates buzzer alarm
Detection of the battery temperature
Features:
1. Patented product, using neutral production packaging, the surface is dustproof and waterproof, with full for protection of the back cover
2. One-piece , anti-puncture sunscreen, soft button feels good experience
3. Color LCD material, clear light display, soft night display
4. Custom battery type, suitable for lead acid, lithium battery, lifepo4, nickel hydrogen battery
5. Display percentage remaining power, voltage, temperature value (degrees Celsius, Fahrenheit can be set)
6.10-100V wide voltage input, reverse connection for protection
7. Custom delay 10-120 seconds sleep
8. Shutdown sleep low power consumption
9. Simple installation, self-contained buckle free screw
10. Low voltage alarm
11. Over temperature alarm (shared built-in buzzer optional)
12. Battery temperature real-time detection (optional external temperature probe)
Upgrade
13. Open programming mode
Specifications

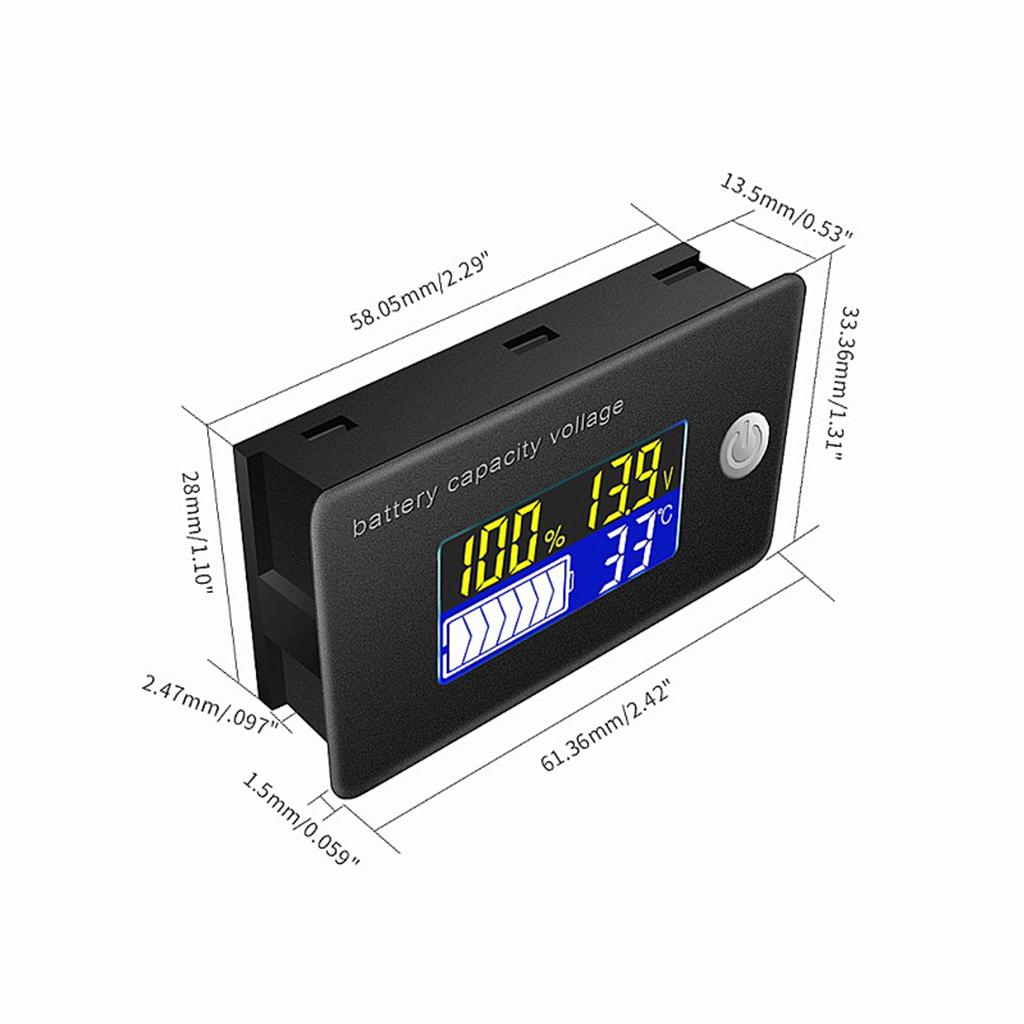

Product size 61.5*33.5*13.5 mm (2.42*1.32*0.53in)
Mounting size 58.5*28.5 mm (2.30*1.12in)
Display size 33*16.5 mm (1.30*0.65in)
Operating voltage 10V to 100 V
Operating power 8/10 mA backlight on
Delay for time adjustable 10~120S (10.20.30.60.120 seconds adjustable)
Sleep power consumption 15/20 for uA 20V
Voltage accuracy ±0.1 / ±0.5 %
Temperature accuracy ±0.5 / ±1 °C Built-in standard (external 30CM probe option)
Temperature range -19 ~ 80 °C Celsius
Temperature range -2.2~ 179 °F Fahrenheit
Over temperature alarm adjustable 0 ~ 79 °C (1 second interval after over temperature) buzzer temperature value flashing
Over temperature alarm adjustable 0 ~179 °F (1 second interval after over temperature buzzer) temperature value flashing
Low-voltage alarm adjustable 10.5~ 60.0 V (1 second interval after low voltage buzzer) voltage value flashing
Working temperature -10 ~65 °C
Notice:
The default setting is suitable for use in 12V lead acid batteries.
If you need to set up other types of batteries, or go into settings mode and delay for time switch settings, please contact us, we will send electronic instructions to you.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Please allow 1-3mm slight deviation due to manual measurement. Thank you!
Package included:

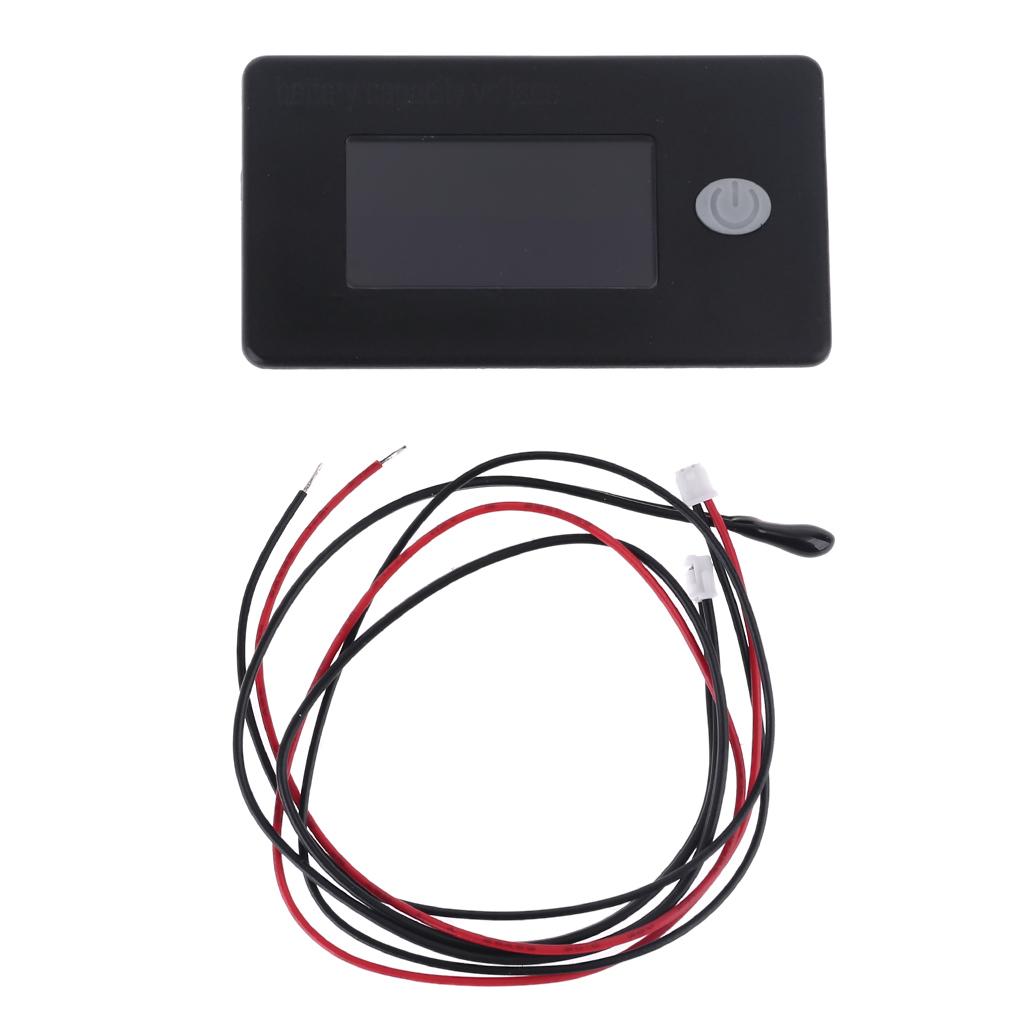

1 * Upgraded Battery Capacity Indicator Voltmeter with Temperature Display
1 * Cable
1 * Temperature Probe
