4.0 Inch Touching Screen 3G Vector Analyzer SAA-2N Analyzer Shortwave HF VHF with Iron Housing

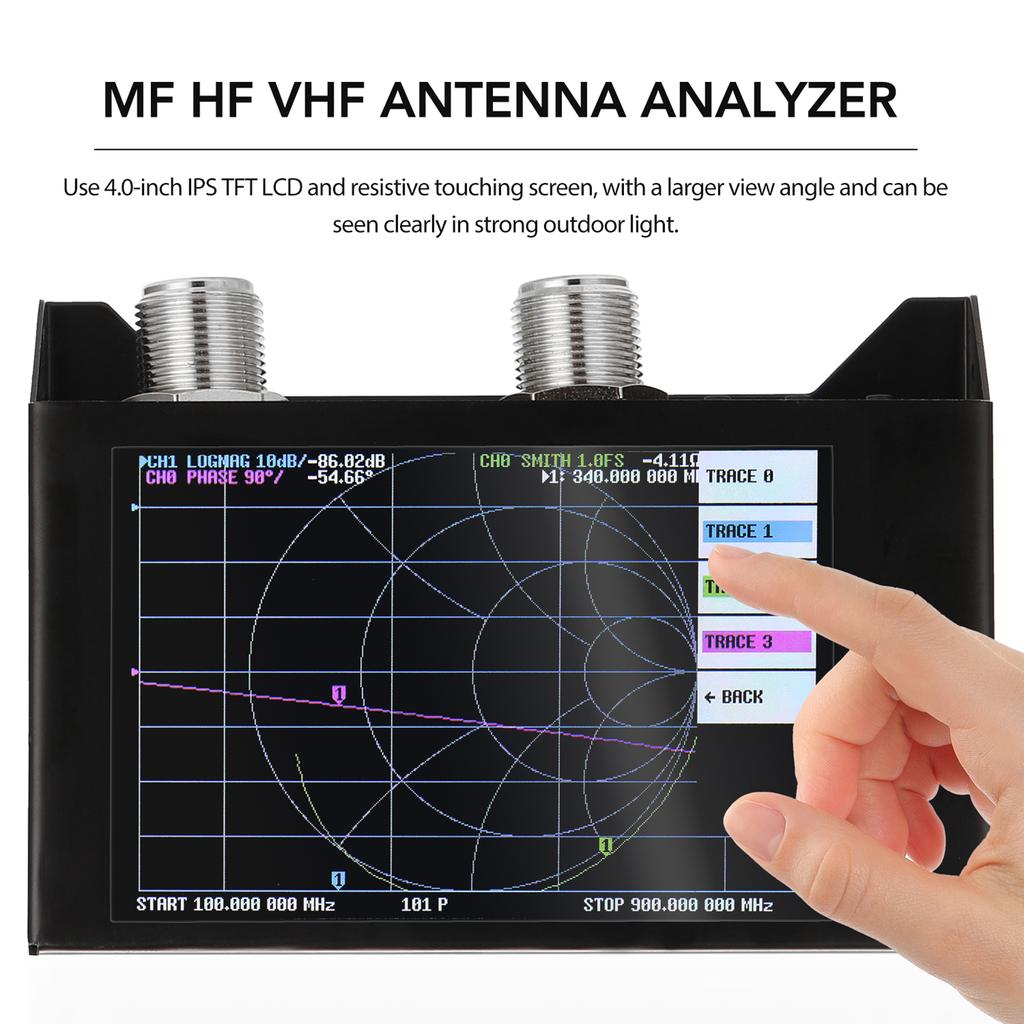

Made of fine quality material, practical, has a service time, you do not need to change it often. Portable and compact, easy to operate and carry, also easy to storage. 4.0 inch LCD touching screen display. let you see the data more clearly. This 3G Vector Analyzer with 4.0 inch touching screen and the measurement frequency ranges is 50KHz.3GHz, if you need it, come and have a try, it will not let you down. Features: Made of fine quality material, practical, has a service time, you do not need to change it often. Portable and compact, easy to operate and carry, also easy to storage. 4.0 inch LCD touching screen display. let you see the data more clearly. Measurement frequency ranges is 50KHz.3GHz, has a wide applications. High stability, high sensitivity and high accuracy, greatly improved performance. EVA storage bag is convenient for storage and carrying. Specifications: Main material: PCB+iron Color: black Battery: 1 * lithium battery, 3000mAh (included) Measurement frequency range: 50KHz-3GHz Frequency tolerance: less than 2ppm Frequency stability: less than 0.5ppm System dynamic ranges (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz) S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz) Sweeping rate: 100 points Celsius second Display: 4.0 inch, 320 * 480 USB interface: USB Power supply: USB, maximum recharging current 1A Battery connector: JST-XH 2.54mm Maximum sweeping points (on device): 201 Maximum sweeping points (USB): 1024 Port 2 return loss (1.5GHz): 20dB typ Port 2 return loss (3GHz): 13dB MIN Item size: 117 * 85 * 25mm Celsius 4.6 * 3.3 * 1.0in Item weight: 368g Celsius 13.0ounce Package size: 215 * 137 * 85mm Celsius 8.5 * 5.4 * 3.3in Package weight: 972g Celsius 2.1lb Packing List: 1 * SAA-2N Host 1 * USB Data Cable 2 * 500mm N-type Male to Male RG142-PUR Cable 1 * N-type Male Calibration Kit-OPEN 1 * N-type Male Calibration Kit-SHORT 1 * N-type Male Calibration Kit-LOAD 1 * N-type Female to Female Connector 1 * EVA Storage Bag 1 * Touching Screen Paddle and Lanyard
