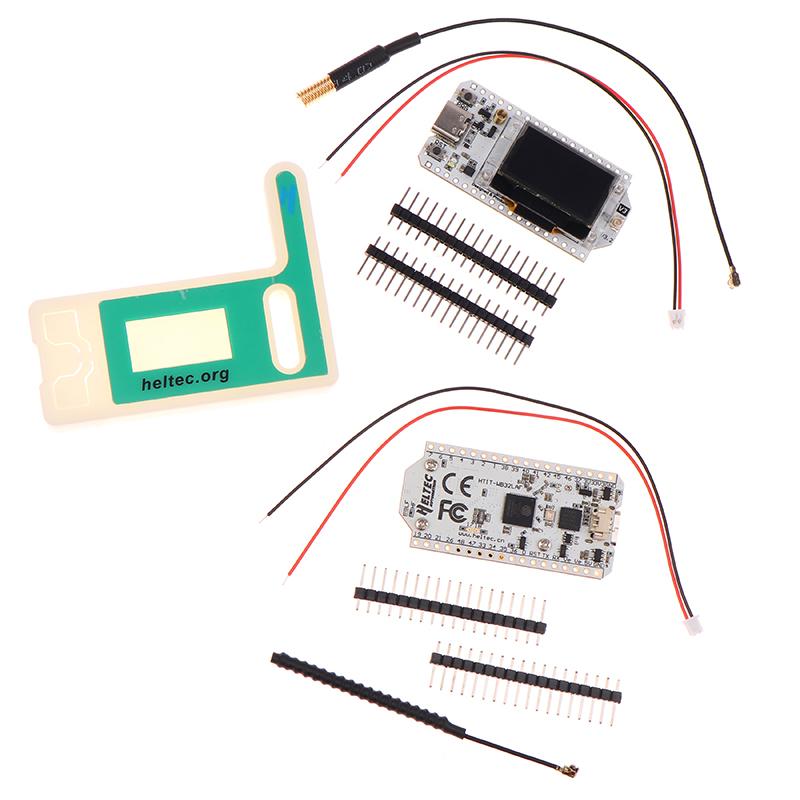

Meshtastic Wifi Heltec Lora 32 V3 With Case 868Mhz Esp32 Oled Sx1262 0.96 Inch Blue Oled Display Development Board For Arduino

Main Features ● Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

● SX1262 LoRa node chip.

● Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and protection measures.

● Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

● Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and information.

● Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

● Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

● Support the Arduino development environment.

● With good RF circuit design and low-power design. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
