◆Ensure safety while maintaining a beautiful view
Digital Rearview Mirror with 60fps Rear Camera
High-quality, Full HD 60fps video from the wide-angle rearview camera at the rear of the vehicle is displayed on a 10.88-inch built-in monitor.
The field of view is wider than conventional rearview mirrors, reducing blind spots caused by the vehicle body or luggage.
The rearview mirror also features a function to zoom in and out of the display area, making it easier to judge distances.
When backing up, guidelines are displayed to help ensure safe parking.

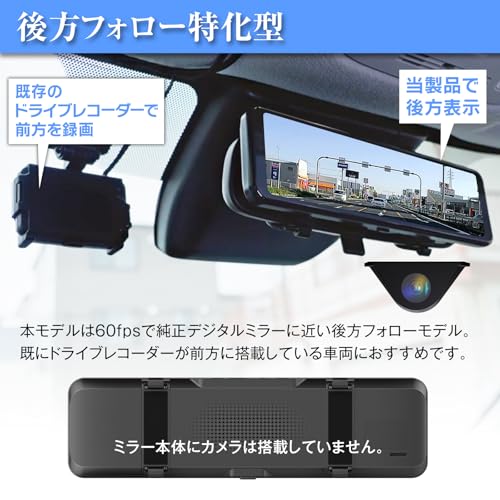

◆Specialized Rearview Model
No need to worry if the back seat or trunk is packed with luggage, reducing visibility.
This digital rearview mirror is specialized for rearward visibility.
◆Adjustable Rearview Camera Display Area (Zoom In/Out)
The rearview camera magnification (display range adjustment) can be adjusted from x1 to x20 in the settings menu.
Easily switch to the "zoomed" view or return to the original x1 setting with a simple operation.
The zoom settings are remembered, so you can view the monitor screen at the same zoomed size the next time.
◆Full HD High-Resolution Rear Camera with SONY STARVIS IMX462 Sensor
The rear camera is equipped with a SONY STARVIS IMX462 2-megapixel sensor.
The camera boasts 1080P high-resolution video at 60 fps, delivering smooth, natural, high-definition images at a frame rate roughly twice as fast as standard models. You can easily check the rear view at any time with images that closely resemble what you see with your own eyes.
◆Rear camera with HDR+WDR provides a clear view of hard-to-see areas behind you, even at night!
The rear camera uses a backlight-resistant image sensor (HDR+WDR compatible) that compensates for differences in brightness to provide clear, crisp images. This improves visibility in bad weather (rain, snow, fog, and icy roads at night). It also reduces blown-out highlights and crushed shadows at tunnel entrances and exits. With excellent color reproduction, the monitor displays bright, low-noise, and clear images even at night.
◆The 10-inch size is ideal for the interior of compact and kei cars.
Designed to be roughly the same size as a standard car's factory rearview mirror, it minimizes interference with surrounding equipment and sun visors, allowing the visor to be used even after installation.
◆Reverse Linkage Support

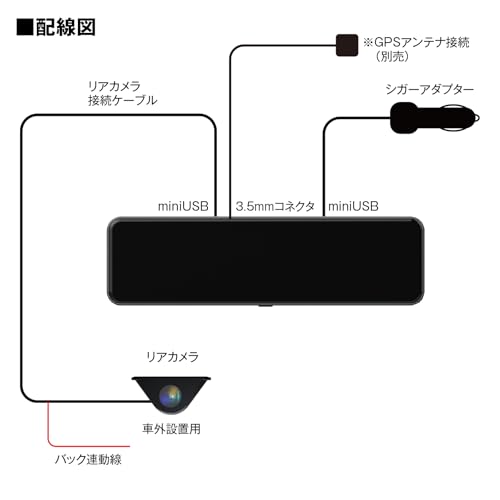

By connecting the reverse linkage line to the reverse lamp wiring, the rear camera screen will automatically display when reverse gear is engaged.
You can also display/hide the parking back-up guide lines and adjust their position in the settings menu.
◆GPS Function Support (Requires the optional GPS antenna: MDR-GPS02, sold separately)
By connecting the optional GPS antenna, you can display your vehicle speed obtained via the GPS antenna on the screen.
In addition, the time is automatically adjusted when a GPS signal is received, eliminating the need for manual time setting.
◆Simple, Easy-to-Operate Screen Icons
To zoom in/out and adjust the guideline settings, simply tap the monitor and press the displayed icon to access the settings screen.
The icons are very simple, without the complex units and detailed settings found in dashcams. Anyone can easily operate it right out of the box.
◆Easy-to-Use Touch Panel
The electrostatic touch panel allows for operation with a light touch.
Intuitive operation is possible by simply touching the screen.
◆Half-Mirror Type
When the LCD is off, the display becomes a full-screen mirror! The LCD can also be turned on/off with a single touch of the power button.
◆Digital TV Noise Reduction Measures
This product is designed to minimize interference with digital terrestrial TV reception and navigation system GPS reception. (Based on our company standards)
◆Versatile Mounting Band Type
Easy installation: Simply clamp the product to your existing mirror with a rubber band.
No specialized installation skills are required.
◆Set the power off time with the OFF Timer Power Cable with Voltage Monitoring Function (sold separately: CAB-DVR06)!
Using the OFF Timer Unit (sold separately: CAB-DVR06) allows for 10-second or 30-second timer settings.
Setting the power off time makes getting in and out of the car immediately after turning off the engine safer.
◆ Expand compatibility with a wider range of vehicles with the rear camera extension cable (sold separately: MDR-CAB10-USB-4P / MDR-CAB15-USB-4P)
(Sold separately: MDR-CAB10-USB-4P / MDR-CAB15-USB-4P) By using the rear camera extension cable, you can use it in trucks, campers, kitchen vans, and more.
●Detailed Specifications

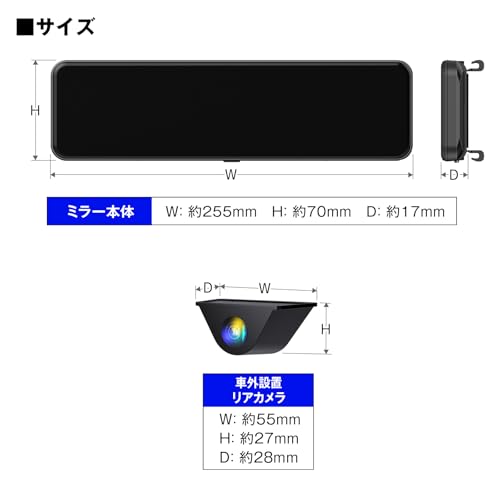

Monitor: 10.88-inch IPS LCD (1920 x 480 pixels)
《Rear Camera》
Frame Rate: 60 fps
Camera Angle of View: H=115° V=61° D=136°
F-Speed: F.NO.≧1.5
Power Supply: DC12V/DC24V (Main Unit Power Input: DC5V)
Operating Temperature Range: -20°C to +70°C
Warranty: 1 Year
Product Model Number: MR-C001A

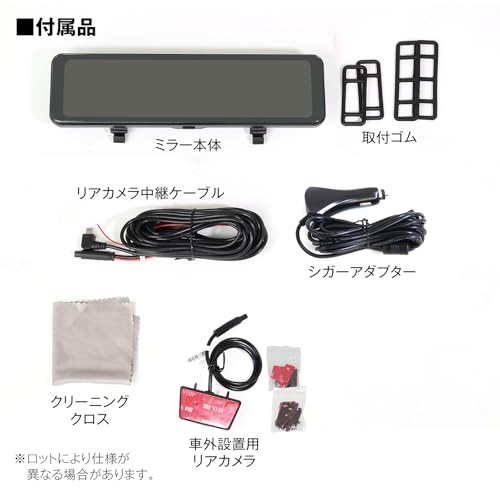

●Product Contents
Main Unit x 1
Cigarette Lighter Power Cable (3.5m) x 1
Rear Camera x 1
Rear Camera Relay Cable (6m) x 1
Instruction Manual (Warranty Card) x 1
Product photos are for illustrative purposes only. Please note that the actual product may differ.
[Rear View Model] No need to worry about zero visibility when the back seat or trunk is packed with luggage. This digital rearview mirror is designed specifically for rearward visibility.
Adjustable rear camera display area (zoom/zoom): The rear camera magnification (display area adjustment) can be adjusted from x1 to x20 in the settings menu. Easily switch to the magnified screen or return to the original x1 setting. The zoom settings are remembered, so you can view the monitor screen at the same magnified size from the next time.
Full HD rear camera with SONY STARVIS IMX462 sensor: The rear camera uses a SONY STARVIS IMX462 2-megapixel sensor. The camera boasts 1080P resolution, delivering smooth, natural, high-definition video at 60 fps, a frame rate roughly twice that of standard models. Easily check the rear view at any time with video that closely resembles what you see with your own eyes.
Reverse linkage support: By connecting the reverse linkage line to the reverse lamp wiring, the rear camera screen will automatically appear when you engage reverse gear. You can also display/hide the parking guide lines and adjust their appearance in the settings menu.
[GPS function supported (requires optional GPS antenna: MDR-GPS02)] By connecting the optional GPS antenna, you can display the vehicle speed obtained by the GPS antenna on the screen. Furthermore, the time is automatically corrected when a GPS signal is received, eliminating the need to set the time manually.
