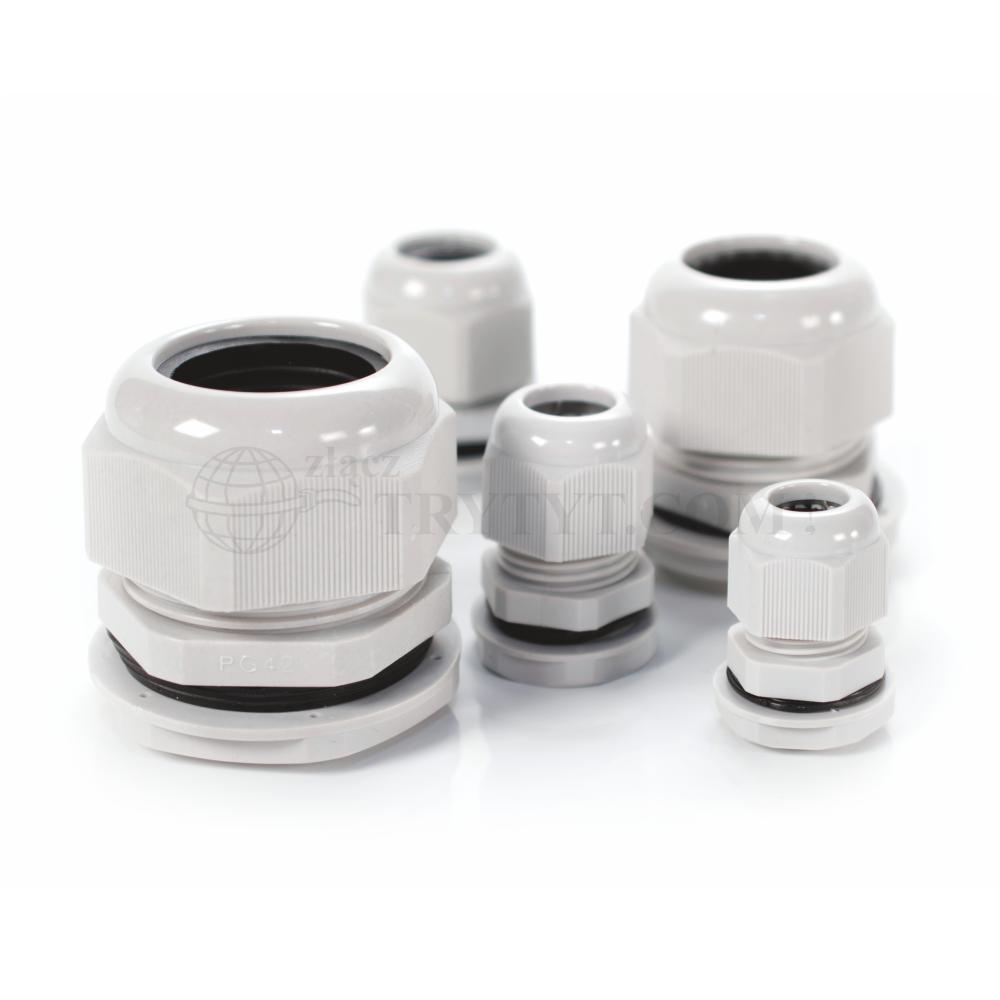

Cable gland with nut DP-21 IP68 13-18mm gray Borpetrol PG-21

PG cable glands are designed to seal cable penetrations through electrical device enclosures. The gland's special design prevents twisting of wires inside the cable. PG cable glands are silicone-free and made of weather-resistant polyamide 6.6. They provide IP68 water and dust resistance. Technical data Thread type PG Nominal thread size metric/PG 21 Thread pitch 1.588 mm Thread length 10.4 mm For cables with diameters 13 ÷ 18 mm Material Plastic Material grade Polyamide (PA) Surface protection Other Halogen-free No Glass-fiber reinforced No Protection class (IP) IP68 Impact resistance No Color Light gray Cable kink protection No With locknut Yes Snap-in mounting in the hole No Model Straight Sealing insert multi-conductor No Gland for flat cable No With strain relief No Sealing type Seals Divisible cable gland Yes Operating temperature range -40 ÷ 85 °C Explosion-proof version No For gas explosion hazard areas None For dust explosion hazard areas None For armored cables No Designed in accordance with the Electrical Compatibility Directive No Shielded No
