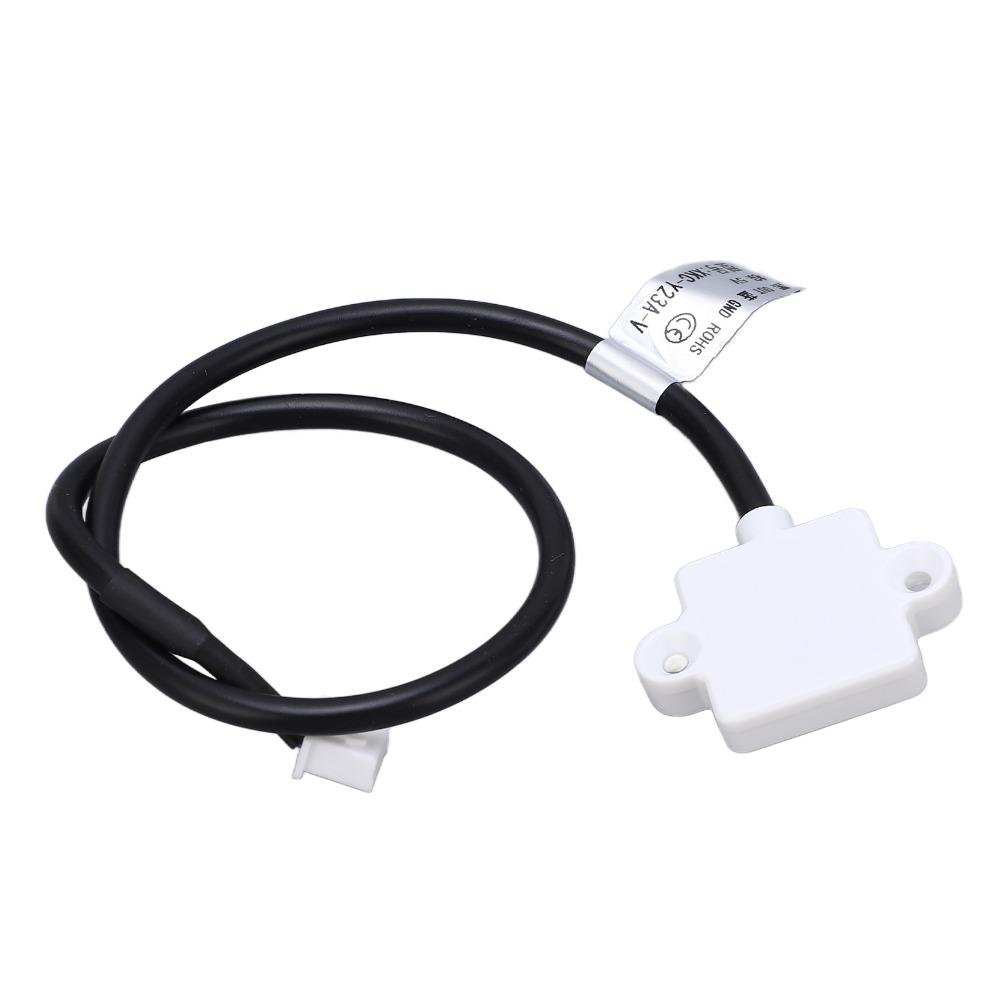

High Low Level Output Sticker Liquick Level Sensor Liquid Level Sensor Liquid Level Detection

Label:Yes Smart Testing: Comes with high accuracy within 1.5mm(0.06in), the contactless level sensor enables wide testing range and easy usage. Reliable Work: This contactless level probe has strong anti interference ability against external electromagnetic interference. Extensive Use: Enables wide application in testing alkali, boiling water and various liquids, stable and sensitive. Wide Matching: High and low level output, suits for connecting various circuits and product applications, and 5V power adapters. Easy to Install: Designed to have a compact size and a light weight as well, the water level transmitter is simple to install.

Specification Item Type: Contactless Water Level Sensor Product Model: XKC-Y23A-V External Input Voltage Vin: DC3.3V-5V Color: White Size: 34*23.5*6.1mm(1.34*0.93*0.24in) Output Mode: High and low level. Current Consumption: 5mA ± 2mA Response Time: 500mS Working Ambient Temperature: -20 ~ 105℃ Working Environment Humidity: 5%~100.0% Liquid Level Accuracy: Approx. ±1.5mm/ 0.06in Wire length: Approx. 300mm/ 11.81in (± 10mm / 0.39in). Definition of Wire Terminal: XH2.54-3P terminal, the brown one is the positive pole of power supply, the black one is the signal output terminal, and the blue one is GND. Waterproof Performance: IP67 Product Material: PC VO fireproof material. Certification: CE, ROHS-2.0 Liquid Level Sensor Probe: It is installed at the upper and lower parts of the outer wall of the measured container, which are the high and low level of liquid level. The non metallic container does not need to be opened, and it is easy to install and does not affect production. The probe can detect the liquid level of various hazardous substances, strong alkalis and other liquids in high pressure closed containers. The measured liquid is required to conduct electricity, and the contacting surface is nonmetal, widely used.

Package List 1 x Contactless Water Level Sensor

Note 1. Do not use double sided adhesive tape made of foam cotton. 2. The container must be made of insulating material. 3. The container shall be made of materials that are uniform and devoid of air inter layer, bubble, water absorption and dielectric constant that are not easy to change.
