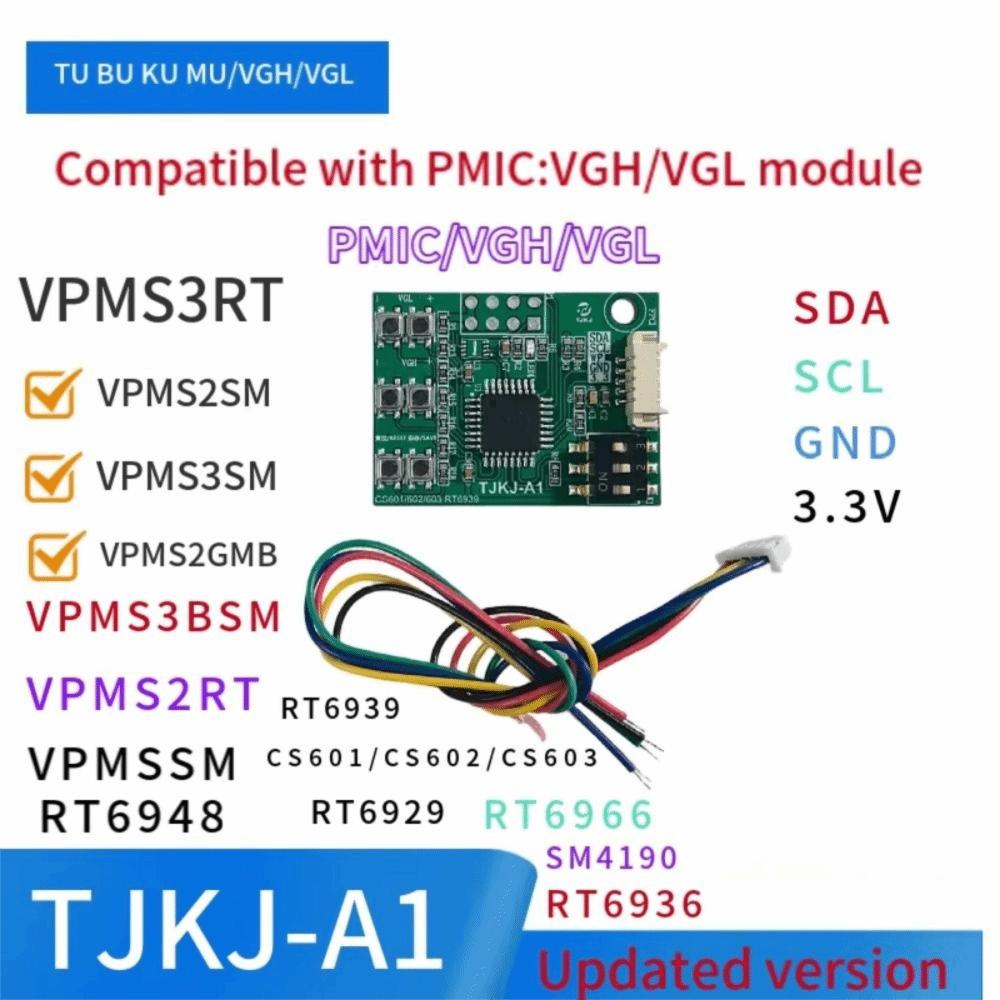

PMICS Module Voltage Module Regulation Board Programmer Module Board Panel Repair

Label:Yes Package Includes:1 Pc Voltage Module Size:4*2cm(1.57*0.79in) Color:As the picture shown Material:Fiberglass Board Type:Voltage Module

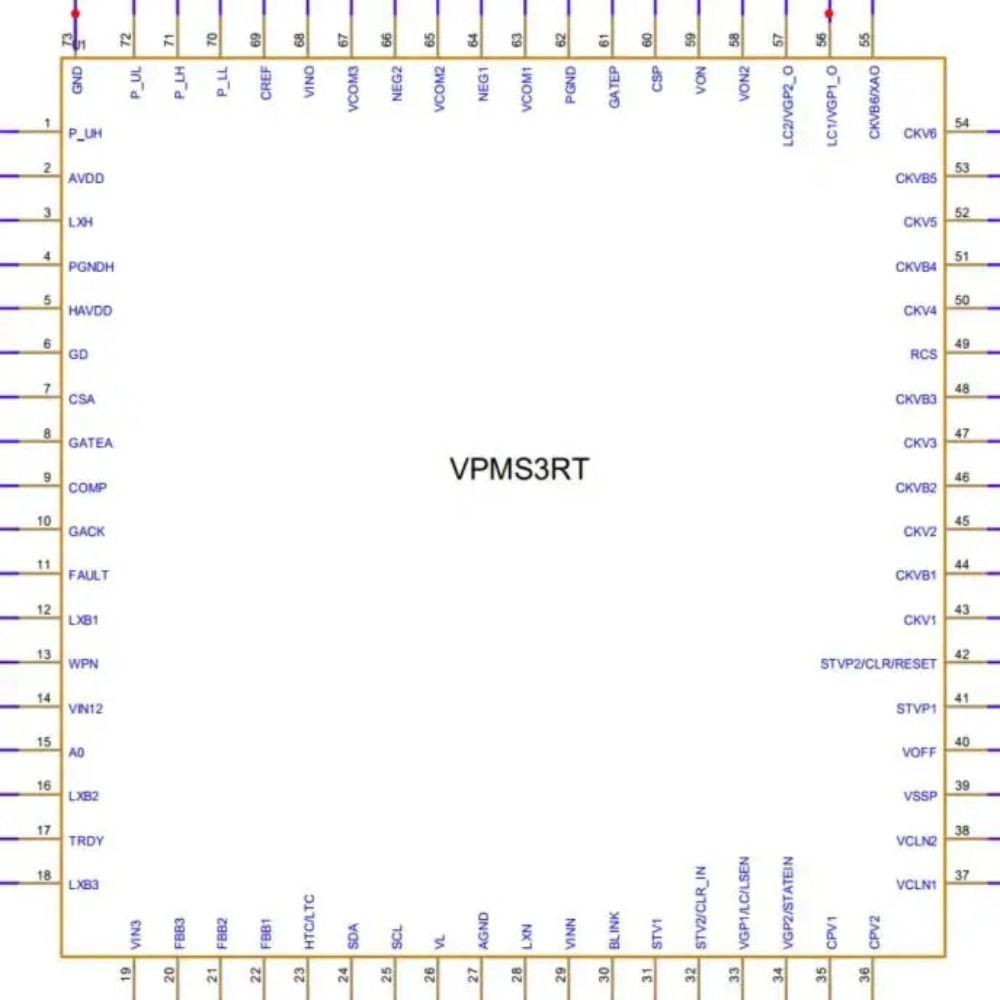

TU KU MU BU NU AU CU DU CS601 CS602 CS603 RT6948 RT929 RT6936 RT6936 SM4190 série VGH VGL módulo de regulação de tensão VPMS3RT VPMS2SM VPMS3SM VPMS2GMB VPMS2RT VPMS3BSM VPMS1RT VPMS1GM CS601 02 03 RT6948 RT63939 RT6929 RT6936 VGH VGL voltage module Version B with SM4191 program 1. DIP switch selection CS601 addr:0x48 ON:1 2 3 CS602 /iI946 addr:0x69 ON: 2 3 CS603 addr:0x66 ON:1 3 RT6966 addr:0x66 ON:3 VPMS3RT addr:0x42 ON:1 2 VPMS2SM VPMS3SM VPMS2GMB VPMS2RT VPMS3BSM VPMSSM RT6939 addr:0x46 ON:2 RT6948 RT6929 RT6936 SM4190 addr:0x46 ON 1 VPMS1RT addr:0x45 123 VPMS1GM Note: CS603 RT6966 cannot operate even though the addresses are consistent and the dialing error occurs. 2. Operation tips 1. After powering on, the LED will light up after waiting for 1S; 2. If the device cannot be read, it will be always on; you need to check whether the DIP switch correctly corresponds to the IC model. 3. After reading the device, it will light up and then go out. After it goes out, you can start operating; 4. If the operation is successful, the device will light up once. If the operation fails, the device will light up twice. Be careful not to press the add or subtract button 0.5S too fast. If it is too fast, the protection will be triggered and the power needs to be cut off and restarted before operation. 5. After replacing the device target board and resetting the DIP switch, the saved data will be cleared and needs to be saved again; 6. After pressing save, the device data will be saved in the small board; 7. The saved data will be set to the device after the device is powered on and the correct device is read; if the device is inconsistent, the data information will be cleared; 8: If you use a used small board with another board of the same IC model, you need to press the reset button to clear the information recorded by the previous machine. 9: Generally, the separate TCON of CS602 needs to be connected to the WP integrated board. The timing of the Hisense integrated board is faster and calculated in milliseconds according to the transmission speed. After you need to connect all the wires, after powering on, insert the small board to adjust and save directly.
