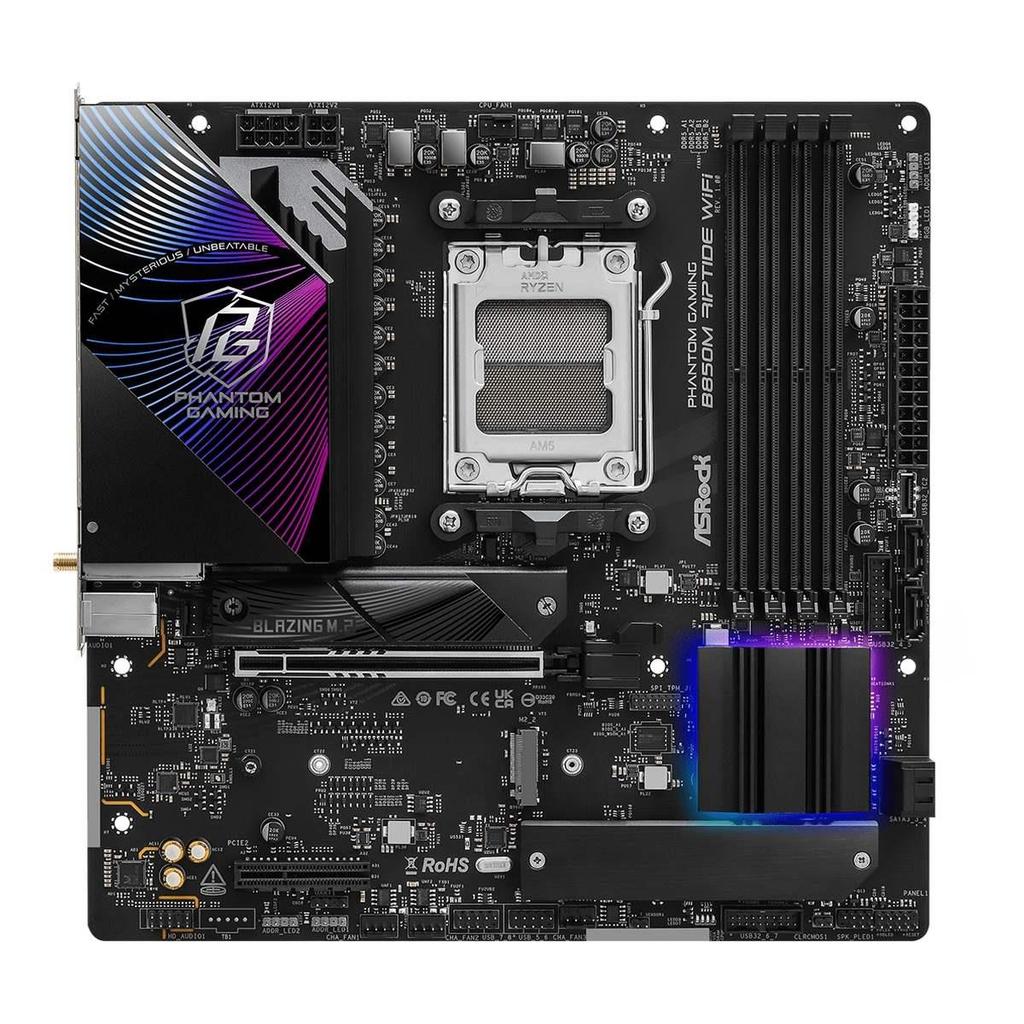

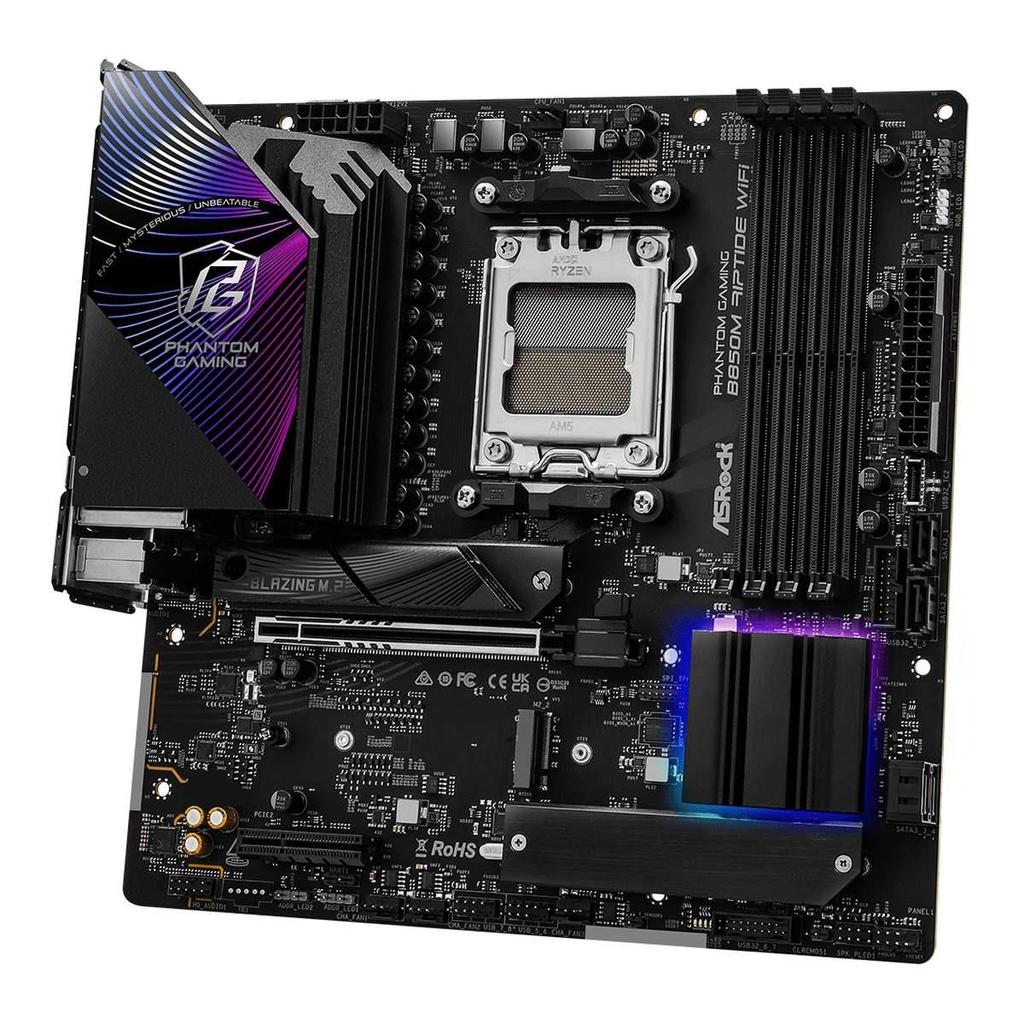

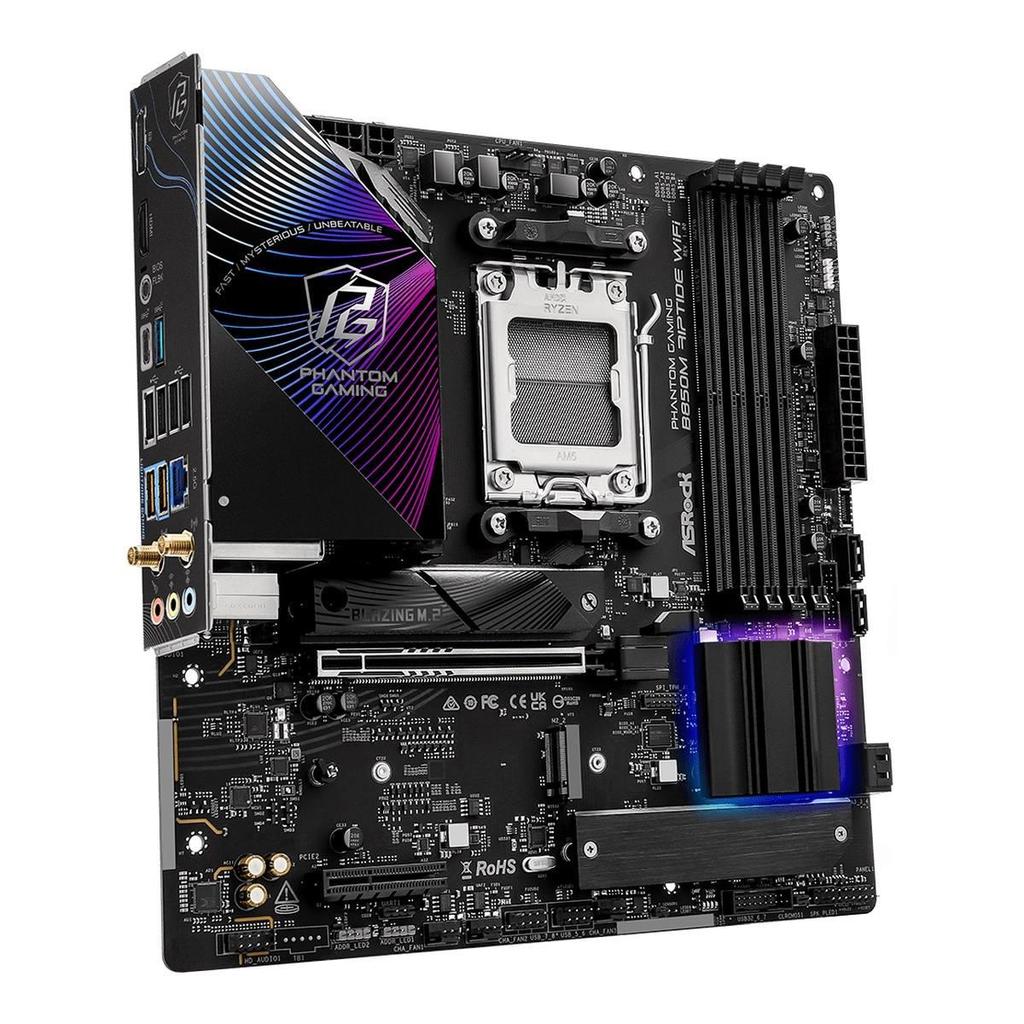

Płyta ASrock B850M Riptide WiFi AMD B850 DDR5 SATA3 M.2 USB3.1 WiFi BT PCIe5.0 AM5 mATX
Specyfikacja:PamięćIlość złącz pamięci DDR5: 4Maksymalna wielkość pamięci: 256 GBTryb pracy pamięci RAM: Dual ChannelStandard pamięci: DDR5-8000+ (OC)Uwagi do pamięci RAM:Supports DDR5 ECC/non-ECCSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modulesGrafikaWbudowana karta graficzna: Brak lub AMD RDNA™ 2 (zależy od procesora)Gniazda karty graficznej:HDMIDisplayPortUwagi do karty graficznej:- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120HzDźwiękZintegrowana karta dźwiękowa: Realtek® ALC 1220 7.1-Channel High Definition Audio CODECGniazda karty dźwiękowej:3x Audio JackWewnętrzne gniazdo audio przedniego paneluUwagi do karty dźwiękowej:- Nahimic Audio- Individual PCB Layers for R/L Audio Channel- Impedance Sensing on Rear Out port
Łączność / komunikacjaPort LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)Uwagi do karty sieciowej:Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority ControlMaksymalna ilość portów USB 2.0: 8Maksymalna ilość portów USB 3.x: 9Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-CGniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.0 Type-CPort Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/bePort Bluetooth: Bluetooth V5.4Uwagi do WiFi / BT:- 802.11be 2x2 Wi-Fi 7 Module- Supports 2.4GHz/5GHz/6GHz frequency band- Supports 160MHz channel bandwidth with 6GHz frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports MU-MIMOThe Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.TechniczneGniazdo procesora: Socket AM5Obsługiwane typy procesorów: AMD Ryzen™Uwagi do procesora: - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series ProcessorsFormat płyty: Micro-ATXChipset płyty głównej: AMD B850
ZłączaZintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2Uwagi do kontrolera SATA:CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280PCIe Gen5x4 (128 Gb/s) modeChipset:- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2(32 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4(64 Gb/s) mode- 4 x SATA3 6.0 Gb/s ConnectorsSupports NVMe SSD as boot disksM2_1 is the first priority for M.2 installation.M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2)series processors.Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devicesRequires additional M.2 NVMe expansion cards to support RAID 10Złącza PCI Express x16: 1Złącza PCI Express x4: 1Uwagi do złącz PCI:CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 modeChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BTPCIe WiFi module- 15µ Gold Contact in VGA PCIe Slot (PCIE1)PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2)series processors.Supports NVMe SSD as boot disksPort PS/2: BrakPort szeregowy (COM): BrakPort równoległy (LPT): BrakInne porty i gniazda:Thermistor Cable HeaderPower LED and Speaker HeaderRGB LED Header3x Addressable LED Headers2x CPU Fan connector(s)3x Chassis Fan ConnectorsFront Panel Audio ConnectorBIOS FlashBack button2x Antenna PortsSPI TPM header (14-1pin)Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)

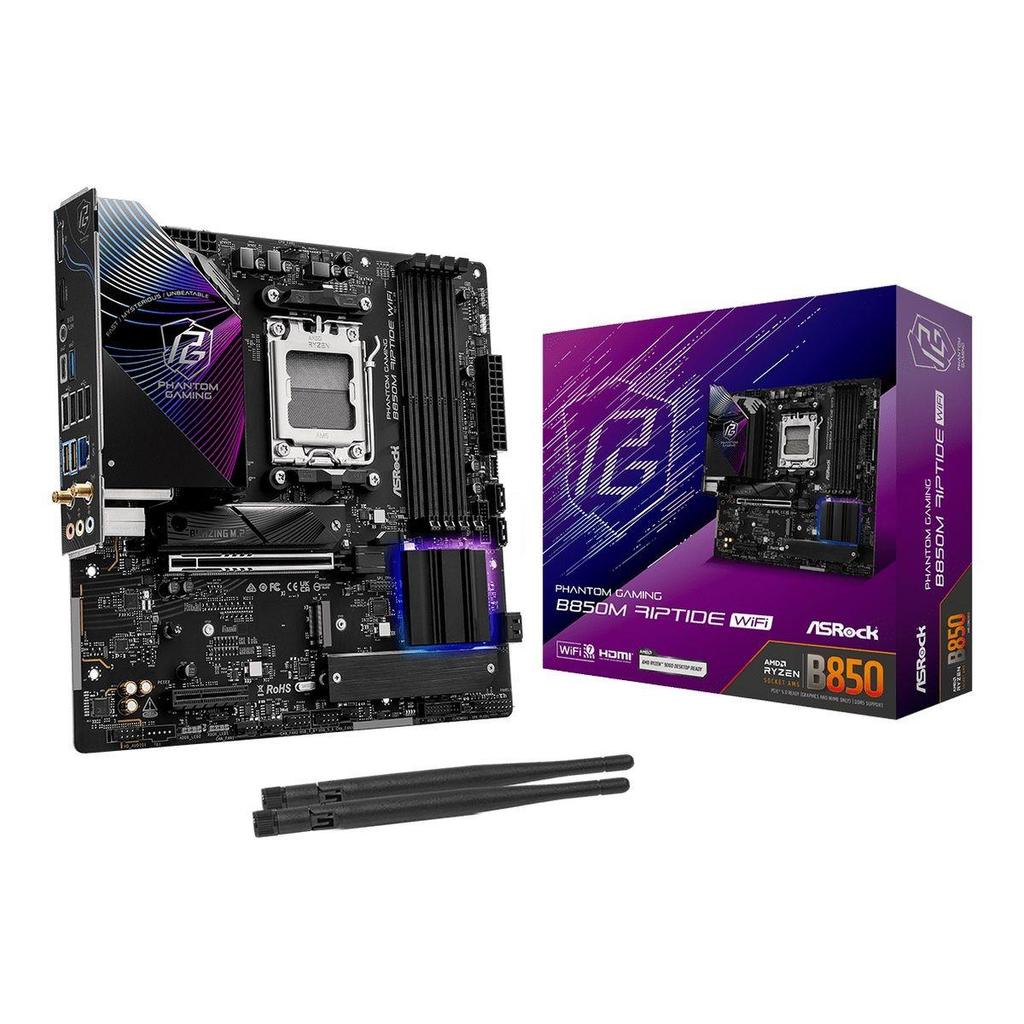

FizyczneWymiary [S x W] (mm): 244 x 244BIOSBIOS: - 256Mb AMI UEFI Legal BIOS with GUI supportPozostałe parametryOpakowanie: BOXWyposażenie dodatkowe:- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable- 2 x Screws for M.2 Sockets- 1 x Standoff for M.2 SocketZawiera baterię / akumulator: TakInformacje dodatkowe:OS: Microsoft Windows® 10 64-bit / 11 64-bitCertifications: FCC, CE, ErP/EuP ready(ErP/EuP ready power supply is required)
