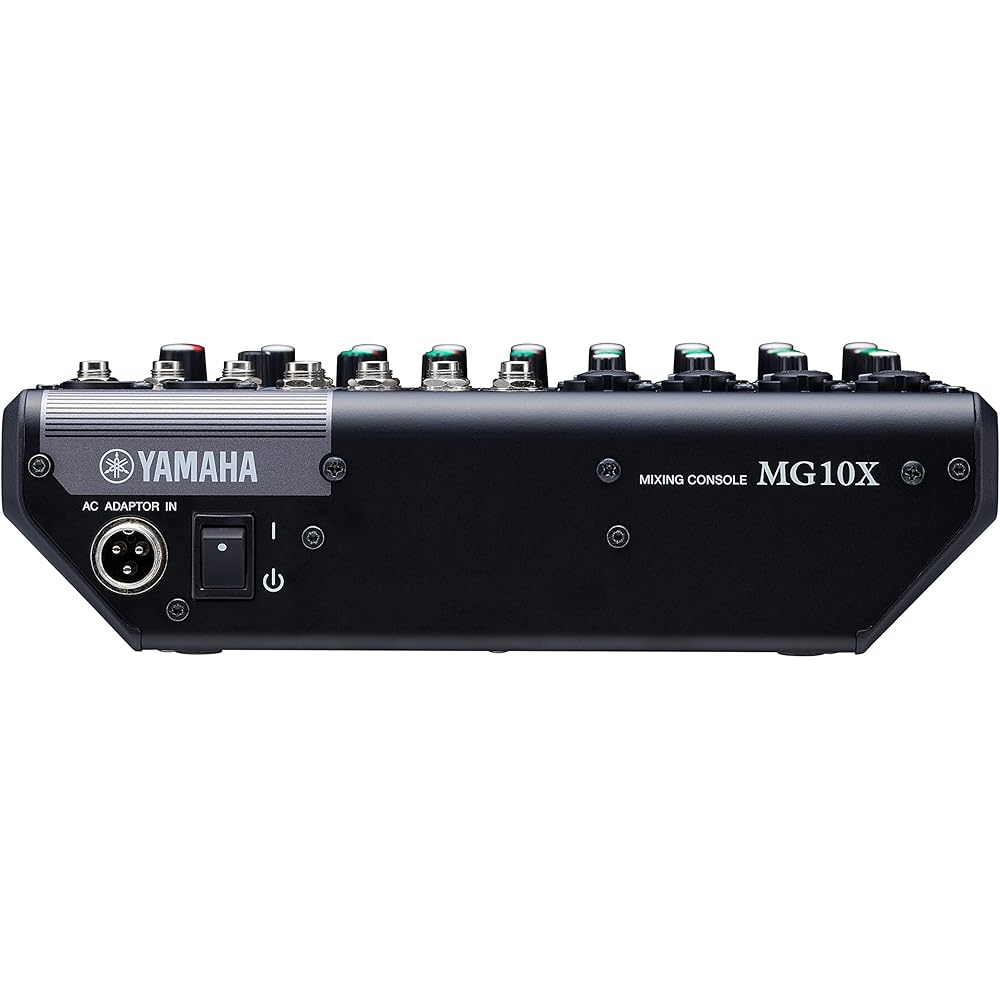

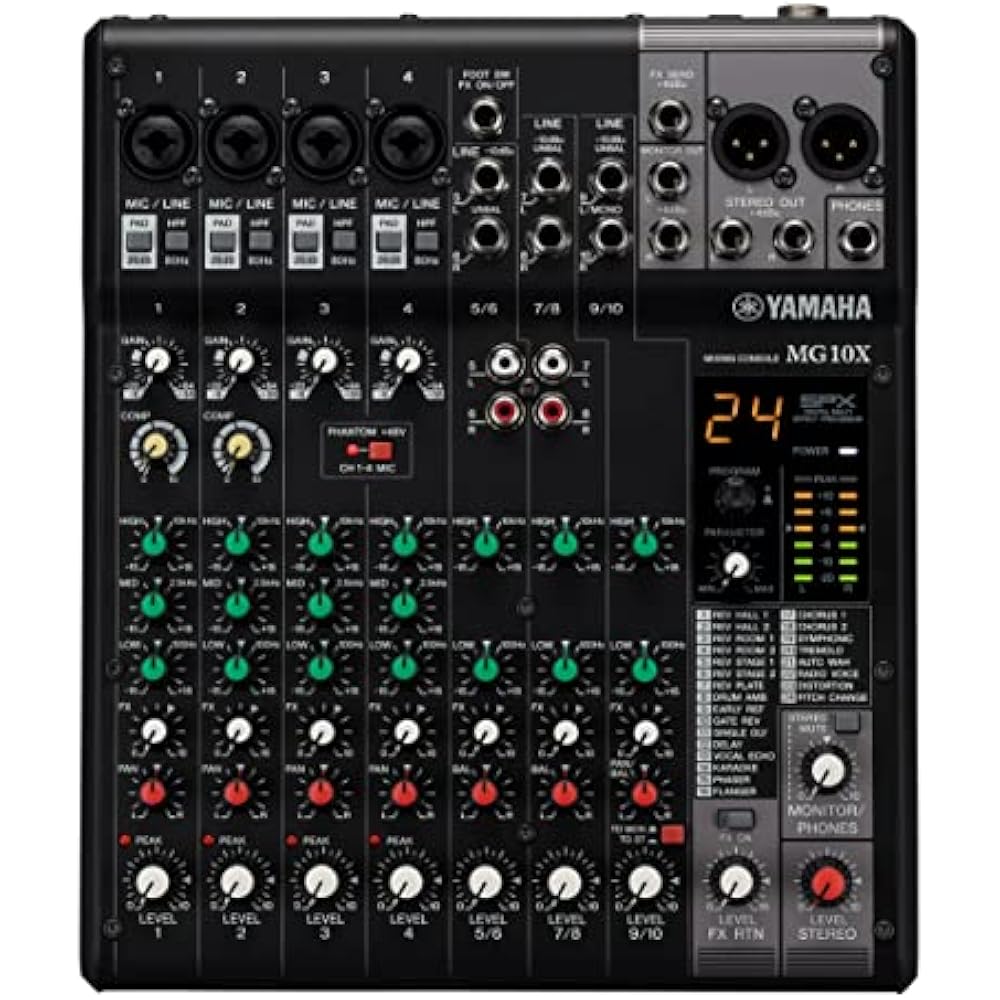

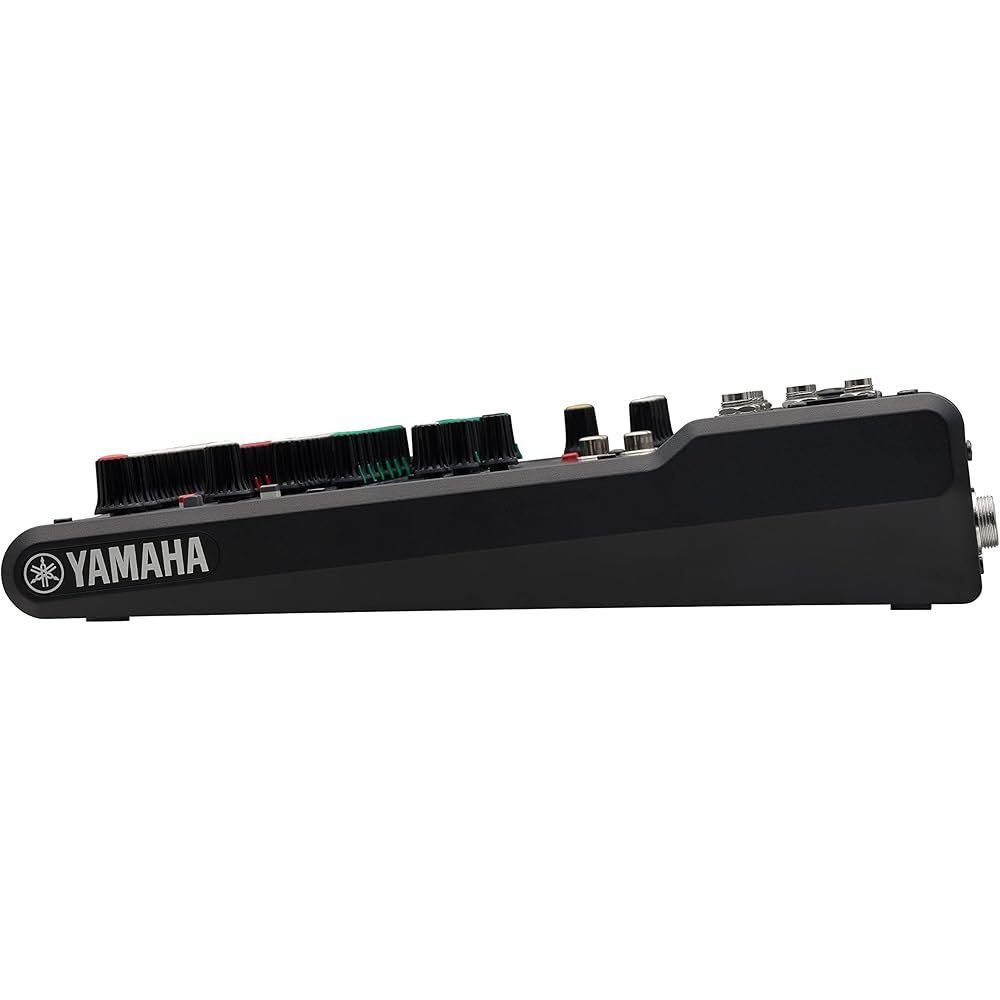

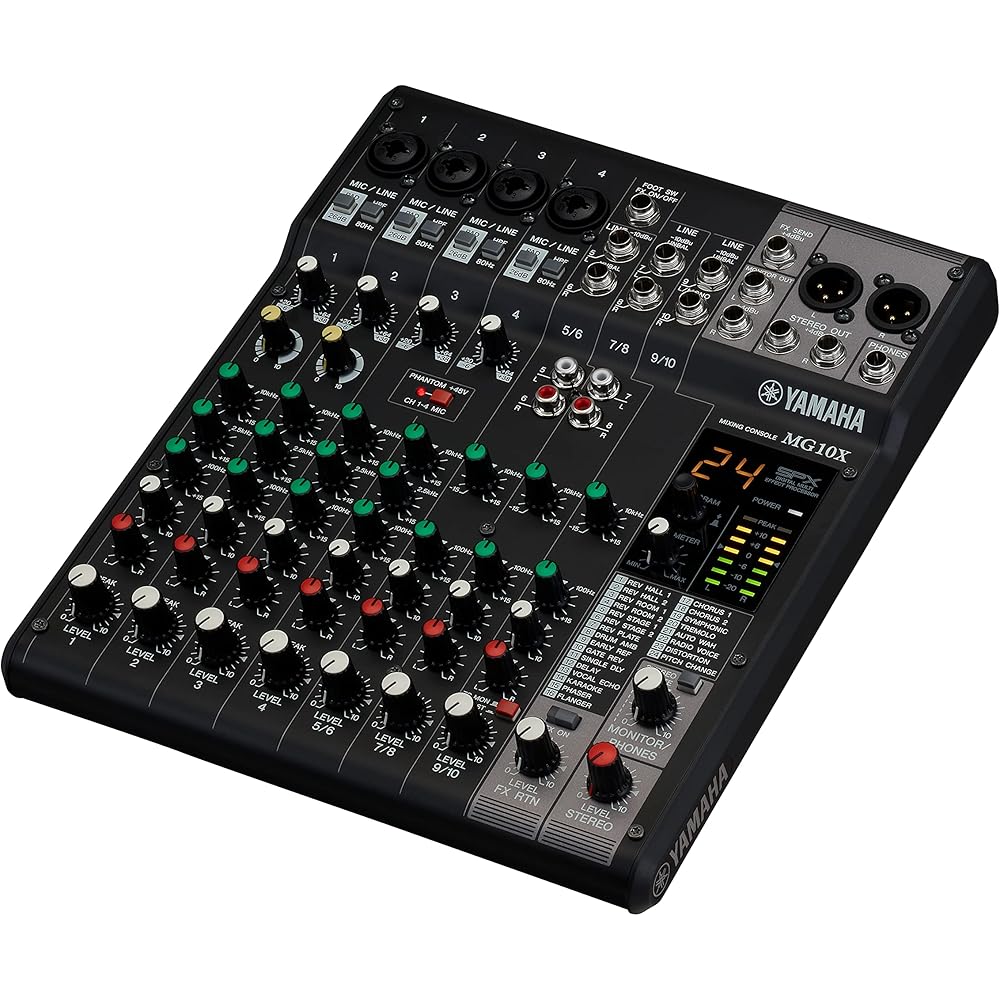

Yamaha YAMAHA 10-channel PA & SR mixing console with 24 digital effects, model without USB interface, MG10X Black
Max 4Mic/10Line input (4 mono + 3 stereo) /1 stereo bus/1 AUX (FX included)
Equipped with a microphone preamplifier “D-PRE”
Equipped with 24 high quality digital effects using SPX
+48V phantom power
External dimensions (width*height*depth): 244 mm*71 mm*294 mm, weight: 2.1 kg
■Input section using the microphone preamp “D-PRE” or a custom-made operational amplifier
The input section is equipped with a discrete Class-A microphone preamplifier “D-PRE”, and the head amplifier section uses an inverted Darlington circuit with a multi-stage amplifier configuration, and is characterized by sound quality with rich tension and luster in the mid to low frequencies. In addition, the custom-made operational amplifier “MG01” has also been adopted to achieve rich bass and gentle treble. A combo jack is used as the input terminal, and it is compatible with XLR and TRS phones. Additionally, line level input can also be received in XLR by means of a PAD circuit that attenuates the level of the input signal.
■Equipped with 24 high-quality “SPX digital effects”
The “MG16X,” “MG12X,” and “MG10X” are equipped with the digital multi-effects processor “SPX,” which has been loved by engineers around the world since their release in 1985, and live performances and speeches can be colored with richer, deeper sounds with 24 built-in editable digital effects. In particular, the reverb and delay achieve high quality, and it is possible to expand the range of realistic spatial expression while maintaining a natural texture. Also, if the optional foot switch “FC5” is connected, the effect can be turned on/off by operating the foot.
■Gray color is used for the master section to enhance visual effects
In order to quickly check the position of the master control even when many audio devices are installed at events, etc., a gray color with high visual effects has been adopted for the faders and master sections around the terminals, which were previously blue.
■By combining it with optional products sold separately, it can also be installed on a microphone stand or fixed equipment
The “MG16X,” “MG12X,” and “MG10X” are lightweight despite their sturdy metal chassis, and can be quickly and easily installed in various locations. The “MG10X” can be placed on a microphone stand with an optional “BMS-10A” adapter, and an optional rack mount kit “RK-MG12” is provided for the “MG12X.” The MG16X comes with a rack mount kit.
