Hardware Configuration
CPU
Dual Processor
ARM Quad cortex-A7+ ARM9 400MHZ
Frequency
1.6GHZ
Technology
28nm
GPU
Technology
Mali 450 Quad core
Storage
RAM
1G DDR3
EMMC
16G
Extended Storage
Up to 128G
Panel
Screen Size
10.1 inch IPS panel
Aspect ratio
16:9
Resolution
1024*RGB*600
Panel Technology
IPS TFT-LCD
Interface Type
LVDS
Contrast Ratio
400
Screen Viewangle
Min170°~Max175°
Brightness
400cd/㎝²
Response Time
20ms
Backlight Type
3*12=36LED
Touch Screen
Type
G+G
Properties
Capacitive Multi-Touch Screen
Speaker
Power Rating
8Ω 2W*2
Size
Φ28
Number
2

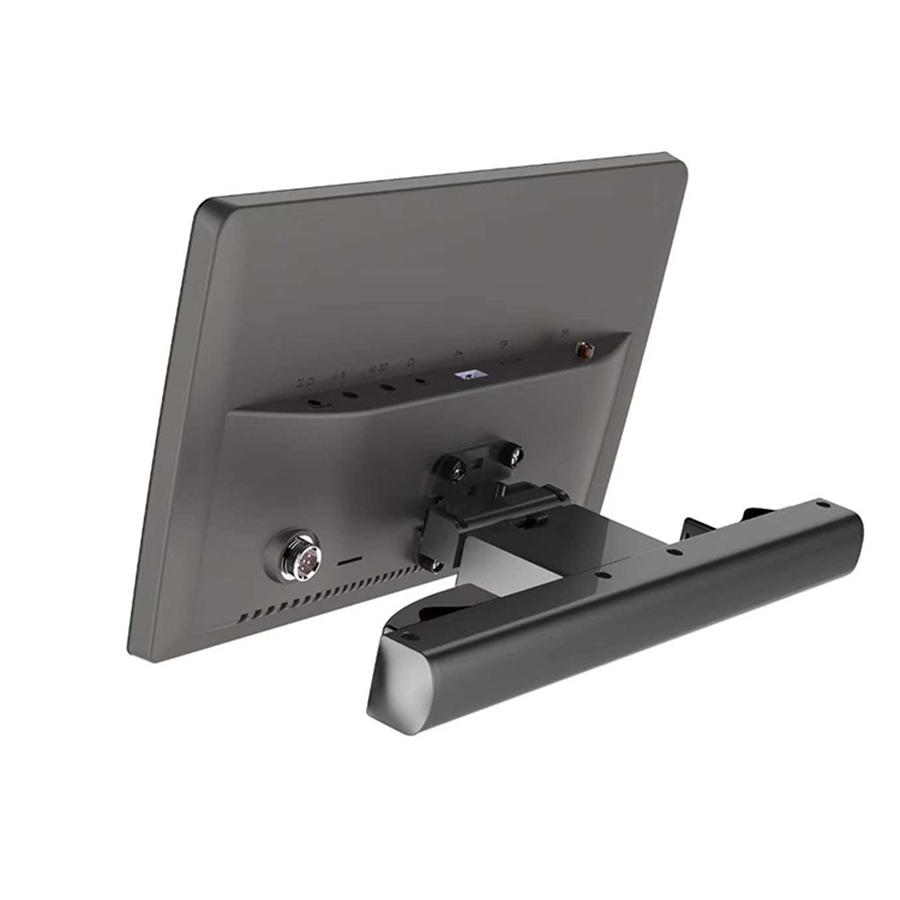

Headrest bracket
Support
1/pcs
Material
Aluminum
Structure
Removable
Function
Network
WIFI
802.11 b/g/n
Miracast / Airplay
App support
Bluetooth transmitter for headset
Support
Built-in
Bluetooth receiver for phone
Support
Microphone
Built-in
Built-in
Earphone
Output socket
3.5mm
GPS
External antenna (optional)
Support GPS + Beidou
USB
OTG
Yes
Data transfer
Yes
Charger
Yes
AV OUT
Support
AV IN
Support
External Interface
Key/Button
5 Touch button on the touchscreen
Power,Home,Return,volume+,volume-
TF Card socket
1
USB socket
1
Headphone socket
1
3.5mm
12V DC socket
DC 12V 2A
Cigarette Lighter power or Power cable
Power cable socket
DC 9~16.5V (B+ , GND , ACC)
GPS antenna socket(SMA)
1
Software Configuration
OS
Support
Android 8.1
Application install
Support
Base Android System
Google service
NO
ANDROID 8.1
We keep our operation system the latest version in the market with NEW technologies and features.
Google Voice, Google Map, Google play, and millions of APPs suitable for car and driving.
It's not only a car entertainment, but also a fully completed in-car system.
Quad-core RAM 1GB ROM 16GB
It runs very smoothly.
10.1 inch 2.5D Touch Screen
Screen is never like that crystal clean in-car head unit.
Support HD resolution video playback. with amazing color contract and best performance of response time. No matter for HD movie, or HD camera in, you will have awesome experience with it.
Full Glass Touch Panel
Unit is euqipped with full crystal clean galss and intergrated TFT touch control and control key pad. It's Hi-Sensitive Touch screen for controlling the whole system.
WIRELESS CONNECTION
BUILT IN WIFI RECEIVER
Unit already has Built-in WIFI receiver for INTERNET connection. You can connect the unit to any WIFI spot including your mobile phone Hot-Spot.
Anytime and anywhere you are connected!
BLUE TOOTH
BUILT-IN BLUE TOOTH
PLUG&PLAY USB TF/MICRO SD SLOT
We design a special full touch screen that is built in front Mini SD slot, front rear, you will find normal USB2.0 slot interface for media and expandable devices plug&play front TF/Mini SD card for navigation, music. movie... It's so convenient for drivers to connect and control everything !
MEDIA PLAYBACK
This unit comes with power CODEC that can read and playback all kinds of Media Files from USB/MiniSD and from Internet
Streaming in HD format.
MIRROR LINK TO MOBILE PHONE
There's a very important function called Mirror function. Unit links to you mobile devices.
All the screen showed on your phone can be 100% mirrored to the head unit.
For Android phone, we support dual-way Mirror, which means not only mirroring, you can also control and operate your phone from the head unit.
For iOS system, we support one way mirroring, you can only see contents showed on you phone.
It's such a convenient way!
■Android phone: Dual-way (display and control) the phone from unit;
By USB cable or Wifi connect.
■iPhone: One way (Display) the phone from uni by Wifi connect only.
APPS STORE
Google Play Store
Unit built in Google play store with numerous Apps for you to download
It's not only a unit, but unlimited possibilities!
Enjoy your driving time with this unit.
Worldwide Language Support
With Google Android Language system, support worldwide language menu.
BEST SOUND SYSTEM
The machine has built-in speaker to support surround sound effect.
WIRELESS GATEWAY
3G/4G GATEWAY INTERFACE
With the USB type dongle, you can put your 3G/4G data SIM card in it, and the unit can get connection independently.
Meanwile the unit also canprovide WIFI connection for all devices inside the vehicle, even your mobile phone and tablet.
It's an Internet connection gateway.
**3G/4G dongle is NOT included in standard pack. Buyers need to buy separatly.
OBD II
The OBD II wireless box provides you the automatic diagnosis function. You can check you car
all the time-to see whether it's in a good status or need to be fixed.
OBDII enginer scanner is not included
Specifications:
1. System: Android 8.1
2. CPU: ARM Quad cortex-A7+ ARM9 400MHZ 1.6GHZ
3. ROM: 16GB RAM:1GB
4. Display: 10.1 inch (1024*600),
5. Capacitive touch screen, supports 5-point touch
6. Multiple format video decoding, including 1080P H265 hardware decoding
7.Support Miracast and Airplay, it can mirror the phone or Pad screen onto the screen of rear seat entertainment system
8. Storage extension: support 128GB large capacity USB, TF card
9. Internet: built-in WLMA wireless Internet access
10. Support Internet android applications such as QQ. WeChat. Browser. Games and other applications
11. Video decoding performance: 1080P, 30FPS, Data rate: 30Mbps
12. Support o format: MP3, AMR, WMA, CDA, WAV, MIDI, RA
13. Support video format: 1080 p, mp4, RMVB, rm, FLV, Avi, MPG, mpeg, MKV, asf,
WMV, Mpe, 3 gp, dat, vob, ts, tp, m4v13.
14.Support image format: JPEG,BMP,PNG,TIFF,JIF
15. Headphone jack: standard 3.5mm interface
16. Support FM transmitter
17. Support blue-tooth stereo
18. Working voltage: DC 12V
19. Many car logo for choice
20. Universal design suitable for all cars
21. Built-in Speaker
22. WI-FI: support 802.11 b/g/n RTL 8188 ETV high-performance wifi
Package:
1x Android Headrest Monitor
1x Power Cable
1x Mounting Bracket
1x English user menu
1x AV Cable(Only used for two our headrests to realize synchronous display，If you want to connect your car navigation to our headrest, please buy adapter by yourself)
