Emergency Button, With Lock, Red 1×Nc, 5A/230V 40Mm, Ip65

Emergency Pushbutton, Lockable, Red, 1xNC, 5A/230V, 40mm, IP65

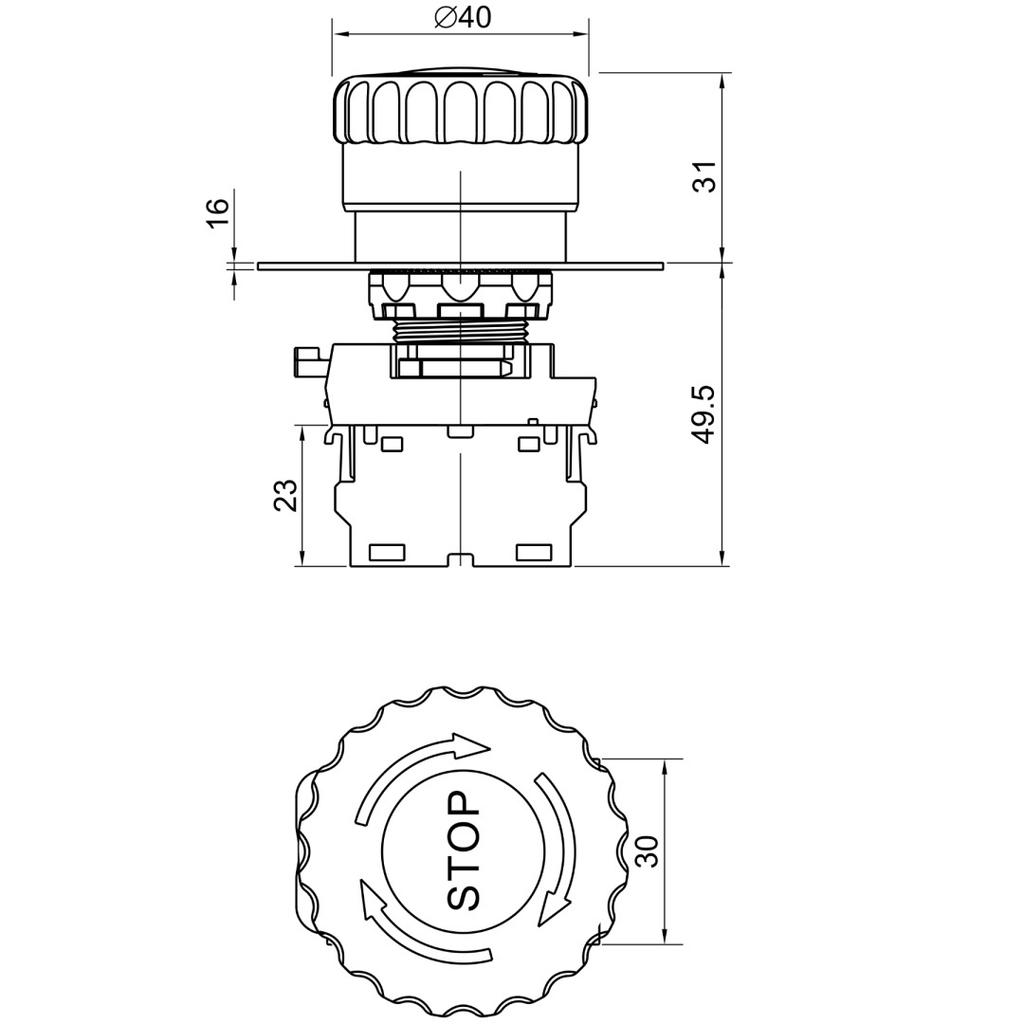

Emergency Pushbutton, Lockable, Red, 1xNC, 5A/230V, 40mm, IP65 is an electrical component used in industrial automation and other applications requiring safe and quick shutdown in the event of a fault or emergency. The emergency pushbutton has one normally closed (NC) contact, meaning that the circuit is closed during normal operation, and when the button is pressed, the circuit is broken. This pushbutton has a conductivity of up to 5A at 230V, meaning it can handle a maximum current of 5A and a supply voltage of 230V. The lockable emergency button has a diameter of 40mm and is red, allowing you to quickly locate the button in the event of an emergency. It is equipped with a lock that holds the button in the off position until the lock is released. It has an IP65 rating, meaning it is dust and water resistant, making it suitable for use in harsh environments, such as outdoors or in areas exposed to high levels of pollution.

In the event of a fault or emergency, pressing the lockable emergency button will break the circuit and immediately shut down the device, increasing the safety of machinery and equipment and minimizing the risk of accidents. NYG3-ETR NYGD-... 1 × NC

Technical specifications:

Unlocking method:

Rotating mechanism

Ingress protection (IP):

IP65

Mounting method:

Recessed mounting

Hole diameter:

22 mm

Auxiliary circuit connection method:

Screw connection
