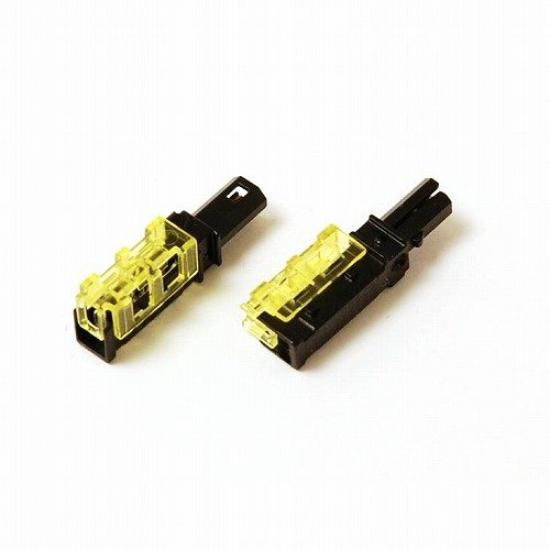

Nichifu Terminal Industries Intermediate Pack of NDC2420 Crimp-Type Connector, 20,

Specifications: NDC Series Standards: RoHS10, UL/VDE Materials: Housing: Polycarbonate (black), Cover: Polycarbonate (yellow transparent), Contacts: Tin-plated phosphor bronze, Connecting plate (optional): Polycarbonate (white) Suitable wire sizes: Stranded wire (mm²): 0.2-0.5, AWG24-20; Solid wire (mm): φ0.65; Wire insulation outer diameter (maximum): φ2.1mm Recommended tool: Pliers (JIS B 4614, nominal size 150) Rated voltage: 100V Rated current: AWG24-22: 2A, AWG20: 3A Maximum operating temperature of insulator: 120℃ Operating temperature range: 0℃ to 40℃
