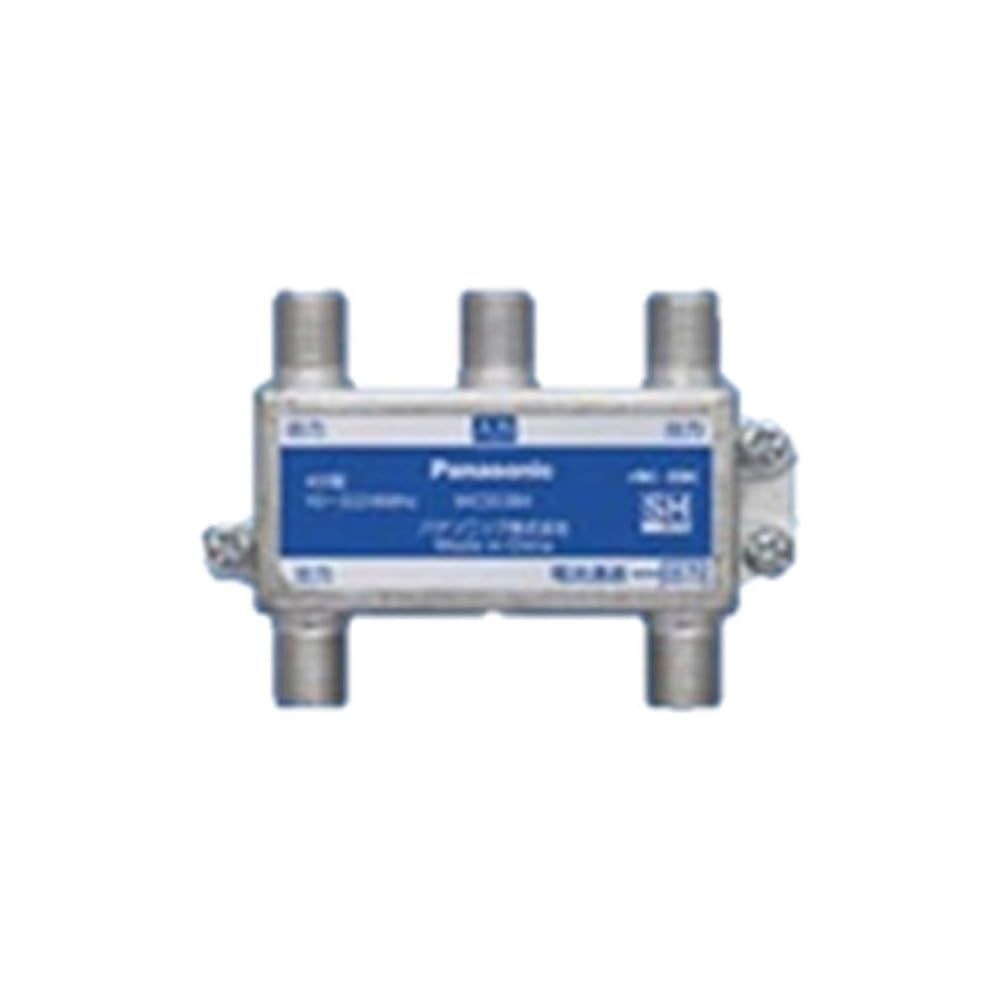

Panasonic 4-way splitter, 1-terminal current pass-through type, 10-3224MHz, WCS5384

Panasonic

Accessories: 5 F-type connectors

Frequency Bandwidth [MHz] / Distribution Loss (dB or less): 10-76・8.2 / 76-220・8.0 / 222-770・8.0 / 770-1489・9.4 / 1489-2150・11.0 / 2150-2681・12.0 / 2681-3224・13.3

Frequency Bandwidth [MHz] / Inter-terminal Coupling Loss (dB or more): 10-76・15.0 / 76-222・20.0 / 222-770・20.0 770-1489・15.0/1489-2150・15.0/2150-2681・15.0/2681-3224・15.0

Frequency Bandwidth [MHz]・Voltage Standing Wave Ratio (VSWR) (below): 10-76・2.0/76-222・1.8/222-770・1.8/770-1489・2.0/1489-2150・2.0/2150-2681・2.0/2681-3224・2.5

Impedance (Ω): Input: 75 (F-type) / Output: 75 (F-type) × 4
