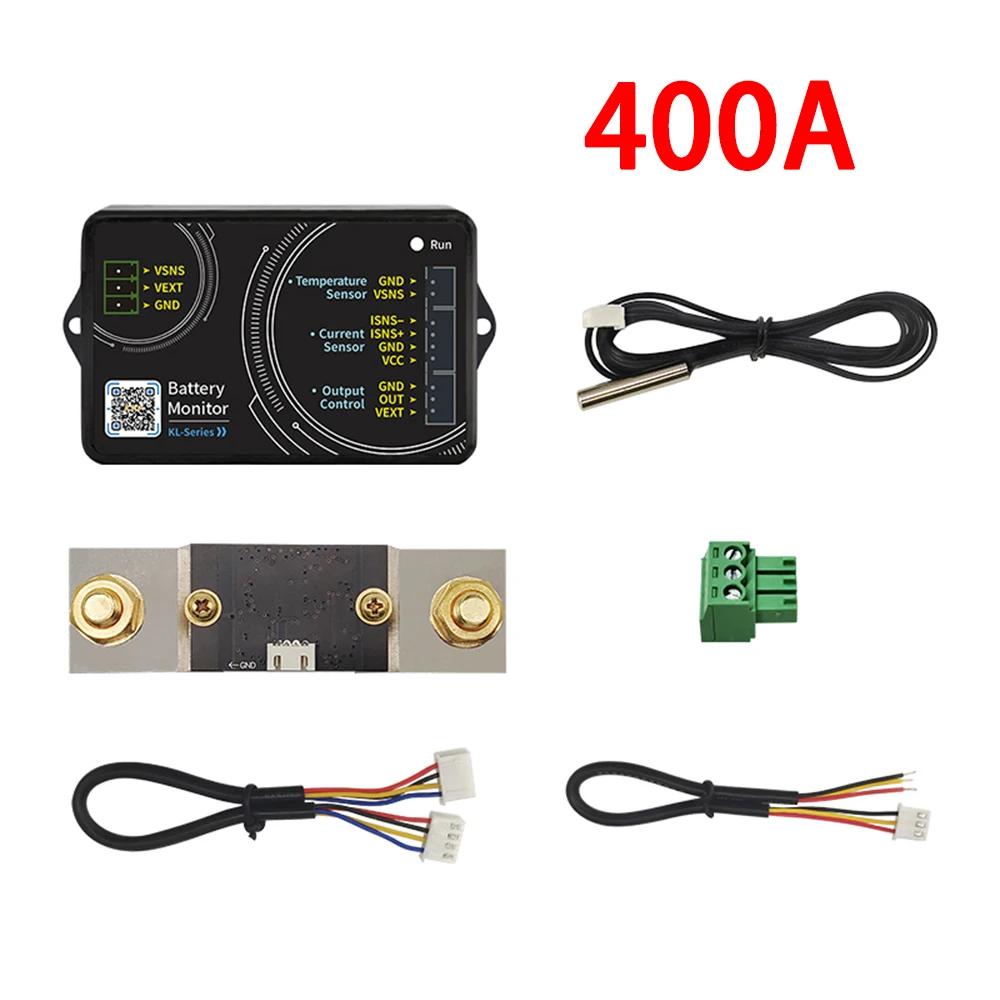

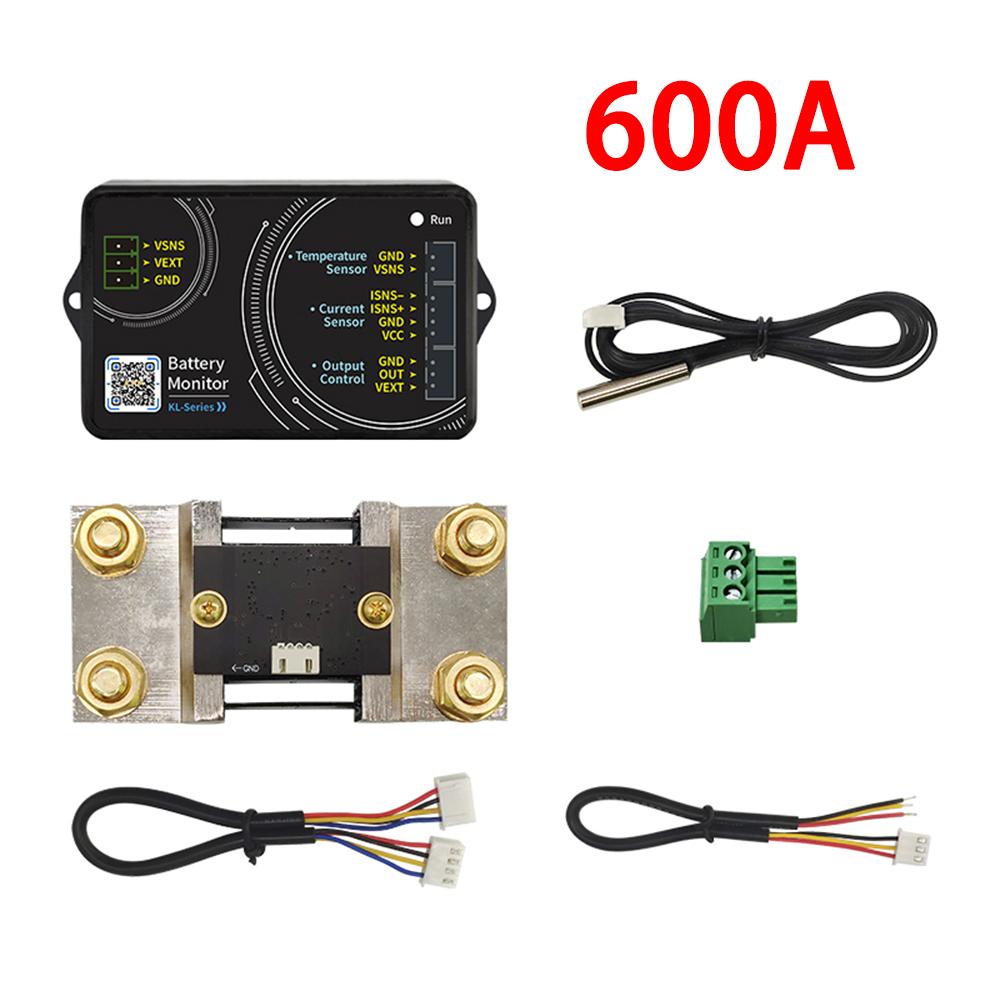

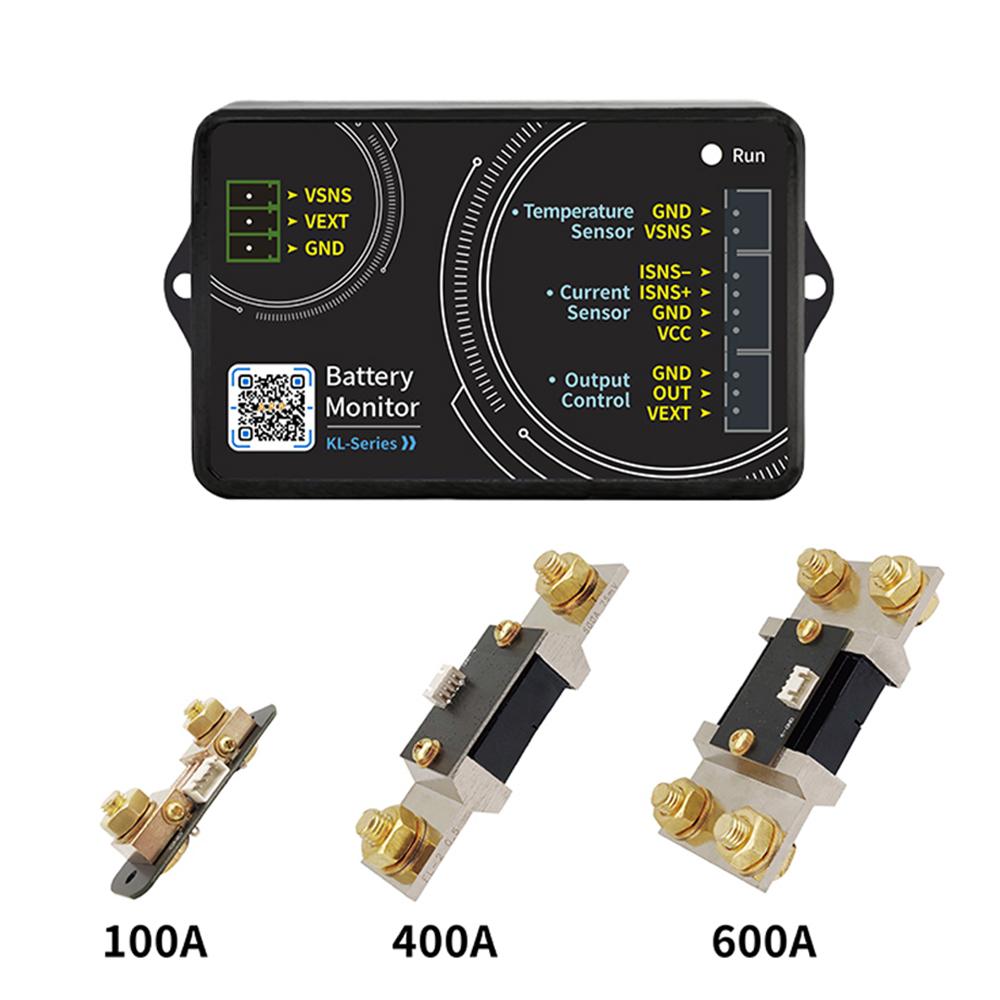

100A 400A 600A Battery Monitor DC 0-120V Battery Tester Voltage and Current Meter Battery Storage Indicator KL110F/KL140F/KL160F

KL110F/KL140F/KL160F DC 0-120V 100A 400A 600A Battery Monitor Battery Tester Voltage and Current Meter Battery Storage Indicator

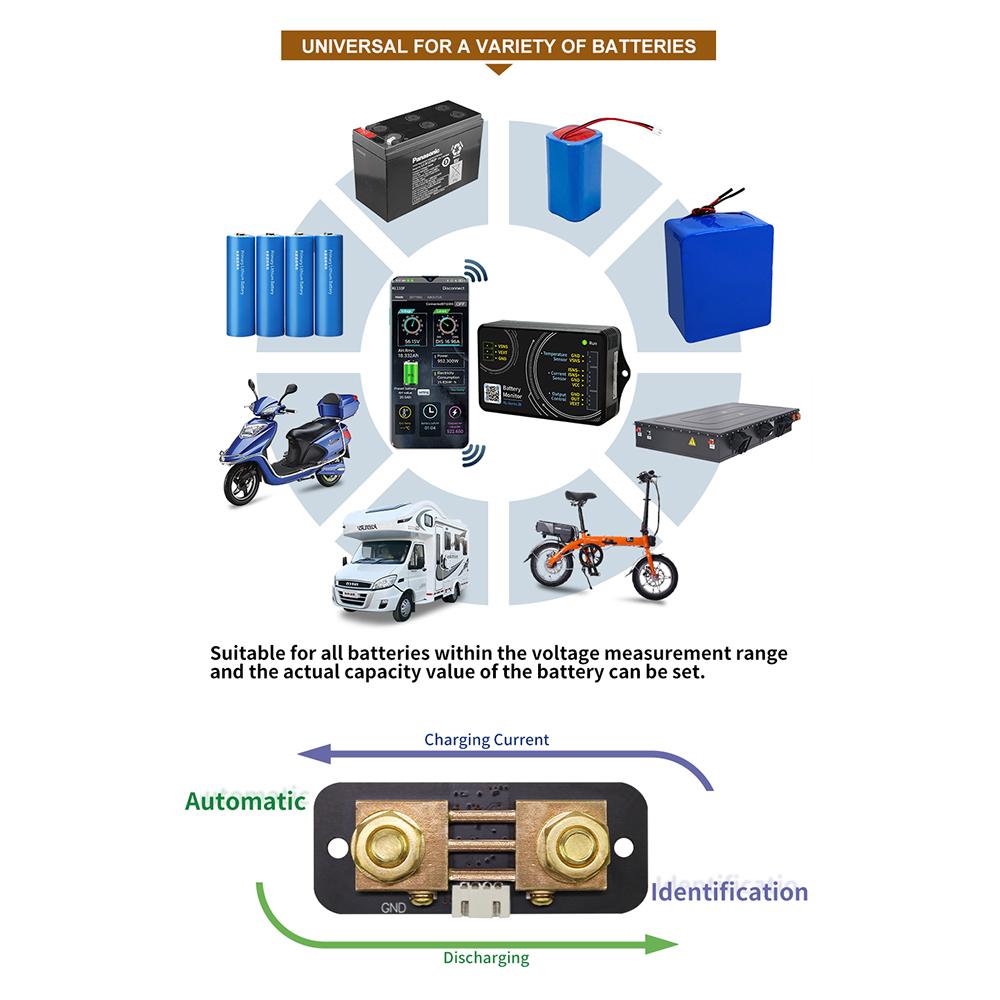

Features: 1. This product automatically identifies and detects the current in charging and discharging directions. During charging, the current is green; during discharging, the current is blue. 2. The shunt and screws are made of pure copper, offering excellent conductivity, low heat generation, and low power consumption. It consumes minimal battery power in standby mode. 3. Supports Bluetooth connection for mobile app control. After downloading and installing the app, all functions can be set via the built-in Bluetooth connection. 4. The product features overvoltage, undervoltage, overcurrent, overpower, and external overtemperature protection. When these values exceed the protection range, the meter's output shuts off (requires use with a relay) to prevent damage to electrical equipment. Protection recovery time and delay time can be set, suitable for various applications. 5. This product incorporates a self-calibration function, ensuring accurate current and capacity values even after prolonged operation. 6. Ampere-hours, watt-hours, and time data can be cleared during measurement without affecting subsequent measurements. Voltage and current values can also be fine-tuned to ensure accurate capacity. 7. The product can be upgraded via online firmware updates on your mobile phone, increasing the reliability of its operation. 8. This product can accurately measure parameters such as voltage, current, battery capacity, power, power consumption, ambient temperature, battery life, charging time, and cumulative battery capacity. 9. Applicable to various batteries: Ternary lithium batteries, lead-acid batteries, lithium phosphate batteries, etc., as long as the battery is within the voltage measurement range. Specifications: Sampling Method: Sampler Voltage Measurement Range (External Power Supply): 0-120V Voltage Measurement Range (Self-Powered): 10-120V Voltage Resolution: 0.01V Current Measurement Range: KL110F: 0~100A KL140F: 0~400A KL160F: 0~600A Current Resolution: KL110F: 0.01A KL140F: 0.1A AKL160F: 0.1A Relay: Relay not provided, must be configured separately Temperature Measurement Range: -20-120°C Capacity Display Range: 0%~100% Power Measurement Range: 0~72KW Power Resolution: 0.01W Amp-hour Measurement Range: 0~9999. 99AH Capacity resolution: 0.001AH Wh measurement range: 0~9999.99kWH Wh resolution: 0.01WH Bluetooth communication distance: Maximum 10 meters without obstacles Voltage accuracy: ±2% +3 digits Current accuracy: ±5% +10 digits Sampling rate: 1 time/second Measurement board power consumption: Approximately 0.4W Overpower protection: 0-99999.99W Negative overcurrent protection: 0 ~50A/100A/400A/600A Forward Overcurrent Protection: 0~50A/100A/400A/600A Overvoltage Protection: 0~120V/600V Undervoltage Protection: 0~120V/600V External Overtemperature Protection: 0-120°C Package Included: Measurement Module *1 Shunt *1 4P Cable *1 Temperature Sensor *1 3P Green Terminal *1 3P Cable *1

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No
