Black LAN TESTER RJ45 LED NETWORK CABLE TESTER RJ11RJ12

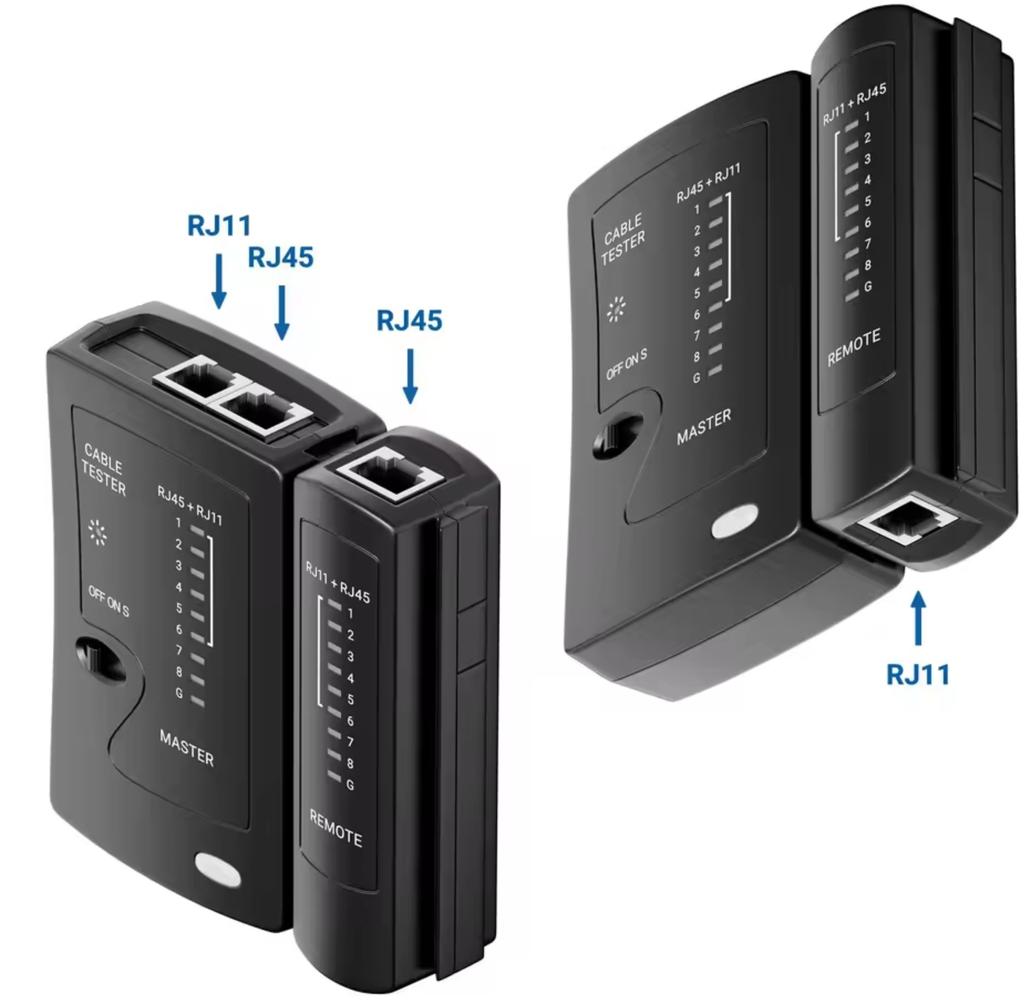

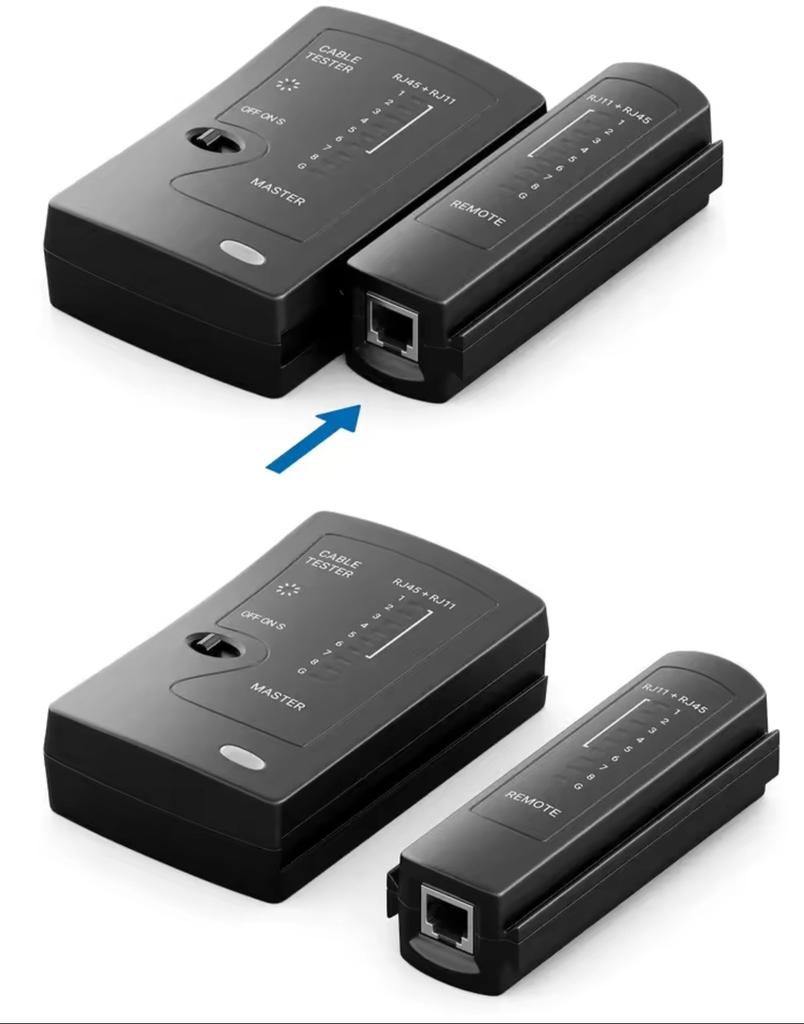

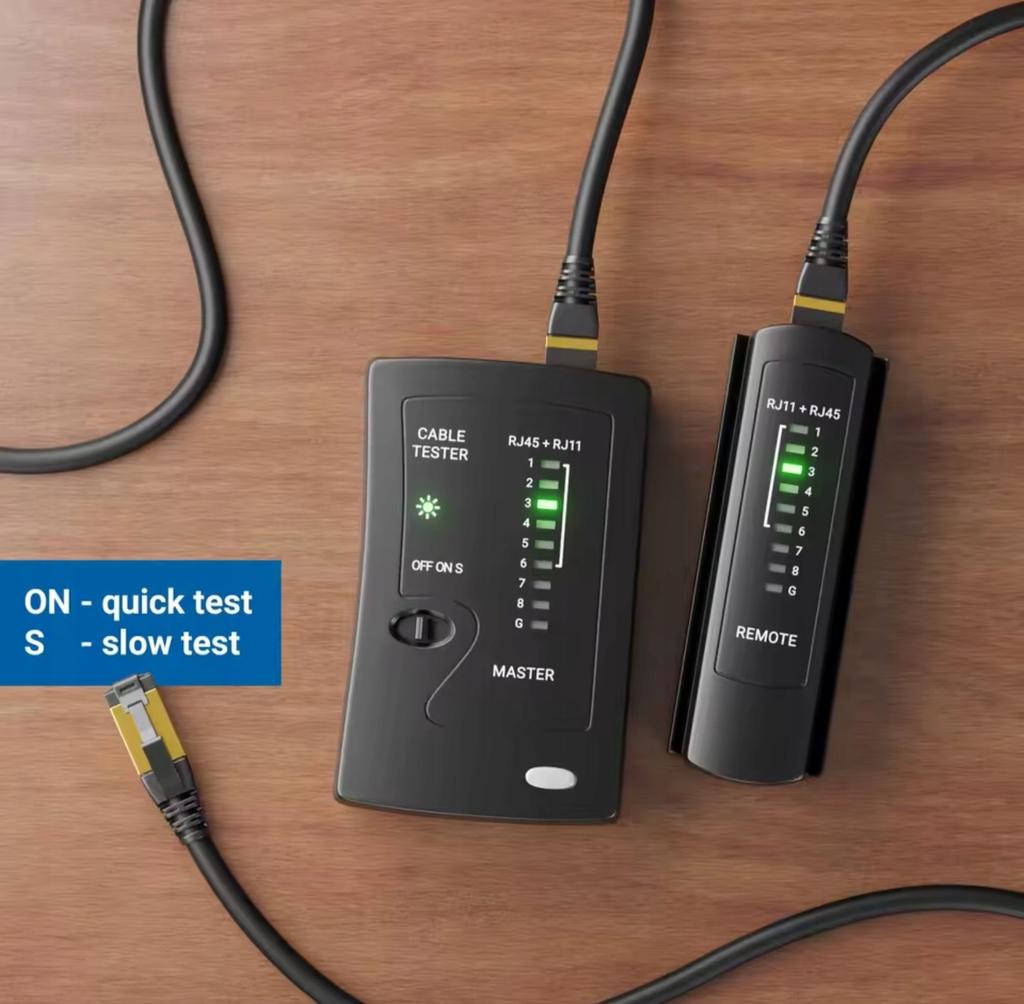

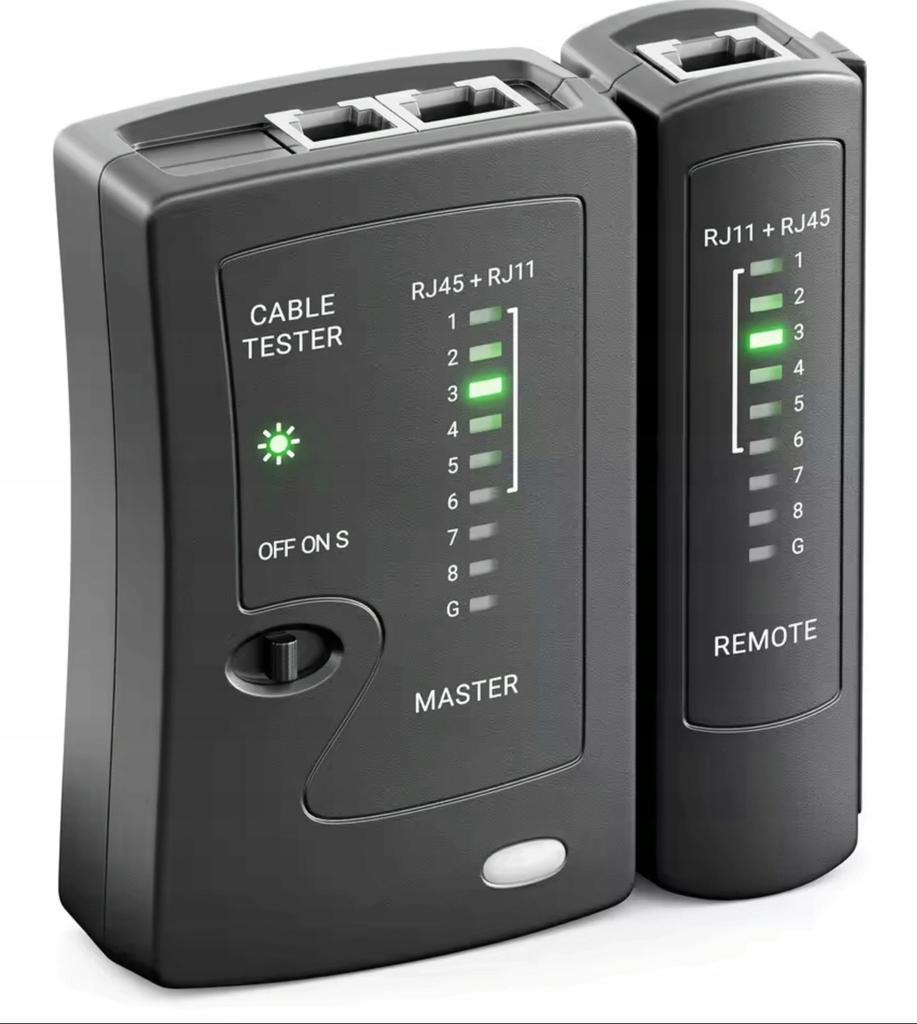

RJ45 RJ12 NETWORK CABLE TESTERThe tester is designed to test cables of the following types:UTP, FTP, STP and RJ12 telephone cables, RJ11.9 indicator lights (LEDs) indicates the correctness of the connection. Equipped with RJ45 and RJ12 ports. Auto scan function with 2 speeds:ON – normalS – slowTests each wire separately. Power switch to extend battery life. Powered by 9 V batteryElegant caseDimensions: 10 x 10.5 x 3.0 cmWeight: approx. 200 gCHECKS:cable discontinuity (gap)short circuitinverted pairscrossed pairInstructions for conducting the twisted pair test:Turn on the power (position; ON;– slow automatic sorting; S;- fast). Connect the cable terminated with an RJ45 plug to the test sockets of both modules. The indicators on the main module should display the sequence; from 1 to G; (G;– lights up only in the case of shielded twisted pair cable).; If the cable under test; is functional; The LEDs in the transmitter and receiver module light up in the following order:; 1 -2 -3 -4 -5 -6 -7 -8 -G.If one conductor (e.g. 3) has an open, the indicators No. 3 on the main and remote modules will not be switched on. If the wires in the twisted pair are reversed, e.g. 2 and 4, the LED lights up in the following sequence:main module: 1-2-3-4-5-6-7-8-GRemote module: 1-4-3-2-5-6-7-8-GIf two wires have a short circuit, the corresponding LEDs on the indicators of the remote module will light up at the same time.
