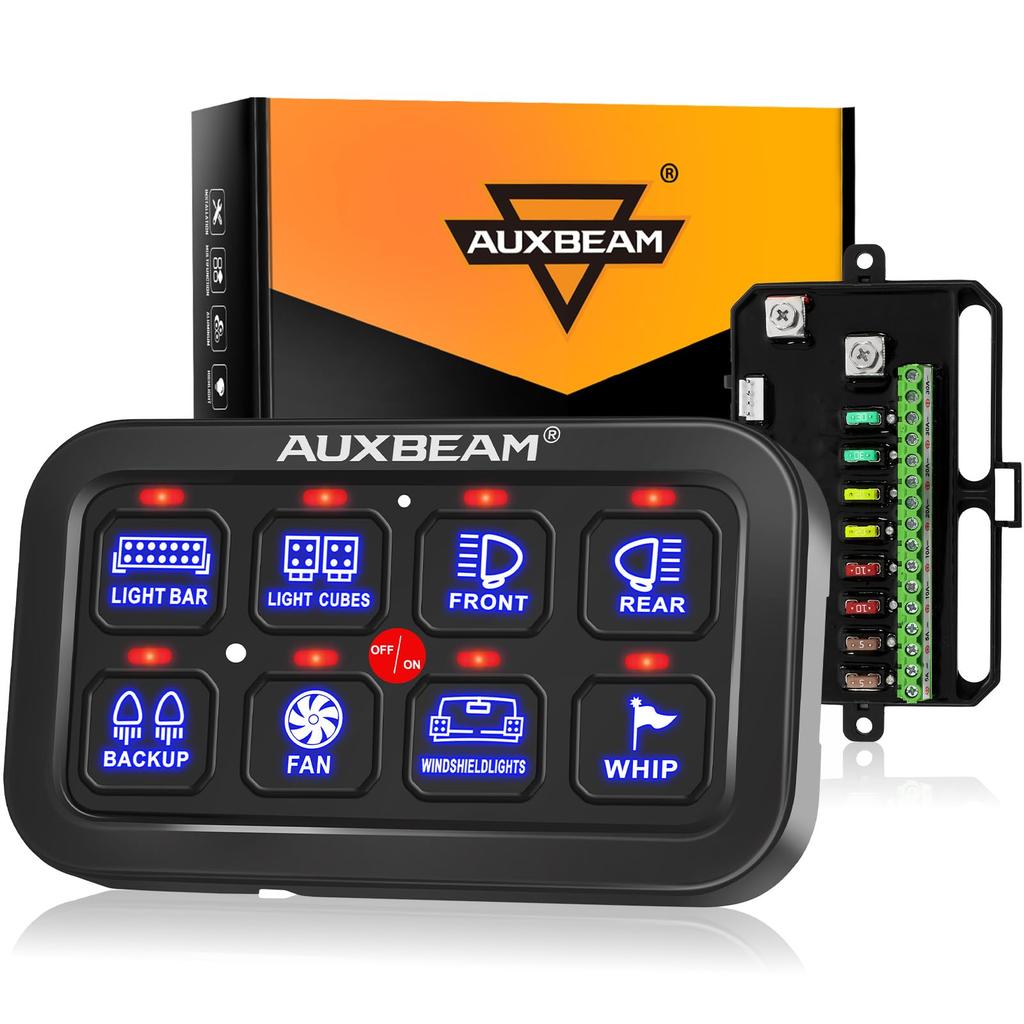

Auxbeam Switch Panel BA80 Universal Circuit Control Relay System 8-Gang

[JOOM Certified Store | Japan] Quality products from Japan, shipped safely to your destination.

[Important Notice] Items are made for the Japanese domestic market: - Products: Official Japanese market items (Manufacturing origin varies by model). - Voltage: AC 100V / Type A plug (Voltage converter may be needed). - Language: Japanese by default (Unless specified in title/images). - Region: Please check system compatibility before ordering.

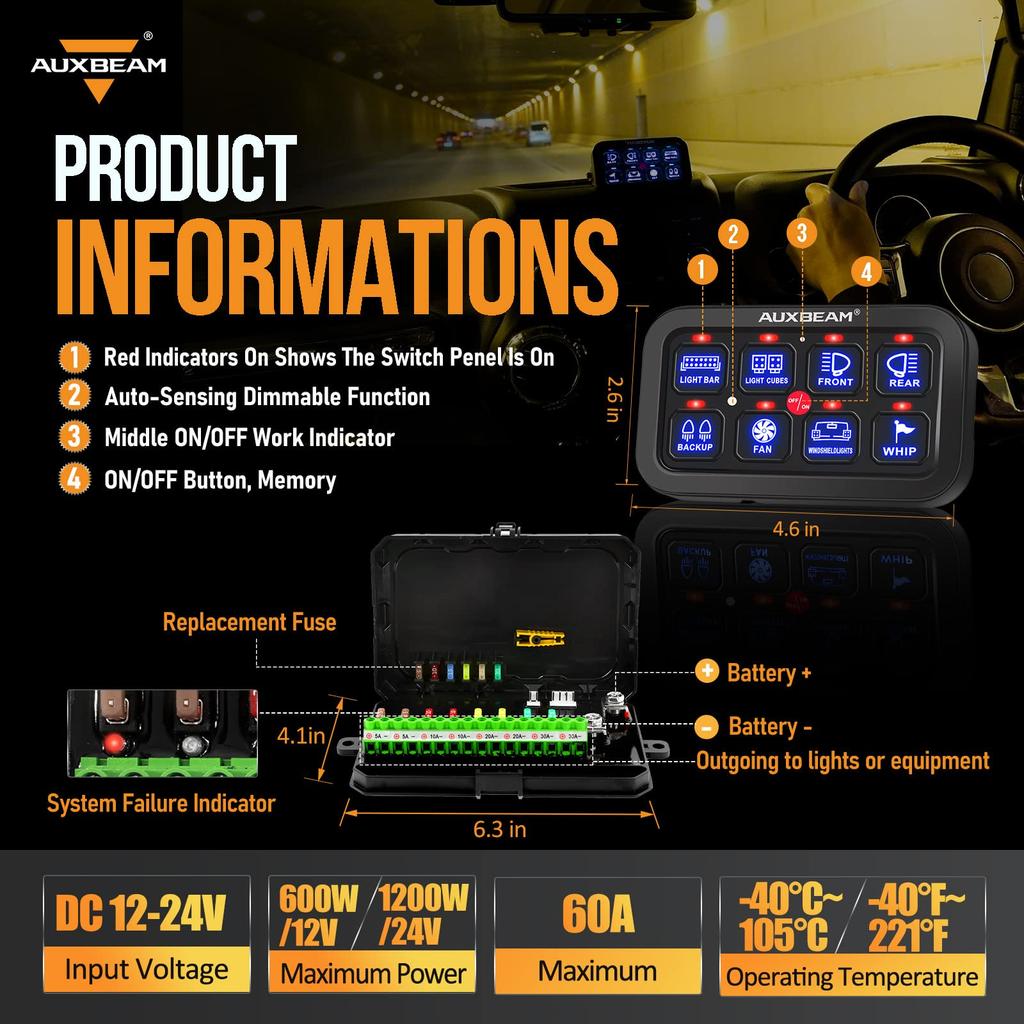

Follow our shop for new arrivals! Please leave a review when your item arrives. ―・―・―・―・―・―・―・―・―・―・―・―・― Technical specifications: Operating voltage: DC 12-24V, Maximum current: 60A, Rated voltage: 12V 20A / 24V 10A, Operating at 12V: Maximum power rating 600W, Operating at 24V: Maximum power rating 1200W, Operating temperature: -40.0 °C - 105.0 °C, IP65 waterproof rating, high sensitivity, stability, strong anti-interference capability. Automatic Dimming Function: The latest 8-gang switch panel features an automatic dimming function, where the brightness of the switch panel's backlight changes according to the ambient light. The brighter the environment, the brighter the backlight becomes. Perfect 8-gang switch panel automatic dimming design. Provides a different user experience and ensures driving safety. Safety Protection: This 8-gang switch panel features built-in solid-state relays instead of external relays, and comes with overvoltage protection, reverse polarity protection, overcurrent protection, thermal protection, and an extra fuse for replacement, ensuring the safe operation of all connected LED lights and accessories. Easy Installation: No complicated wiring required, and no need to drill large holes in your car. Plug-and-play wiring harness makes it easy to connect LED lights and accessories. Two types of mounting brackets allow you to install it wherever you need it. Customize your personal switch panel with 60 adhesive labels. It's the best way to clean up all your wiring and add one panel to control everything. Wide Range of Applications and Warranty: Considering the limited space in some vehicles, this more compact switch panel control system is ideal for all situations. The Auxbeam 8-in-1 touchscreen panel is better suited to the needs of trucks, boats, off-road vehicles, powersports, marine vehicles, ATVs, UTVs, SUVs, cars, buses, heavy-duty vehicles, and more. 3-Year Manufacturer's Warranty: Free replacement for quality issues caused by non-human reasons. Technical specifications: Input voltage: 12-24VDC, Voltage: 30A, Rated voltage: 12V 20A / 24V 10A. Operating temperature: -25°-80°, Waterproof rating: IP65 Installation Guide The total power is 600W at 12V and 1200W at 24V, with a maximum current of 60A. The maximum output current for grounds 1 & 2 is 30A, and the maximum output current for grounds 3-8 is 20A. The recommended connection method is to gradually decrease the current from ground 1 to ground 8. Before connecting the power cables, make sure all lamps are connected. Connection guidelines for red, yellow, and white control cables: 1. Connect the red cable to the ACC power cable of the master switch. If you want the LED lamps to light up before starting the car, connect the recommended one as higher power will consume more power. 2. Connect the yellow cable to the master switch panel for the wide lamps. 3. The white cable is the brightness control cable for the panel lights. You can control the brightness in 3 stages with each switch. If needed, you can disconnect the white cable to get the brightest Swisspens panel. Package List: 1 set of 8-Gang Switch Panels.
