Fully Sealed Circuit Board: All electronic components are selected according to strict standards, and the whole circuit board is sealed with resin, helping it stand up well to surface damage and vibration.
Wide Voltage and Frequency Range: Supports AC 80 to 275 V working voltage and 20 to 600 Hz working frequency, ensuring the engine can still charge at low idle speed.
12V and 24V Battery Charging: Suitable for charging various brands of 12V and 24V batteries. Select the desired charging mode by jumper.

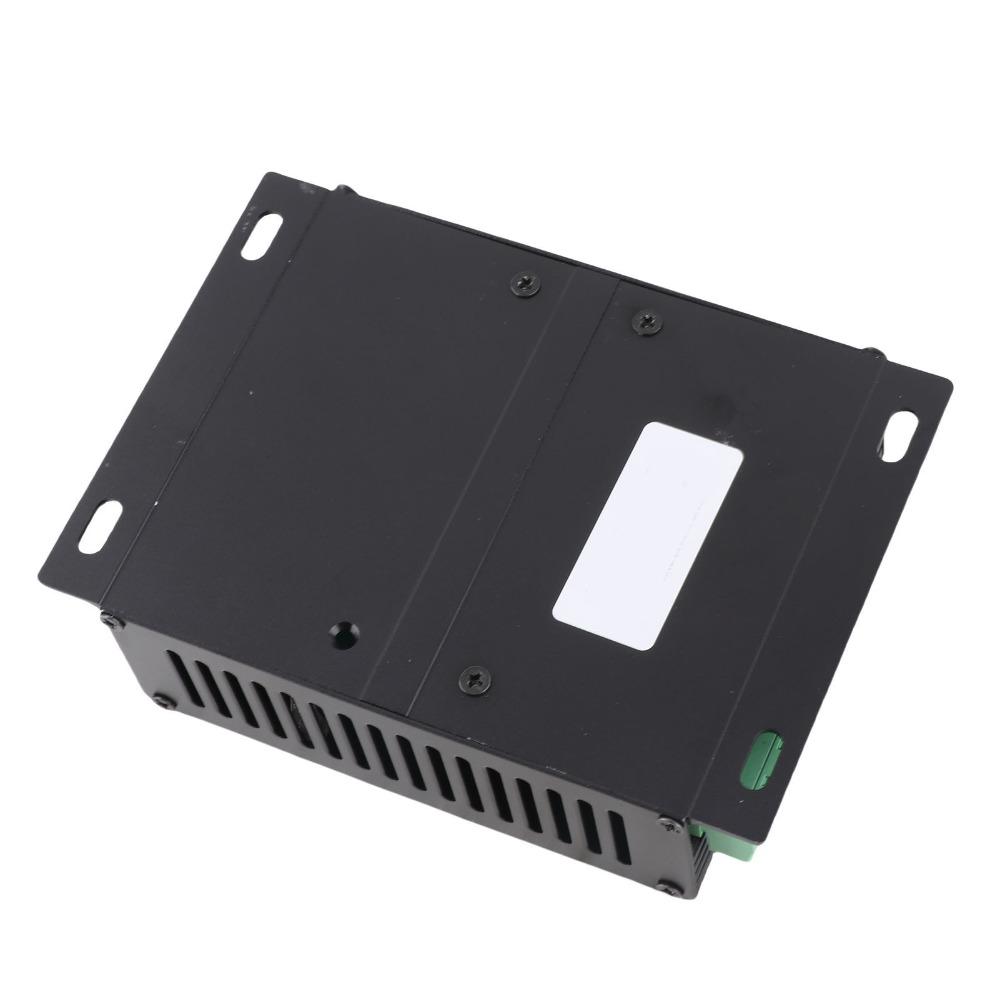

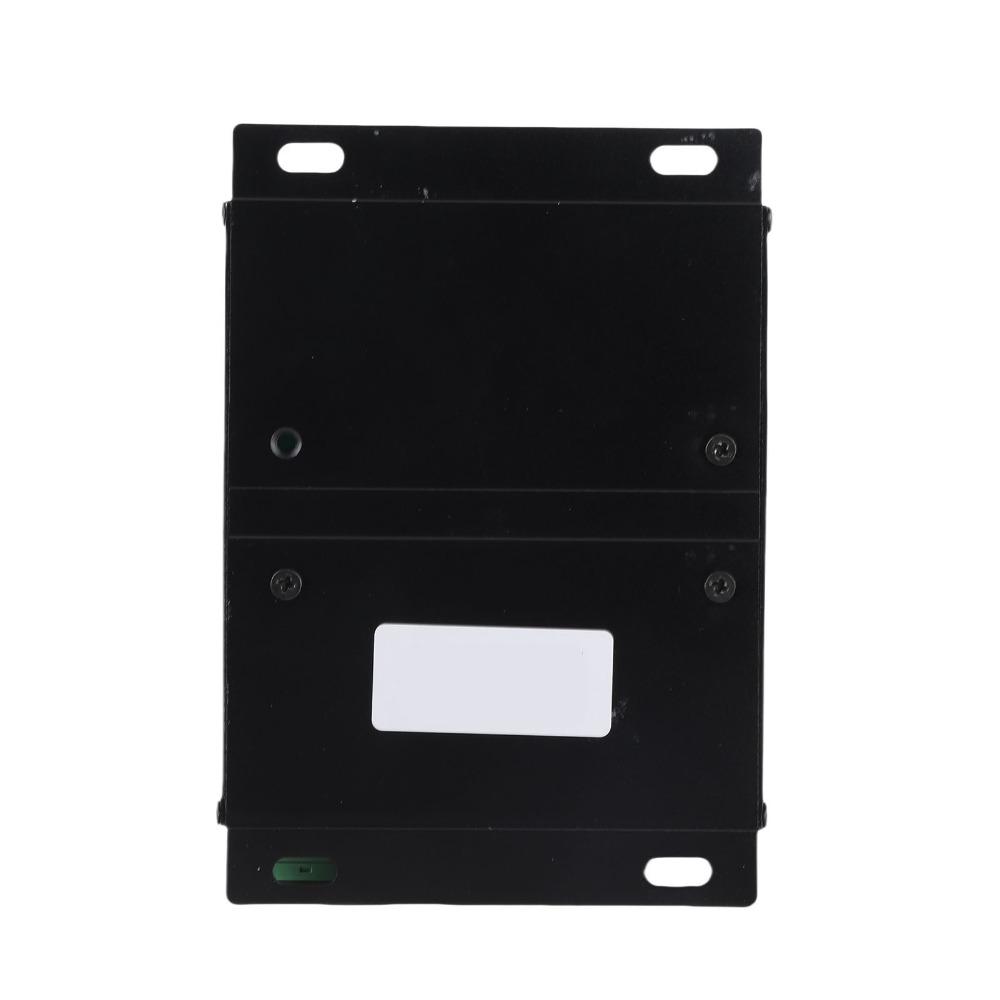

Aluminum Casing with Strong Heat Dissipation: The casing is made of aluminum, providing good heat dissipation and dependable resistance to surface wear.
Direct Charging from Engine Unit: The electric energy from the engine unit can be directly used for charging, replacing the original onboard charger.
Specification:
Constant Current Fast Charge: When the voltage of the charged battery is lower than the set value (12V battery pack <12V, 24V battery pack <24V
When the charger is charging the battery at the maximum constant current.
Current Limiting: When the charged battery is nearly full (12V battery pack ≥12V, 24V battery pack ≥24V), the charging current is automatically limited.
Turbulent Floating Charge: When the voltage of the charged battery reaches the floating charge setting value (12V battery pack is about 13.8V, 24V battery pack is about 27.6V), it will automatically switch to the floating state, that is, about the current 0.1 ~0.2A is charged (specifically related to the current power consumption of the powered device).
Stop Charging: When the voltage of the charged battery reaches the filling set value (14V at 12V and 28V at 24V), the charge output is automatically turned off.
Over-Current and Short-Circuit Protection: The product has over-current and short-circuit protection. Due to the constant current characteristics of this product, when the battery capacity is large (the internal resistance is very small), the load is short-circuited or started during the mains charging period. In the case of a motor (the starting current is very large, it is close to a short circuit for the charger) and it will not be damaged. At the same time, due to this characteristic of the product, the charger does not need to be disconnected when the battery is used as a starting power source.

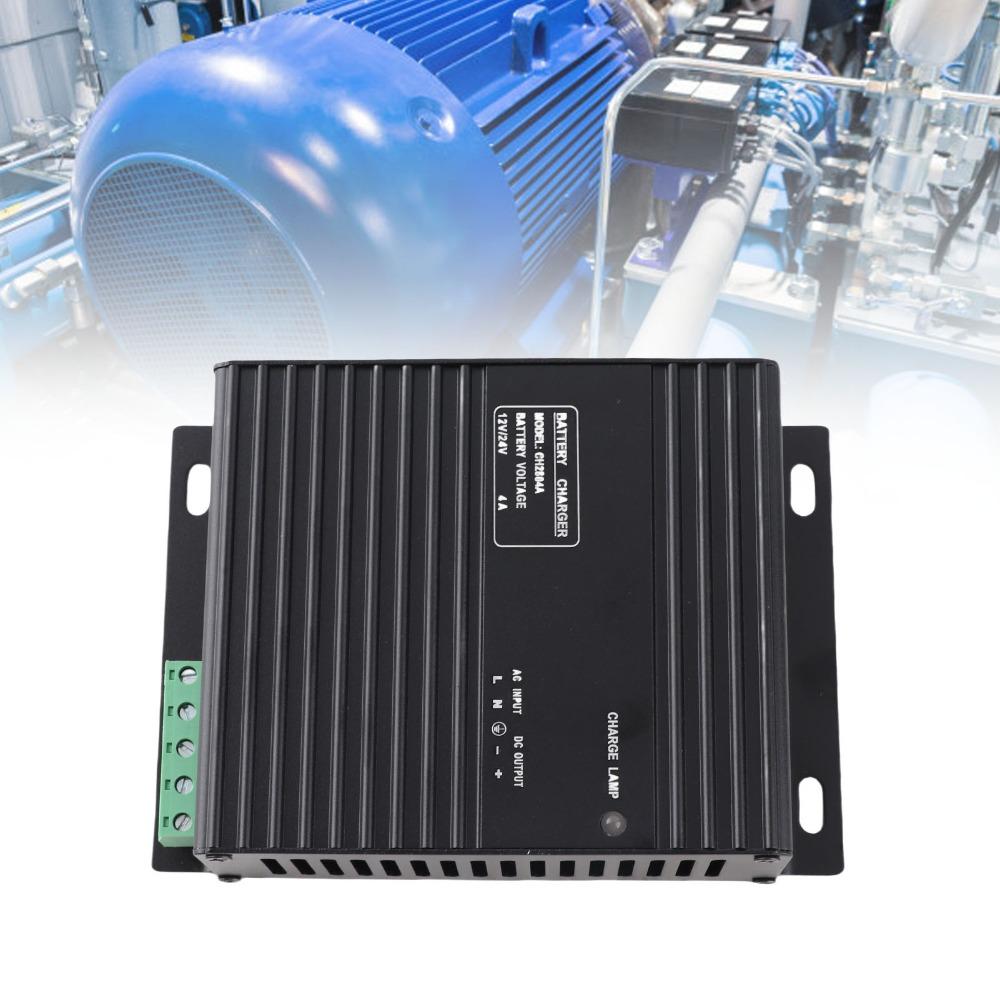

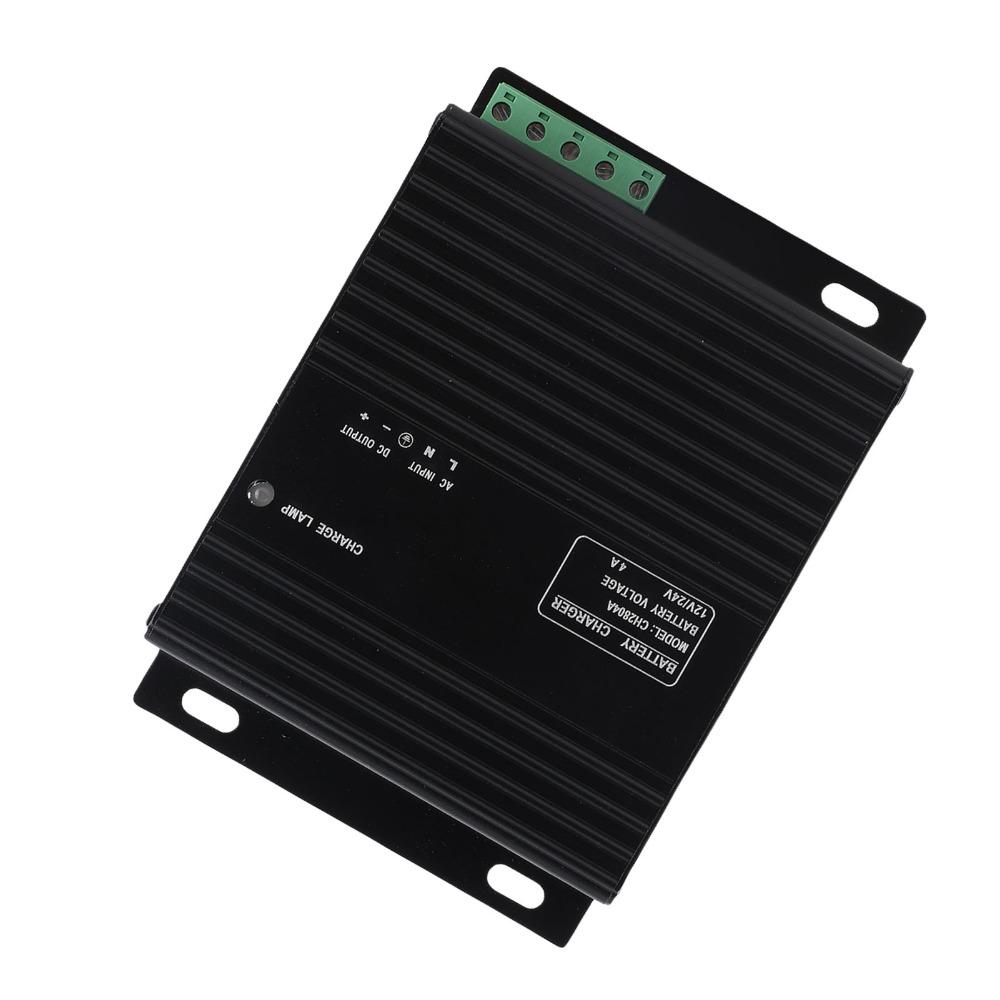

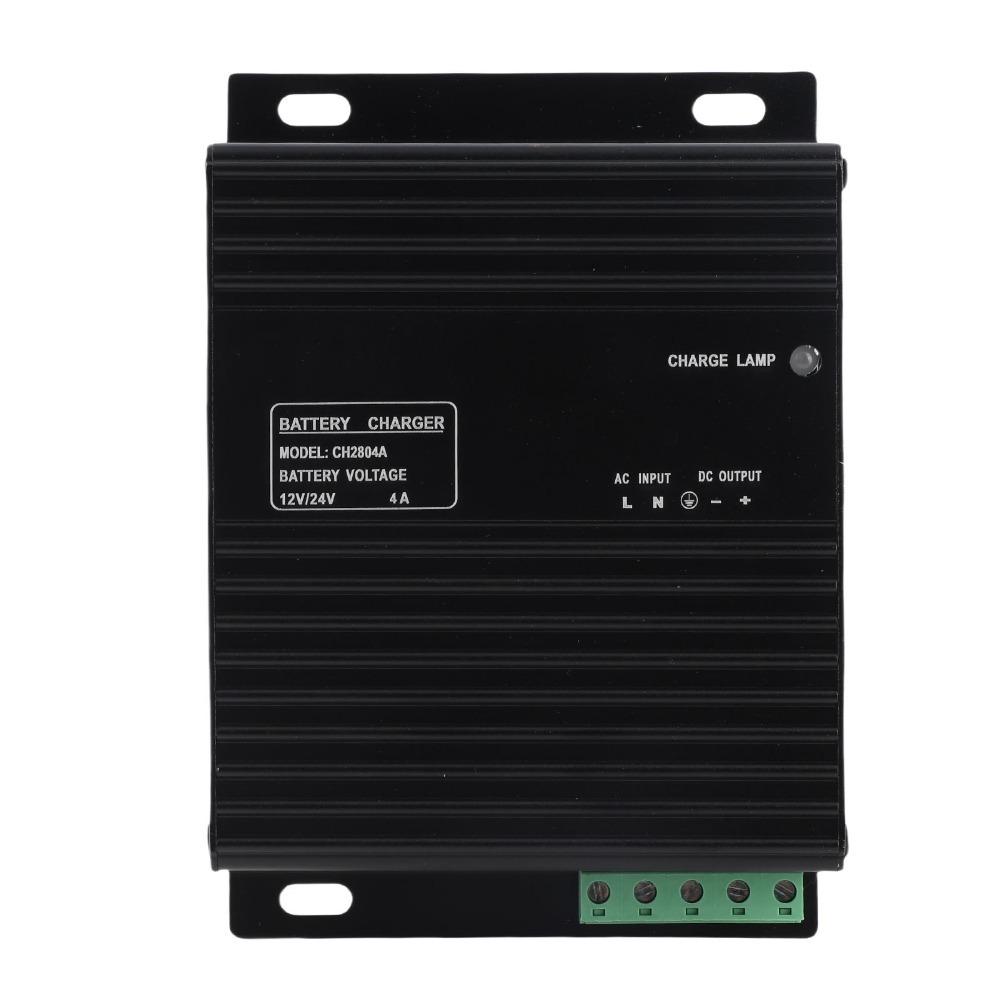

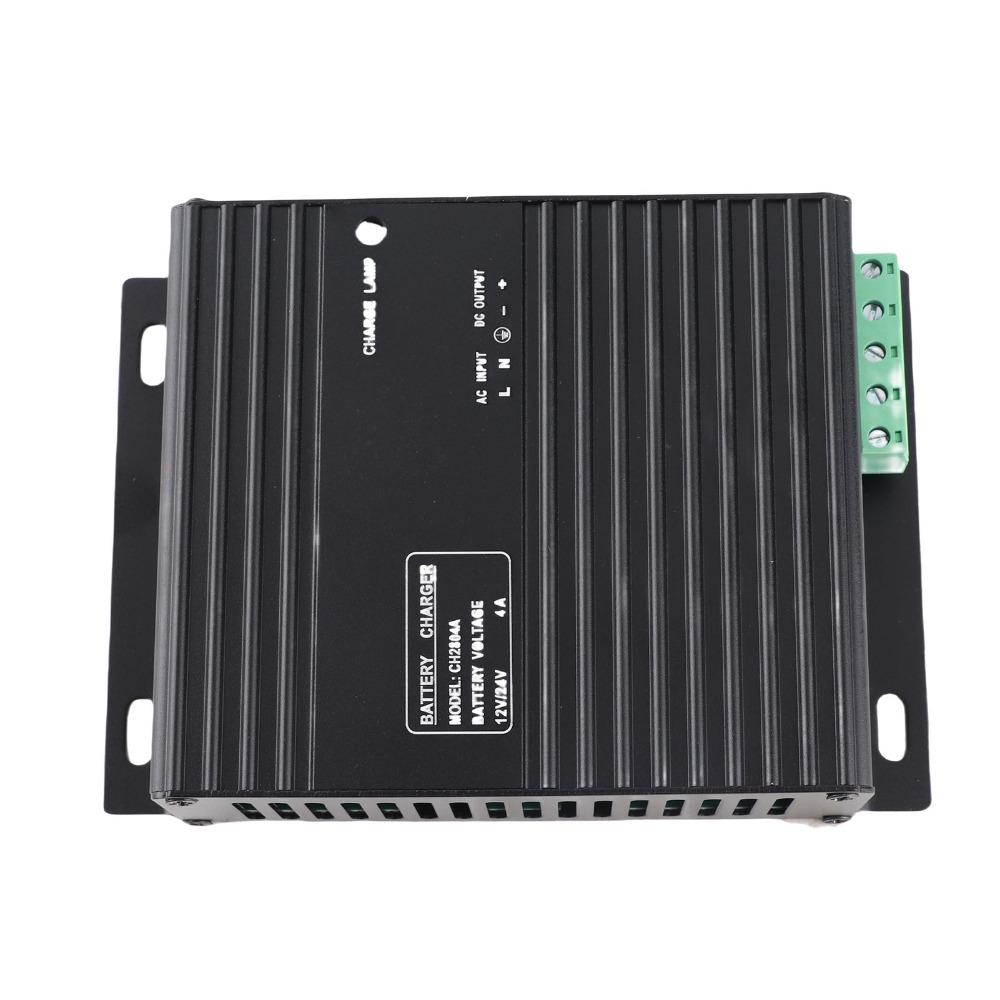

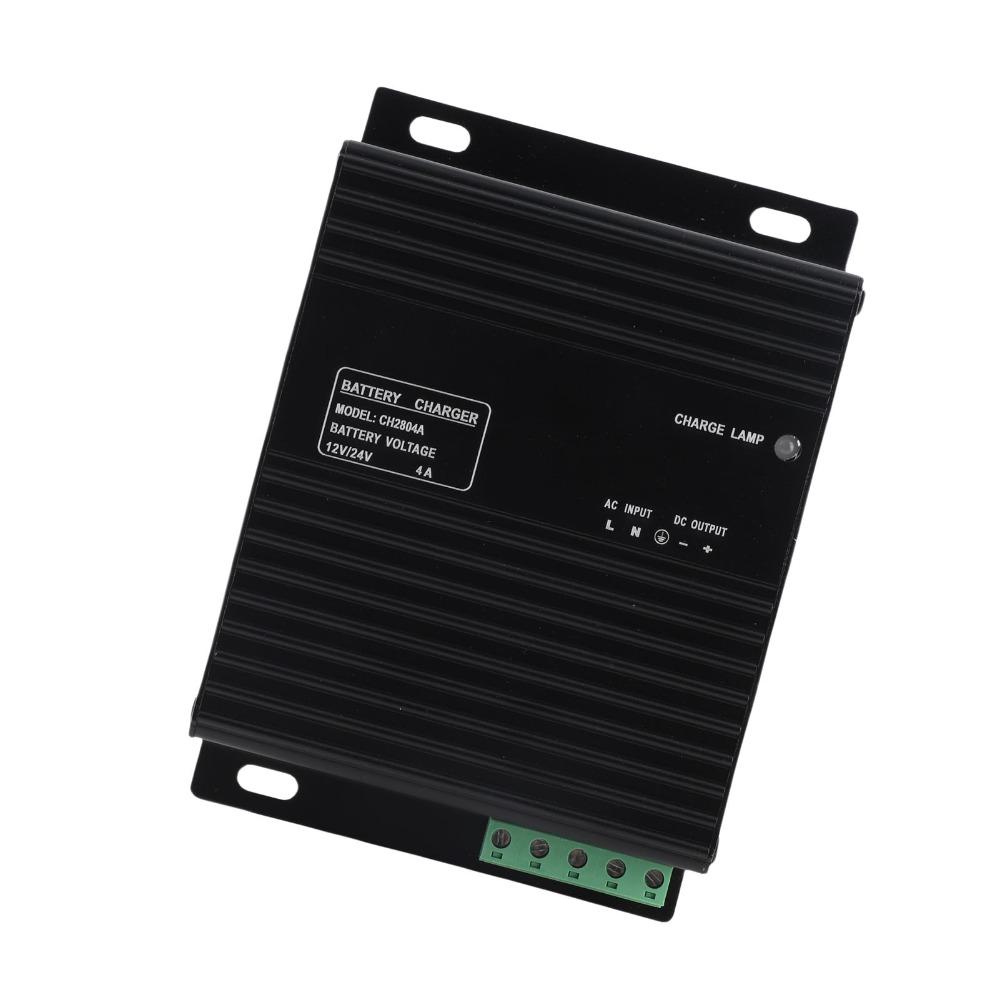

The product panel is equipped with indicator lights (light-emitting diodes). When the indicators are in different colors, it represents the different working conditions of charging.
Red: constant current fast charging phase, that is, the charging current is the rated maximum current value (including red when the output terminal is short-circuited);
Yellow (red + green): the slip current floating phase (constant voltage), that is, the charging current begins to decrease, the current is larger when the lamp is red, and the current is less when it is greenish;
Green: The battery is almost full (green when the output is open).

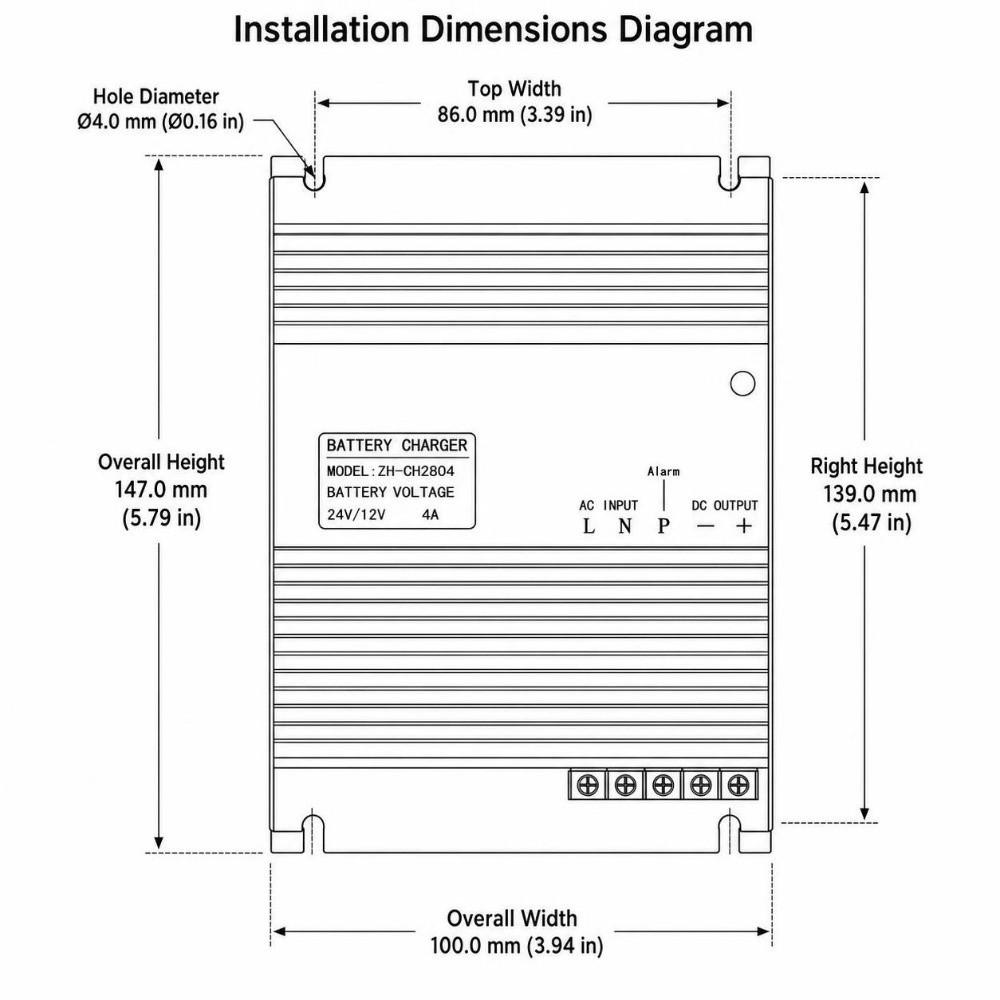

Size: Approx. 147 x 100 x 45mm(5.79 x 3.94 x 1.77in)
Package List:
1 x Charger
1 x Users Manual
Note:
1.The product is specially designed for charging the battery. Since the output contains pulse components, it is not suitable for direct use as the power source of the electronic device when the battery is not connected. Otherwise, the electronic device may cause interference or even damage.
2.If proper shock absorbing measures are not in place, it is not recommended to install the charger directly on the engine unit.
3.The product should be protected from water or other liquids, and should be kept away from heat and thermal radiation.
