4S 8S 16S 6A Active Equalizer Lithium Battery Balancer Energy Transfer 10S 13S 14S Lifepo4 Li-ion 12V 24V 36V 48V BMS Protection

High-concerned chemical : none Origin : China Certification : NONE is_customized : Yes Model Number : 4S 8S 16S 5A Active Equalizer Lithium Battery

DYKBmetered DIY Supplies : Electrical Active Equalizer Lithium Battery : 4S 8S 16S Battery Balancer Energy Transfer : Lifepo4 Li-ion 12V 24V 36V 48V BMS Protection

4S 8S 16S 5A Active Equalizer Balancer Lifepo4 Li-ion Lithium Battery pack Energy transfer Balance 3S 6S 7S 12V 24V BMS protection FOR 12V Electric CAR RV Storage BMS Please refer to the advertising video and wiring diagram before purchasing

The pressure difference also determines the current The length of the line also determines the current Be sure to wire it correctly otherwise it may cause the board to burn out

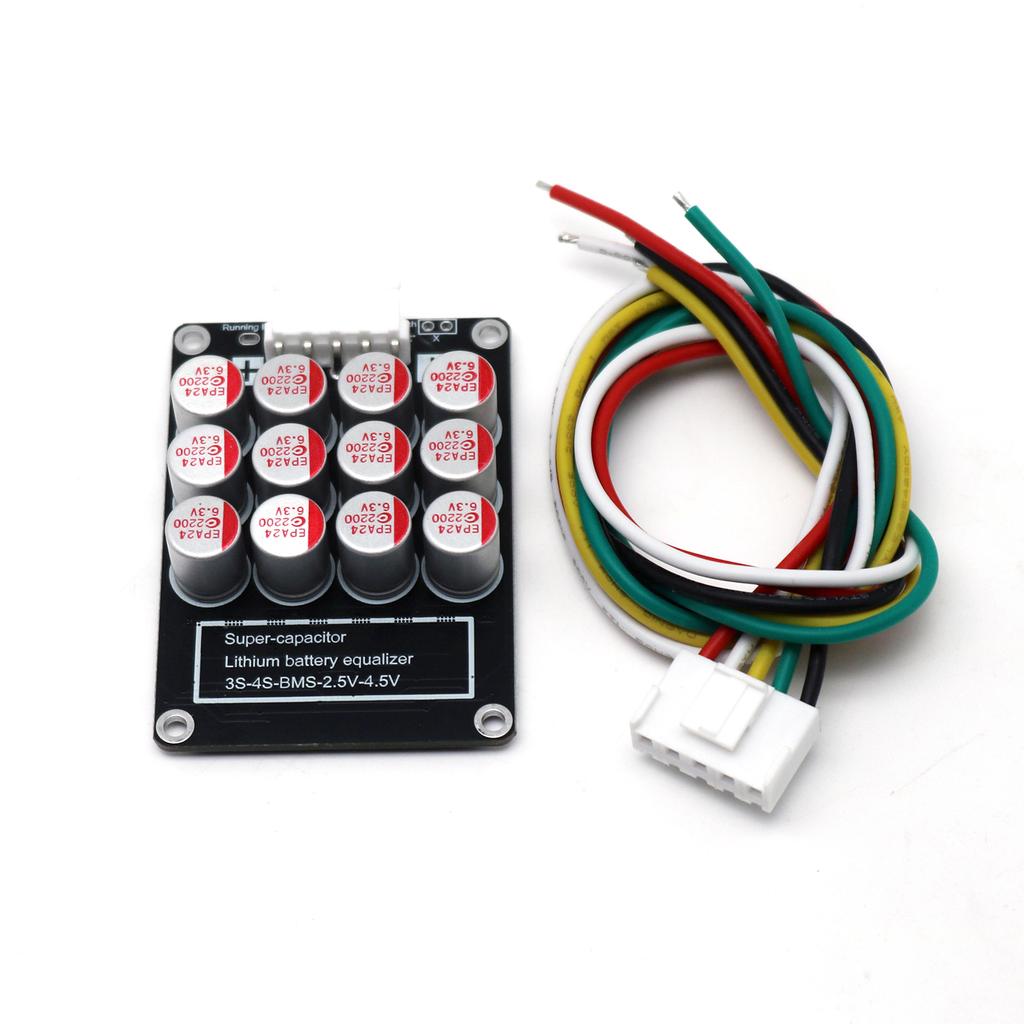

4S Supports 3S-4S SIZE : 6.8X4.9X2CM

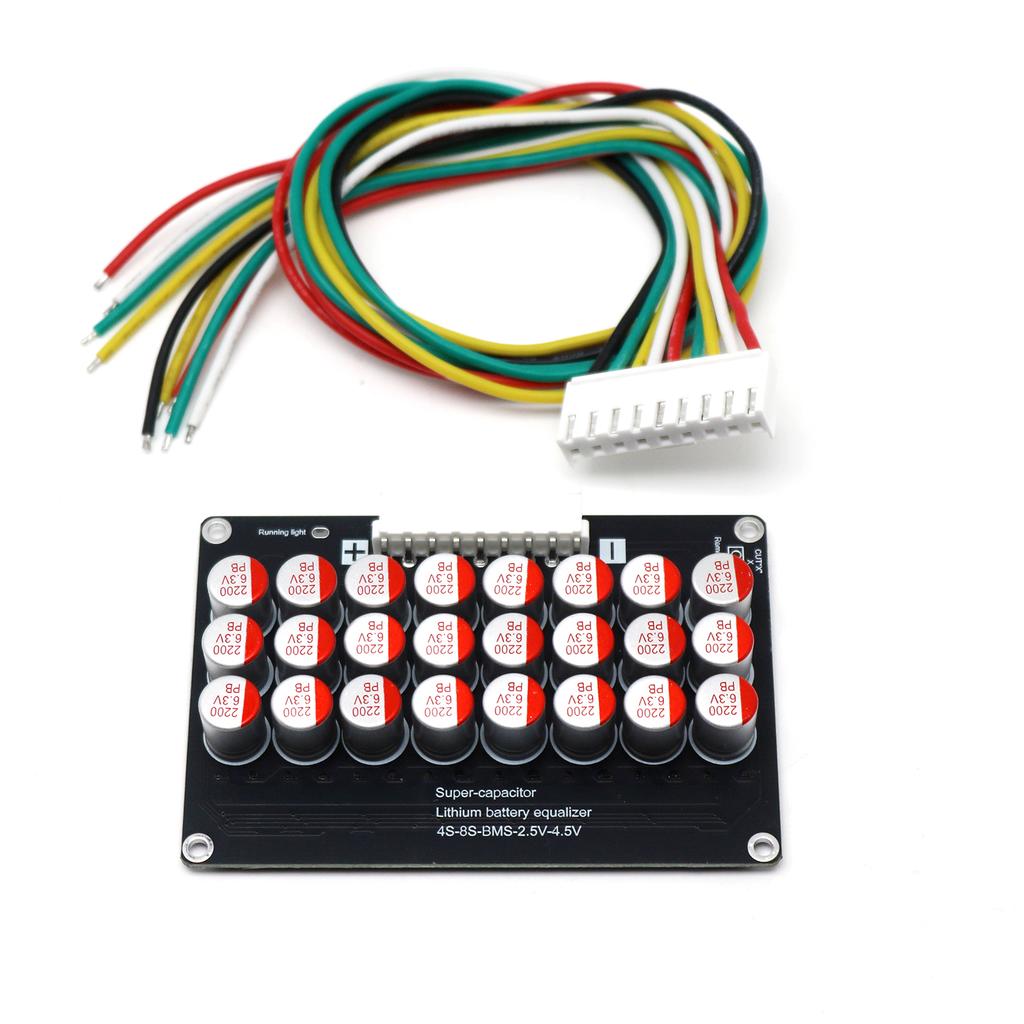

8S Support: 4S-8S SIZE 9.8X6.5X2CM.

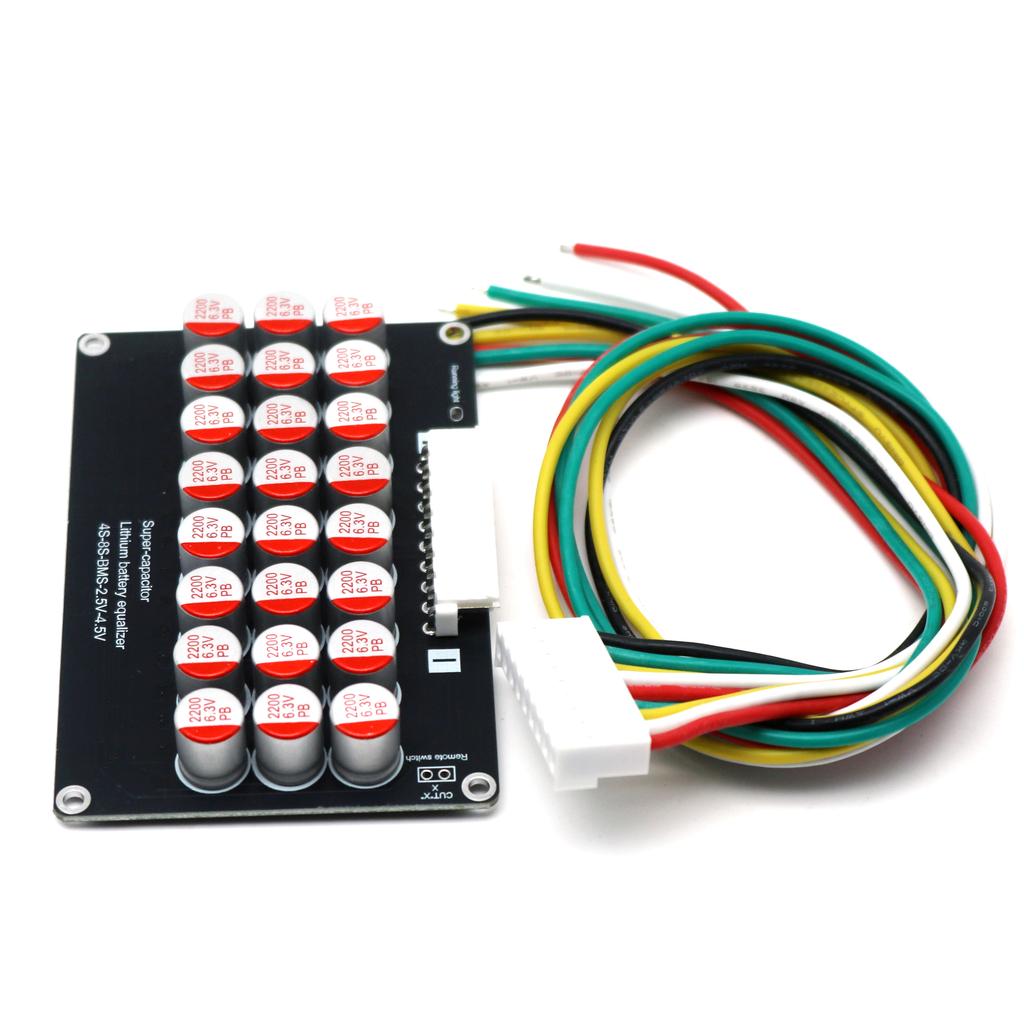

16S Supports 4S-16S SIZE : 12X9.4X2CM

Applicable Battery Type:Lifepo4 Li-ion battery

Lithium battery active balance energy transfer board Lithium battery active equalizer high-efficiency energy transfer balance. Capacitive energy transfer equalization board (high precision 5mv, whole group equalization, not adjacent equalization). Working voltage 2.5-5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate. Working

principle, the capacitive fit transfers the charge transporter, the

equalization board is connected to the battery to start the equalization

work, the brand new ultra-low internal resistance MOS, 2OZ copper

thickness PCB, equalization current 0-6A, the more the battery is, the

more the equalization current is Small, reserved for the dormant switch

wiring position, the dormant power-off mode working current is less than

0.1mA, and the balance voltage accuracy is within 5mv! The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port
