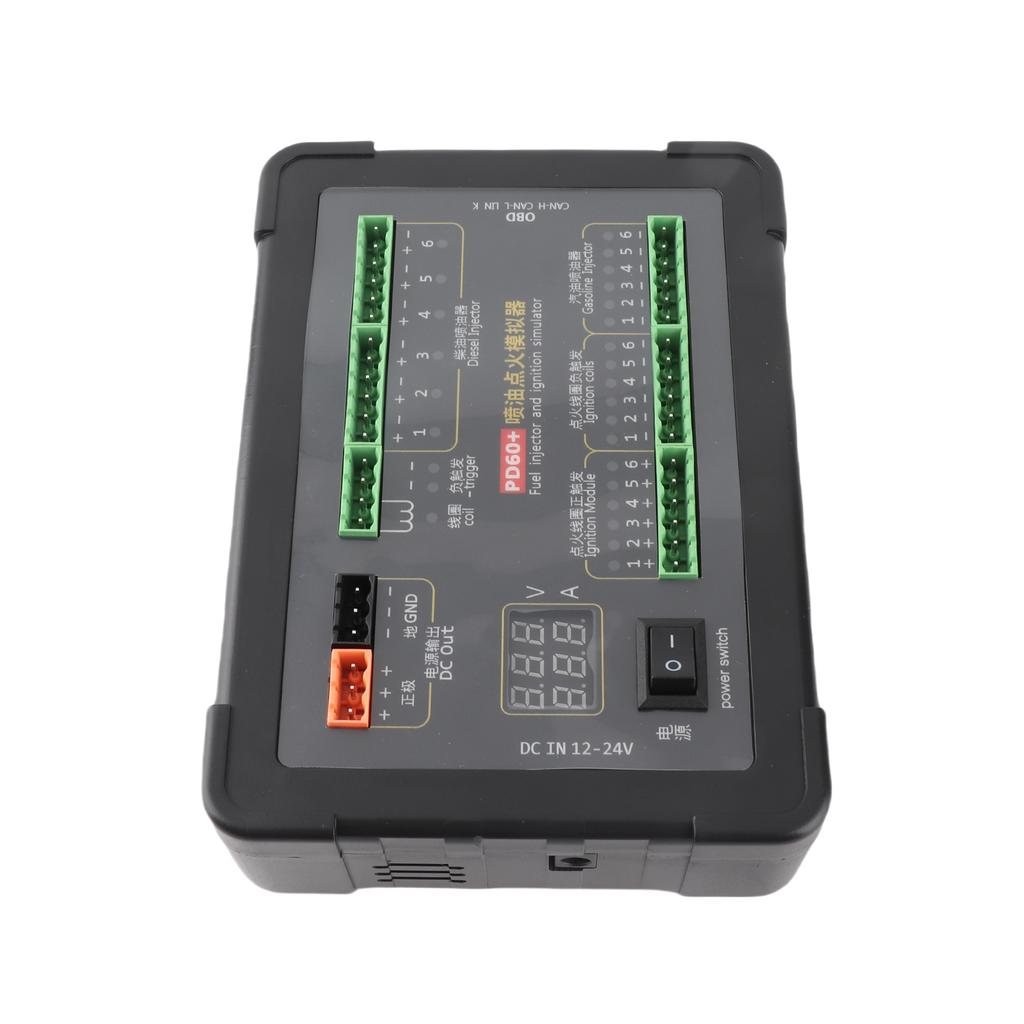

PD60 Fuel Injection Ignition Simulator ECU Maintenance Platform Testing Equipment for Gasoline and Derv Vehicle

Feature: 1. Injector Simulation Function: Supports 12 24V electromagnetic derv fuel injector simulation and 12 V gasoline injector simulation. 2. Ignition Coil Simulation Function: Supports positive trigger ignition coil simulation and negative trigger ignition coil simulation. 3. Display Function: Built in real time display computer module, with voltmeter and ammeter function, real time monitor the voltage and current during the fuel injection and ignition process in real time, helping the repairer to determine the problem more accurately. 4. Rich Functions: With over current protecting circuit, with on board diagnostics socket, with high power resistor (for fuel metering valves simulation), with 120 Ohm terminal resistor. 5. With CAN Data Acquisition Socket: PD60 is equipped with a CAN analyzer socket and connection cable, which can conveniently acquire, analyze, store and playback CAN bus data (telegrams), which is very convenient to use. 6. Note: This product does not include a signal generator and cannot simulate sensor signals. Specification: PD60 Fuel Injection Ignition Simulator is a very comprehensive tool for repairing and testing car computers. It can not only simulate gasoline and derv fuel injectors, but also simulate ignition coils, which is very suitable for car computer repairing and testing. It is a very practical car computer repairing and testing tool, greatly improving car repairing shops' efficiency. Features: Injector Simulation Function: Supports 12 24V electromagnetic derv fuel injector simulation and 12 V gasoline injector simulation. Ignition Coil Simulation Function: Supports positive trigger ignition coil simulation and negative trigger ignition coil simulation. Display Function: Built in real time display computer module, with voltmeter and ammeter function, real time monitor the voltage and current during the fuel injection and ignition process in real time, helping the repairer to determine the problem more accurately. Rich Functions: With over current protecting circuit, with on board diagnostics socket, with high power resistor (for fuel metering valves simulation), with 120 Ohm terminal resistor. With CAN Data Acquisition Socket: PD60 is equipped with a CAN analyzer socket and connection cable, which can conveniently acquire, analyze, store and playback CAN bus data (telegrams), which is very convenient to use. Note: This product does not include a signal generator and cannot simulate sensor signals. Specifications: Name: Ignition Simulator Material: plastics+metal Item size: 180 * 130 * 45.5mm 7.09 * 5.12 * 1.79in Package size: 250 * 200 * 150mm 9.84 * 7.87 * 5.91in Package weight: 500g 1.10lb Packing List: 1 * Ignition Simulator 1 * Power Cable 1 * High Power Resistance 1 * CAN Cable 3 * Computer Connection Cable 1 * Flat Cable 9 * Wiring Plugs Package List: 1 * Ignition Simulator 1 * Power Cable 1 * High Power Resistance 1 * CAN Cable 3 * Computer Connection Cable 1 * Flat Cable 9 * Wiring Plugs
