Feature:
1. ADVANCED SAFETY LOCK: Brushless li ion drill uses a sturdy 3 8in keyless metal chuck, which has a longer lifespan than plastic chucks. Can accommodate various drill bits and lock the drill bits firmly and accurately in place, minimizing process slippage
2. TWO SPEED MODES: The li ion drill is equipped with a high efficiency copper brushless motor and has two speed change modes, namely 0 400rpm and 0 1500 RPM. With an accurate torsion setting of 25+1, can easily switch to the appropriate speed according to different operating requirements such as tightening and drilling. Whether it is concrete drilling or hinge tightening, the speed can be accurately and efficiently controlled
3. LONG BATTERY LIFE: Cordless drill is equipped with a 1300mAh li ion battery pack and a battery power display function, allowing for quick charging and real time tracking of remaining battery power to prevent work interruption due to low battery
4. WITH LED LIGHT: The electric power drill also has LED working indicator light, which can work in dark and narrow spaces, useful and practical, you can use with confidence
5. COMFORTABLE AND ERGONOMIC DESIGN: The compact and lightweight body of the electric power drill, combined with the soft, comfortable and non slip handle, is less likely to cause hand pressure and fatigue even during long term operating, achieving a nice balance between functionality and portability
Specification:

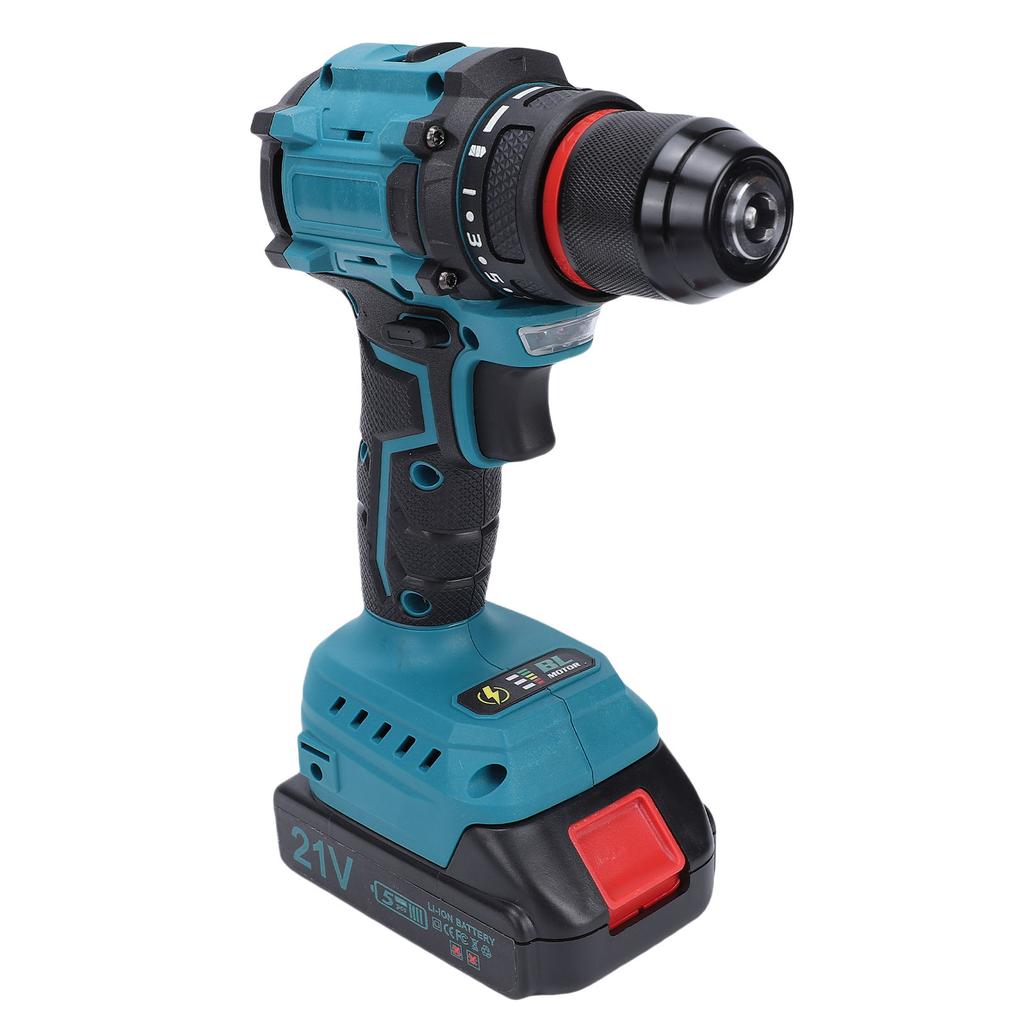

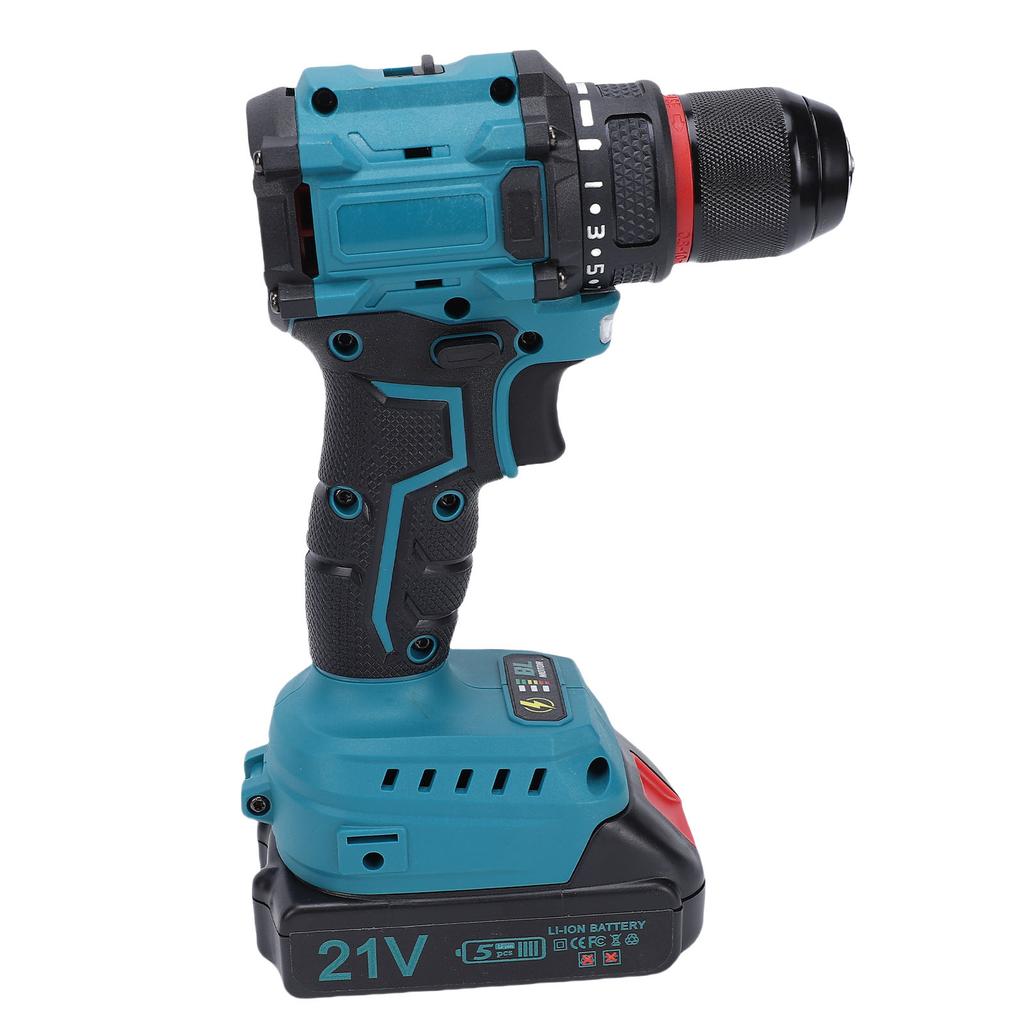

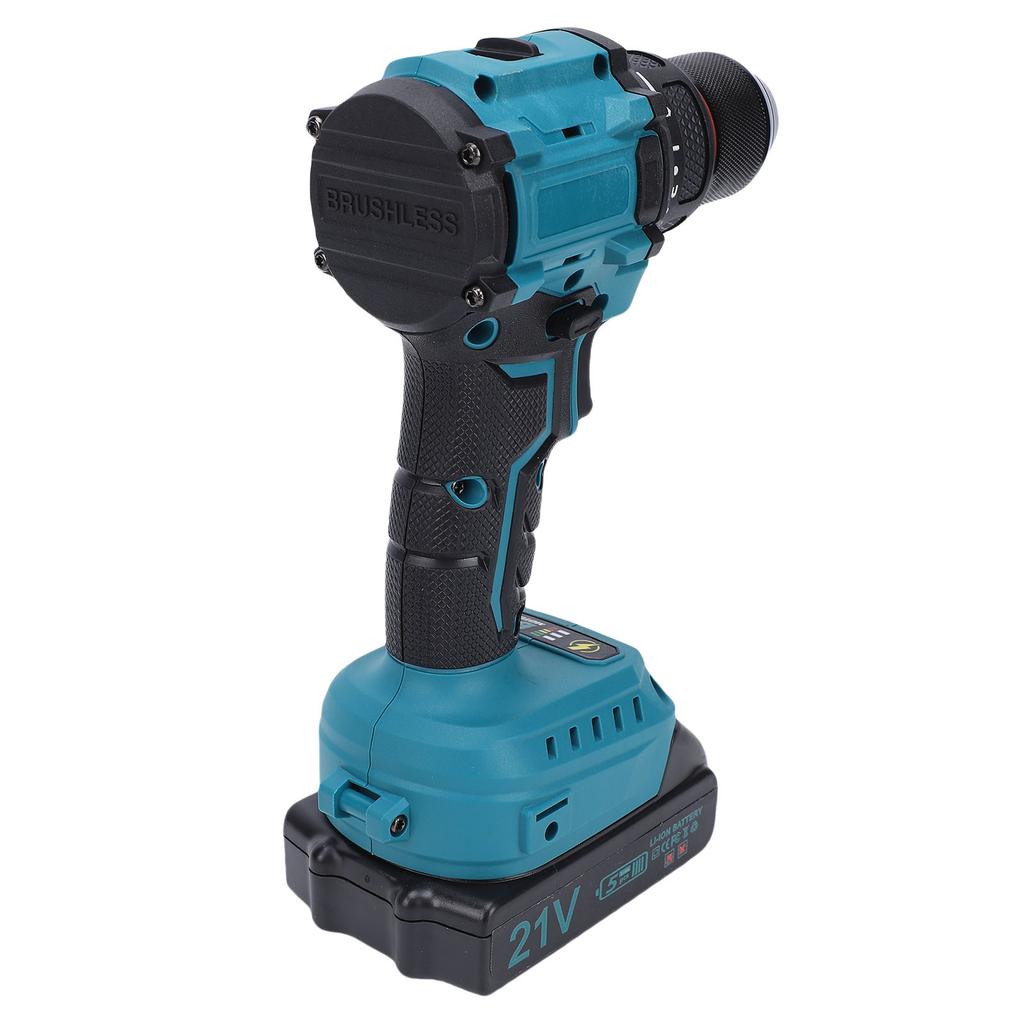

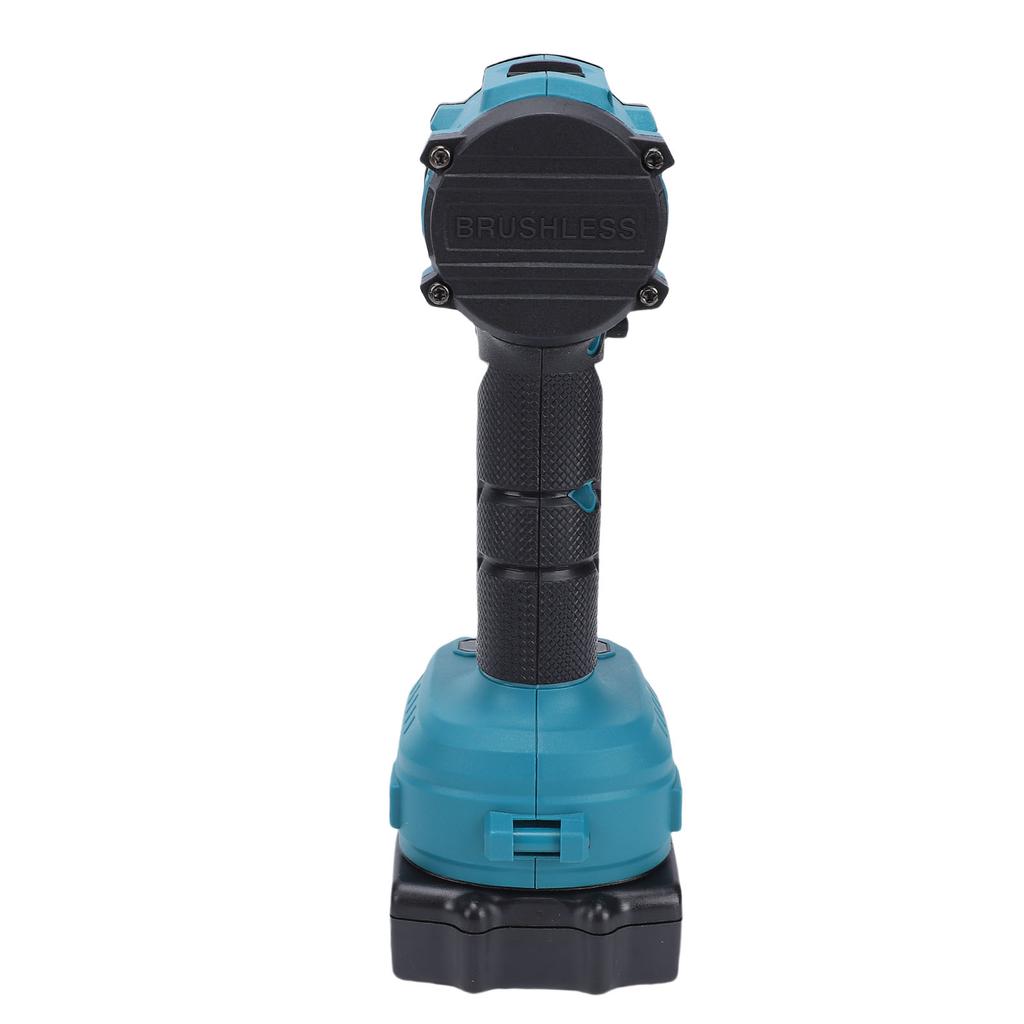

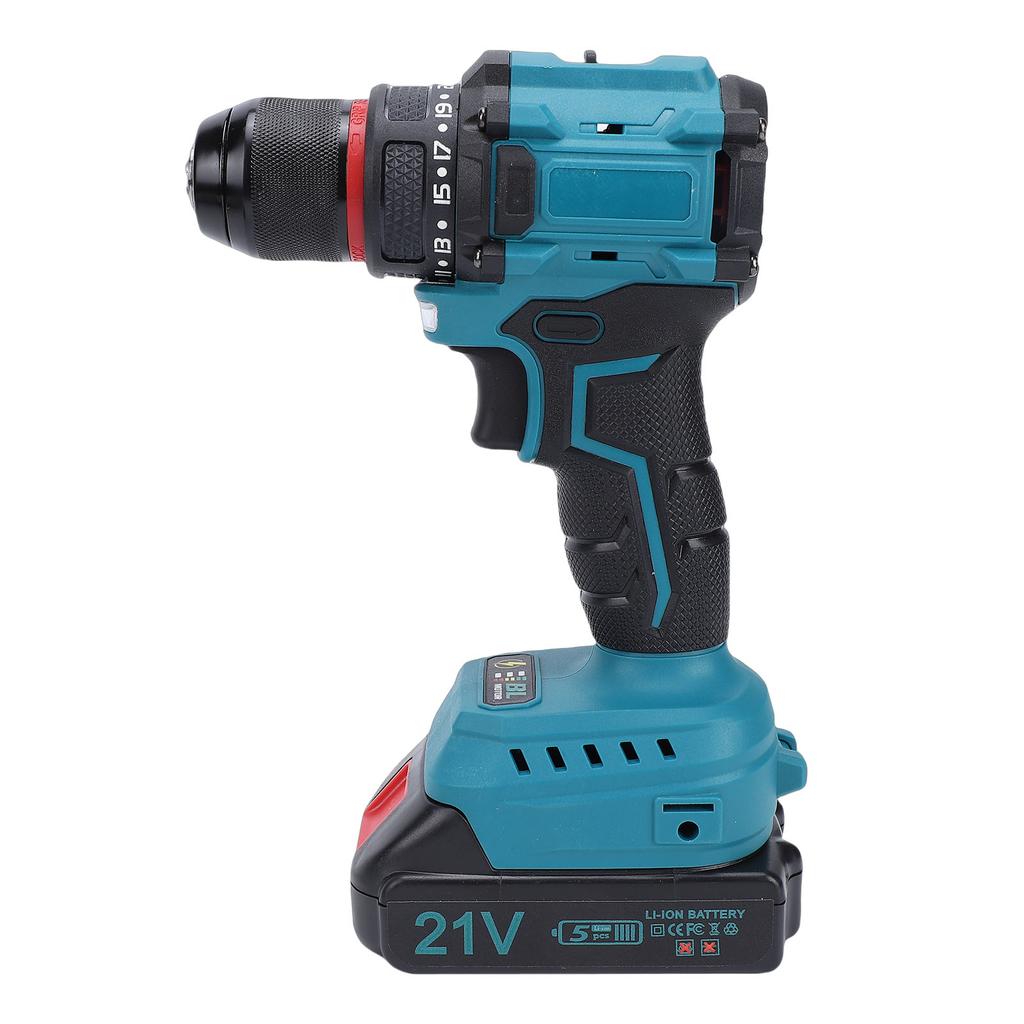

Item Type: Brushless Li Ion Drill
Battery: 5 cell 1300mAh li ion battery
Torsion: 55N.m
Motor: Brushless, 2 speed
Level Adjustment: 25+1
Material: Engineering plastic
How to Use:
1. Switch Control
There are three positions on the switch control. Before operating, make sure the motor is completely stopped and the start stop switch is not pressed:
Forward (CW): Move the direction switch to the corresponding forward position.
Reverse (CCW): Move the direction switch to the corresponding reverse position.
Actuator Lock: Push the control switch to the middle position, the actuator cannot be used at this time.
2. Start Stop and Speed Adjustment
Start: Pull the actuator, the LED light will turn on, the tool can run between 0 to full speed. Speed Adjustment: Control the speed by adjusting the force applied to the actuator. The harder you pull, the more fast the speed.
Stop: Release the actuator, the electric brake will immediately stop the tool from running.
3. Screwing Operating
Align the bit with the screw head and apply pressure to the tool. Slowly start the tool and gradually increase the speed. When the clutch actuators, release the actuator immediately to stop the operating. Before screwing into wood, it is recommended to refer to the Wood Screw Specifications and Corresponding Pre Drilling Hole Diameters Table for pre small holes to facilitate operating and prevent workpiece cracking. Refer to the user manual for specific corresponding relationships.
4. Drilling Operating
Pre Drilling Preparation: Turn the adjustment loop to align the pointer with the corresponding mark.
5. Drilling Requirements for Different Materials
Wood: Use woodworking drill bits with guiding screws. The guiding screws can pull the drill bit into the workpiece, improving drilling effectiveness.
Metal: Before drilling, use a center punch and hammer to make a dent at the drilling point to prevent the drill bit from slipping. Except for iron and brass that can be drilled dry, use cutting lubricant when drilling other metals.
Stone: Add water during drilling to avoid overheating the tool..
Package List:

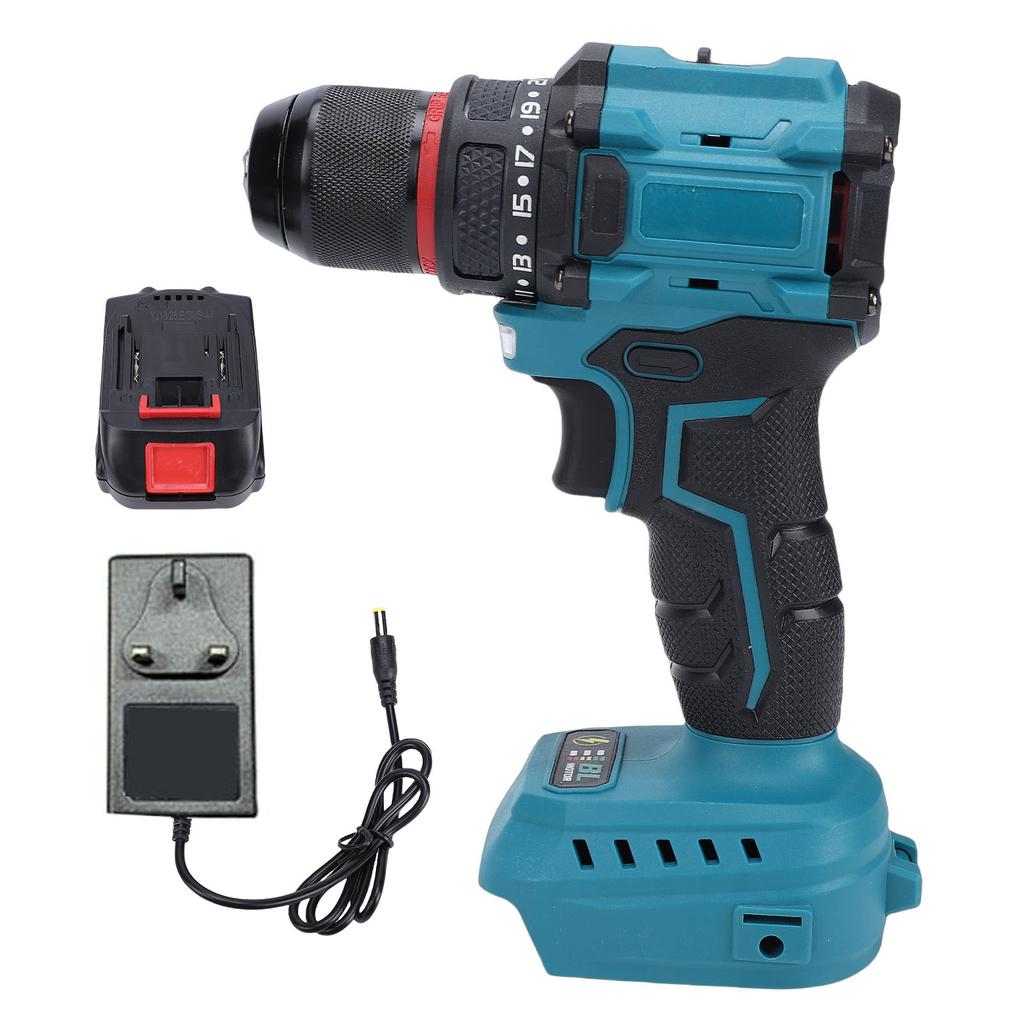

1 x 2 in 1 Multi Function Electric Drill Host
1 x Matching Rechargeable Battery
1 x Supply Adapter
1 x User Manual
Note:
Do not press the tool excessively, as it may damage the tip of the drill bit, reduce tool performance, and shorten its lifespan. After the battery is depleted, allow the tool to rest for 15 minutes before installing an replacement battery for use.
