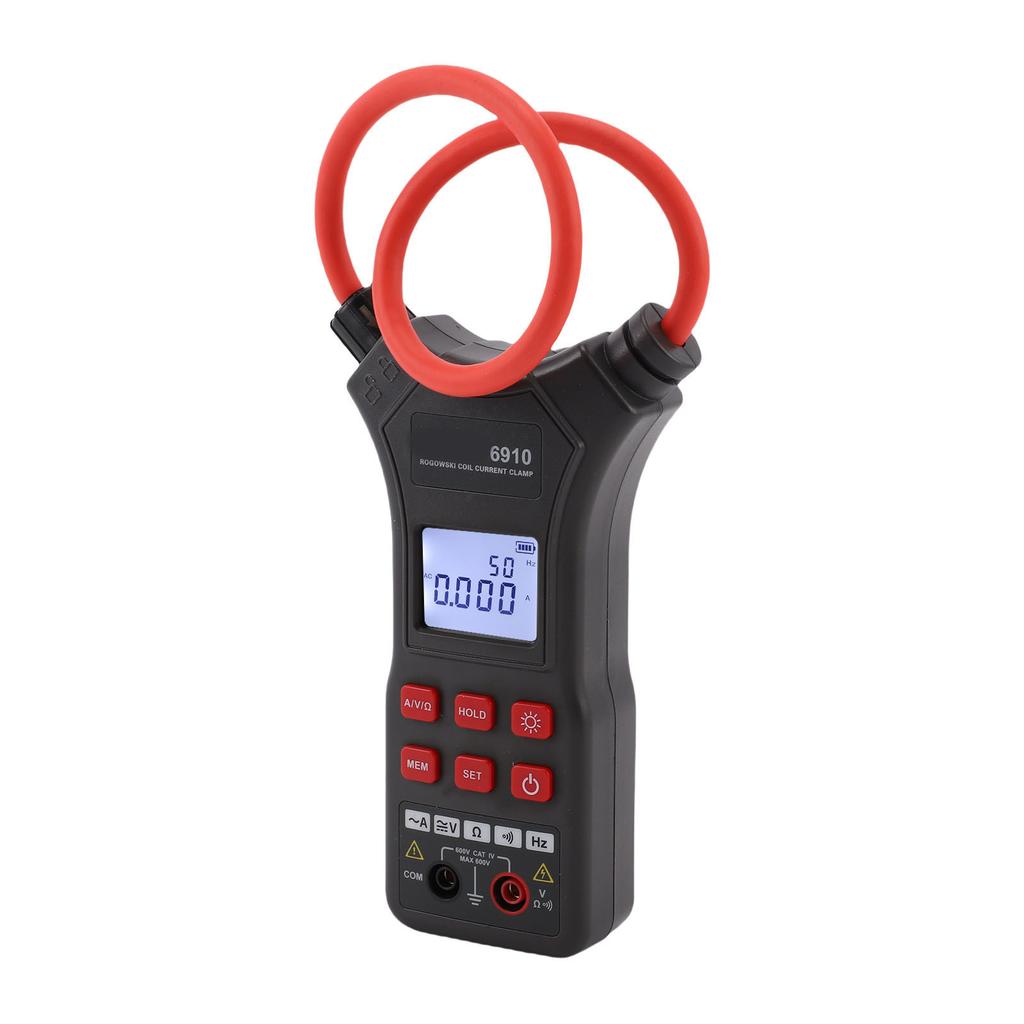

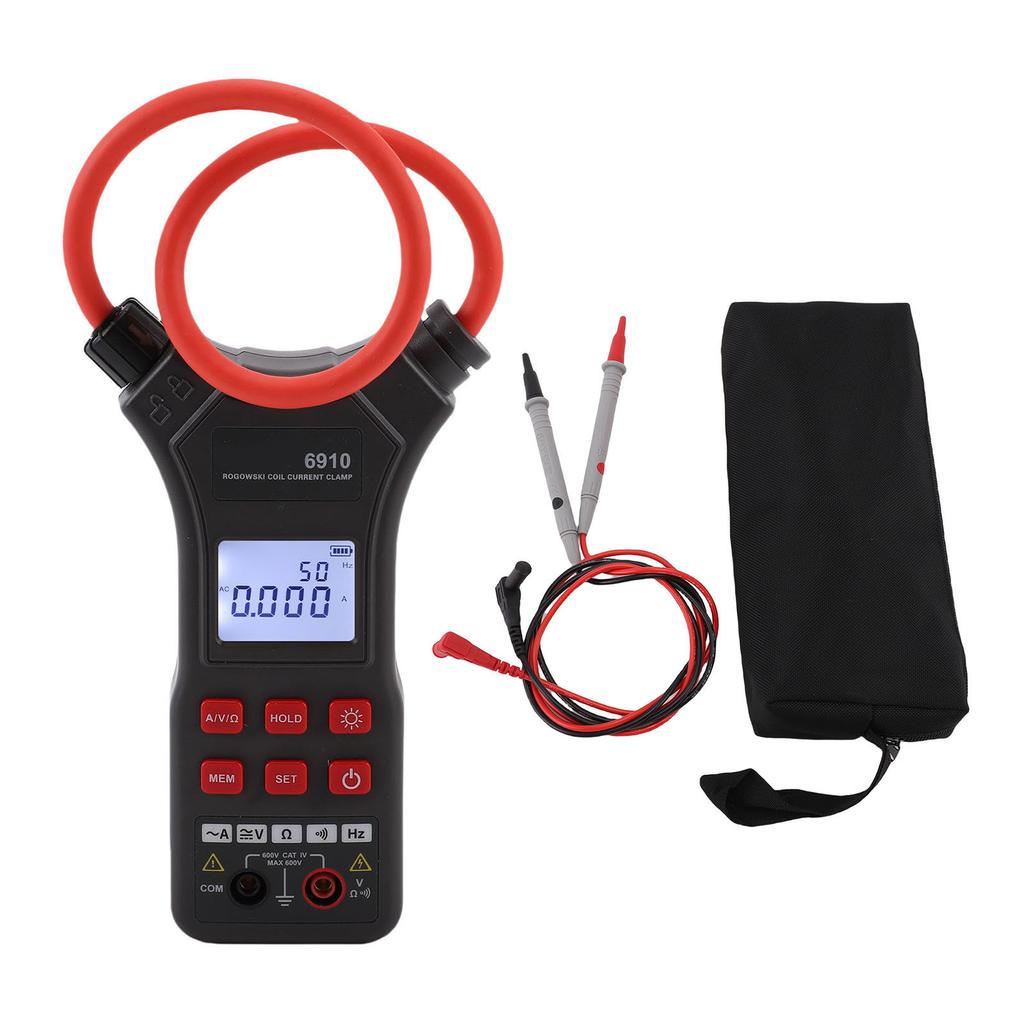

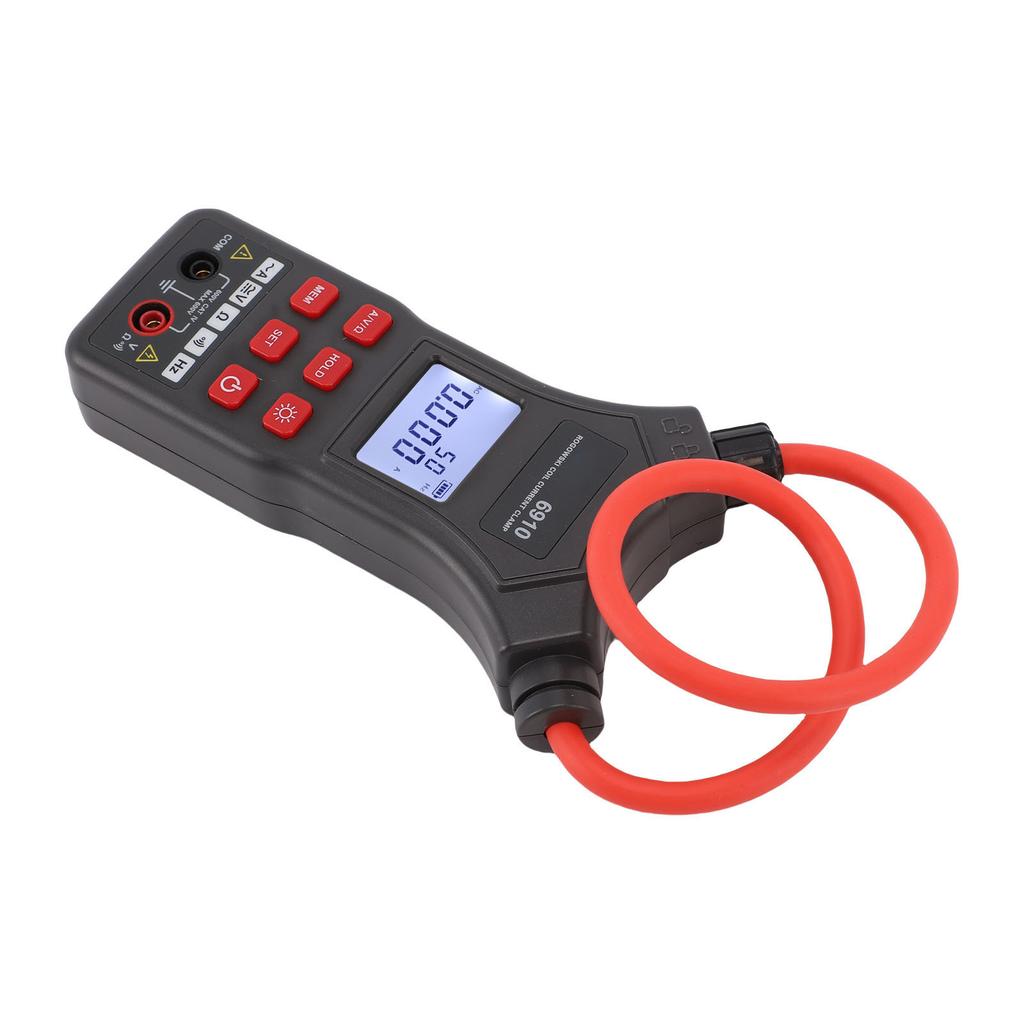

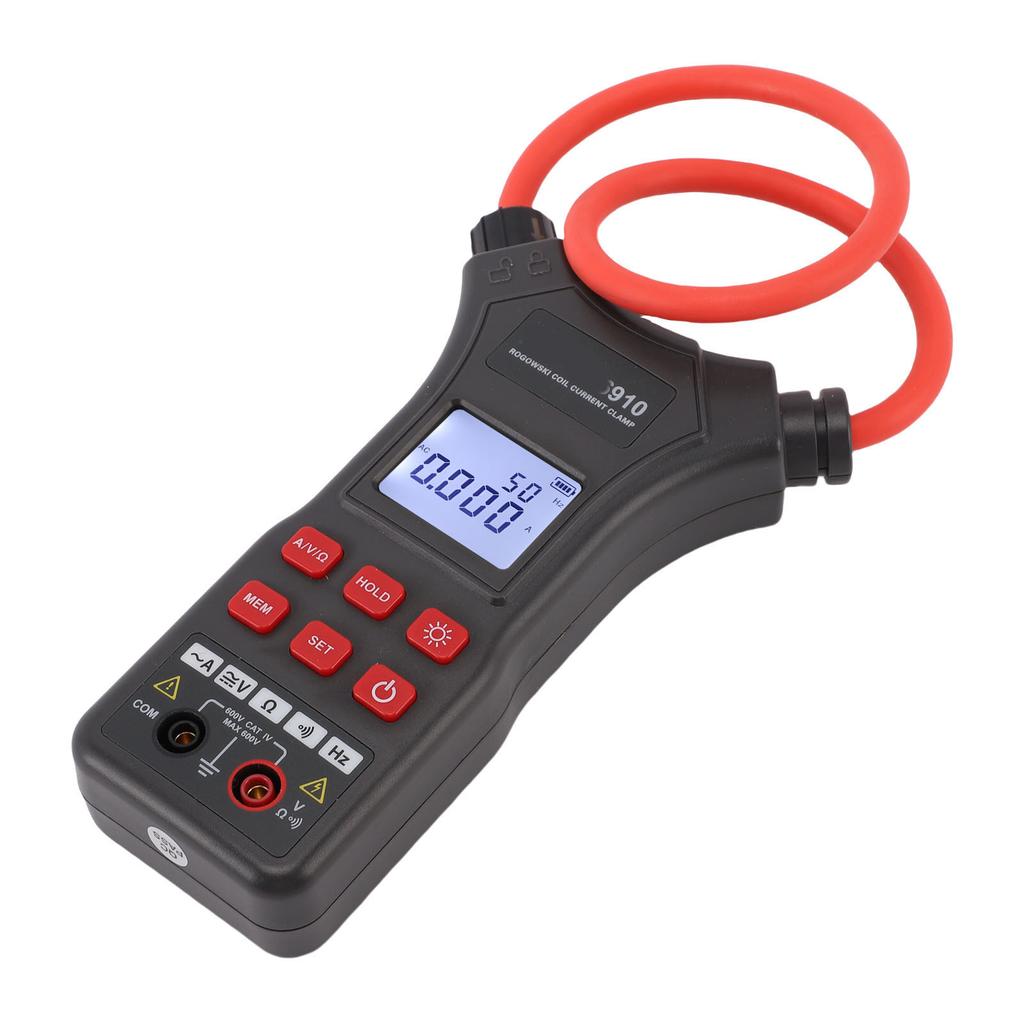

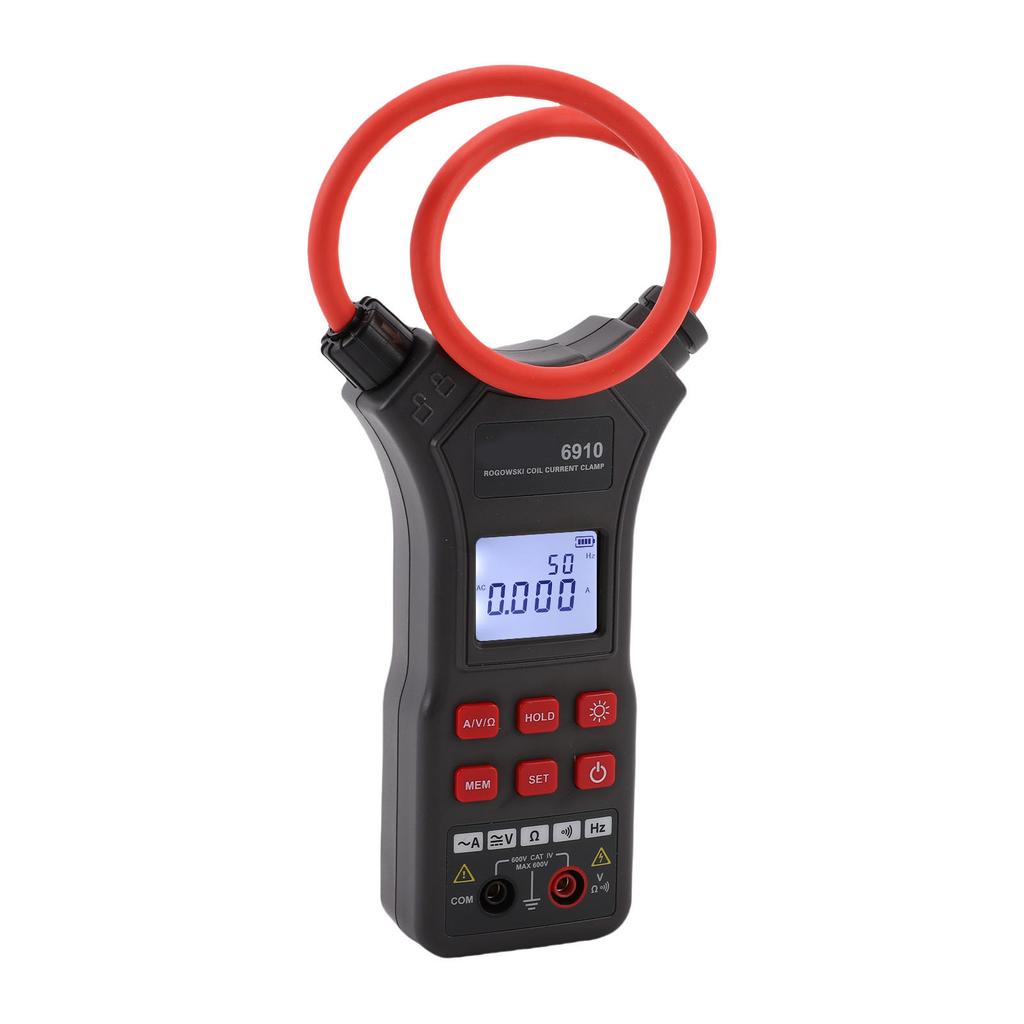

Flexible Clamp Meter AC0A 10000A AC0.1V 750V DC0.1V 1000V 0 Ohm 2000 Ohm Digital Flexible Coil Ammeter Electrical

Feature: 1. Wide Range: This flexible clamp meter can be used to measure 0mA to 10000A AC current, 0.1V to 750V AC voltage, 0.1 to 1000V DC voltage, 0 Ohm to 2000 Ohm resistor. 2. Flexible Coil: This clamp meter adopts flexible coil, without any exposed metal conductors, ensuring safe contactless measurement, can easily access to hard to arrive areas. 3. Flashlight Design: The digital flexible clamp meter is designed with flashlight, ensuring that you can see the lines clearly even in dark environments. 4. Multi Functions: This flexible coil current meter supports 600 groups of data storage, supports automatic shutdown to save energy. 5. Wide Usage: This flexible clamp ammeter is suitable for narrow environments and places with dense wiring, measuring the current of conductors with large size or irregular shapes. Specification: Item Type: Flexible Clamp Meter Material: ABS Model: ETCR6910A Power Source: 3 x AAA dry batteries (not included) LCD Size: Approx. 43x38mm 1.69x1.50in Display Area: Approx. 36.5x29mm 1.44x1.14in Measurement Method: True RMS AC Current Measurement: Range: AC 0mA 10000A Accuracy: + 2percent rdg+ 5dgt Resolution: 1mA AC Voltage Measurement: Range: AC 0.1V 750V Accuracy: + 1.5percent rdg+ 5dgt Resolution: 0.1V DC Voltage Measurement: Range: DC 0.1V 1000V Accuracy: + 1.5percent rdg+ 5dgt Resolution: 0.1V Resistor Measurement: Range: 0 Ohm 2000 Ohm Accuracy: + 2percent rdg+ 5dgt Resolution: 1 Ohm Coil Size: Inner Diameter Approx. 150mm 5.91in Data Storage: 600 sets Frequency: 50Hz 60Hz auto recognition Sampling Rate: About 1 time second Backlit: Yes, can be controlled Data Hold: Data hold function, displays HOLD Overflow Display: Over range overflow function, displays OL Auto Power Off: Automatically shuts off after approximately 10 minutes with no operation to save battery Battery Voltage: When battery voltage drops to around 3.8V, display shows a reminder to replace the battery Meter Size (WxHxT): Approx. 200x370x35mm 7.87x14.57x1.38in Meter Weight: The total weight is about 0.62kg 1.37lb (including accessories) Operating Current: 80mA with backlit on; 40mA with backlit off Operating Temperature and Humidity: 10 celsius to 40 celsius ; below 80percent RH Storage Temperature and Humidity: 10 celsius to 60 celsius ; below 70percent RH Insulation Strength: AC 3700V rms (between iron cores and shell) Suitable Safety Standards: IEC1010 1, IEC1010 2 032, Pollution level 2, CAT III (600V). Package List: 1 x Flexible Clamp Meter 1 x Carrying Case 2 x Test Cables Note:
