Rosfix Heat Shrink Tubing Set 328 pcs

Rosfix Heat Shrink Tube Set 328 pcs.

✅ Rosfix Heat Shrink Tube Set: Your Support in Professional Insulation and Protection!

✅ If you are looking for a reliable tool for insulating, protecting and securing wires and cables, connections, the Rosfix Heat Shrink Tubing Set with 328 pieces is an excellent choice. This complete set offers a wide selection of heat shrink tubing sizes and colors that provide excellent thermal and electrical insulation, as well as durable protection against moisture and damage.

✅ Main Advantages of the Rosfix Heat Shrink Tubing Set:

• Versatile Applications: This set is the answer to a variety of needs. It can be used to insulate electrical wires, joints, splices, as well as to protect electronic components from moisture, dust, and vibration.

• Professional Insulation: Rosfix heat shrink tubing perfectly insulates wires and connections, minimizing the risk of short circuits and other problems. They create an effective thermal and electrical barrier.

• Protection against Moisture and Damage: Thanks to their ability to shrink under the influence of heat, the tubes create tight covers that effectively protect against moisture and mechanical damage.

• Easy Application: Heat shrink tubes are easy to use. After placing them on the wires or connections, simply apply heat (e.g., using a heat shrink gun) to shrink the tubes, creating a durable and tight cover.

• Various Sizes and Colors: The set includes various sizes of tubes, allowing you to adapt them to various needs. Additionally, different tube colors make it easier to identify wires and connections.

• Professional Effects: Rosfix heat shrink tubes create not only effective protection, but also aesthetic finishes, which is important in professional applications.

✳️ Specification:

✔️ 8 specifications, 5 colors, 328 pieces

✔️ Supplied inner diameter: 1.0mm, 2.0mm, 3.0mm, 4.0mm,6.0mm, 8.0mm, 10.0mm, 14.0mm

✔️ Material: Polyolefin

✔️ Shrinkage ratio: 2:1 (will shrink to 1/2 of the supplied diameter)

✔️ Operating temperature: -55°C to +125°C

✔️ Minimum shrinkage temperature: +70°C

✔️ Full temperature Shrinkage: maximum +110 ° C

✔️Tensile Strength: 10.4 Mpa

✔️ Dielectric Strength: 15 kV/mm

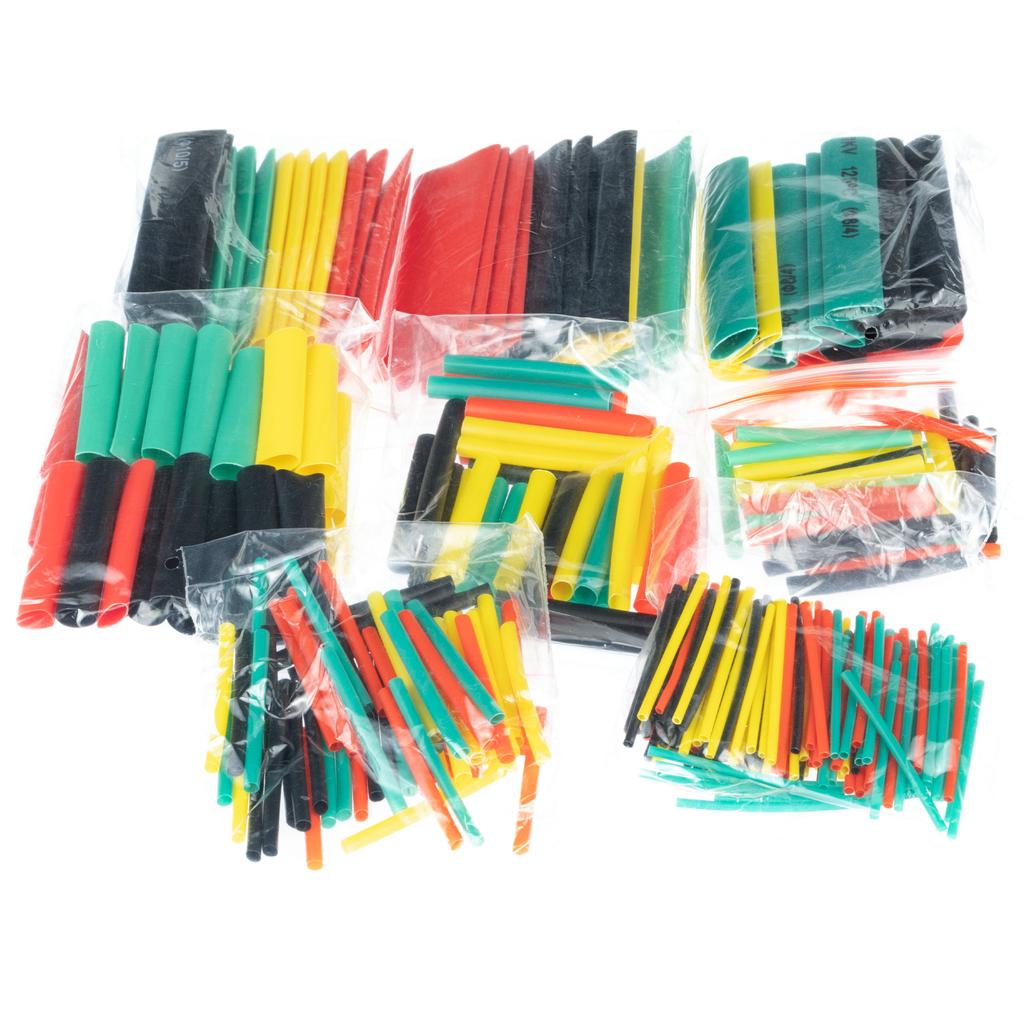

✔️ Included:

• 120pcs x φ1.0x40mm (yellow, black, red, green)

• 60pcs x φ2.0x40mm (yellow, black, red, green)

• 32pcs x φ3.0x40mm (yellow, black, red, green)

• 32pcs x φ4.0x40mm (yellow, black, red, green)

• 32pcs x φ6.0x40mm (yellow, black, red, green) Green)

• 20pcs x φ8.0x80mm (Yellow, Black, Red, Green)

• 16pcs x φ10.0x80mm (Yellow, Black, Red, Green)

• 16pcs x φ14.0x80mm (Yellow, Black, Red, Green)

✳️ The Rosfix 328-piece Heat Shrink Tubing Set is an extremely versatile tool that finds wide application in a variety of fields. Here are some examples of how these heat shrink tubings can be used:

✔️ Electrics and Electronics: Heat shrink tubing is ideal for insulating and protecting electrical wires, joints, and connections. They protect against dust, moisture, and mechanical damage, and minimize the risk of short circuits.

✔️ Technical Repairs: When repairing electronics, household appliances, or electrical devices, heat shrink tubing can be used to renew wire insulation or secure connections.

✔️ Automotive: In the automotive industry, heat shrink tubing is used to insulate and protect wires in cars, motorcycles, and other vehicles. Protects against moisture and corrosion.

✔️ DIY Projects: Those who enjoy DIY can use heat shrink tubing to create professional insulation for their projects, such as model building, electronic circuits, etc.

✔️ Markings and Color Codes: Different colors of heat shrink tubing can be used to mark wires or connections, making identification and maintenance easier.

✔️ Protecting Electronic Components: Heat shrink tubing can be used to protect delicate electronic components such as diodes, capacitors, and microswitches.

✔️ Insulating Water Lines: In some applications, heat shrink tubing can be used to insulate water lines or pipes, providing protection against corrosion and moisture.

✔️ Creating Seals: Heat shrink tubing can be used to create seals in various applications, e.g., to insulate pipe connections in water or gas installations.

✔️ Workshop Work: In mechanical and electrical workshops, as well as in technical industries, heat shrink tubing is widely used for repairs and maintenance.

✔️ Emergency Repairs: In emergency situations or in the field, heat shrink tubing can help quickly secure damaged wires or connections.

✳️ Installing heat shrink tubing is a relatively simple process, but it does require some steps to achieve permanent and effective protection of wires or connections. Below you'll find step-by-step instructions on how to properly install heat shrink tubing:

✔️ Preparing the Materials: Make sure you have all the necessary tools and materials. You'll need the appropriate size heat shrink tubing, a heat shrink gun or other heat source, and the wires or components you want to insulate or protect.

✔️ Preparing the Wires: If you're protecting wires, make sure they are clean and dry. You can also slit the wire insulation to make them ready for the tubing.

✔️ Choosing the Tubing Size: Choose the appropriate heat shrink tubing that matches the diameter of the wires or components you're protecting. Remember, the tubing should be slightly larger than the wire to ensure a perfect fit after shrinking.

✔️ Placing the Tubing: Slide the heat shrink tubing over the wire or component you want to protect. Make sure the tubing is positioned correctly and covers the entire length of the area you want to insulate.

✔️ Applying Heat: Direct a heat source (heat shrink gun, hair dryer) at the heat shrink tubing. Be sure to keep the heat source away from the tubing and avoid heating any one spot for too long to avoid overheating.

✔️ Shrinkage Observation: The heat shrink tubing will gradually shrink when exposed to heat. Monitor this process to ensure the tubing shrinks evenly and adheres to the wire or component.

✔️ Shrinkage Thoroughly: Make sure the heat shrink tubing fits snugly around the wire and covers the entire area to be protected. Some tubing will shrink by as much as half its length.

✔️ Cooling Down: After thoroughly shrinking the tubing, allow the wire or component to cool. Make sure the tubing is completely cool before proceeding.

✔️ Condition Assessment: Check that the heat shrink tubing has been installed correctly and has provided permanent insulation or protection. Make sure there are no damages or inaccuracies.

✔️ Repeat (optional): If you are securing multiple wires or components, repeat the same steps for each one.
