Product Description
Important Note
This infrared temperature sensor is designed to measure non-metal surfaces only. To measure metallic surfaces, apply high-temperature tape or paint to create a suitable target area.
Target Requirements: The target surface must be larger than 10mm in diameter and either stationary or moving slowly. Not recommended for fast-moving objects.
<hr/>Default Configuration
Power Supply: DC 24V
Temperature Range Options: 0–100°C, 0–200°C, 0–300°C, 0–500°C, 0–600°C
Signal Output: 4–20mA, two-wire system

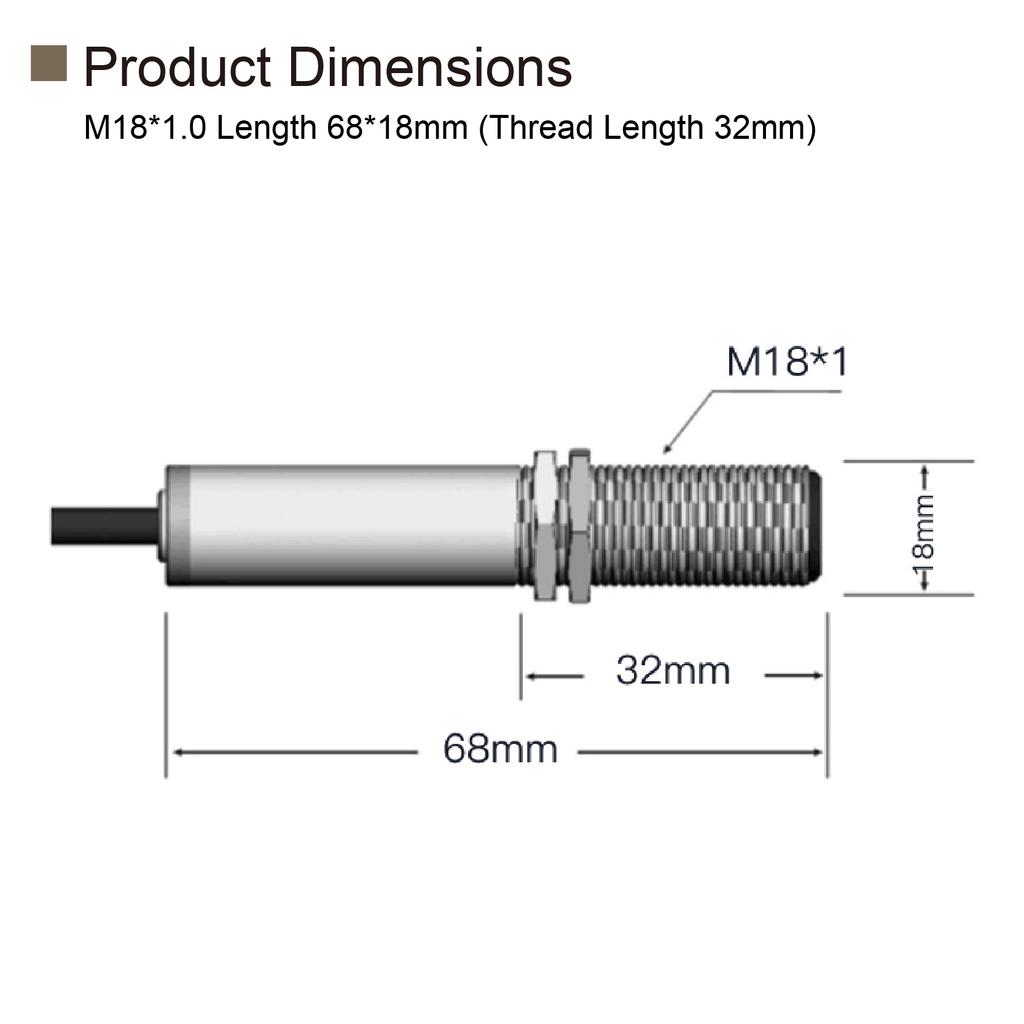

Thread Connection: M18×1 (Thread length: 32mm)
Product Length: 68mm

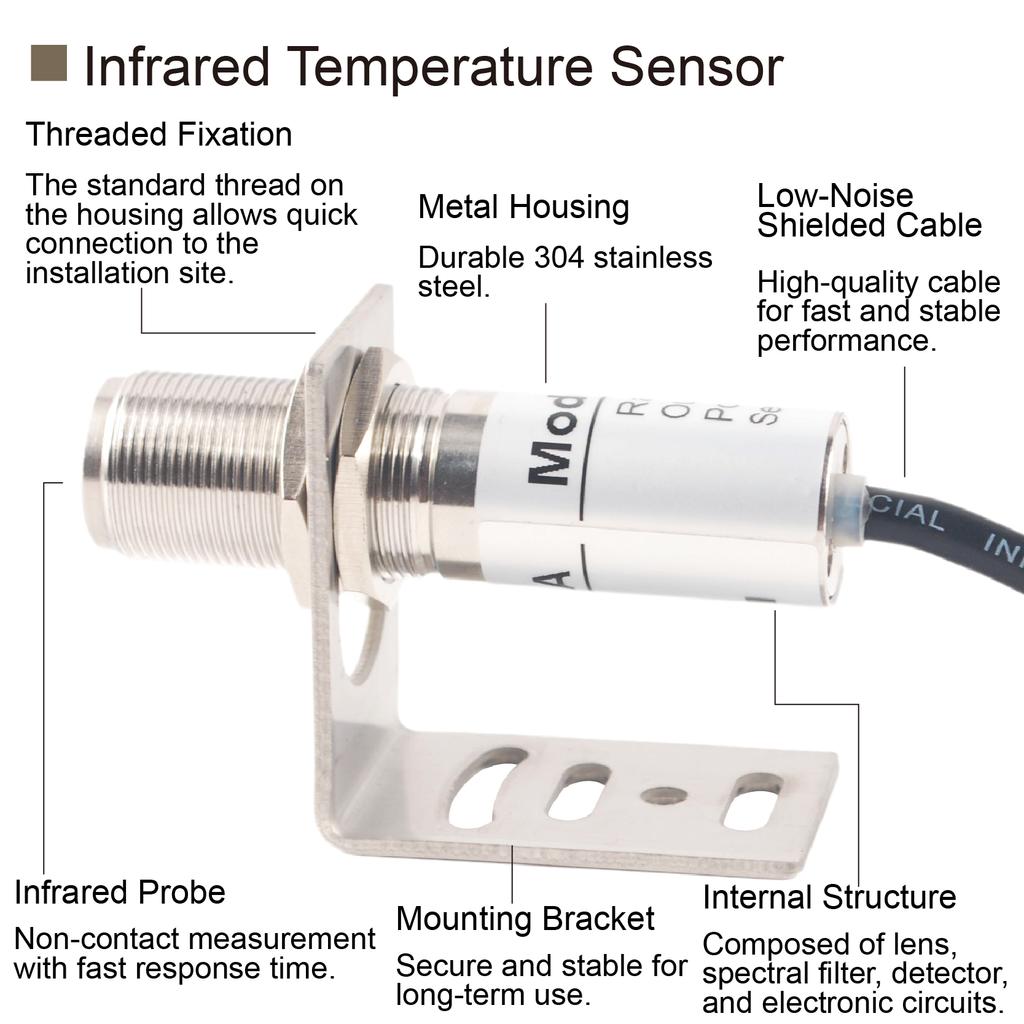

Housing Material: 304 Stainless Steel
Cable Length: 1.5 meters (standard)
Protection Level: IP65
<hr/>Customizable Options
Temperature Range: -30~1300°C
(Selectable: -20~100 /-20~200 /-20~300 /-20~500 /-20~600 /0~800 /0~1000°C)
Power Supply Voltage: Customizable (12–36VDC, 5–36VDC)
For 5V power supply, please contact customer service and leave a note when ordering.
Signal Output Options: 0–5V, 0–10V, RS485
Cable Length: Customizable (e.g., 5m, 10m, etc.)
<hr/>Optional Accessories (sold separately)
Intelligent display units
Control instruments
Wind-cooling shields
Large-screen displays
Mounting brackets (adjustable and 3D)
Laser aimers (single or dual)
Audio-visual alarms
Please confirm your desired temperature range and output signal before placing an order. For any customization needs, contact our support team.
<hr style="text-align: center;width: 100.0%;" width="100%" align="center"/>
5.FAQs
Q1:What is the response time of this infrared sensor?
A1:The standard response time is 200ms, but it can be customized to 50ms if needed.
Q2:Is the cable length customizable?
A2:Yes, the standard cable length is 1.5m, but it can be customized based on your requirements.
Q3:Can I customize the signal output type?
A3:Yes,signal output types (4-20mA, 0-5V, 0-10V, RS485) can be customized to meet your specific requirements.
