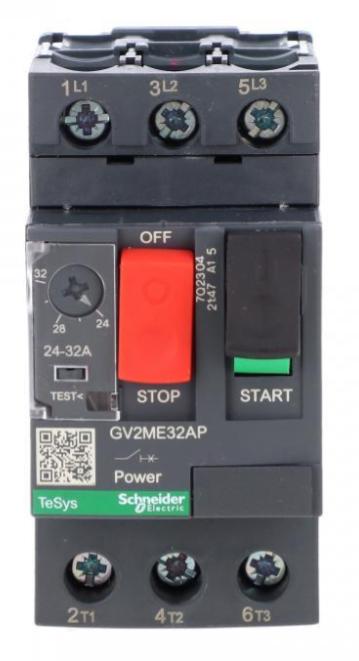

Tesys Deca Motor Circuit Breaker 3P 15Kw 24-32A Pl Gv2Me32Ap

Manufacturer's index: GV2ME32AP

series: TeSys Deca

Protection degree (IP): IP20

Setting range of the instantaneous short-circuit release [A]: 416

Setting range of the overload release [A] to: 32

Setting range of the overload release [A] from: 24

Rated operating power at AC-3, 400 V [kW]: 15

Rated short-circuit breaking capacity Icu at 400 V, AC: 10

Rated operating voltage from/to [V] to: 690

Rated operating voltage from/to [V] from: 230

Rated continuous current Iu [A]: 32

Device construction: Permanently mounted device CN: 85362010 Length: 95 EAN: 3606489607739 Number of poles: 3 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Triggering method: Thermomagnetic Width: 85 Weight: 0.2800 Height: 45
