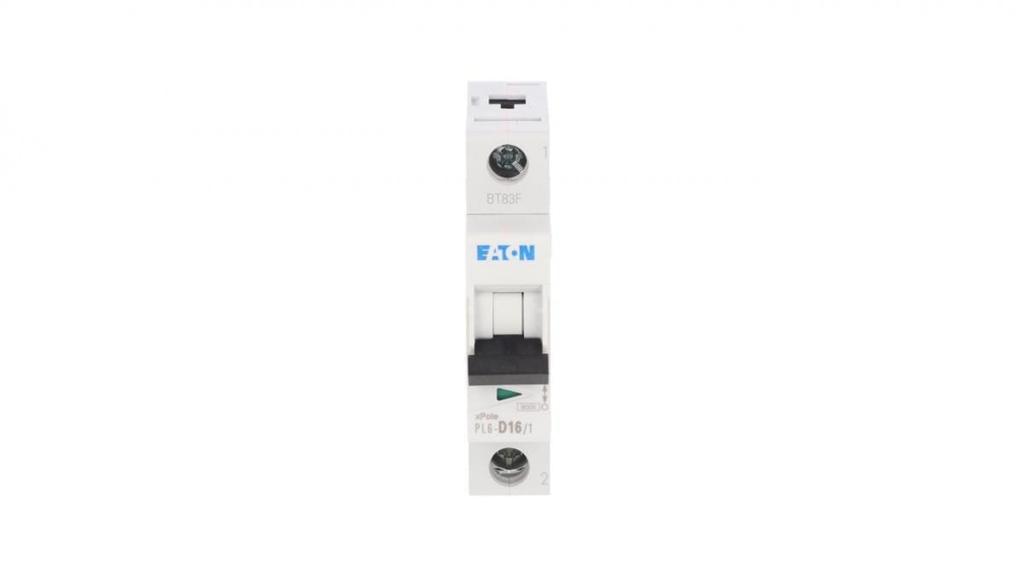

Circuit Breaker 1P D 16A 6Ka Ac Pl6-D16/1 286545

Installation depth [mm]: 70.5000

Manufacturer's index: 286545

Number of poles (total): 1

Rated voltage [V]: 230

Rated current [A]: 16

series: PL6

Protection degree (IP): IP20

Rated short-circuit breaking capacity according to EN 60898 [kA]: 6

Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 0

Tripping characteristics: D CN: 85362010 Length: 80 EAN: 4015082865450 Simultaneously disconnected N pole: No Overvoltage category: 3 Energy limitation class: 3 Number of poles: 1 Possibility of additional equipment: Yes PKWiU: 27.12.22.0 Voltage type: AC Pollution degree: 2 Width: 75 Width expressed in number of modules: 1 Weight: 0.1000 Height: 20
