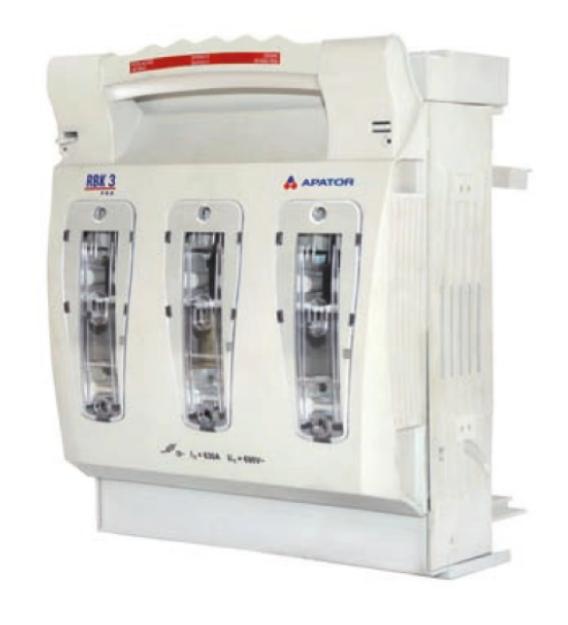

Fuse Switch Disconnector 630A Rbk 3Pro /Bridge Terminals 50-185Mm2/ 63-811761-011

Manufacturer's index: 63-811761-011

Maximum rated operating voltage Ue AC [V]: 690

Suitable for four-hole front mounting: No

Degree of protection (IP) of the front part: IP20

Rated continuous current Iu [A]: 630

Rated conditional short-circuit current Iq [kA]: 12

CN: 85362090 Length: 330 EAN: 5906739021222 As a safety switch: Yes As a main switch: No As a compact switch: No As an emergency stop switch: No Number of poles: 3 Suitable for flat mounting: No Suitable for rail mounting: No PKWiU: 27.12.23.0 Width: 255 Weight: 2.0000 Height: 155 With fuse link status monitoring: No
