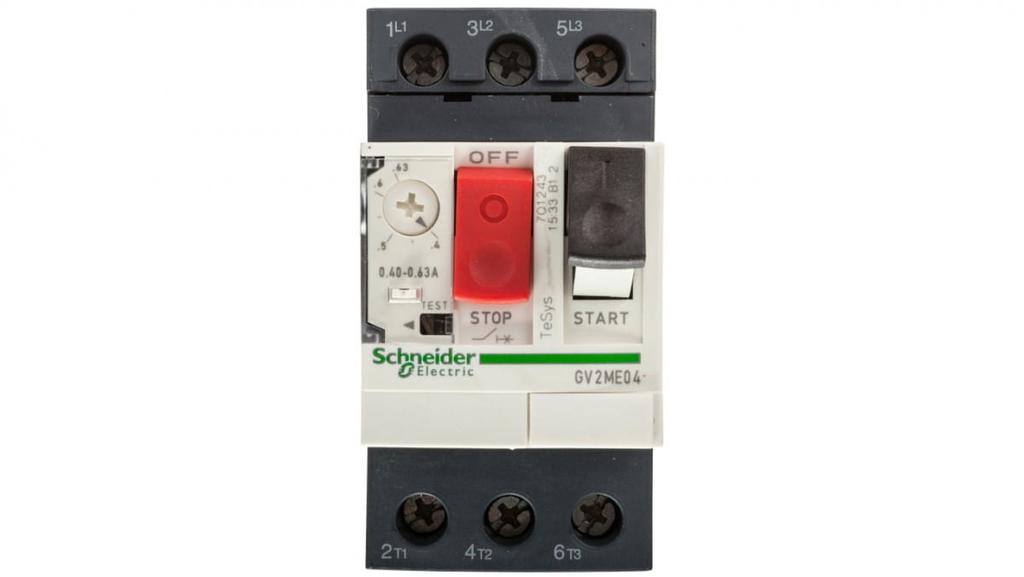

Tesys Deca Motor Circuit Breaker 3P 0.18Kw 0.4-0.63A Gv2Me04

series: TeSys Deca

Degree of protection (IP): IP20

Setting range of the instantaneous short-circuit release [A] to: 8

Setting range of the instantaneous short-circuit release [A] from: 8

Setting range of the overload release [A] to: 0.63

Setting range of the overload release [A] from: 0.4

Rated operational power at AC-3, 400 V [kW]: 0.1800

Rated Short-circuit breaking capacity Icu at 400 V, AC: 100

Rated continuous current Iu [A]: 0.6300

CN: 85362010 Phase loss sensitivity: Yes Length: 95 EAN: 3389110343014 Manufacturer index: GV2ME04 Number of poles: 3 PKWiU: 27.12.22.0 Type of main circuit connection: Screw connection Triggering method: Thermomagnetic Width: 85 Weight: 0.2400 Height: 50 With integrated auxiliary contact: No With integrated undervoltage release: No
