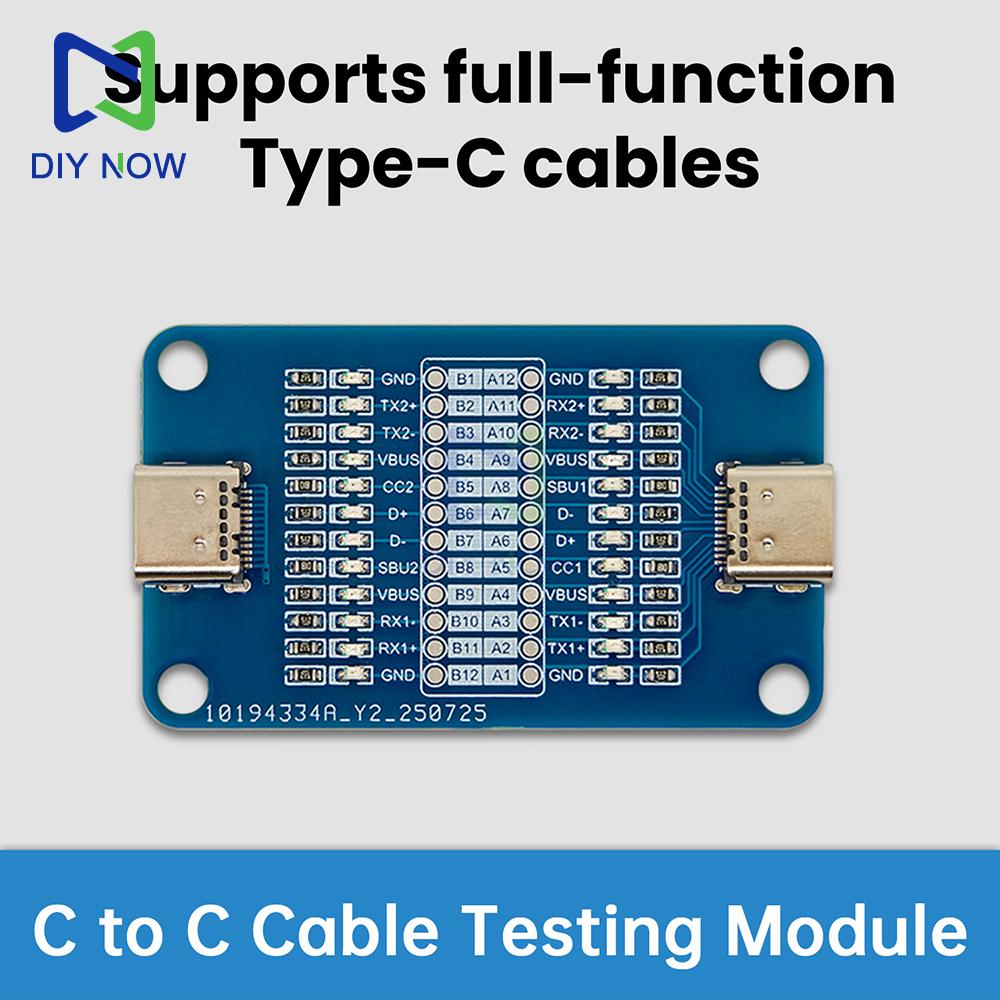

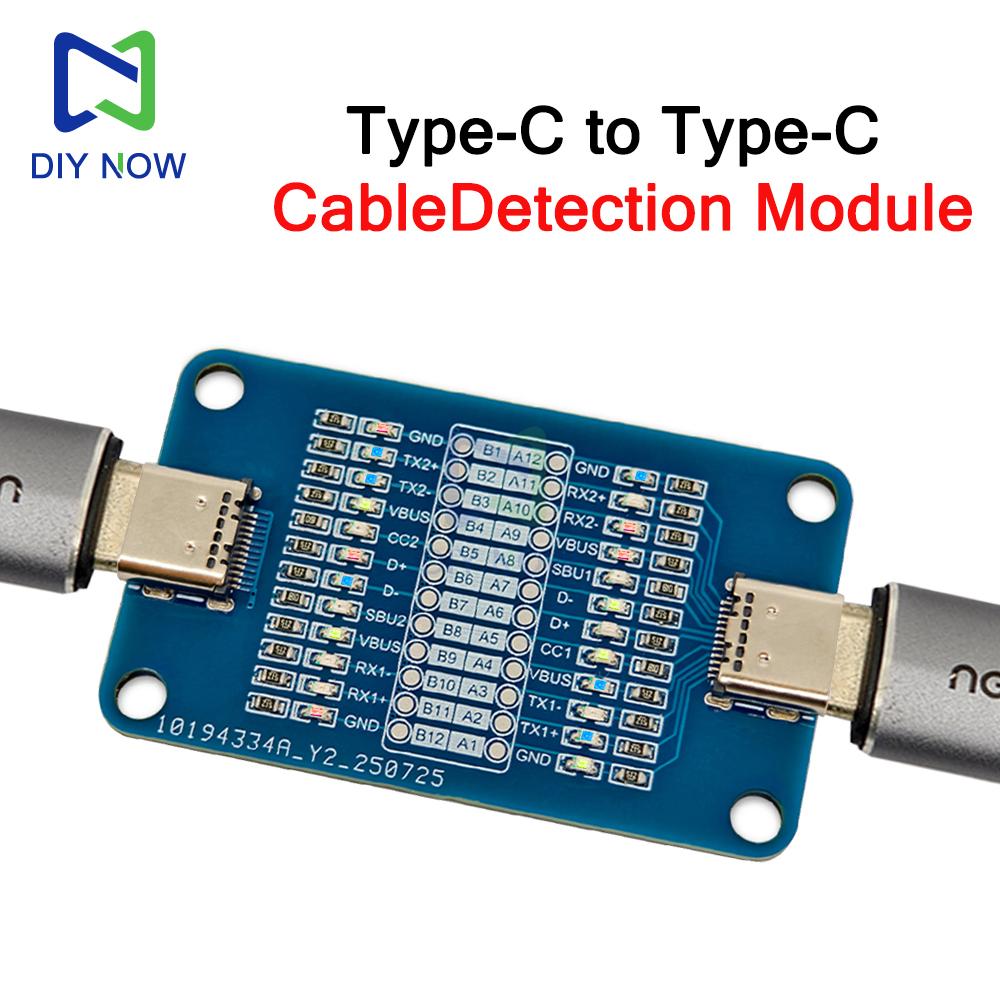

Portable Type-C Cable Tester module with 24-Pin Full Detection Dual Head LED Indicator for Type C Fast Charging Cable

Quantity : 1 High-concerned chemical : none Package : SOP Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

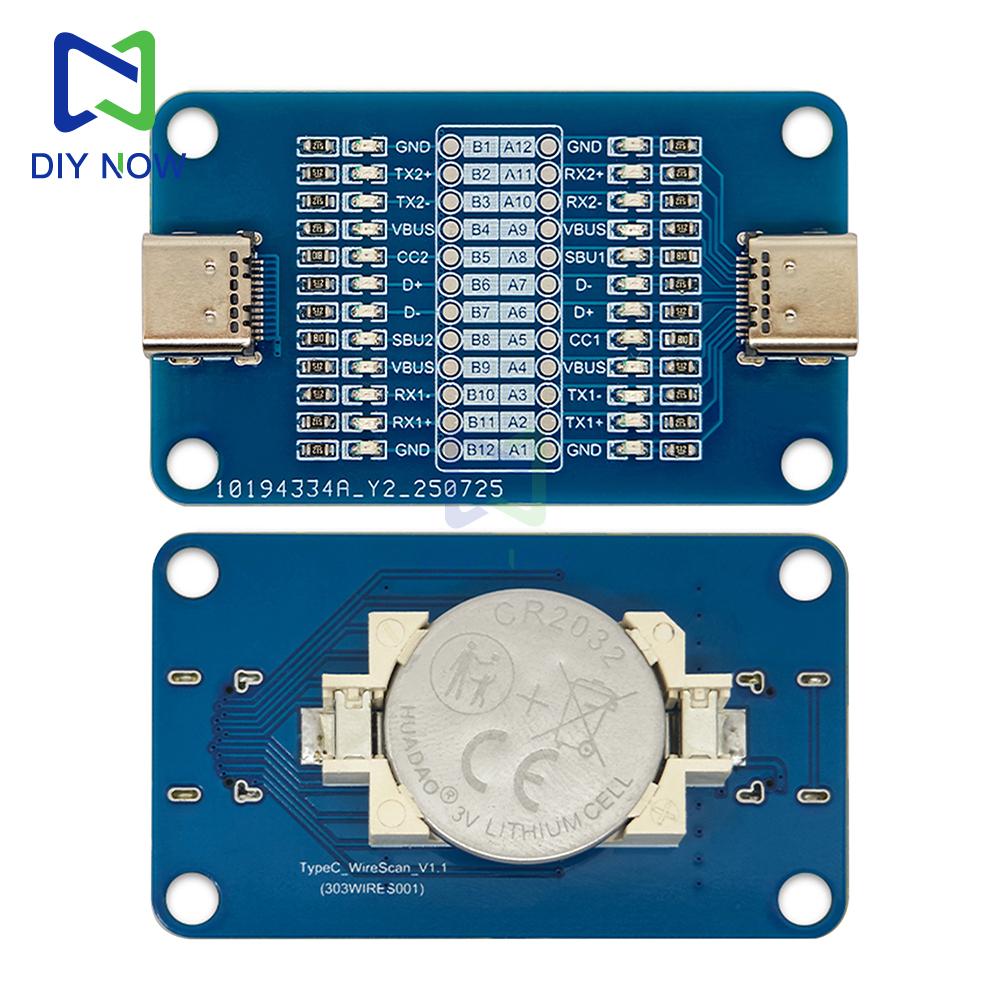

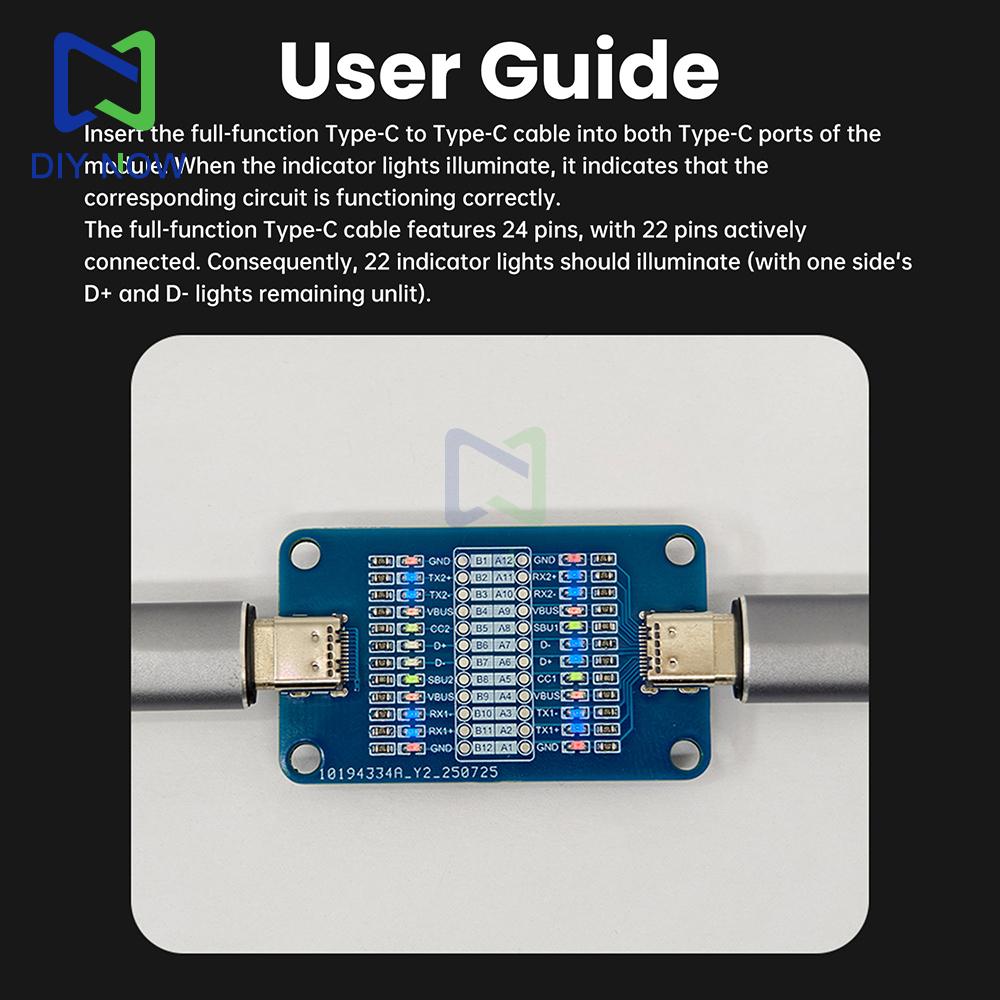

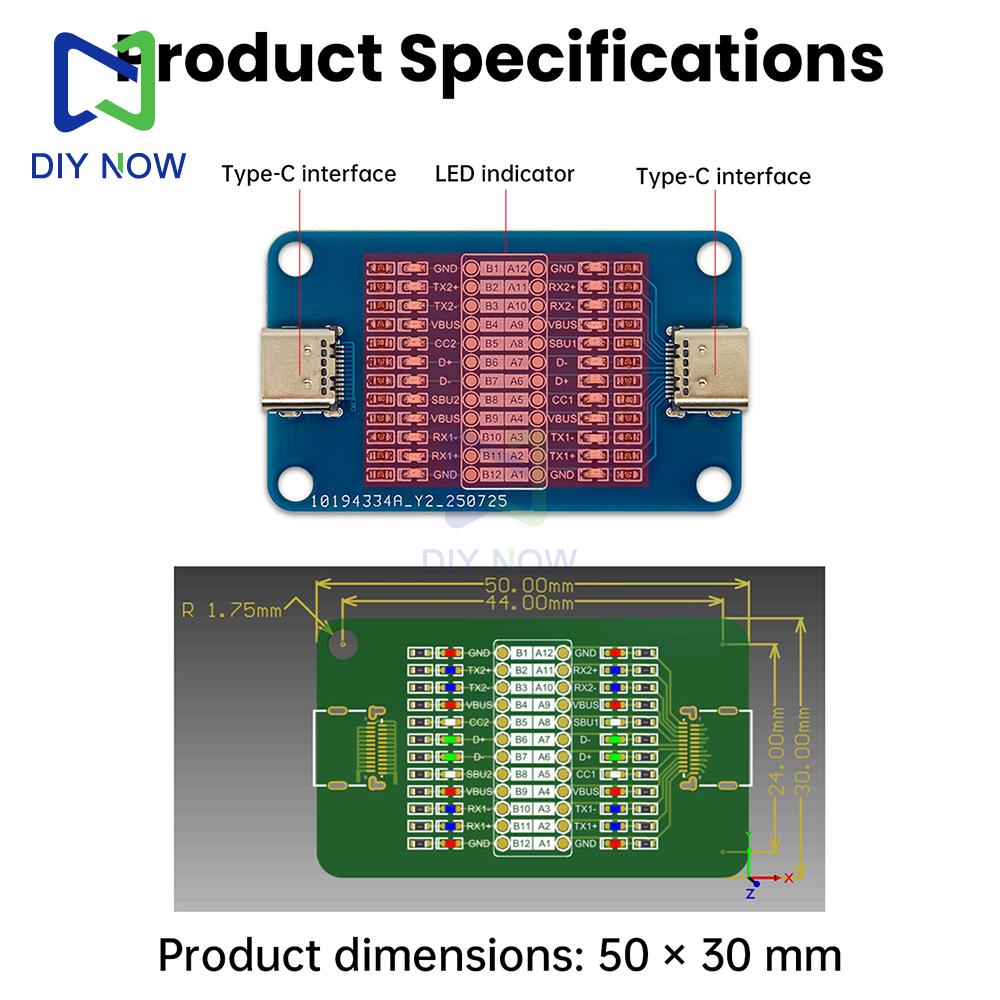

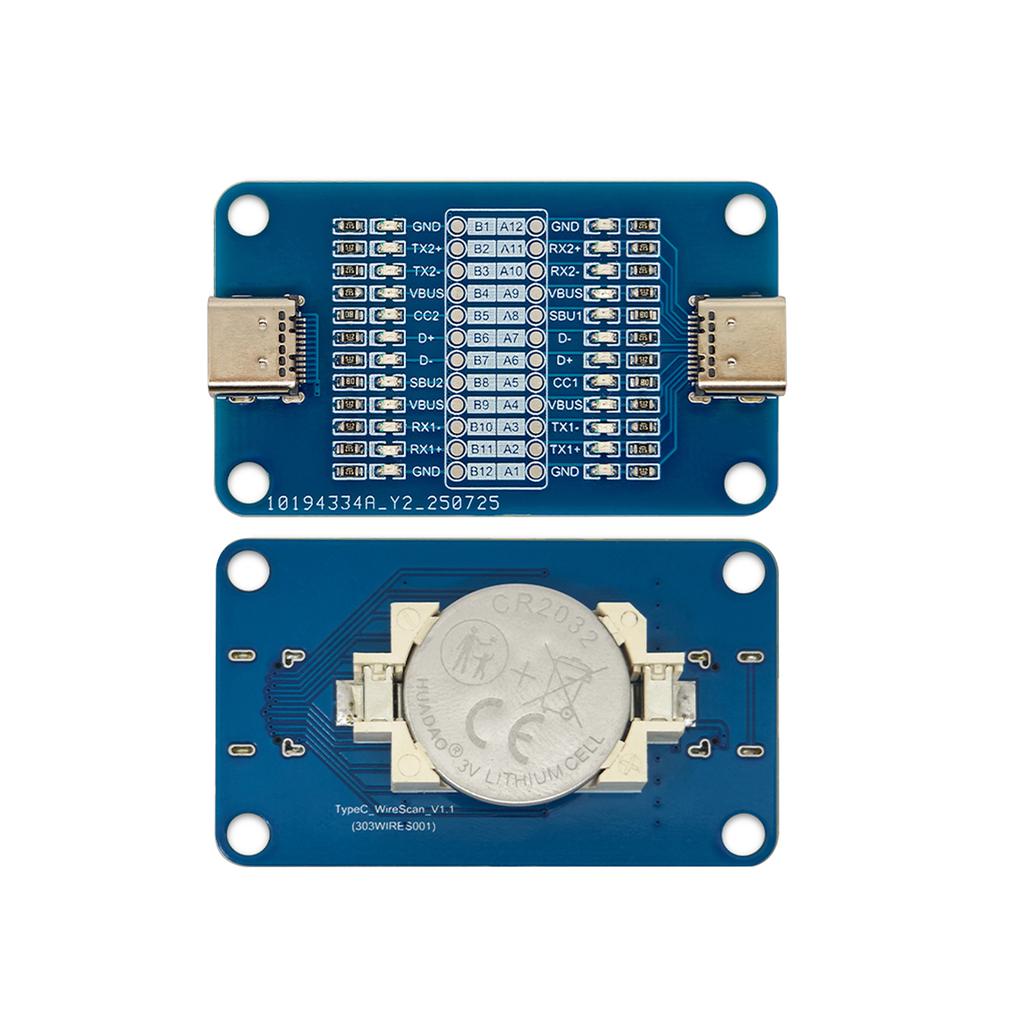

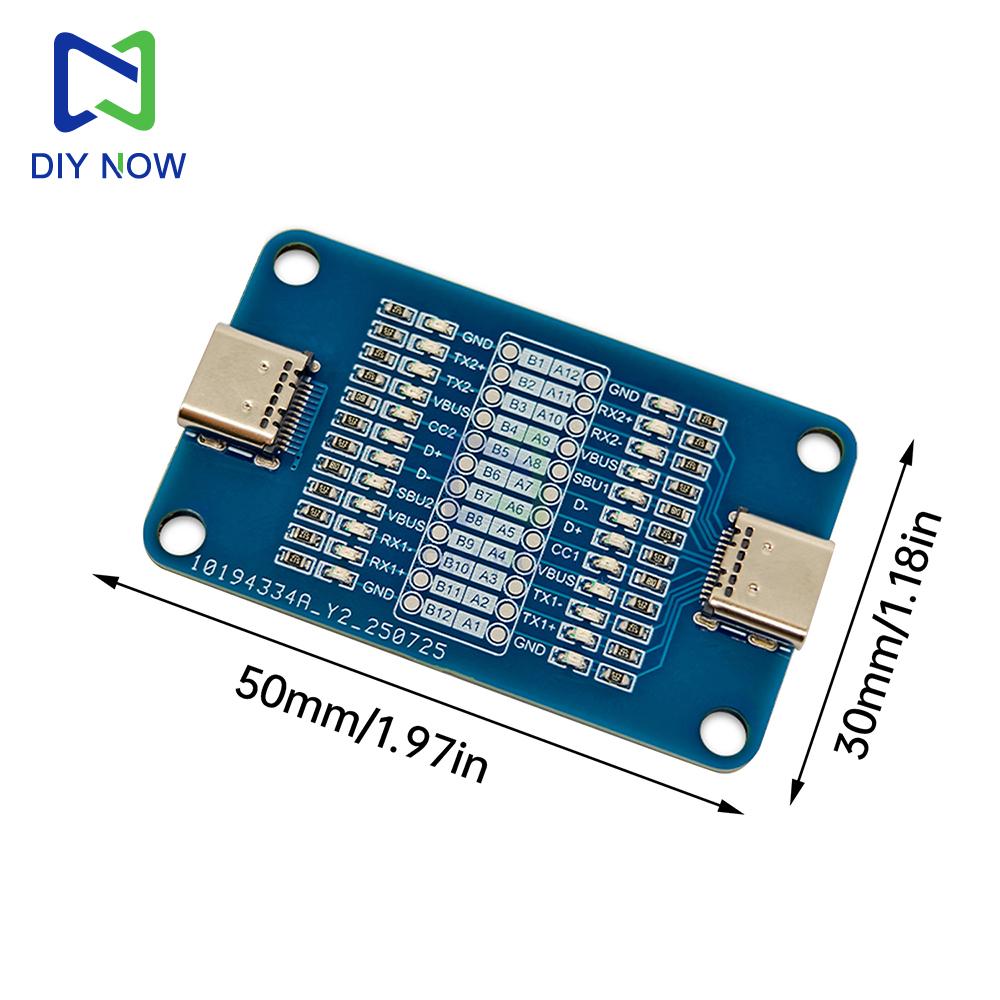

Features: 1. Supports 24 pin full conductivity detection for dual head Type-C wires, accurately locating failed pins. 2. Equipped with 12 sets of LED indicator lights to visually display the status of cable connectivity. 3. No need for external power supply, powered by CR2032 button battery, portable and easy to use. 4. Compact size, convenient for carrying and on-site testing. 5. Quickly detect full-featured Type-C cables to improve maintenance and screening efficiency. Product Introduction A new product designed for dual head Type-C fast charging cables, featuring pin I conductivity testing. The fast charging cable test board is equipped with dual USB-C interfaces and a CR2032 button battery power supply system, providing a portable testing solution without the need for an external power source. And the product supports full pin (24 pin) conductivity detection, accurately displaying the connectivity status of each pin through 12 independent LED indicator lights (single-sided 12 pin detection), which can quickly locate the failed pins of abnormal wires. Parameter: Color: blue Interface: TYPE-C Power supply: CR2032 battery (shipped without battery) Product size: 50 * 30mm Instructions for Use: Insert the full-featured TYPE-C to TYPE-C cable into the two C ports of the module, and the indicator light will turn on, indicating that the corresponding circuit is normal. The full-featured TYPE-C cable has 24 pins, of which 22 are actually connected, so there should be 22 lights on (one side has D+D - not on). Package Include: Wire detection module X1 label:yes
