Quantity : 1
High-concerned chemical : none
Package : TQFP
Type : Switch
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Features:
1. High frequency transmission: operates in the 5645-5945MHz ISM frequency band, supports FM audio and video synchronous transmission, and the signal is stable and clear.
2. Ultra small volume design: The surface mount package is only 19x22x3mm, occupying a small space and suitable for integration with various compact devices.
3. Low power consumption and high efficiency: With a 5V power supply of only 110mA, the transmission power can reach 10dBm to 20dBm, demonstrating superior performance.
4. Multi channel optional: Supports 8-channel transmission, compatible with SPI control mode, and flexibly meets the needs of different application scenarios.
5. Wide application areas: Suitable for various scenarios such as FPV model aircraft, baby monitors, wireless security, and medical equipment.
Product Overview:

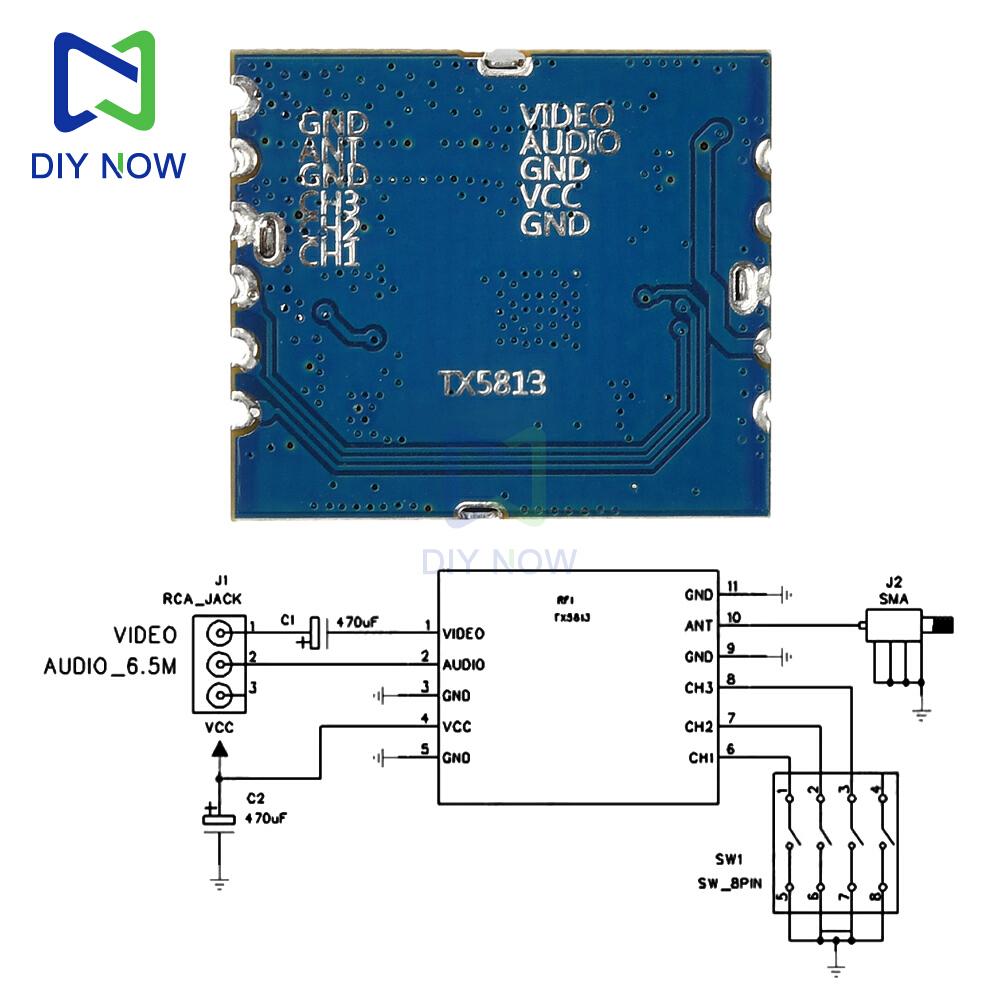

This TX5813 is an FM audio and video transmission module that operates in the 5645-5945MHz ISM frequency band (or uses SPI mode to control the frequency band through an external microcontroller). The module adopts a single-chip design, which integrates VCO PLL、 Broadband FM video modulation and FM audio modulation make the module small in size, low in power consumption, and high in sensitivity; The module adopts a surface mount packaging form, occupying very little machine space. The application of this module only requires simple connection of power supply, audio cable, video cable, and antenna to transmit sound and image signals.
Parameter:
5.8G broadband FM synchronous audio and video transmission
Low power consumption: 5 V/110mA
Transmission power: 10dBm to 20dBm
Low clutter leakage: meets CE and FCC requirements
Directly input analog audio and video signals
Channel 8 transmission
SPI control mode, switch control (optional)
An additional RF amplifier can modulate a power of 20mW-10W
Small volume patch packaging: 19 * 22 * 3 mm
Application:
FPV model aircraft audio and video wireless transmission;
Baby monitor;
Image monitoring of construction sites;
Wireless camera security system;
Wireless imaging medical equipment
Wireless visual reversing camera transmission
Wireless video toys
Wireless Doorbell
Difference:

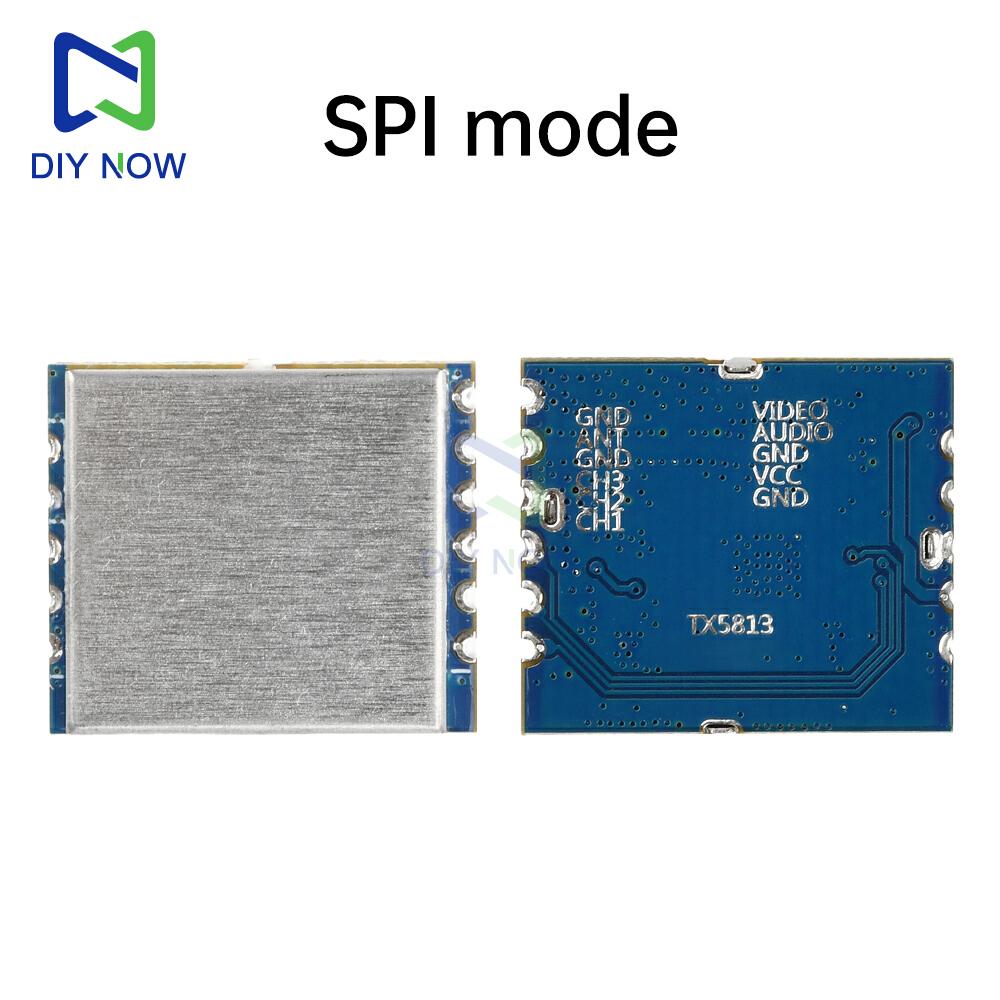

SPI control mode: SPI is a custom channel that can be used for secondary development and supports multiple frequency points.

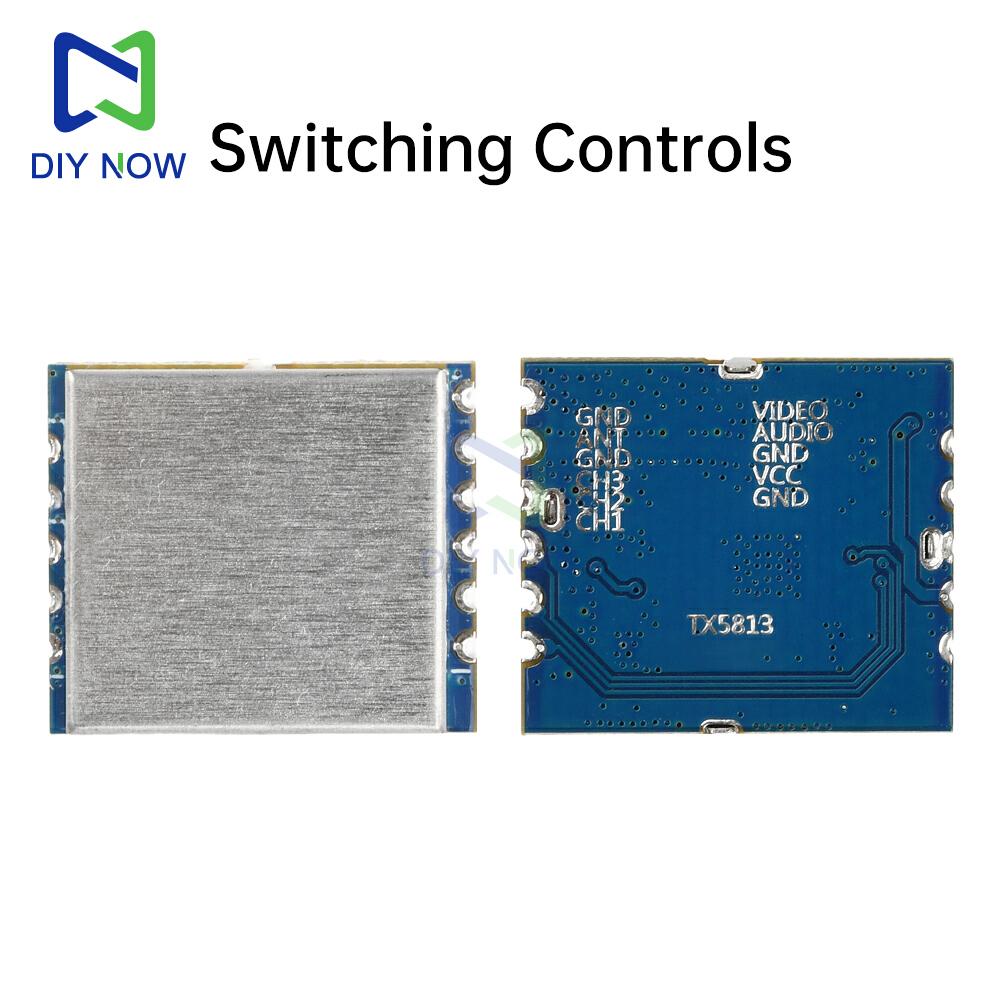

Switch mode: The switch module is a fixed channel, with a dip switch controlling the channel and a fixed frequency point.
label:yes
Weight: 40 g
