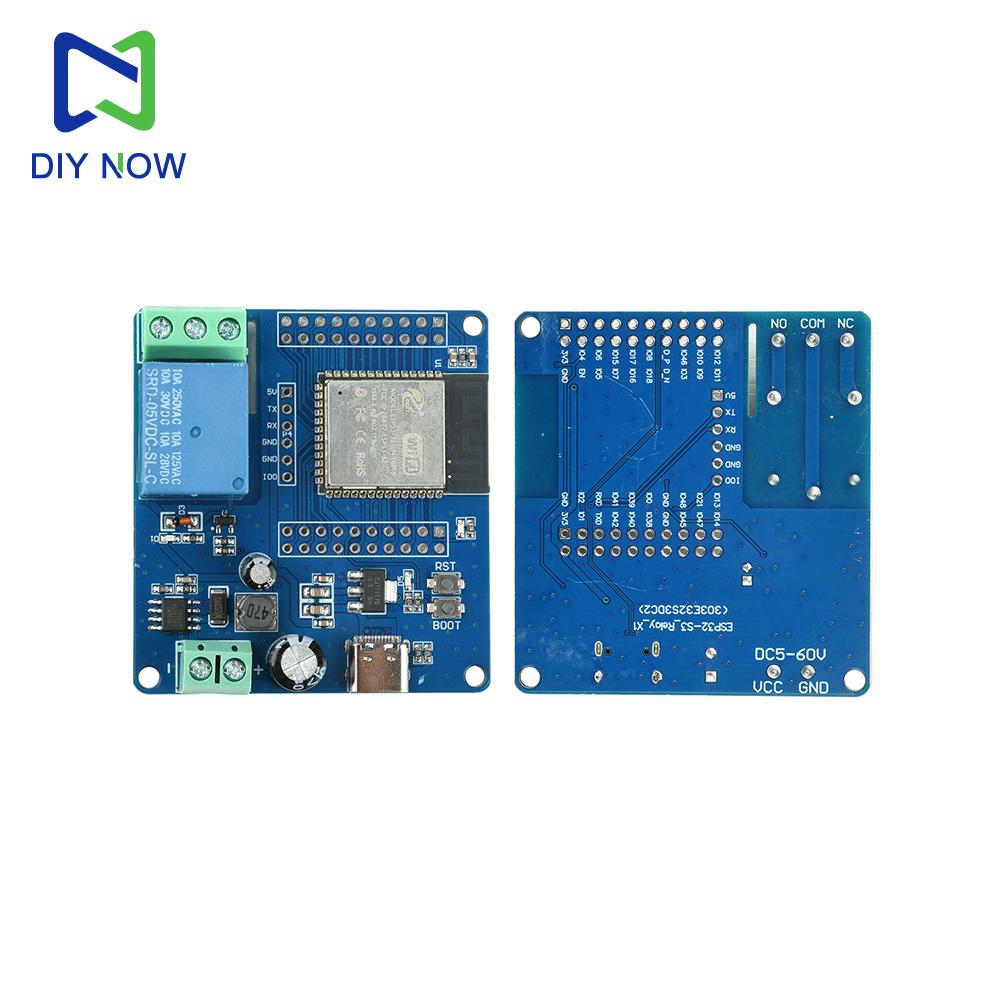

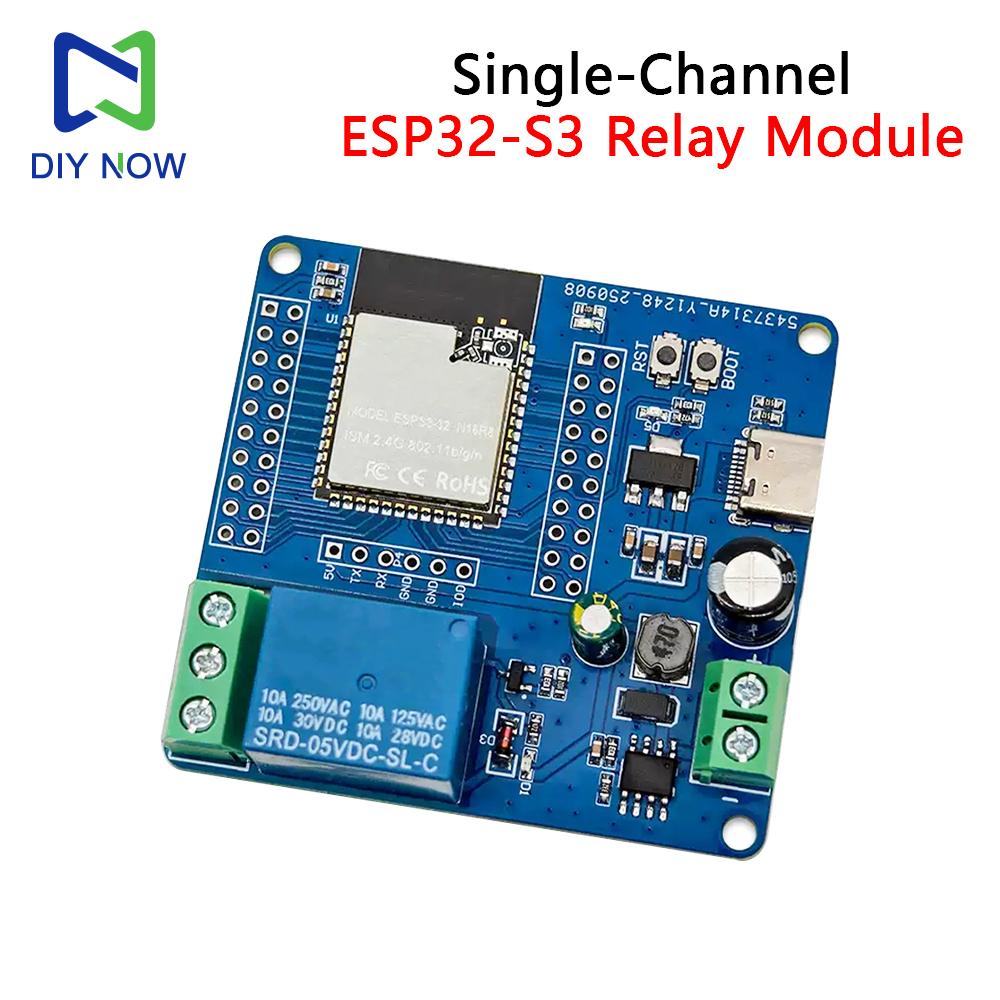

ESP32-S3 Single-Channel Relay Module DC 5–60V Wi-Fi/Bluetooth Relay Module Type-C Compatible ESP-IDF for Arduino Development

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5-60V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

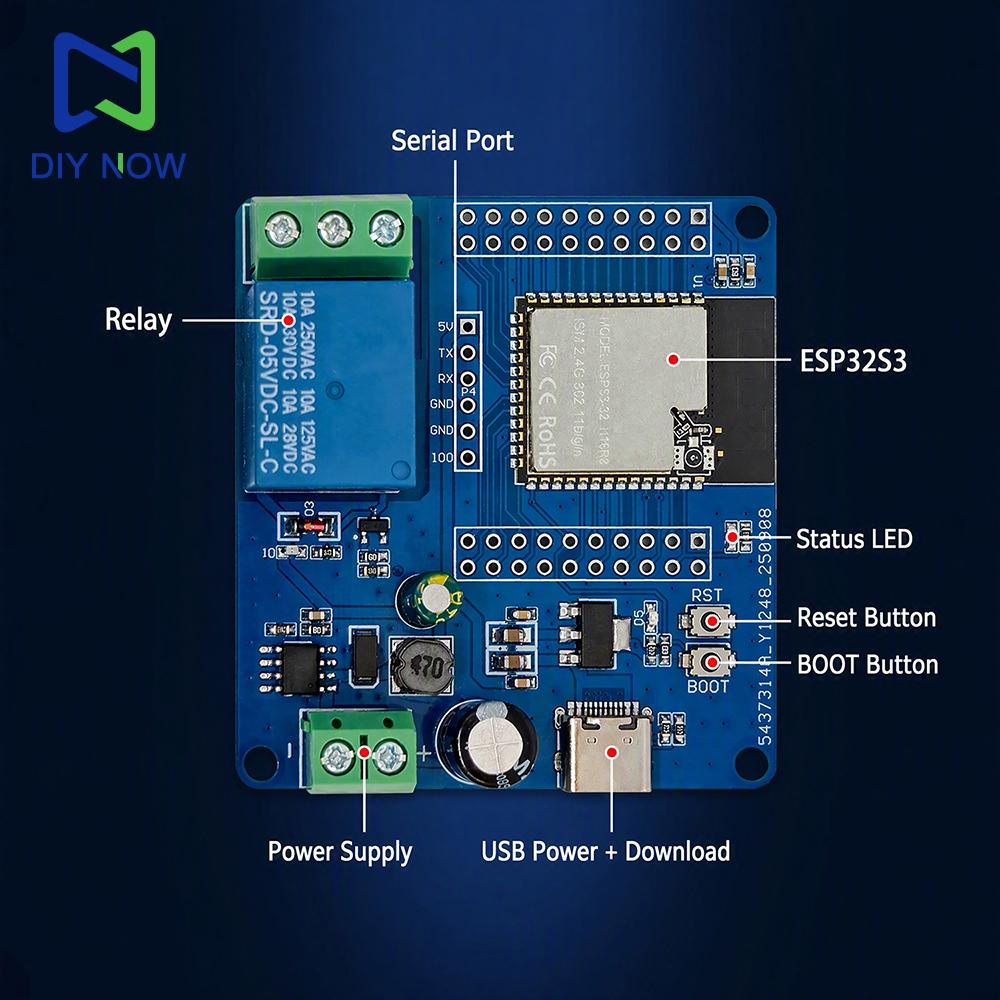

Product Features: 1. Supports a wide DC 5–60V input voltage range, suitable for various industrial power supply scenarios. 2. Type-C interface supports both USB power supply and firmware downloading for convenient operation. 3. Compatible with multiple development environments, facilitating secondary development. 4. Includes reserved expansion interfaces to enable additional control functions. 5. Suitable for projects such as industrial switch control and IoT relay control.

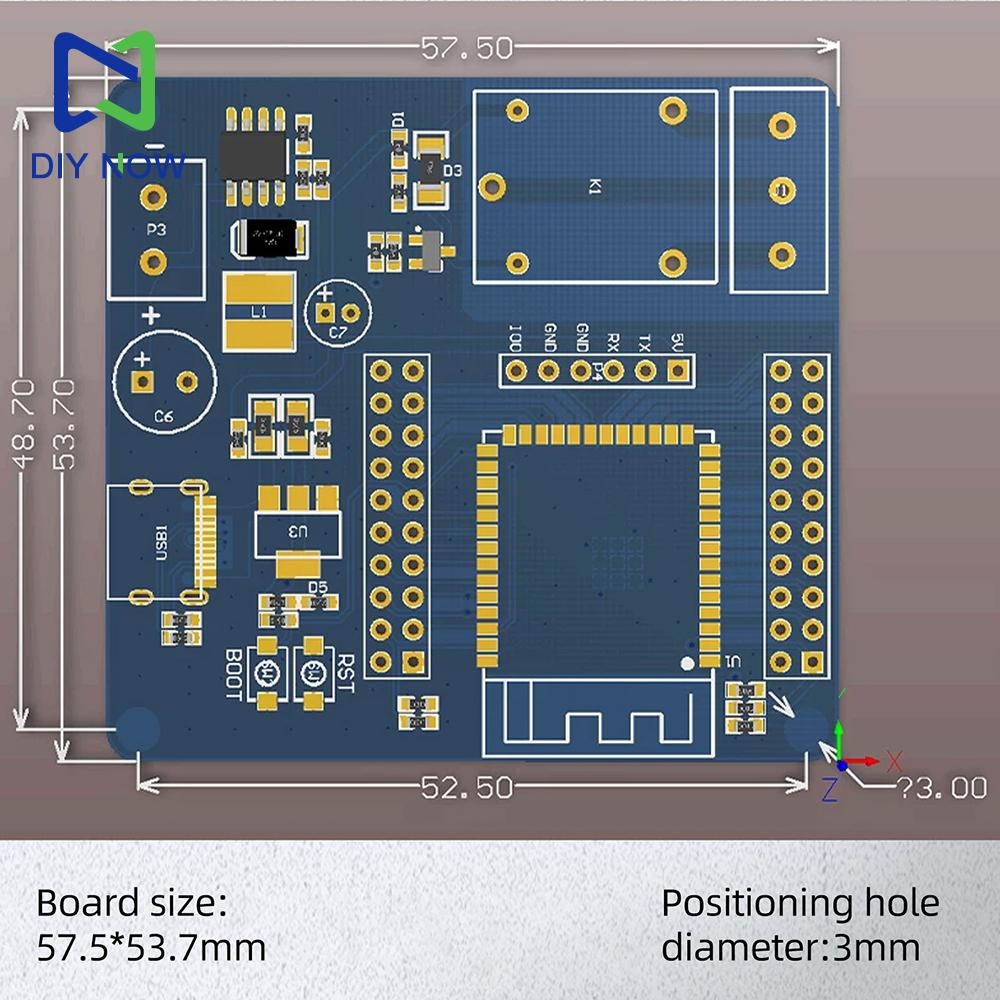

Specifications: Interface: Type-C (USB power & downloading) Power Supply: DC 5–60V Programming Method: USB + UART Reserved Interfaces: 2x20-pin Development Environments: Compatible with ESP-IDF and Arduino Board Dimensions: 57.5 x 53.7 mm Mounting Hole Diameter: 3 mm Secondary Development Notes: Example programs are for functional verification only. Modify the code according to specific requirements for additional functions. Users can implement further control logic via the expansion interfaces. Developing complex applications within the Arduino framework is recommended.

Package Contents: ESP32-S3 Single-Channel Relay Module x1 10-Pin Dual-Row Header x2 6-Pin Single-Row Header x1 label:yes

Voltage: 180–260 V
