DC 6V-72V Lead-acid Battery Power Indicator LED Digital Display Vehicle Voltmeter 12V 24V 36V 48V 60V 72V Battery Capacity Meter

Voltage range : Low voltage non-USB (below 75V DC, below 50V AC) Electronic : no Charger included : N Battery Included : no High-concerned chemical : none Accessory Type : Battery Accessories Brand Name : occkic Origin : Mainland China Certification : NONE

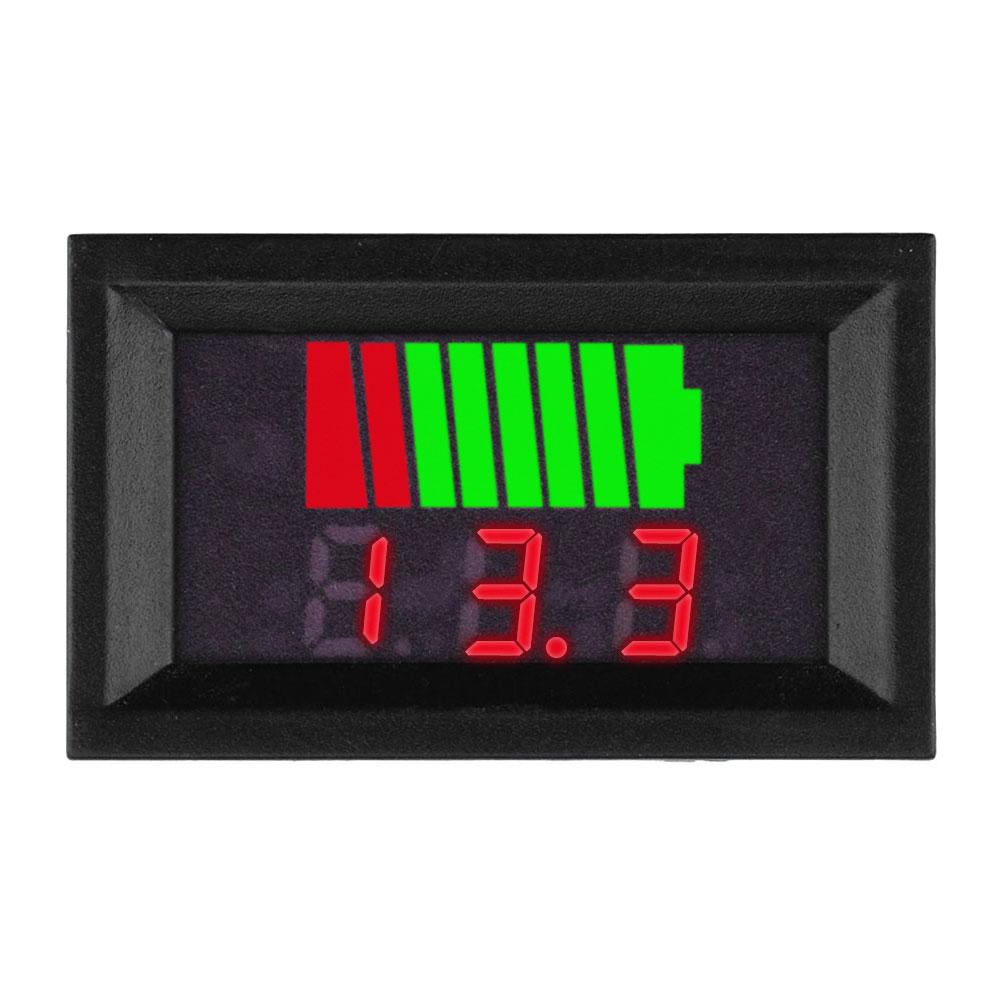

Product selling points: 1. Small size, simple wiring, only need to connect 2 wires to use, easy to install. 2. Dual display of power + voltage, intuitive display of power, 8-segment color bar on the top to display battery power. The lower row shows the battery voltage. 3. The meter head automatically identifies the voltage and electricity, and the decimal point of the voltmeter automatically shifts with high precision, making the display more intuitive and clearer. 4. With reverse connection protection, even if the wire is connected in reverse, it will not be damaged. 5. Wide range of applications: suitable for mobile power supplies, electric vehicles, car batteries, electric vehicle batteries and other acid batteries. Product parameters: Power supply range: DC 5-100V Voltage measurement range: DC 6-72V Note: 5V can start, the corresponding battery is 6V. Power level: Level 8 (10%-25%-40%-50%-60%-75%-85%-100%) Voltage error: 1.0 Display specifications: color screen + 0.28inch LED high-brightness digital tube Refresh speed: about 0.35S/time Working current: <15mA Display color: color screen + red, color screen + blue Working temperature: -10~+65℃ Working humidity: 10~80% (no condensation) Lead length: about 20cm Wiring method: pluggable 2.54 terminal wire Instructions for use: The meter is a two-wire system, which can directly test the battery. The red color is connected to the positive electrode of the battery, and the black color is connected to the negative electrode of the battery. Product size: 48*29*22mm Installation size: 46*26mm packing list: Battery indicator*1 Wiring*1

label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No Voltage: 1.5
