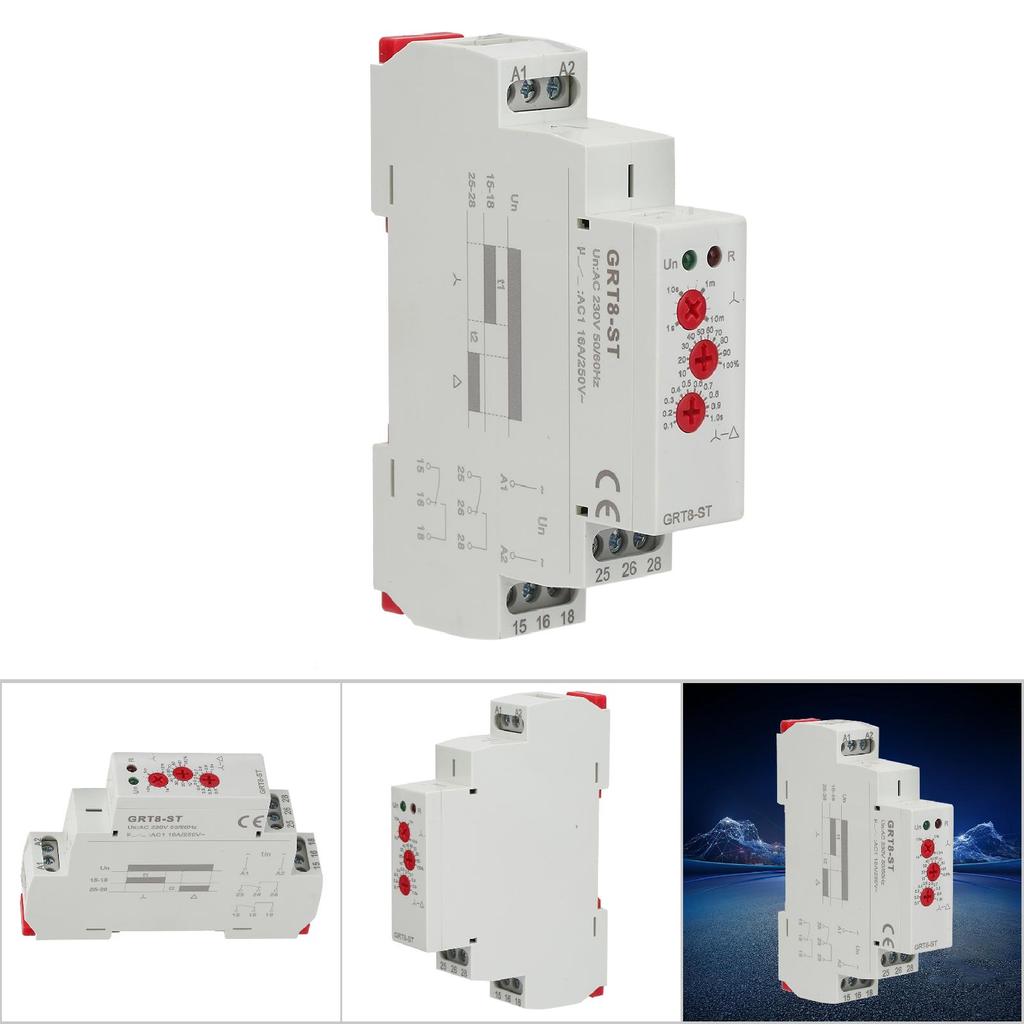

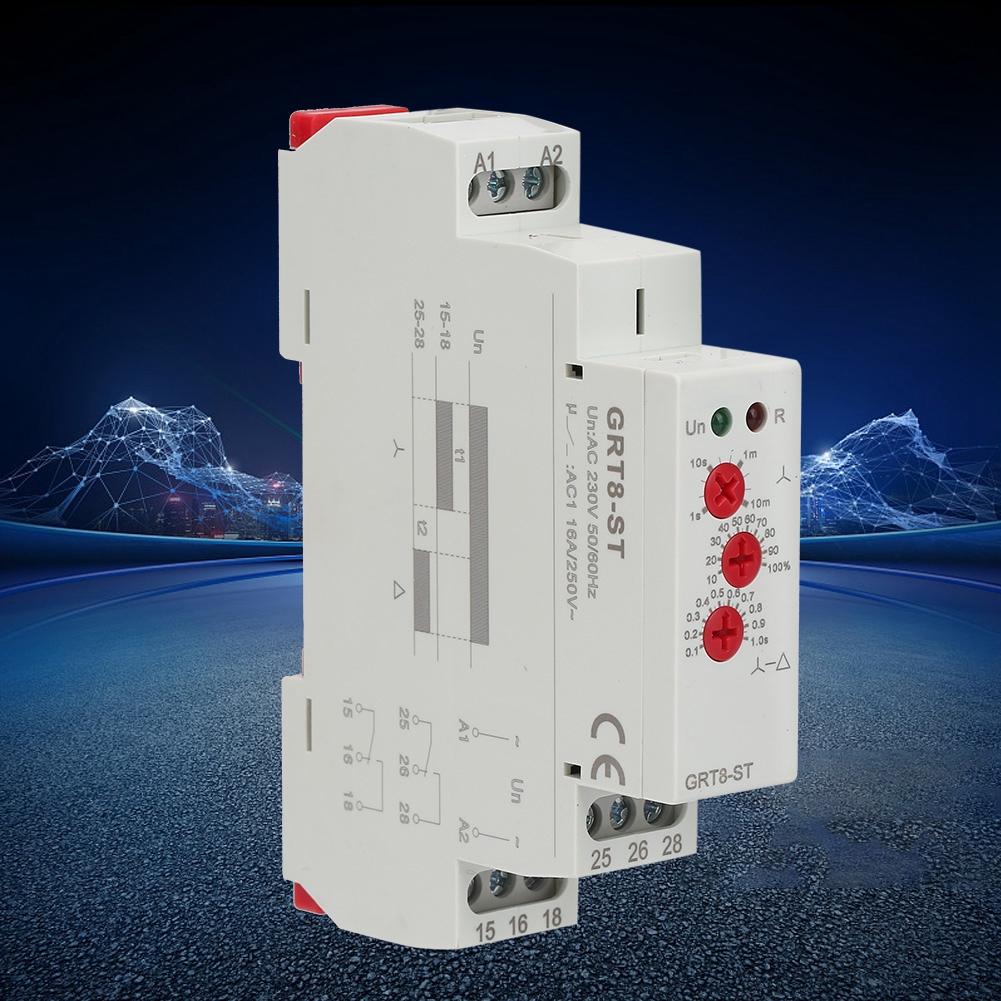

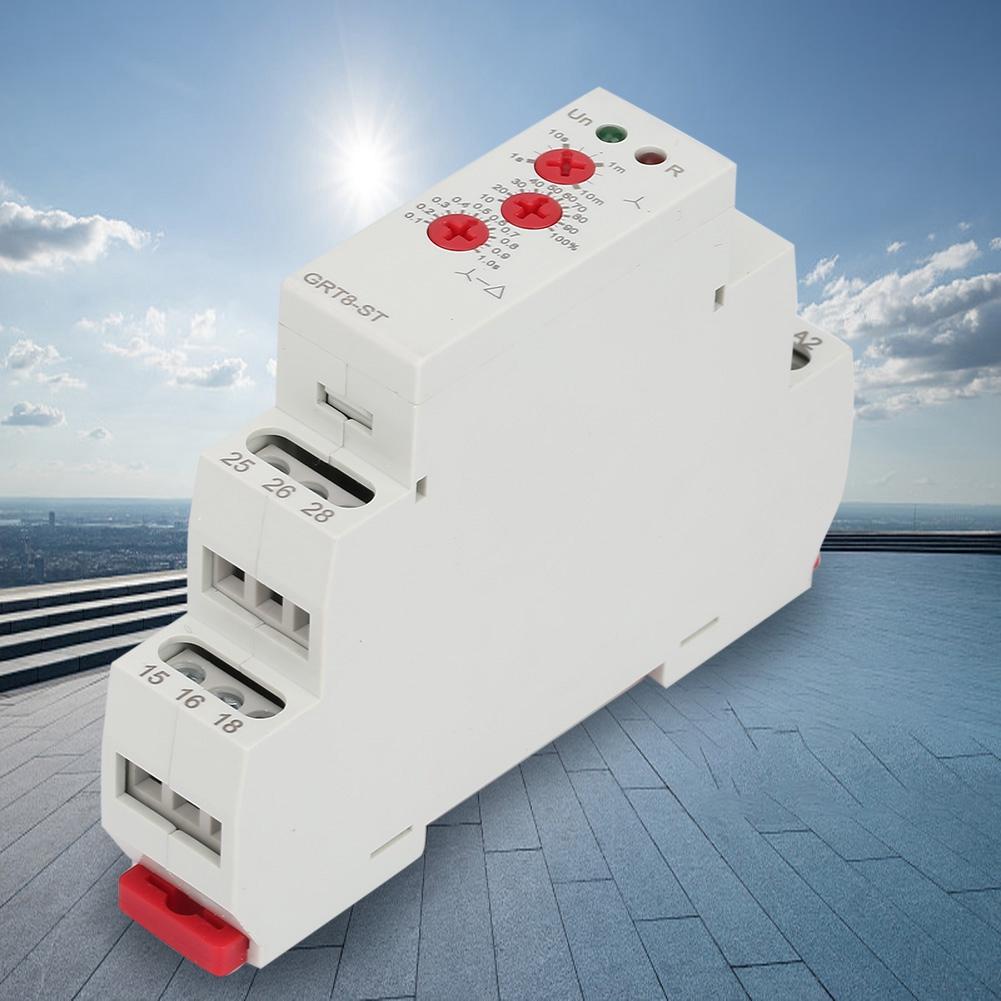

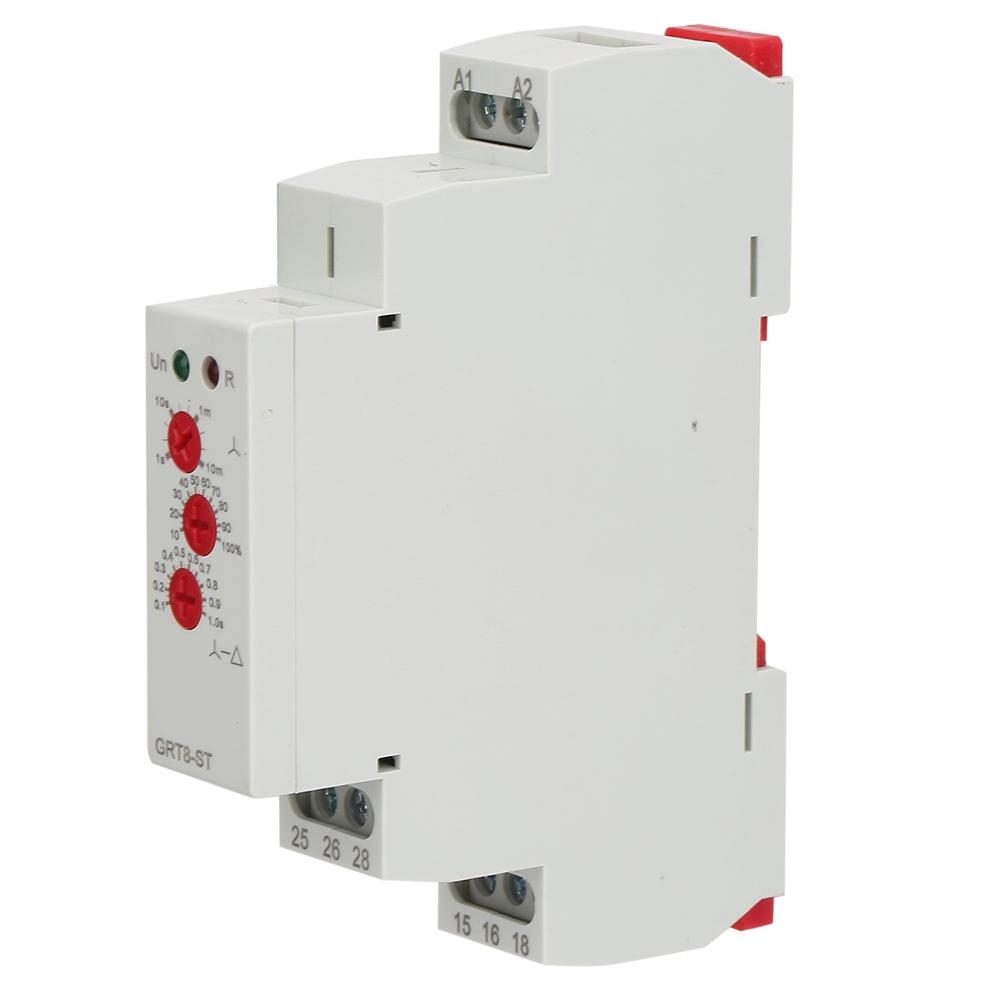

GRT8‑ST Delay On Motor Star Timer Soft Starter Relay Motor Starter(AC230V)

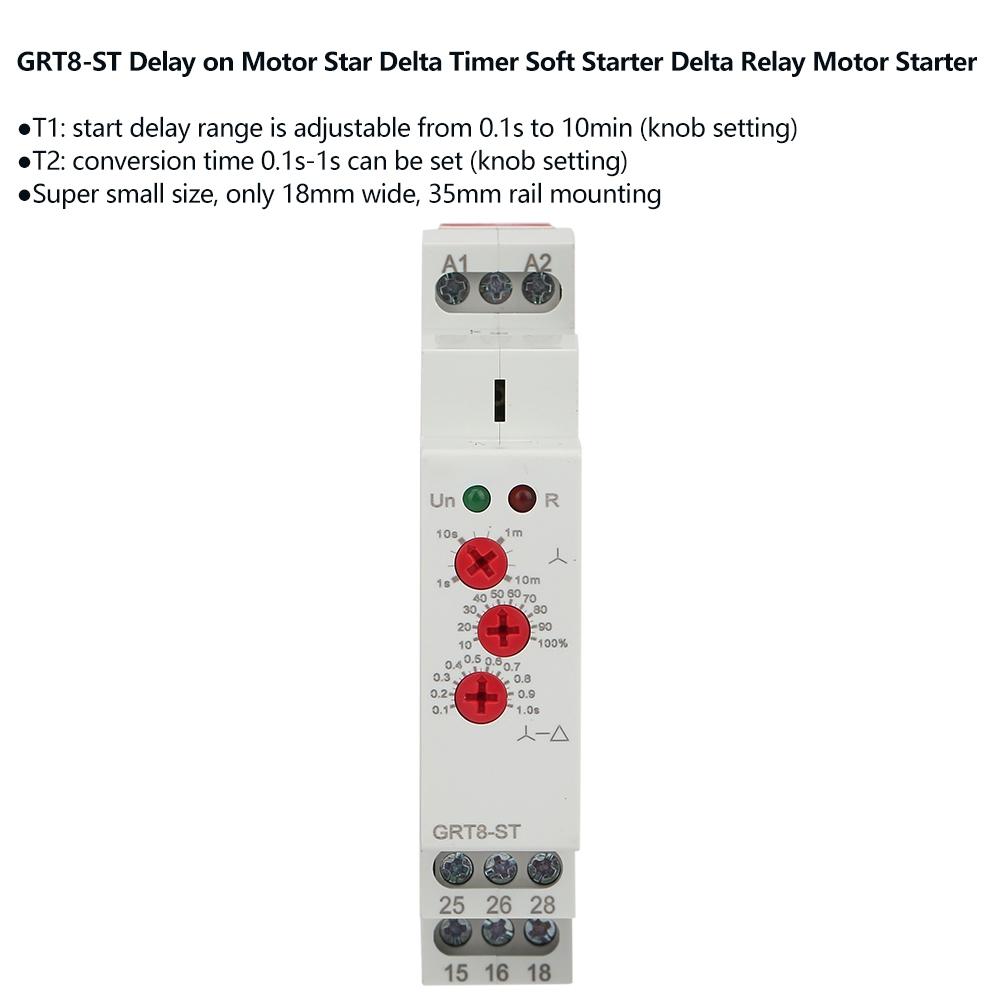

T1: start delay range is from 0.1s to 10min (knob setting) T2: conversion time 0.1s-1s can be set (knob setting) With ACCelsiusDC12V.240V, AC380V,AC400V, AC415V, AC230V wide working voltage specification optional Features: T1: start delay range is from 0.1s to 10min (knob setting) T2: conversion time 0.1s-1s can be set (knob setting) With ACCelsiusDC12V.240V, AC380V,AC400V, AC415V, AC230V wide working voltage specification optional The working status of relay is indicated by LED indicator light. Super small size, only 18mm wide, 35mm rail mounting Application: designed for star motor start control

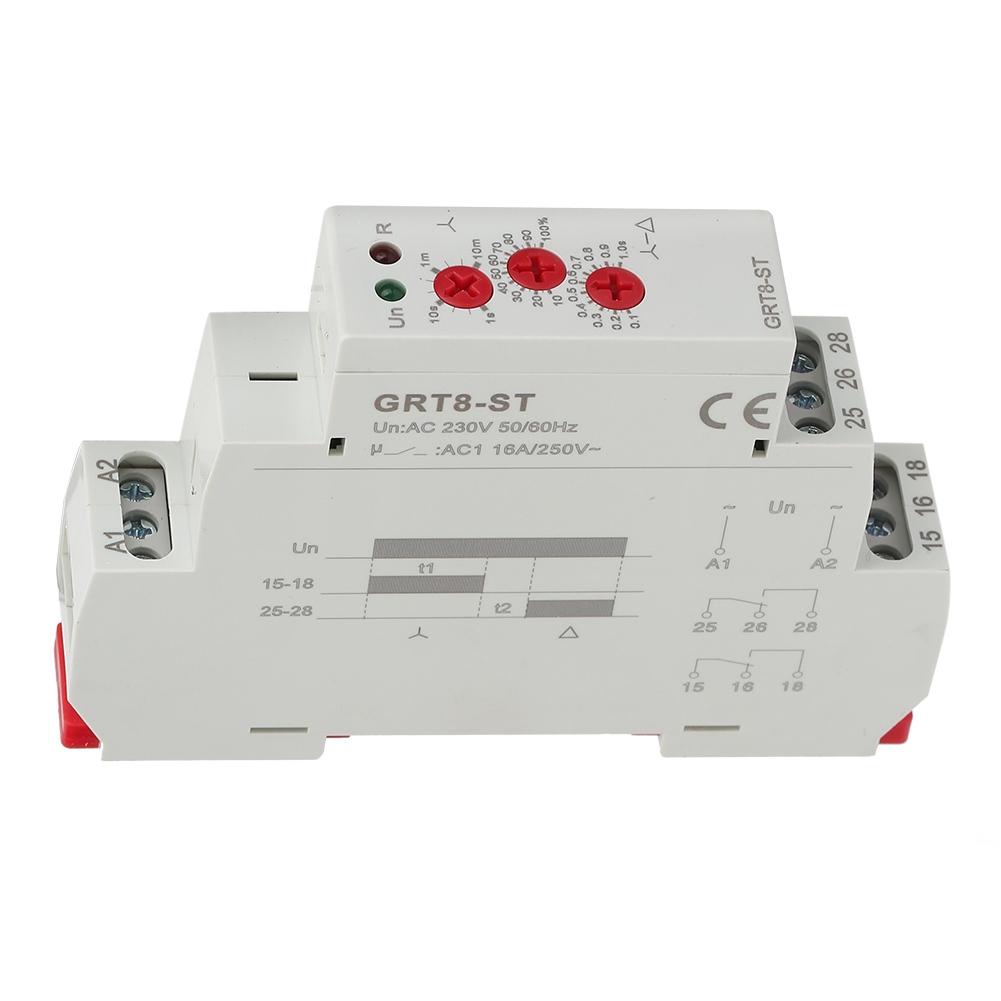

Specification: Type: AC230 Power terminal A1-A2 Rated control power supply voltage: AC230V;50Celsius60Hz: Power consumption :AC 0.7-3VACelsiusDC 0.5-1.7W Power supply allowable fluctuation range: -15%; + 10% Power indicator: green LED Starting delay: 0.1s-10min; conversion delay: 0.1s-1s Setting mode: knob Setting accuracy: 5% Repeat accuracy: 0.2% Temperature fluctuation error: 0.05% celsius ,at=20 celsius Output: two sets of conversion contacts 16ACelsiusAC250VAC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1 x 10000000

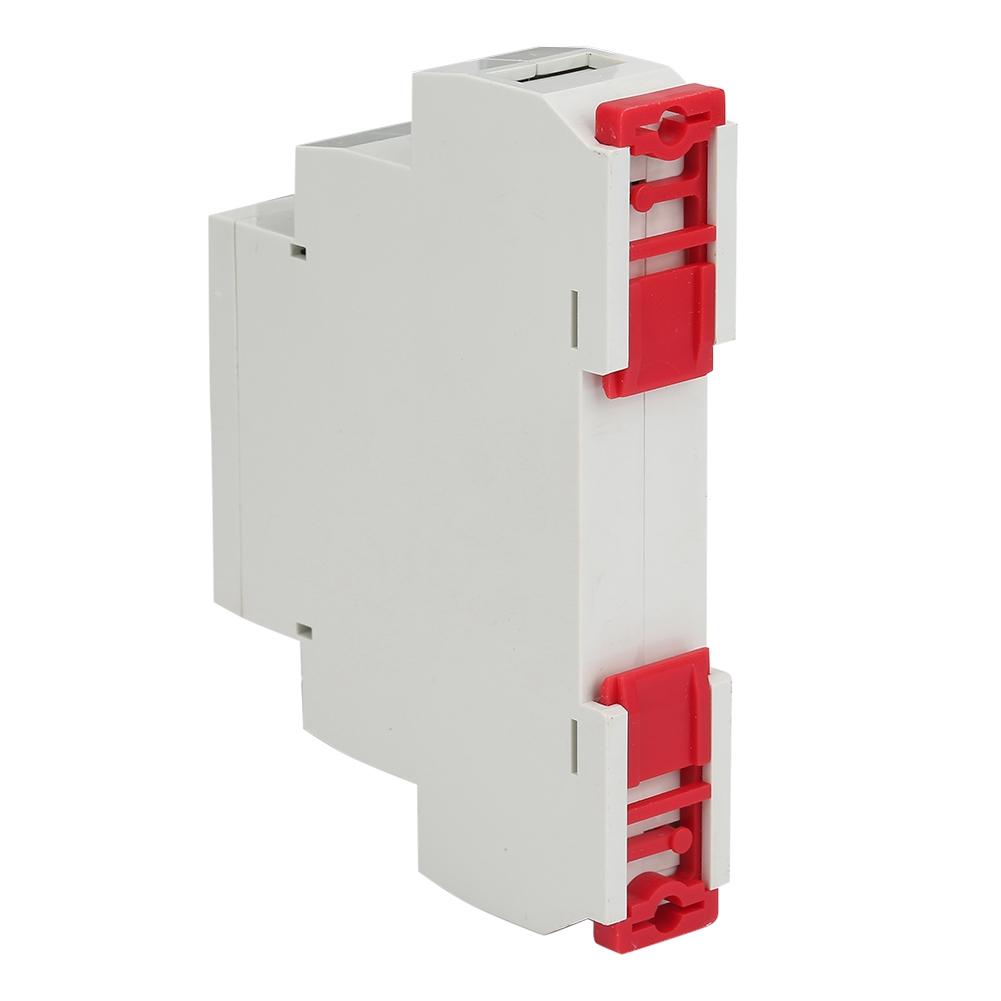

-life electrical resistance (load) :1000000 Reset time: 200ms maximum Working environment temperature: - 20 celsius . 55 celsius Storage and transportation environment temperature: - 35 celsius . 75 celsius Installation: 35mm rail mounting

: Ip20 Installation location: any Installation altitude: 2000 meters Pollution : 2 Wiring capacity: 1x2.5mm²or 2x 1.5mm²

: 90*18*64mmCelsius3.5*0.7*2.5in Conforming to the standard: GB14048.5.IECCelsiusEN 60255-1 Weight: Approx.96gCelsius3.4oz

Package list: 1 Timer Soft starter
