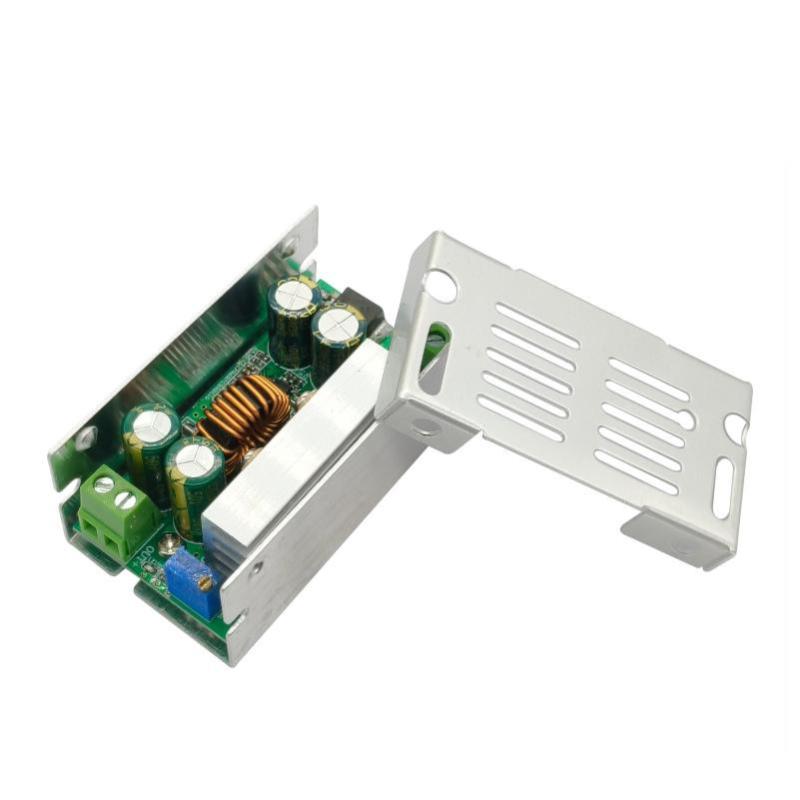

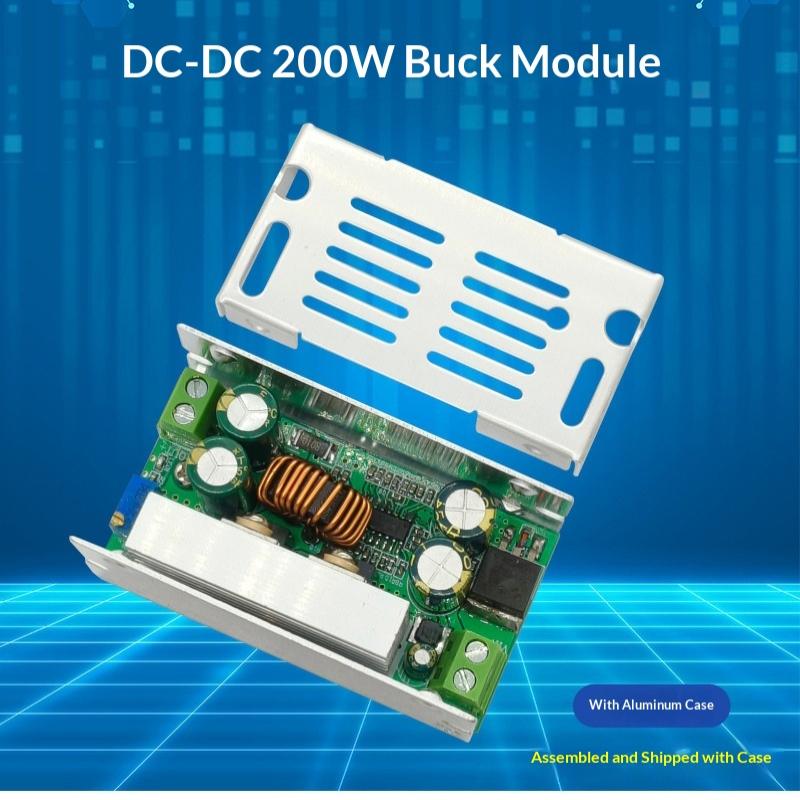

Dc-Dc Dc1-36V 200W 15A Step Down Buckconverter Power Supply Module Voltage Regulator Transformer Board 4 Usb With Case

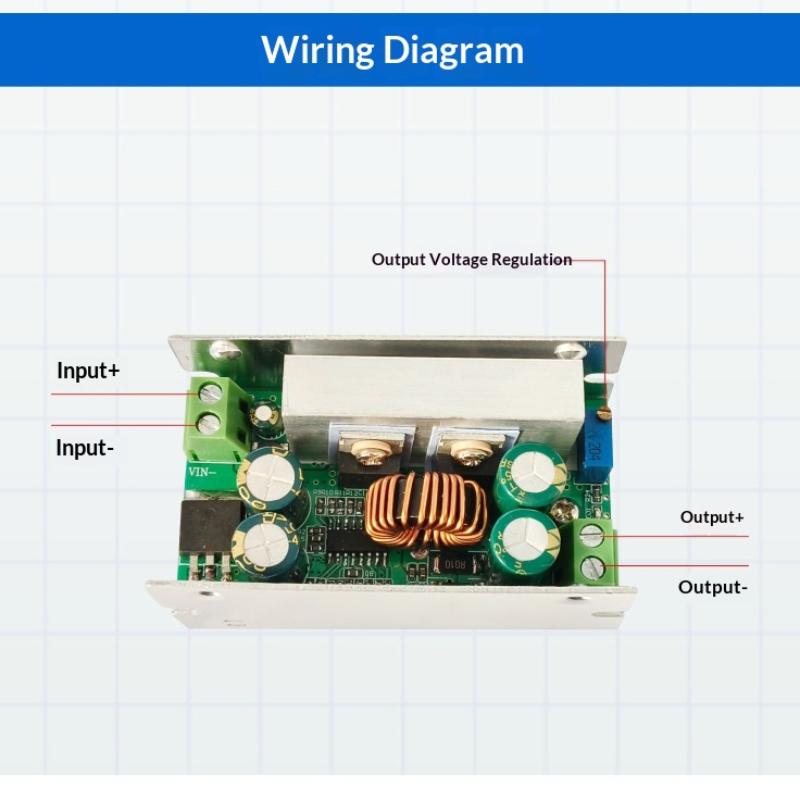

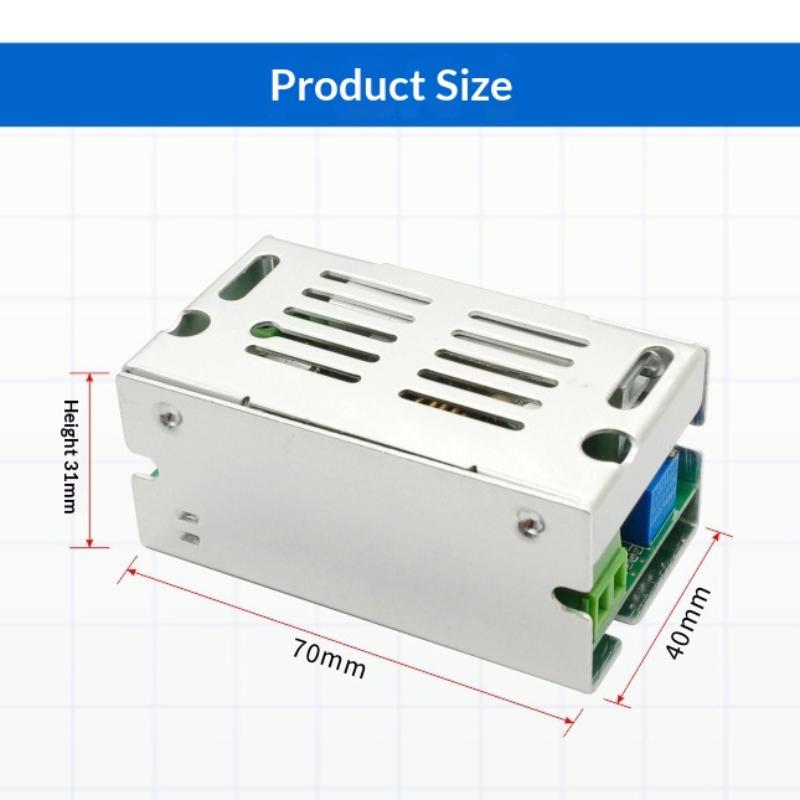

Specification: Power Protection: Overcurrent protection (protection only occurs when output current exceeds the maximum sampling current (15A)); Reverse connection protection (will not burn if connected in reverse) Input Voltage: 8-55V (maximum 60V, please allow margin) Output Voltage: 1-36V continuously adjustable (factory default approximately 12V) Output Current: Normal 10A, maximum 15A. The stated current is the maximum current under specific conditions (actual measured 12V down to 5V). The actual output current is not fixed and depends on the input/output voltage difference and temperature. Output Power: 100W under good ventilation and natural heat dissipation; up to 200W with enhanced cooling. For prolonged operation, please allow sufficient headroom, monitor temperature rise, and ensure adequate cooling. Operating Frequency: 180kHz Conversion Efficiency: Up to 94% (efficiency depends on input/output voltage difference and output current) Wiring Method: Terminal block Operating Temperature: -10~+85 degrees Celsius Module Dimensions: 70mm x 40mm (height 31mm) Material: Metal Color: As Shown In The Picture Package Includes: 1 x Module Note: 1. Please note that the photo does not show actual size please refer to Description for size details. 2. Please allow differences due to manual measurement thanks. 3. Due to the difference between different monitors the image may not reflect the actual color of the item. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
