Feature:
1. Come with three?proof paint spraying is used to protect circuit boards and related equipment from environmental erosion. Has good resistance to high and low temperature, excellent insulation, moisture resistance, leakage resistance, shock resistance, aging resistance, anti?corona, etc.
2. DC signal isolator allow 35mm standard rail installation, possess strong versatility
3. Provide inputoutputpower supplyshell isolation, so that have strong anti?interference ability and high reliability
4. The product provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, two?wire system, three?wire system transmitter universal
5. Internal use of good?efficiency magnetic isolation technology, the input, output, and power supply are isolated from each other, with high accuracy, high linearity, low temperature drift, etc.
Specification:

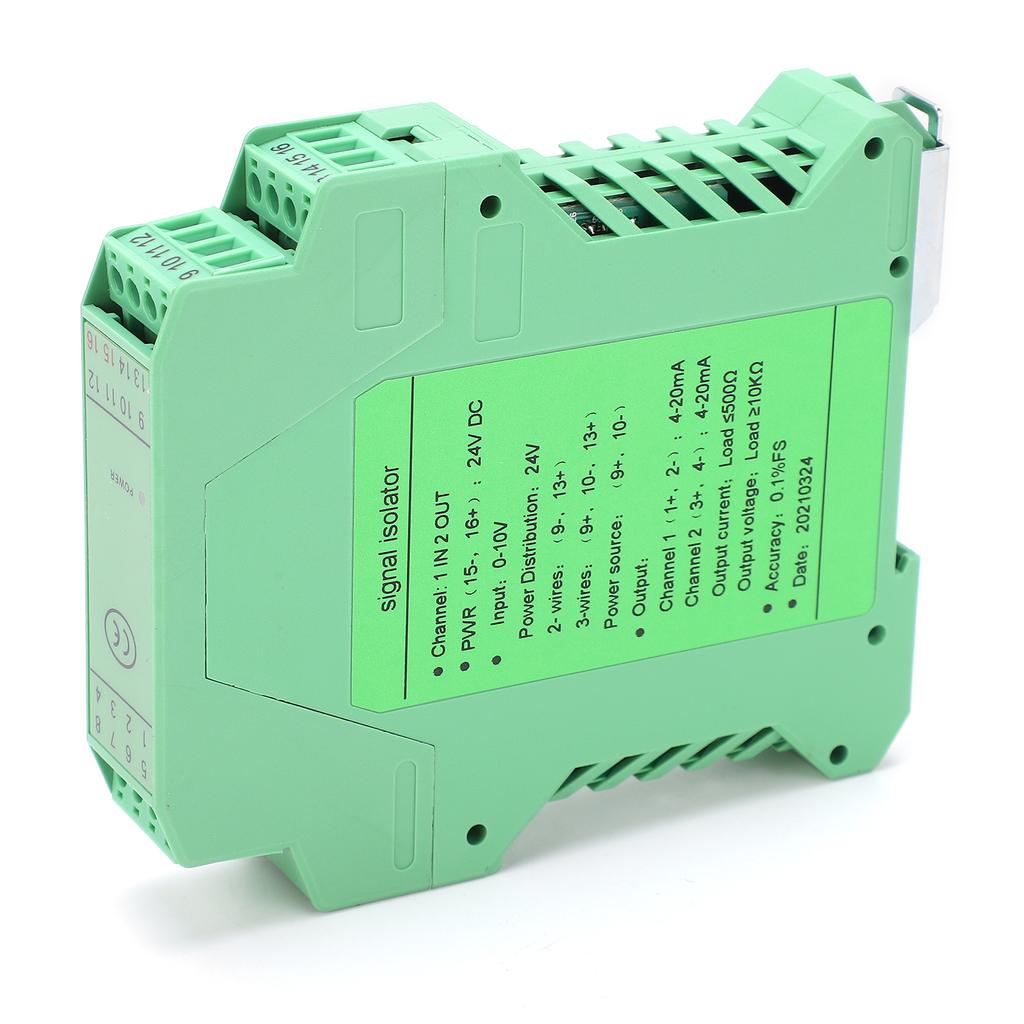

Item Type: DC Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15, 16+): 24V DC
Input: 010V
Distribution Voltage: DC24V
2Wire System: (9, 13+)
3Wire System: (9+, 10, 13+)
Power Supply: (9+,10)
Output:
Channel 1 (1+, 2): 420mA
Channel 2 (3+,4): 420mA
Output Current: Load less than 500 Ohm
Output Voltage: Load more than 10K Ohm
Accuracy: 0.1percent FS
Working Temperature Range: 20~+55 celsius
Electromagnetic Compatibility: Comply with GBT 18268 (1EC613261)
Applicable Field Equipment: Twowire, threewire transmitter, current source.
Package List:
1 x DC Signal Isolator
Note:
1. The installation location must not have strong vibration, and the intensity of electromagnetic interference from the signal terminal, power terminal and space exceeding the third type of industrial field electromagnetic interference in the IEC61000?4 series.2. There must be no harmful substances that cause severe corrosion to metal and plastic parts in the use environment.Come with three?proof paint spraying is used to protect circuit boards and related equipment from environmental erosion. Has good resistance to high and low temperature, excellent insulation, moisture resistance, leakage resistance, shock resistance, agi
DC signal isolator allow 35mm standard rail installation, possess strong versatility
Provide inputoutputpower supplyshell isolation, so that have strong anti?interference ability and high reliability
The product provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface curre
Internal use of good?efficiency magnetic isolation technology, the input, output, and power supply are isolated from each other, with high accuracy, high linearity, low temperature drift, etc.
