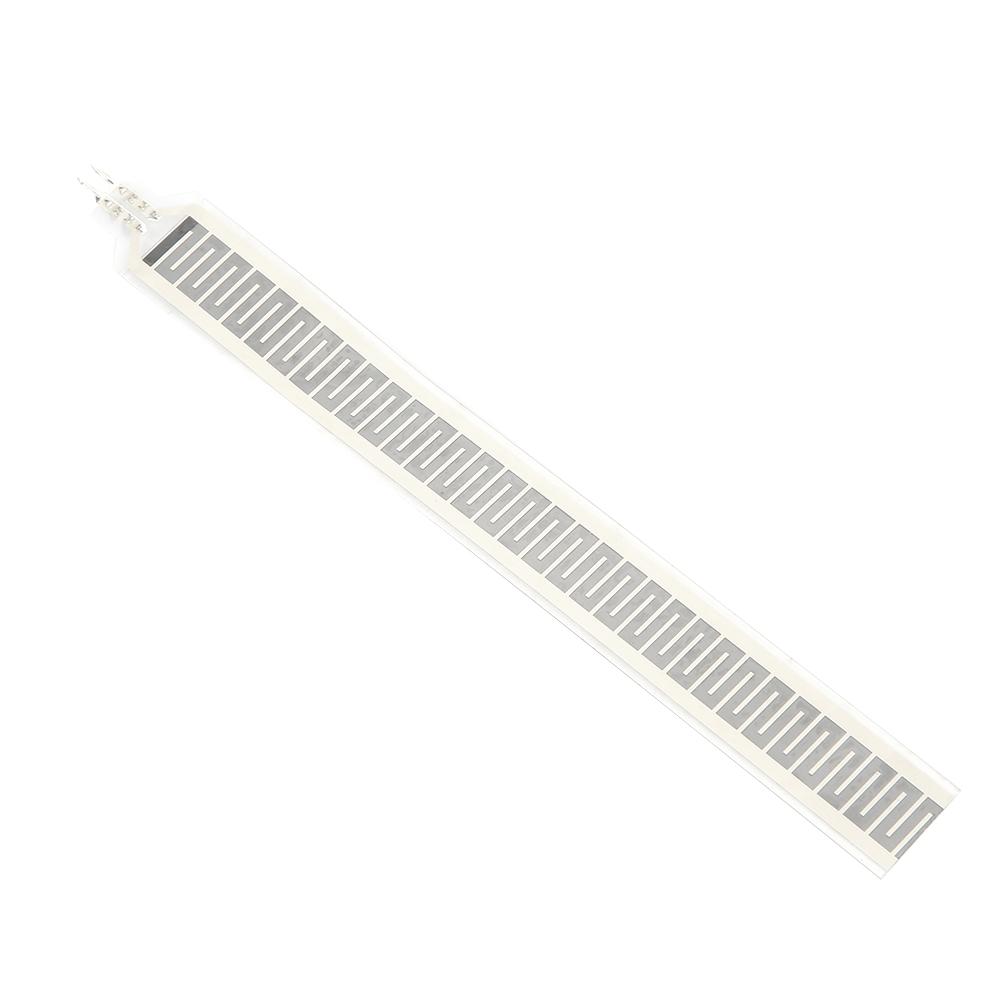

SF15-130 10kg Resistance Type Thin Film Pressure Sensor Force Sensor Resistance to Bending

Features: The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc. Waterproof and pressure sensitive function Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. High sensitivity and long service life Application: off-bed monitoring, intelligent breathing belt, sleep monitoring, electronic shelf. When sensor detects outside pressure, the resistance of sensor will change. Pressure can be converted into a corresponding electrical output using simple circuit Specification: Model:SF15-130 Length: 130 mm/5.1in Width:15mm/0.6in Range: 0 ~ 10 kg Thickness:less than 0.35mm Response point: less than 50g Test voltage: typical dc3.3v Durability: more than times Response time: less than 10ms Recovery time: less than 15ms Working temperature:- 20℃~ 60℃ : no ESD: not sensitive Weight: Approx.3g/0.1oz Package list: 1 x Pressure Sensor
