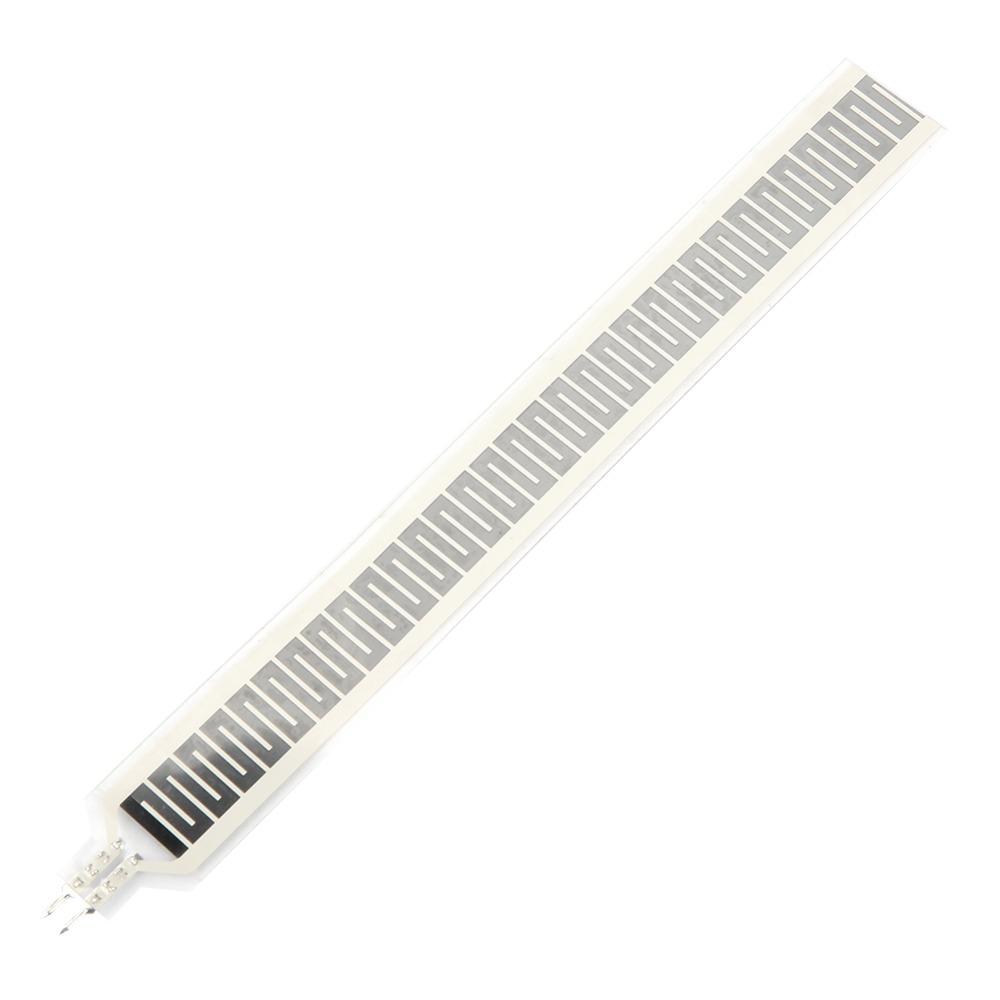

Thin Film Force Sensor 10kg Resistance Type Sensor Low Power Flex Sensor Force Sensing

Label:Yes -Application: off-bed monitoring, intelligent breathing belt, sleep monitoring, electronic shelf. -The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc. -Waterproof and pressure sensitive dual function -High sensitivity and long service life -Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.

Specification: Model:SF15-130 Color:as shown in the figure Length: 130 mm/5.1in Width:15mm/0.6in Range: 0 ~ 5 kg Thickness:less than 0.35mm(0.01in) Response point: less than 50g Test voltage: typical dc3.3v Durability: more than 1 million times Response time: less than 10ms Recovery time: less than 15ms Working temperature:- 20℃~ 60℃ EMI: no ESD:not sensitive Weight: Approx.3g/0.1oz

Note: 1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding.

Package list: 1 x Pressure Sensor
