Feature:
1. CONNECT THE MAINS: The mains connect micro solar inverter is designed to convert the electricity from the solar panels into usable electricity. Support 230V AC voltage, voltage and frequency adaptive. Self cooling method, possess long service life, worry free mobile APP monitoring
2. EXCELLENT PERFORMANCE: Solar micro inverter accurately tracks the maximum power point, accurately catch and collect sunlight and block the maximum output point, significantly increasing power generation. Use with monitoring system can help you monitor the power generation efficiency of the power plant and reduce labor costs
3. WATERPROOF FUNCTION: The micro inverter connected to the solar network is IP65 waterproof grade, completely prevent raindrops from entering, and the aluminum alloy shell can effectively prevent rain from eroding the surface. Complete power isolation of input and output, more secure and reliable
4. WEAR RESISTANCE AND INTERFERENCE RESISTANT: MPPT solar inverter is perfect for photovoltaic solar power generation system, possess low total harmonic distortion, less wear, can withstand strong inductive load. Low interference, suitable for communication accurate equipment, also recommended for most battery tools
5. EASY TO CARRY: Light weight, easy to install, multiple inverters can be stacked according to needs, forming a single phase parallel stacking system. Made of excellent aluminum alloy and electronic component materials, requires little maintenance and occasionally cleans dust on photovoltaic modules
Specification:

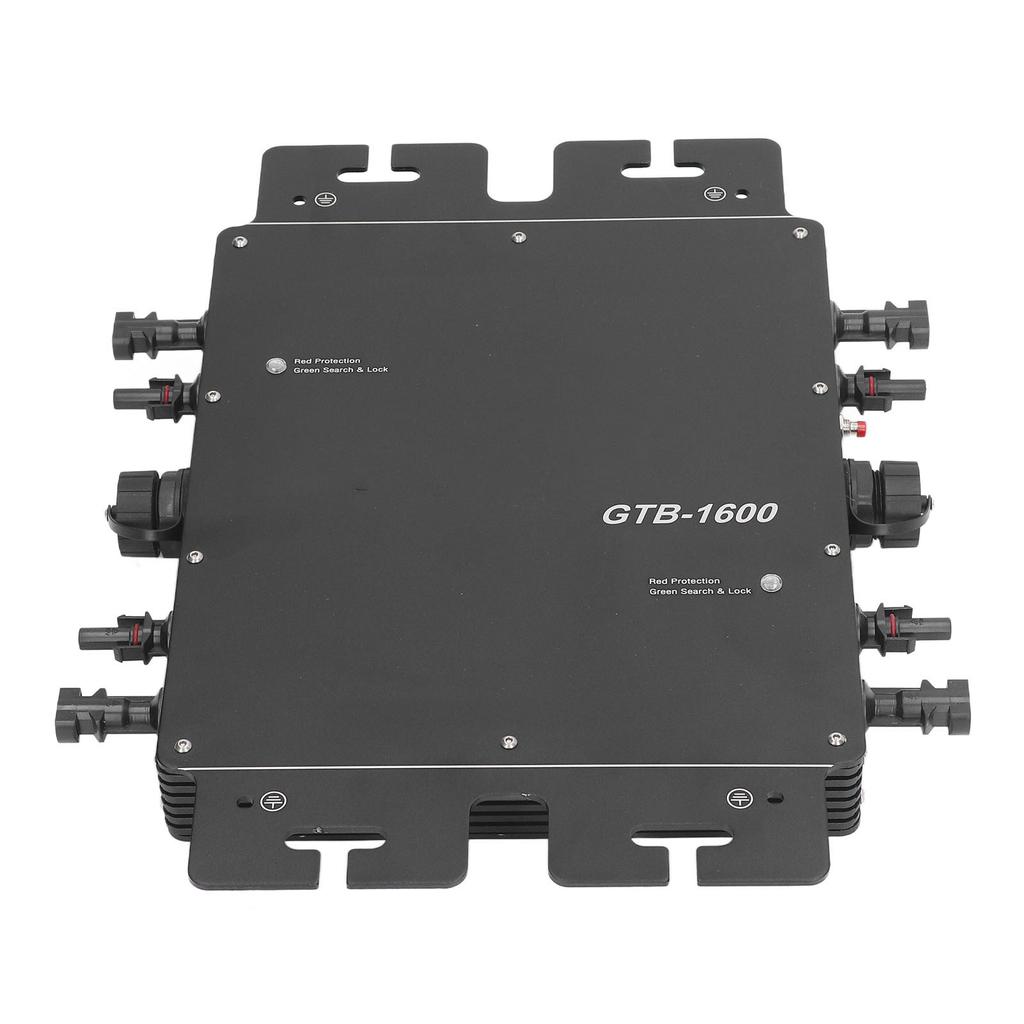

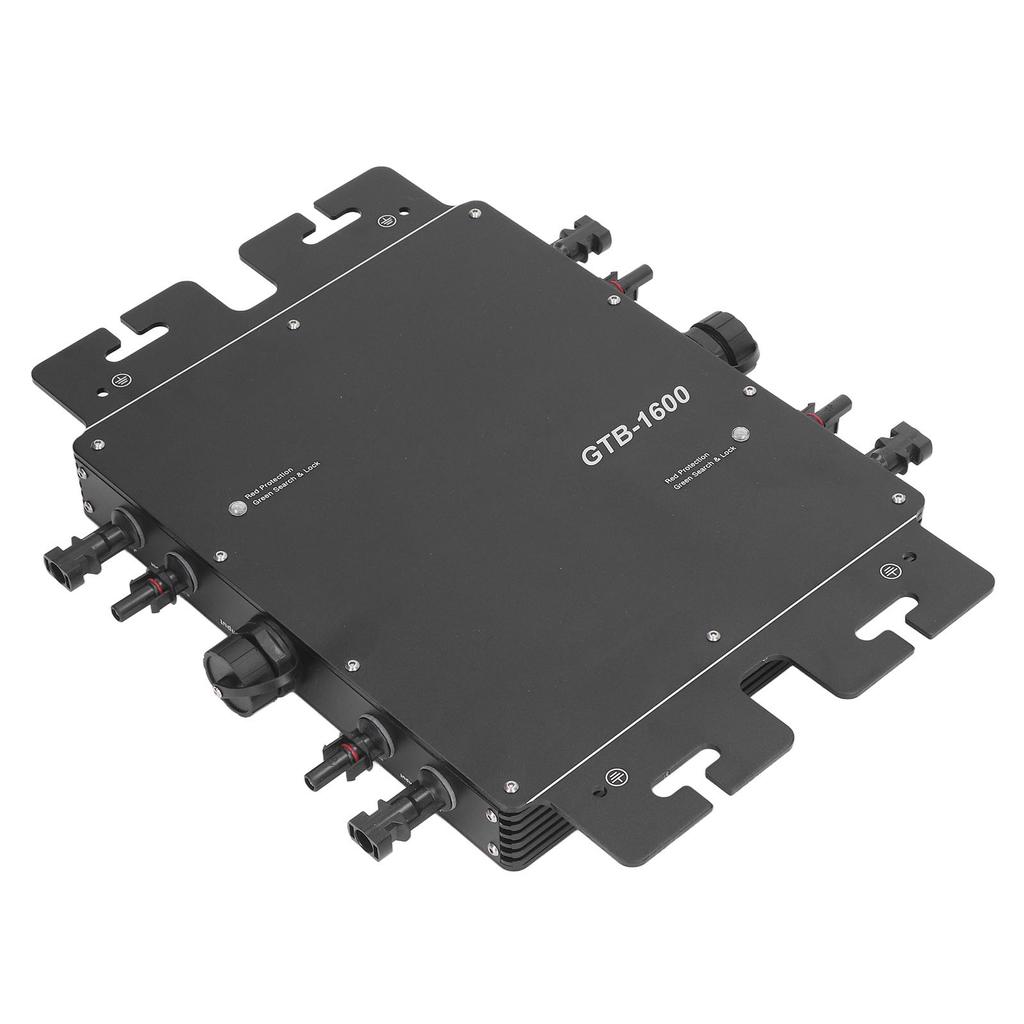

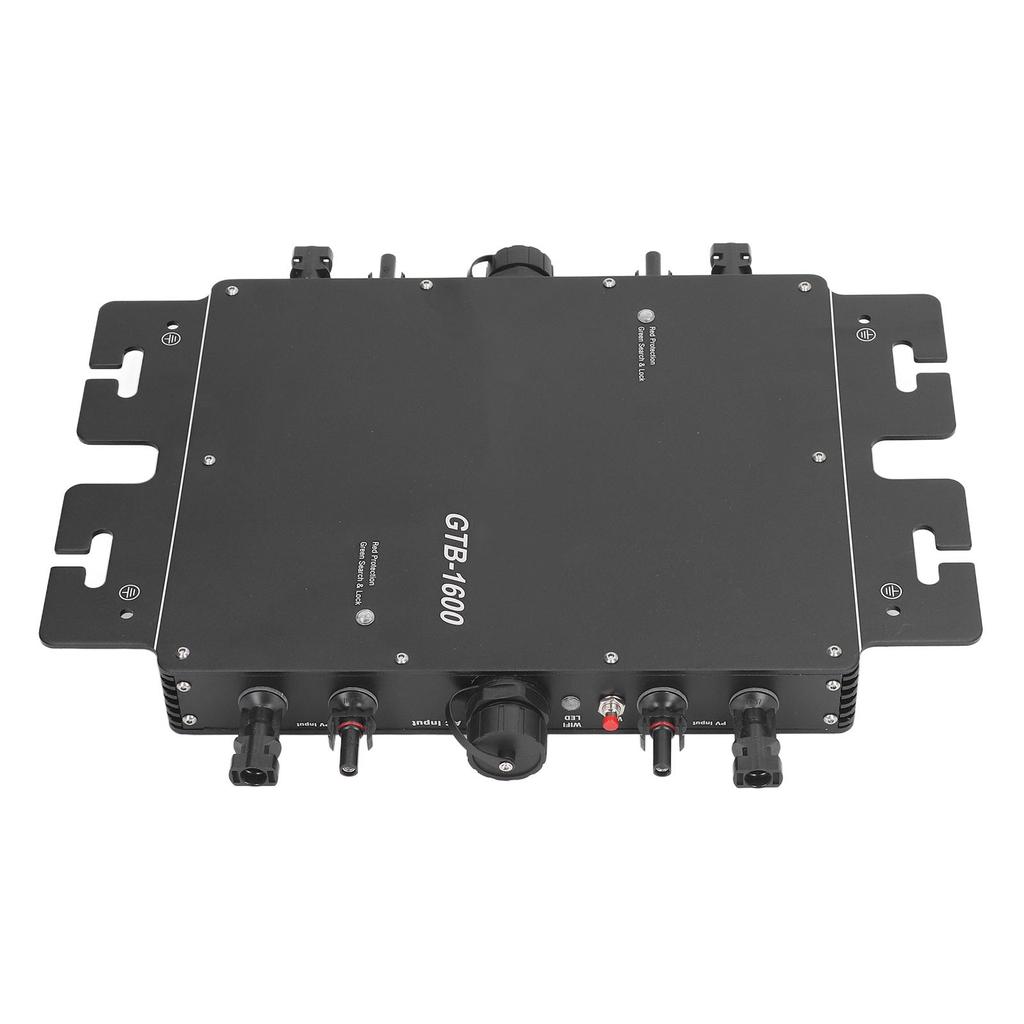

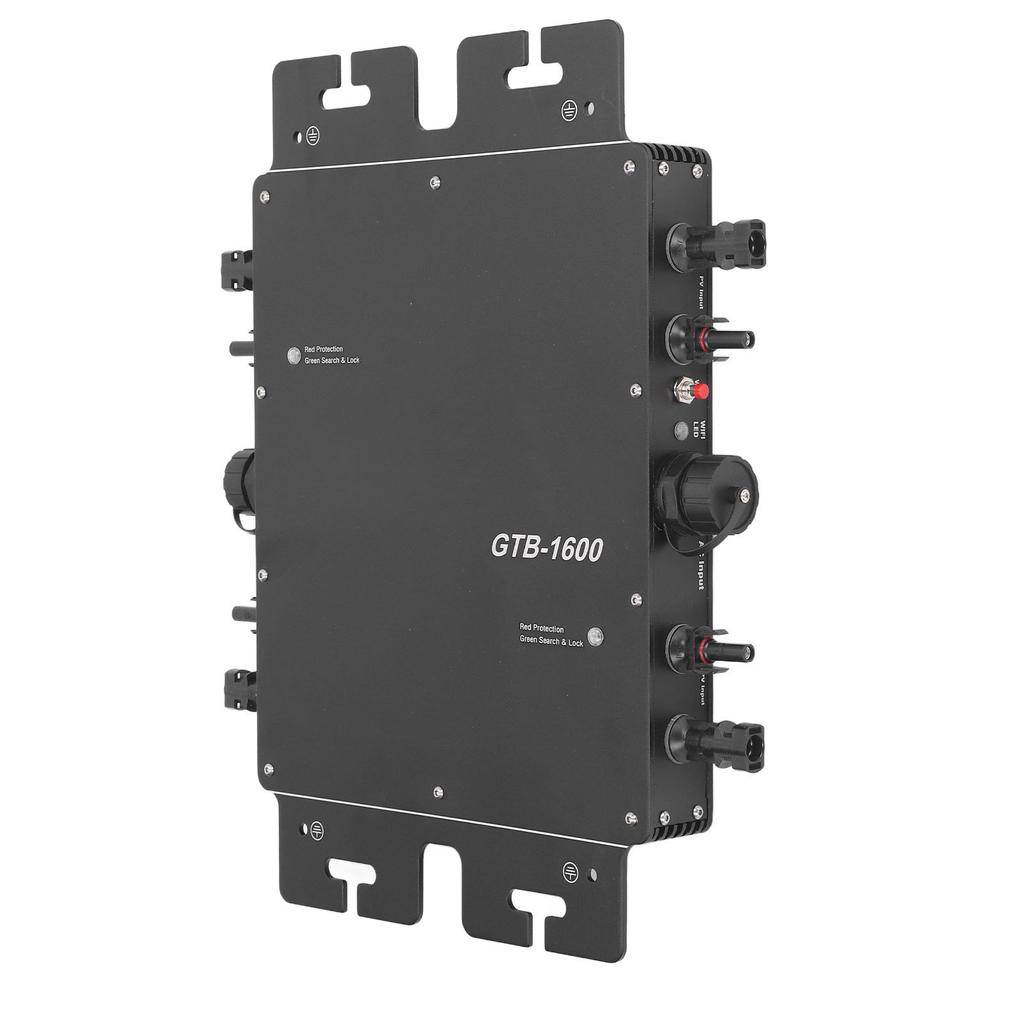

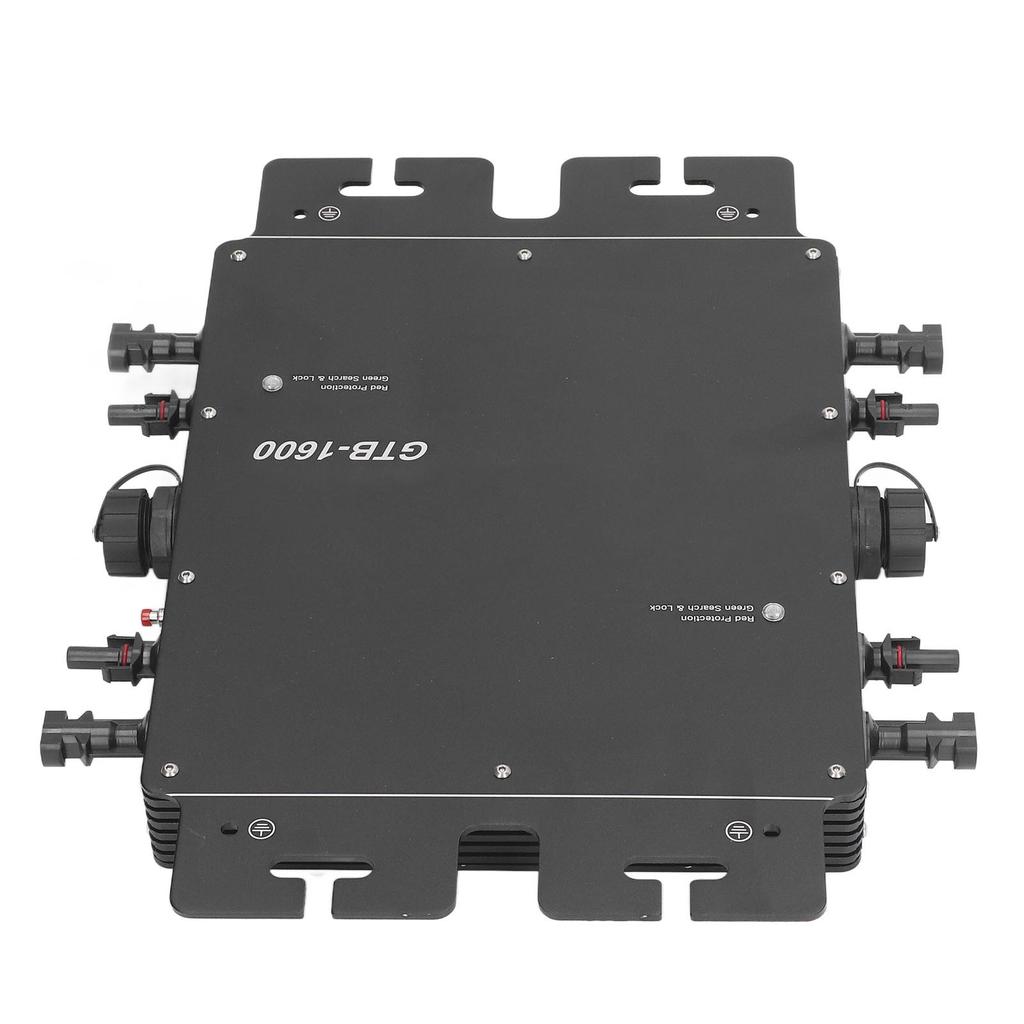

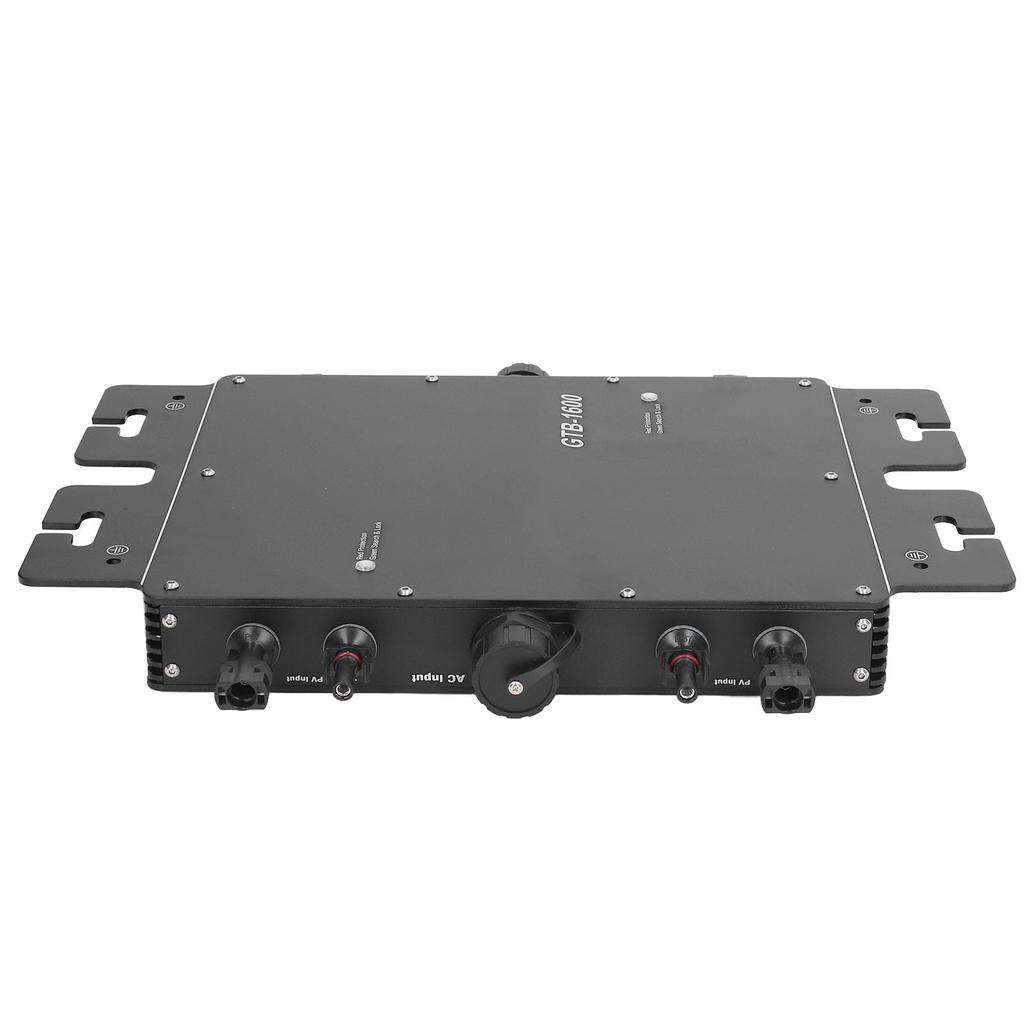

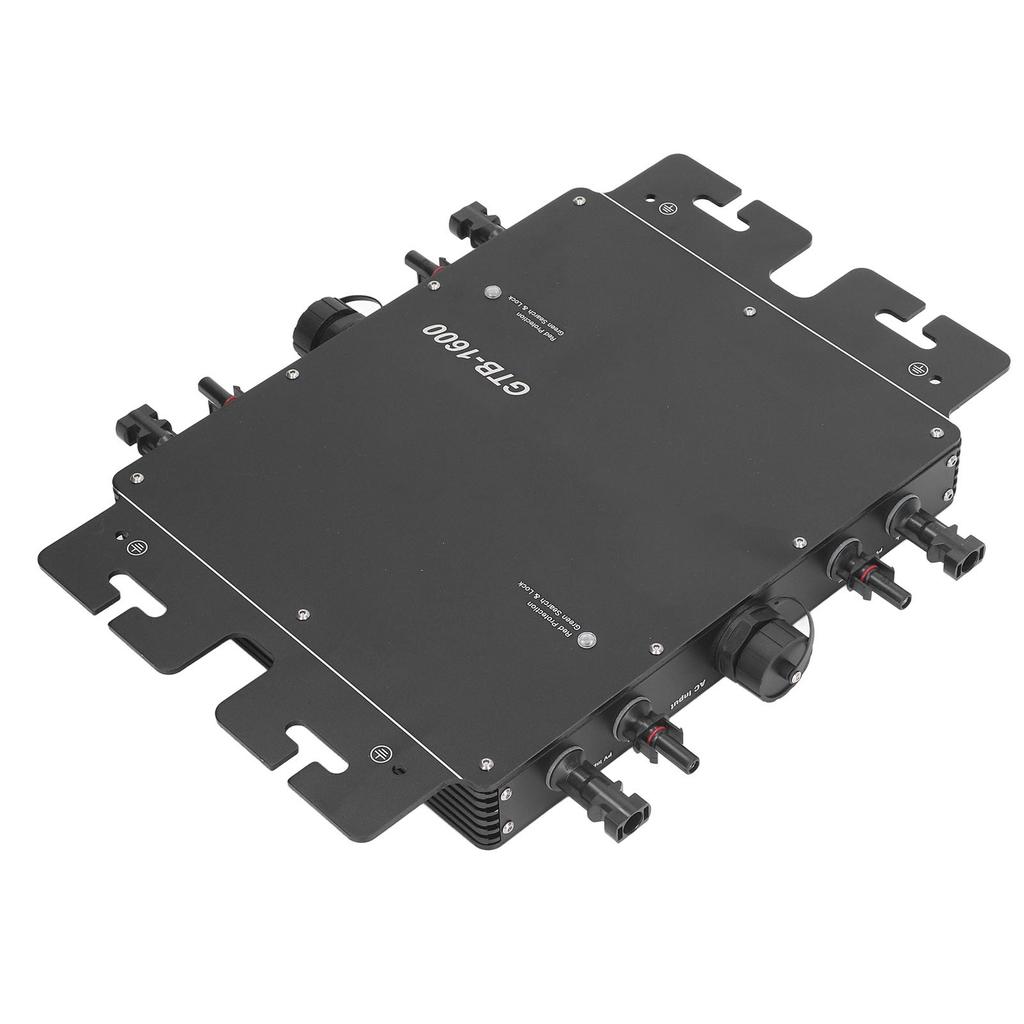

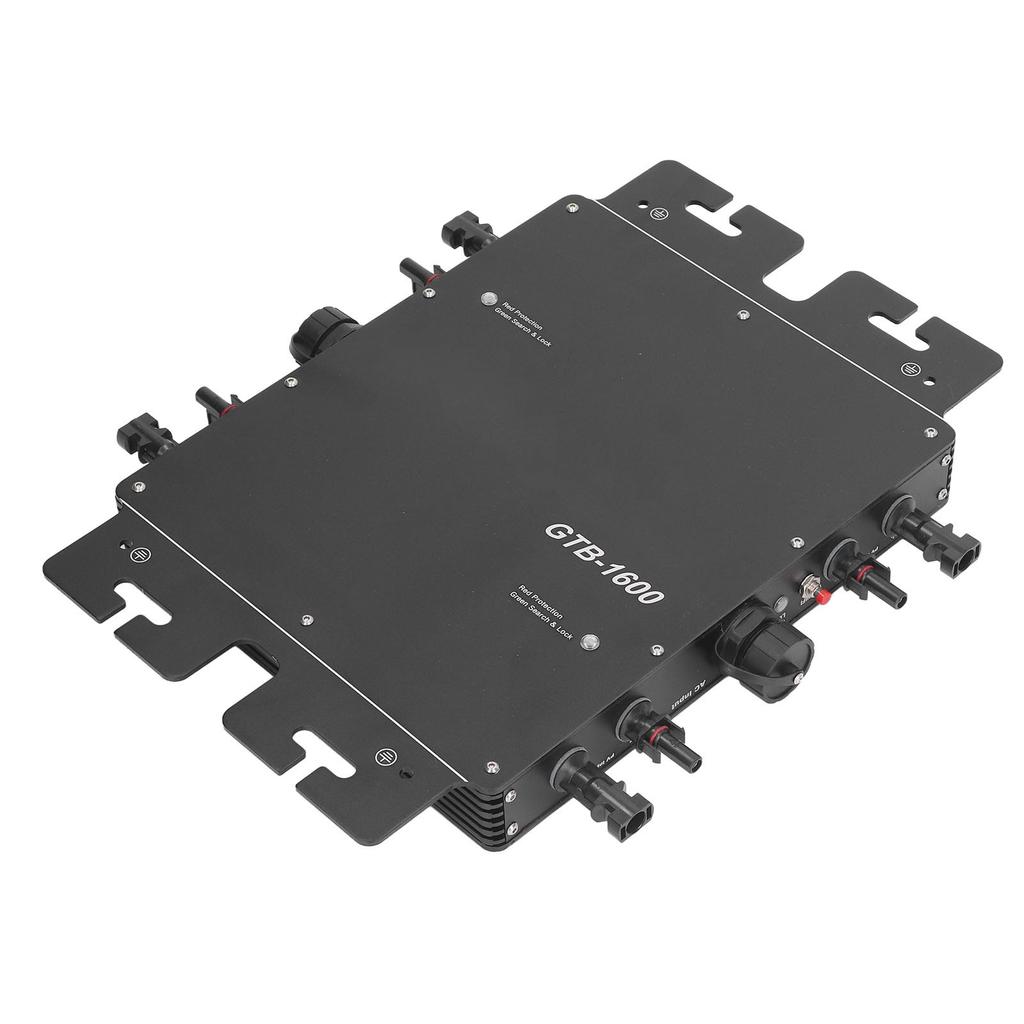

Item Type: Solar Micro Inverter
Material: Aluminum alloy
Color: Black
Plug: EU Plug 230V
Input Data: DC, PV
Number of Connectors: 4 Groups
MPPT Voltage Range: 22V-48V
Operating Voltage Range: 20V-50V
Maximum Input Voltage: 52V
Starting Voltage: 18V
Maximum Input Power: 1600W
Output Data(AC):
Single Phase Power Grid Type: 230V
Rated Output Power: 1600W
Maximum Output Power: 1600W
Nominal Output Voltage: 230VAC
Default Output Voltage Range: AC 190V-270V
Power Factor: >0.99%
Total Harmonic Distortion: < 5%
Efficiency:
Peak Efficiency: 95%
Nominal MPPT Efficiency: 99.5%
Night Power Consumption: <1W
Mechanical Data: Operating Ambient Temperature Range: -40℃ to +65℃
Storage Temperature Range: -40℃ to +85℃
AC Bus Cable Maximum Current: 20A
Waterproof Class: IP65
Cooling Method: Natural convection, no fan
Other Characteristics:
Communication Method: WIFI(cloud monitoring)
Transformer Design: High frequency transformer, electroplating isolation
Integrated Grounding: Device grounding is provided by PE in the AC cable. No additional grounding required
Protection Function: Island protection, voltage protection, frequency protection, temperature protection, current protection, etc.

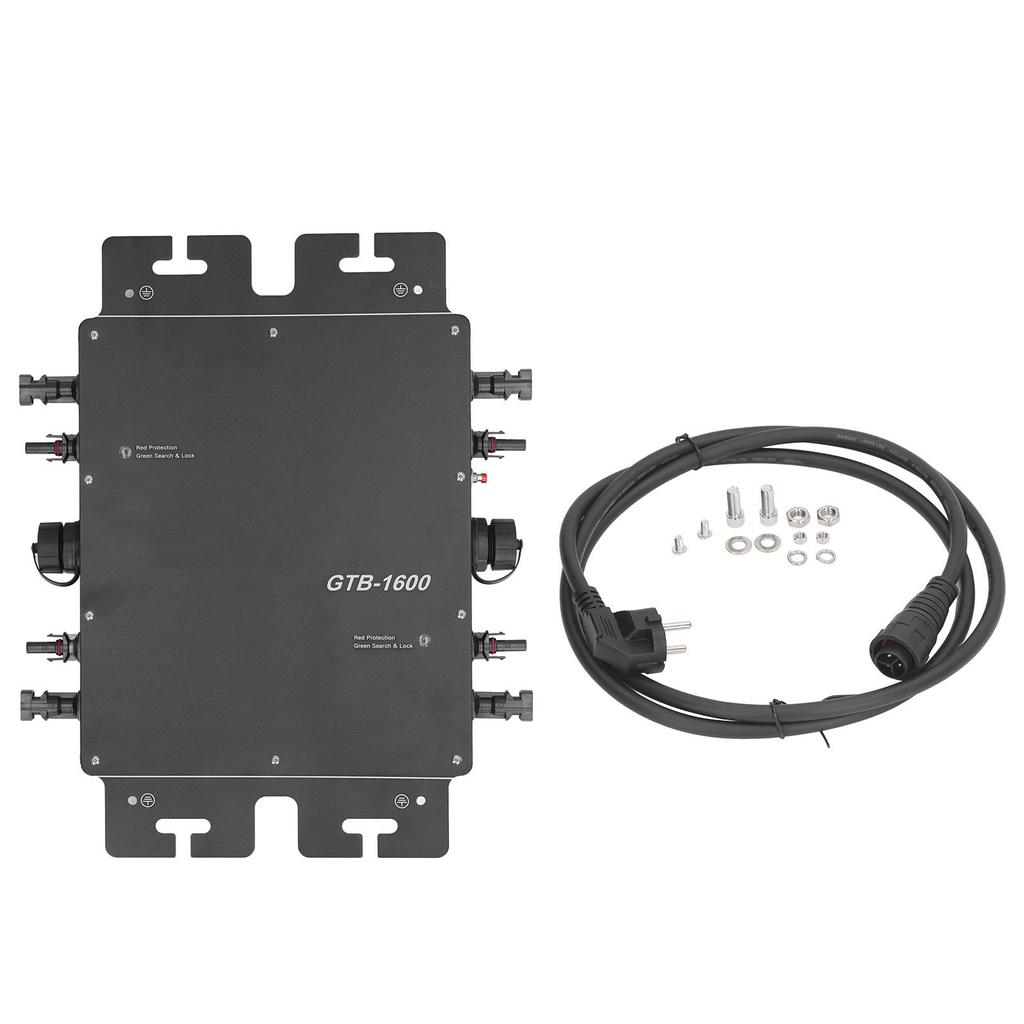

Package List:
1 x Inverter
1 x Power Cord
4 x Screw
4 x Nut
4 x Gasket
1 x User Manual
