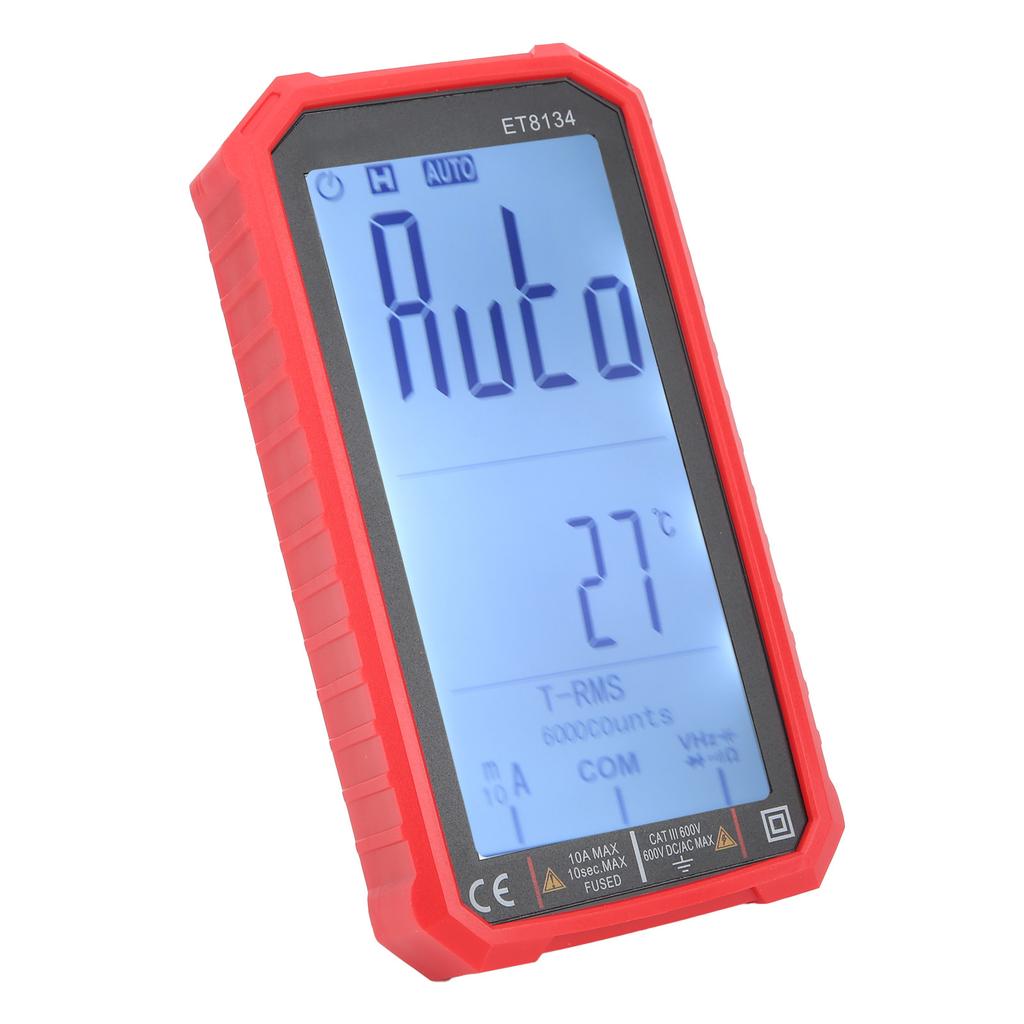

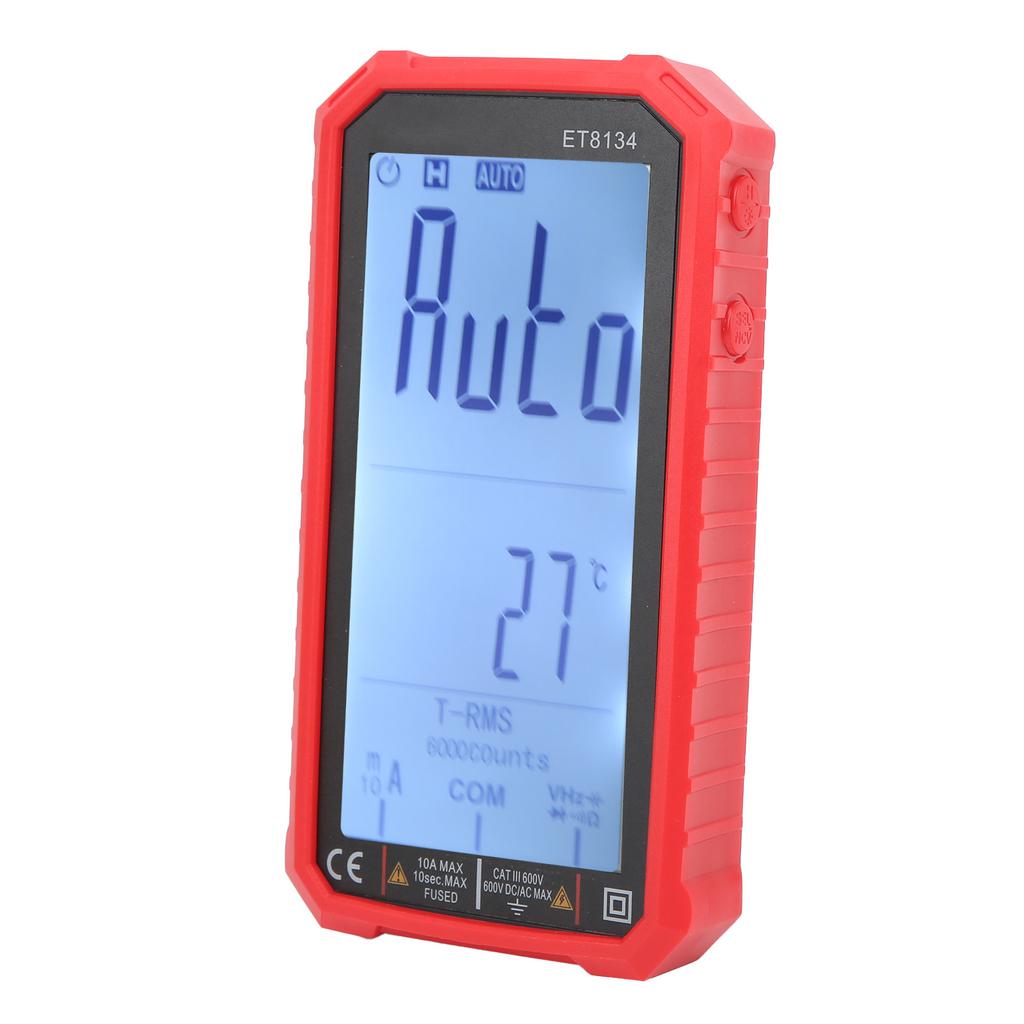

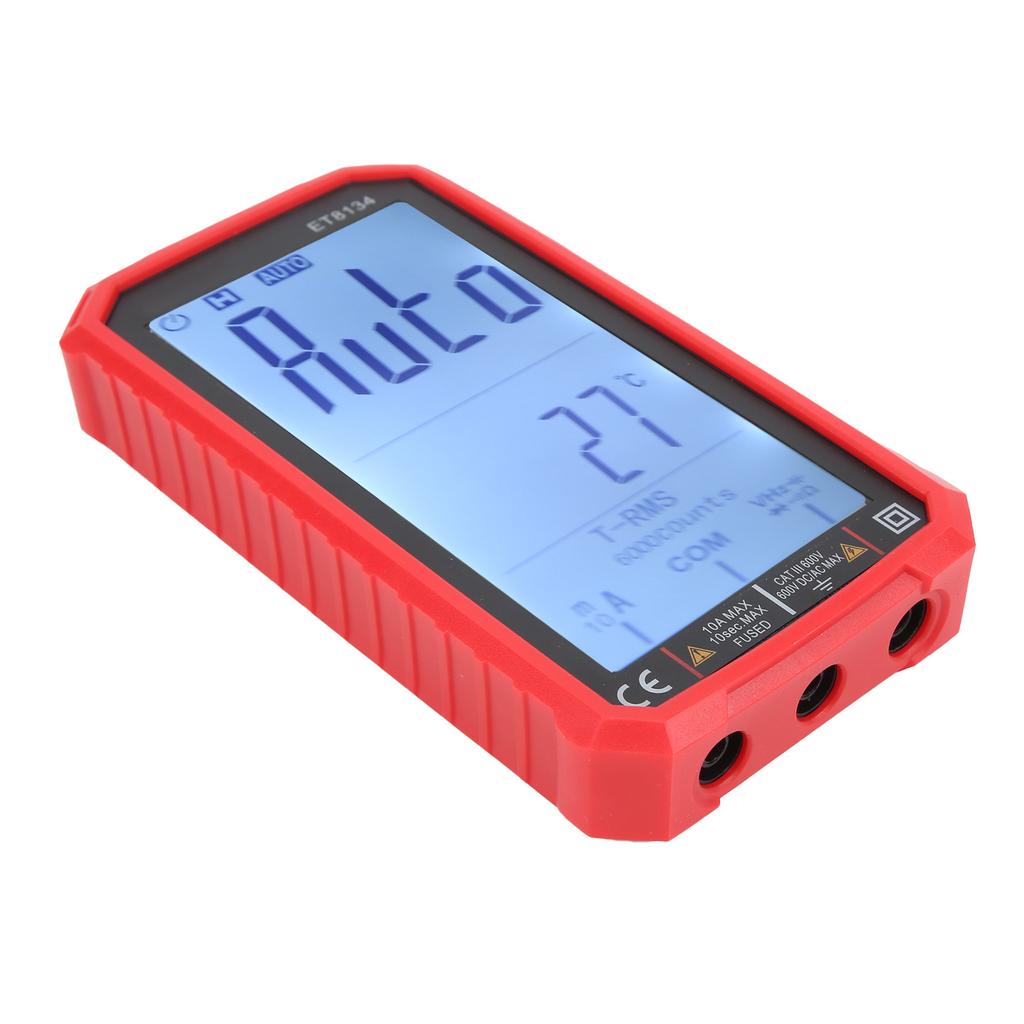

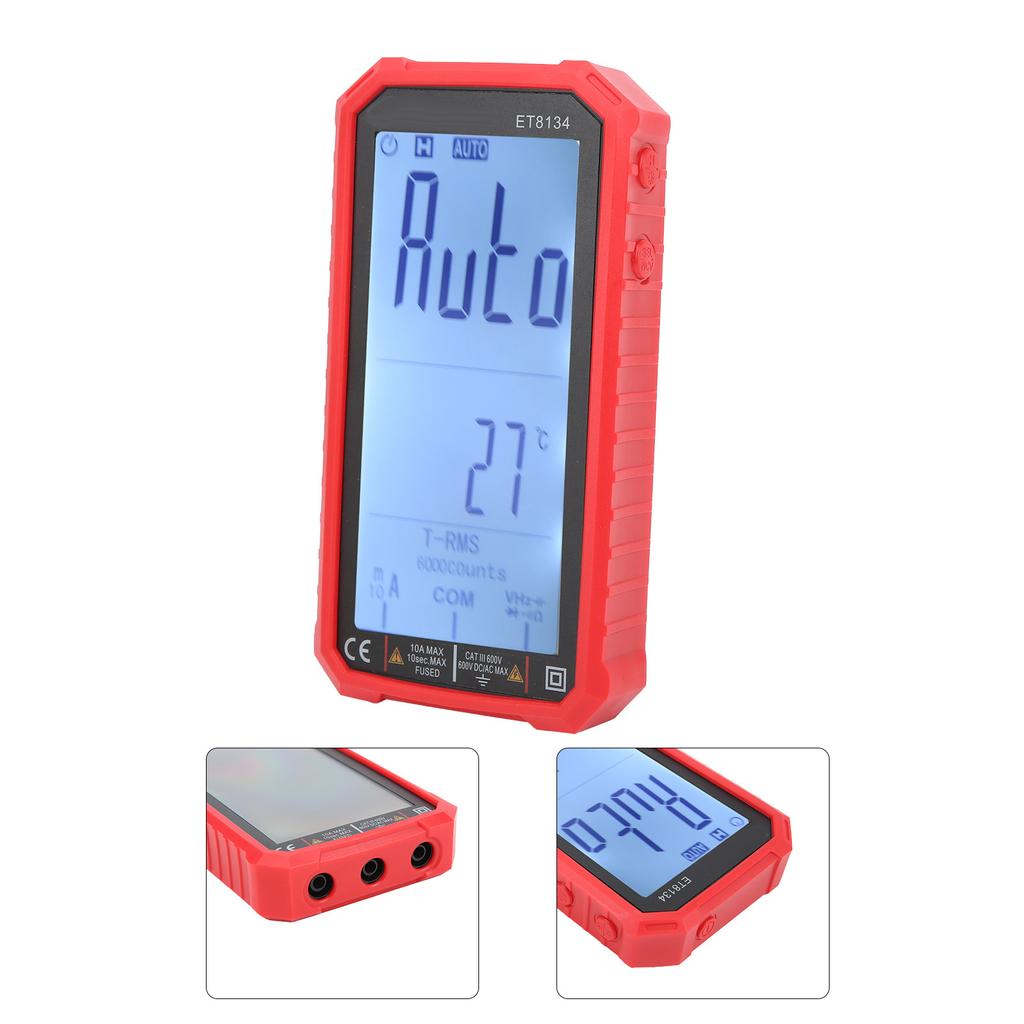

Feature:
1. Full?screen multimeter, equipped with a large display, can visually display the measurement results.
2. Support measurement of ACDC voltage, current, resistance, capacitance, etc.
3. The maximum range for measuring capacitance is 60000uF, minimum current can be measured 0.02A.
4. With color change alarm function, it is widely used in electric power, electronics and home appliances.
5. Multifunction multimeter, small size, easy to carry, high accuracy, suitable for electricians.
Specification:
Item Type: Multimeter
Material: ABS
Model: ET8134
Color: Red
Battery: 1.5V 2 x AAA Battery (Battery Not Included)
Uses: Electricity, Electronics, Home Appliances
Technical Index
Range
Resolution
Accuracy
AC Current
6000mA
1mA
+(1.0percent reading + 8 digit)
10A
0.01A
DC Current
6000mA
1mA
+(1.0percent of reading + 5 digit)
10A
0.01A
DC Voltage
6V
0.001V
+(0.5percent of reading + 3 digit)
60V
0.01V
600V
0.1V
AC Voltage
6V
0.001V
+ (0.8percent of reading + 5 digit)
60V
0.01V
600V
0.1V
Resistance
600 Ohm
0.1 Ohm
+(0.8percent of reading + 3 digit)
6k Ohm
0.001k Ohm
60k Ohm
0.01k Ohm
600k Ohm
0.1k Ohm
6M Ohm
0.001M Ohm
60M Ohm
0.01M Ohm
Capacitance
6nF
0.001nF
+(10percent of reading +40 digit)
600nF
0.1nF
+(2.5percent of reading +20 digit)
6uF
0.001uF
60uF
0.01uF
600uF
0.1uF
6mF
1uF
60mF
0.01mF
.

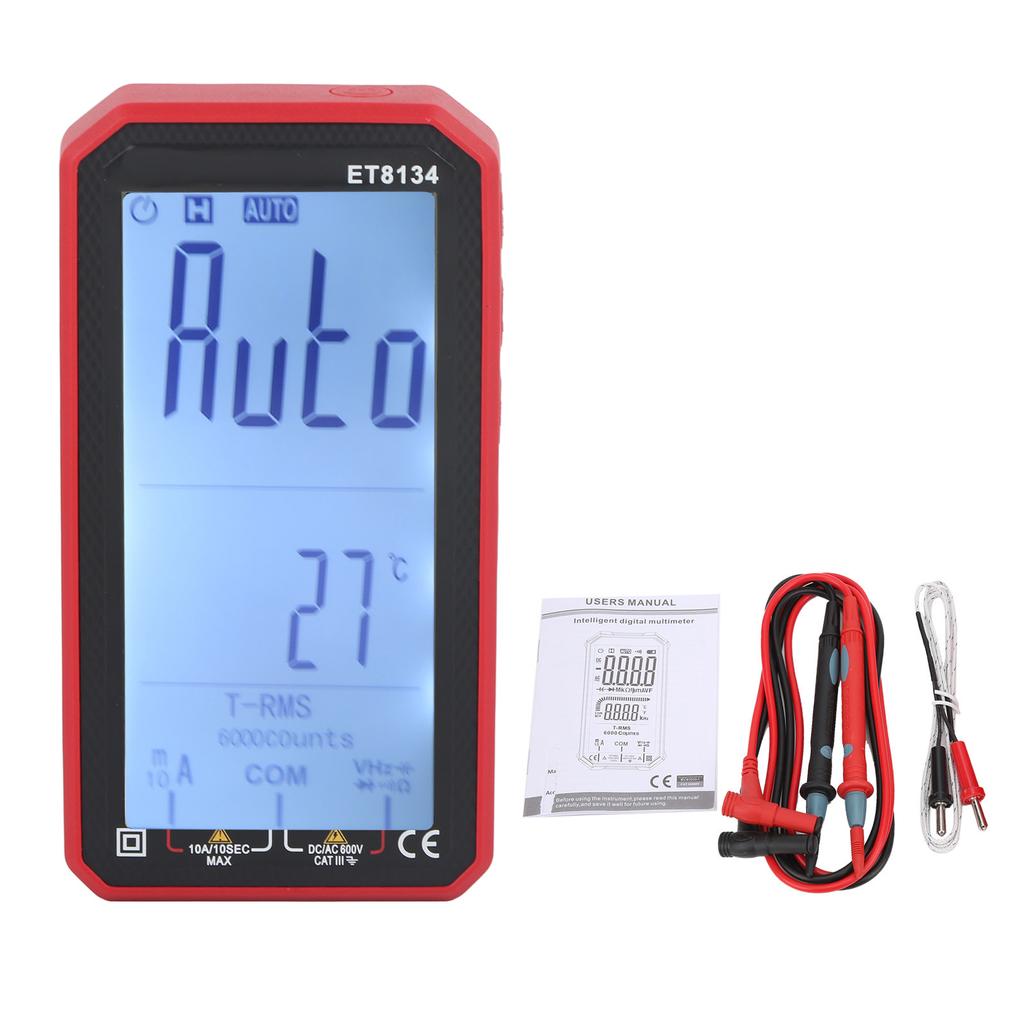

Package List:
1 x Multimeter (Battery Not Included)2 x Test 1 x Temperature Probe1 x Manual
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Full?screen multimeter, equipped with a large display, can visually display the measurement results.
Support measurement of ACDC voltage, current, resistance, capacitance, etc.
The maximum range for measuring capacitance is 60000uF, minimum current can be measured 0.02A.
With color change alarm function, it is widely used in electric power, electronics and home appliances.
Multifunction multimeter, small size, easy to carry, high accuracy, suitable for electricians.
