Feature:
1. 4 Poles Rotor: RC sensorless brushless motor, with 4 poles rotor design, strong torsion and stable output power, low friction, low noise and high accuracy.
2. Good Heat Resistance: High hardness aluminum CNC shell, high temperature resistant copper coil 0.2mm thickness silicon steel sheet, high magnetic permeability, high silicon content, good insulation and heat resistance.
3. High Accuracy: Explosion proof rotor, high toughness stainless steel output shaft, highly precise premium bearings make the motor super durable.
4. Detachable Structure: The detachable structure design is convenient for cleaning and maintenance, effectively prolonging the service life of the motor and improving work efficiency.
5. Temperature Sensor: The motor has a built in temperature sensor and interface, which can be used with the ESC to realize the motor overheat protection function.
6. Waterproof and Dustproof: The ESC is all weather waterproof and dustproof, designed for RC model cars, with excellent starting, acceleration and linearity functions.
7. Strong Current Resistance: For sensorless brushless motor, strong current resistance, excellent heat dissipation, built in switching mode 6.1V 5A or 7.4V 5A (switching mode), compatible with high torsion and high voltage servo.
8. Multiple Protection Features: Low voltage cut off protection for lithium or nickel batteries, ESC overheat protection, motor overheat protection, throttle signal loss protection, motor blocking protection, easy to program and compatible with pocket sized program cards.
Specification:

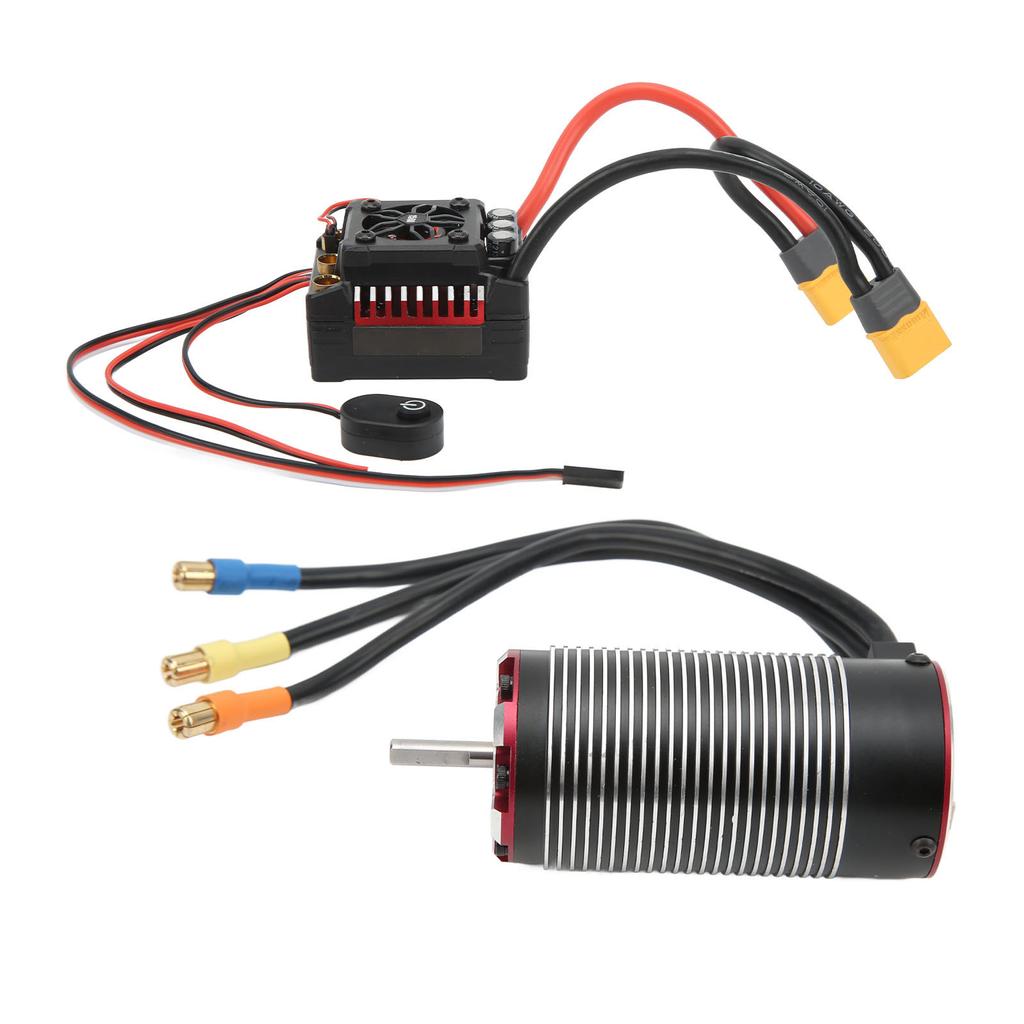

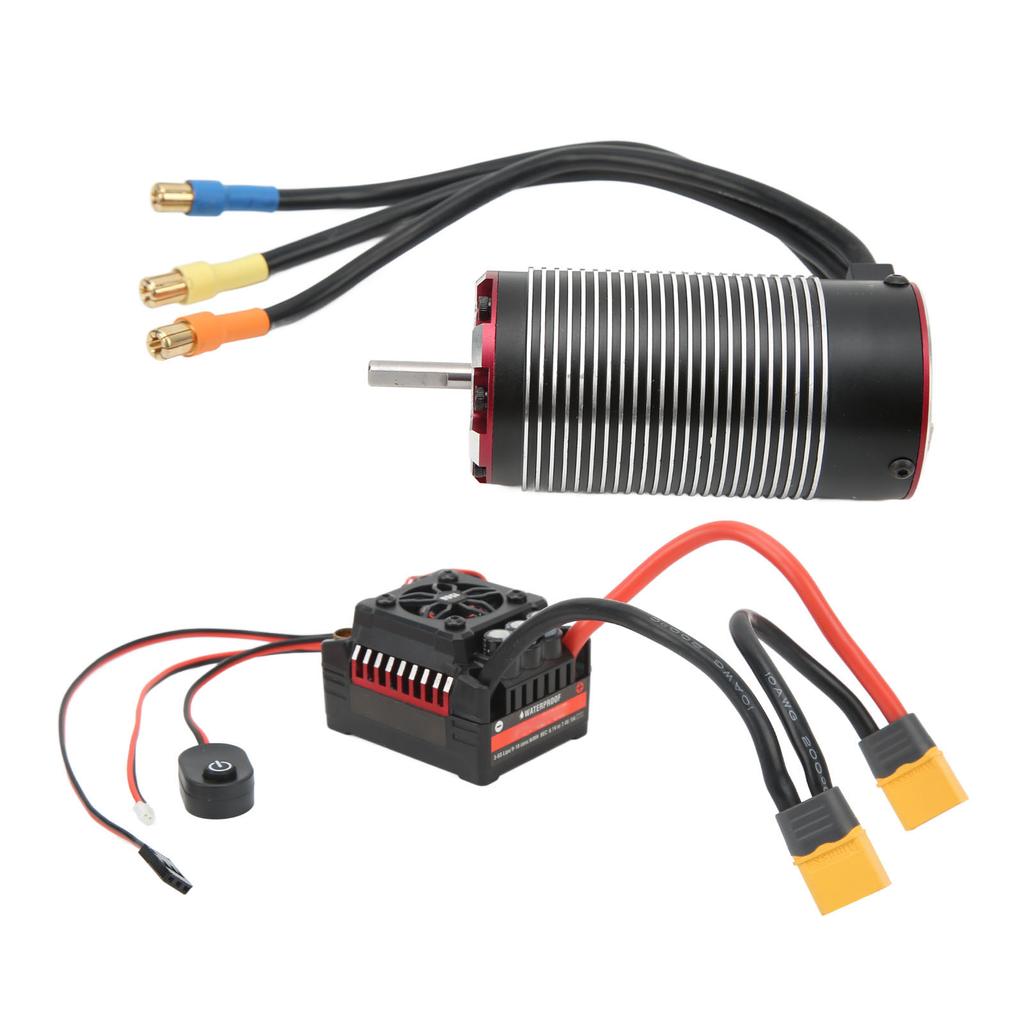

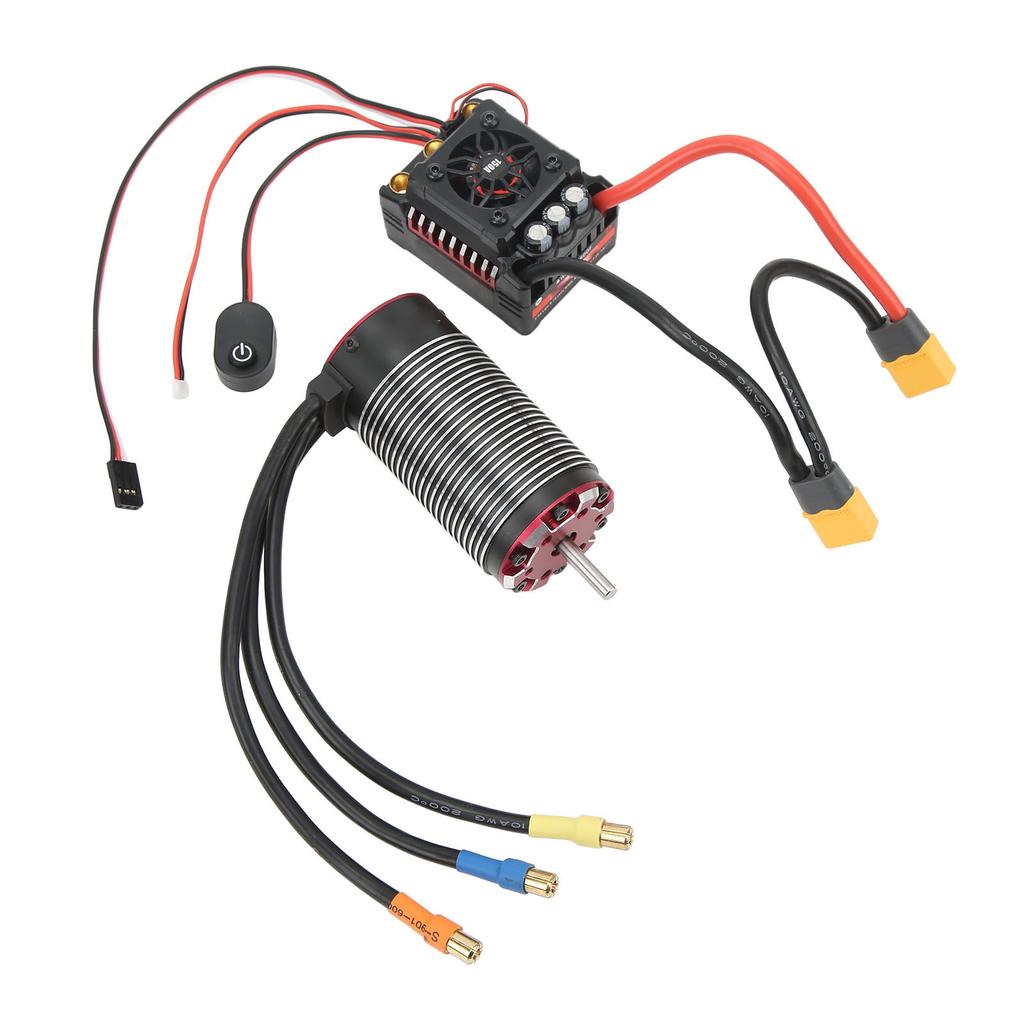

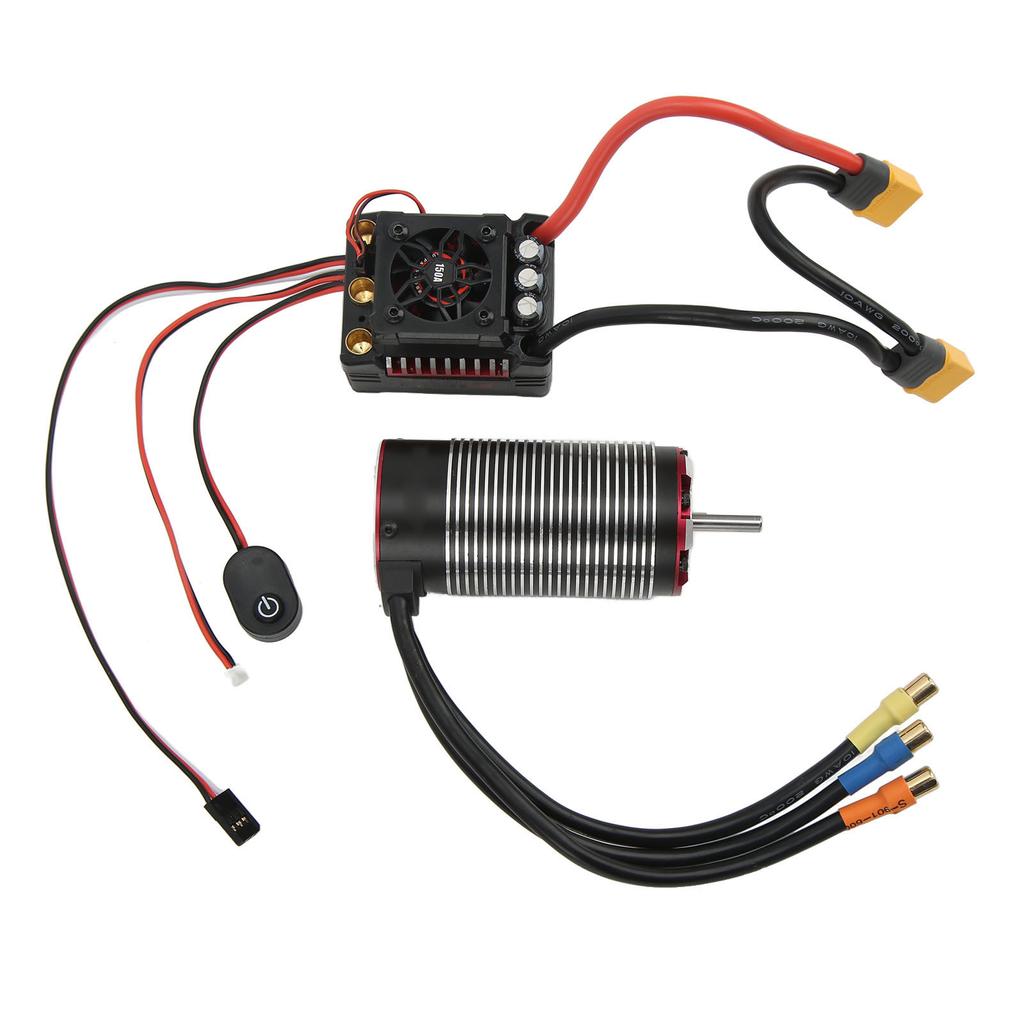

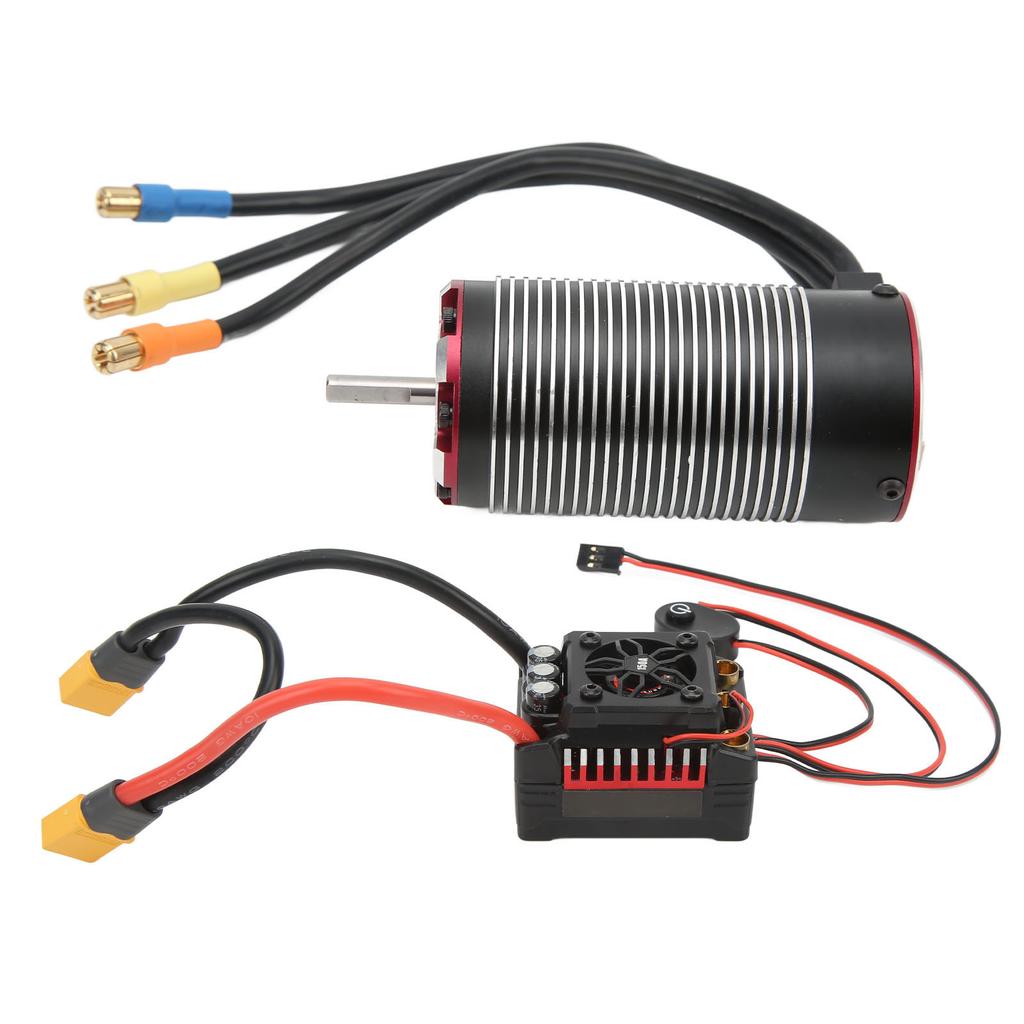

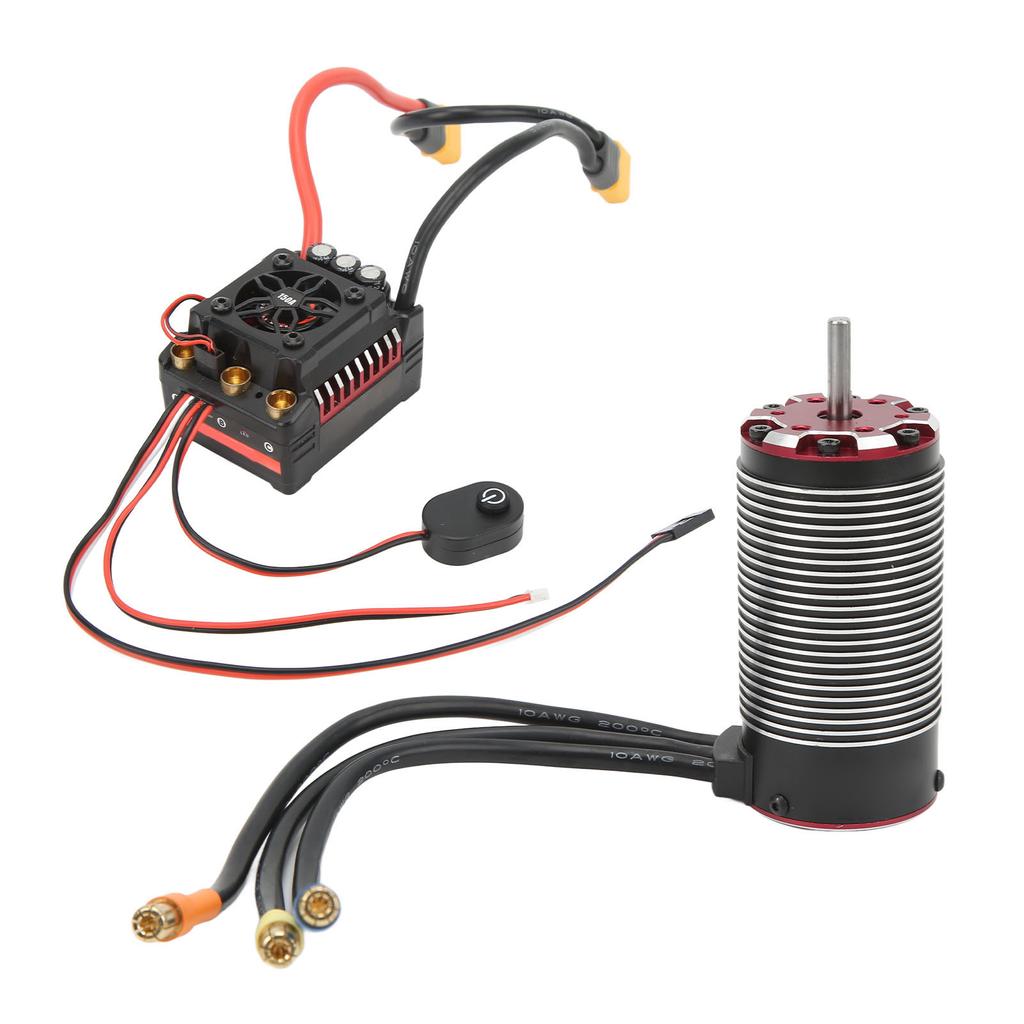

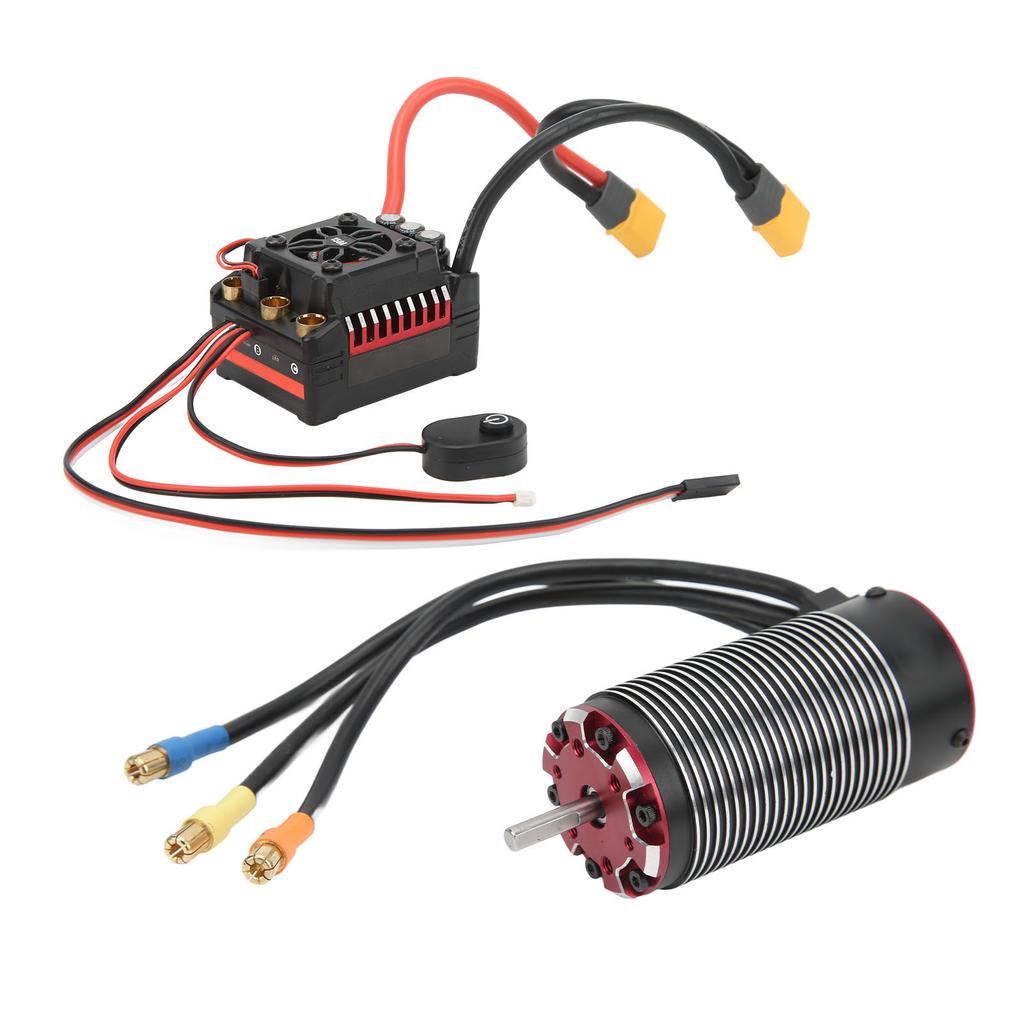

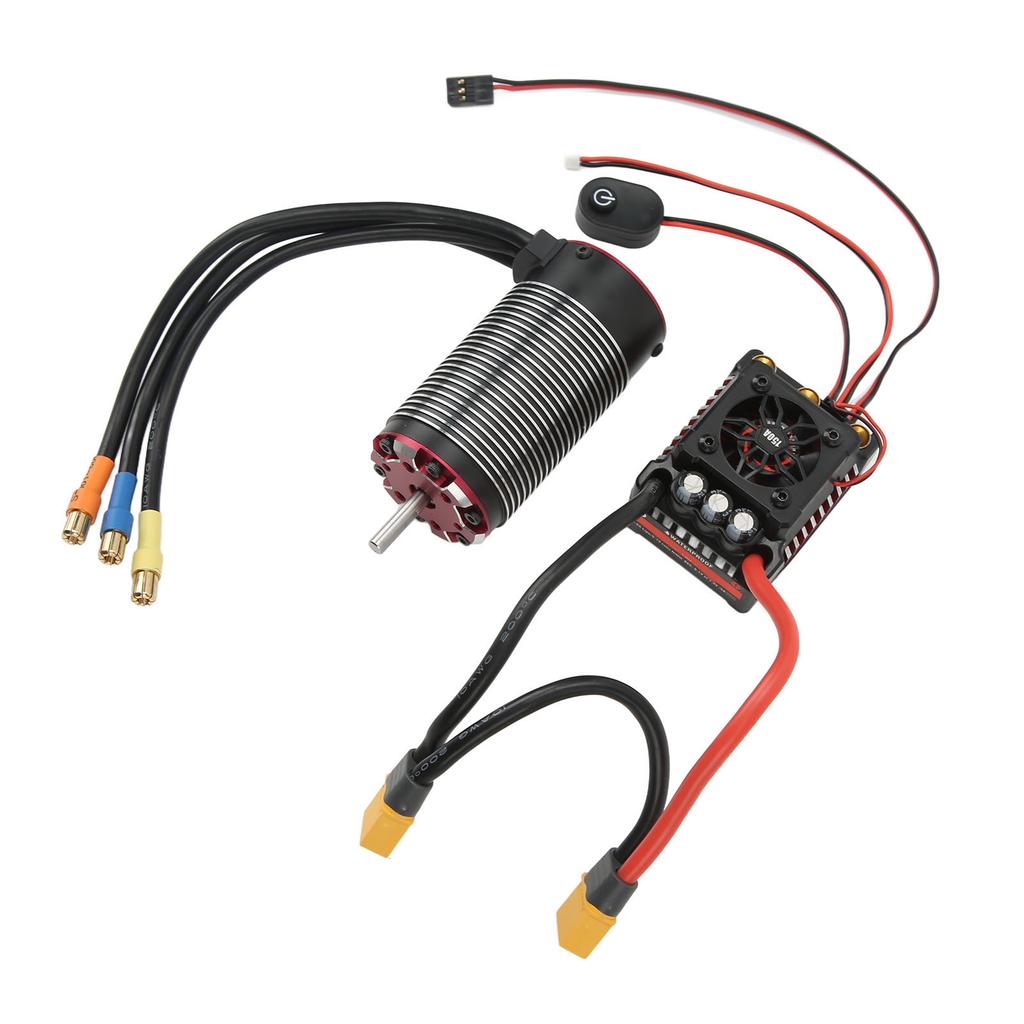

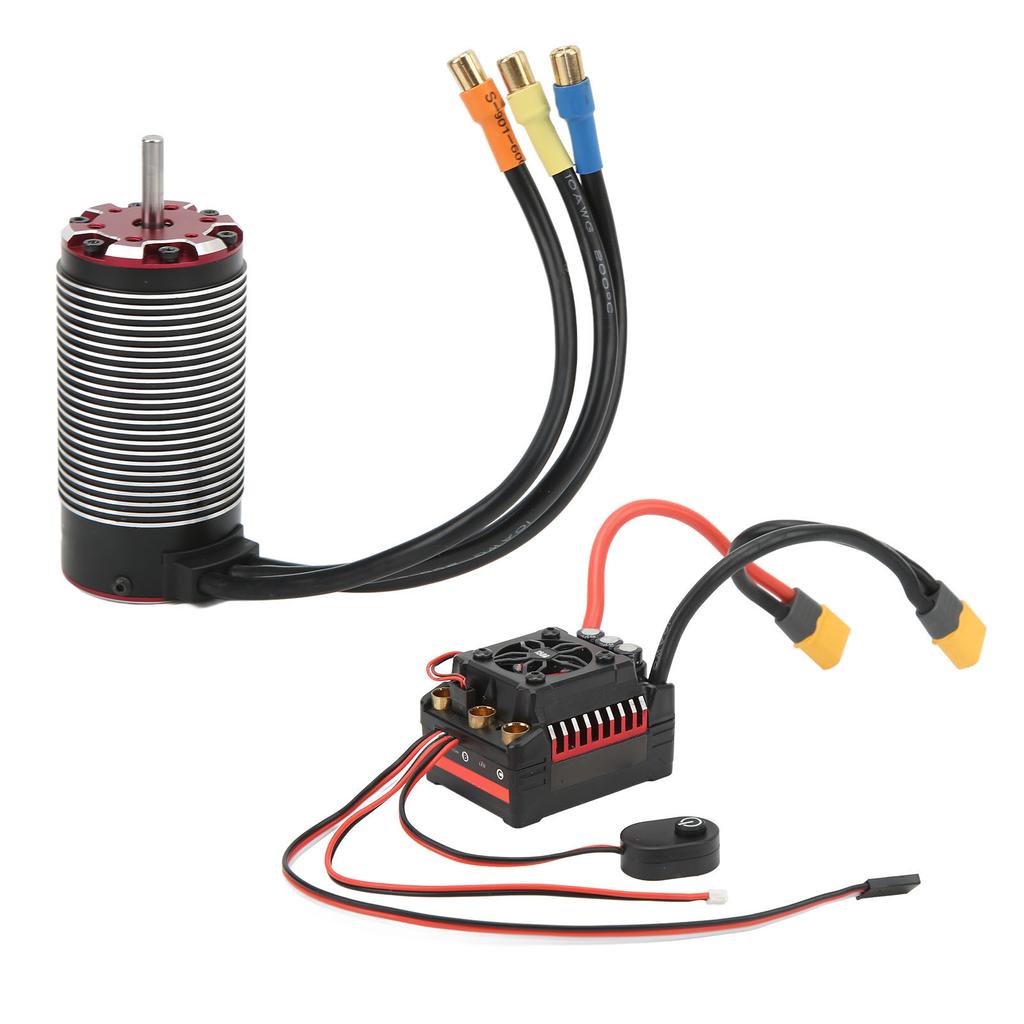

Item Type: 4282 Brushless Motor ESC Kit
Material: Aluminum, Copper, Steel, Plastic
Gross Weight: 760g 26.8oz
Color: Black Red
Model: 4282
KV(RPM V): 2150KV
Output Power: 3400W
Maximum Voltage: <23V
Maximum Current: 150A
Number of Motor Poles: 4
IO: 2.5A
Resistance( Ohm ): 0.0056
Maximum Speed: 50000
Motor Diameter: Approx.40mm 1.6in, Approx.42mm 1.7in
Motor Length: Approx.82mm 3.2in(without shaft)
Shaft Diameter: Approx.5mm 0.2in
Shaft Length: Approx.20mm 0.8in
Gold Plated Joint: Approx.6.5mm 0.3in
150A ESC:
Continuous Current and Burst Current: 150A 1080A
Motor Type: Sensorless brushless motor
4S Lipo or 12S NiMH:
1. Flat Car: 42xx motor KV <3000
2. Off Road, Truck: 42xx motor KV < 2500
6S Lipo or 18S NiMH:
1. Flat Car: 42xx motor KV < 2500
2. Off Road, Truck: 42xx motor KV < 2000
Internal Resistance: 0.00028ohm
Battery: 3 6S Lipo, 9 18S NiMH
BEC Output: 6.1V 5A or 7.4V 5A (switching mode)
ESC Size: Approx.57.5 x 45 x 37mm 2.3 x 1.8 x 1.5in(without cable)
Suitable: for 1 8 RC cars (e.g. for Traxxas, for Wltoys, for HSP, etc.) .
Package List:
1 x 4282 Brushless Motor 1 x 150A ESC 2 x Manual
Note:
1. Due to manual measurement, please allow 1‑3mm error, thank you! 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. Please uninstall the cooling fan before using this ESC in water: clean and dry after use to avoid rusting of the connector.
