-The product has low heat and stable products and has a longer life.
-The PCB is small in size and ultra-thin design to meet the most demanding requirements.
-High reliability, 12V power supply can be used to reduce system cost!
-The PCB is small in size and ultra-thin design to meet the most demanding requirements.
-Improving the conversion efficiency of the structure by more than 92%.
Specification:
Material: PCB
Color: green
Suitable size: 10-42 inch

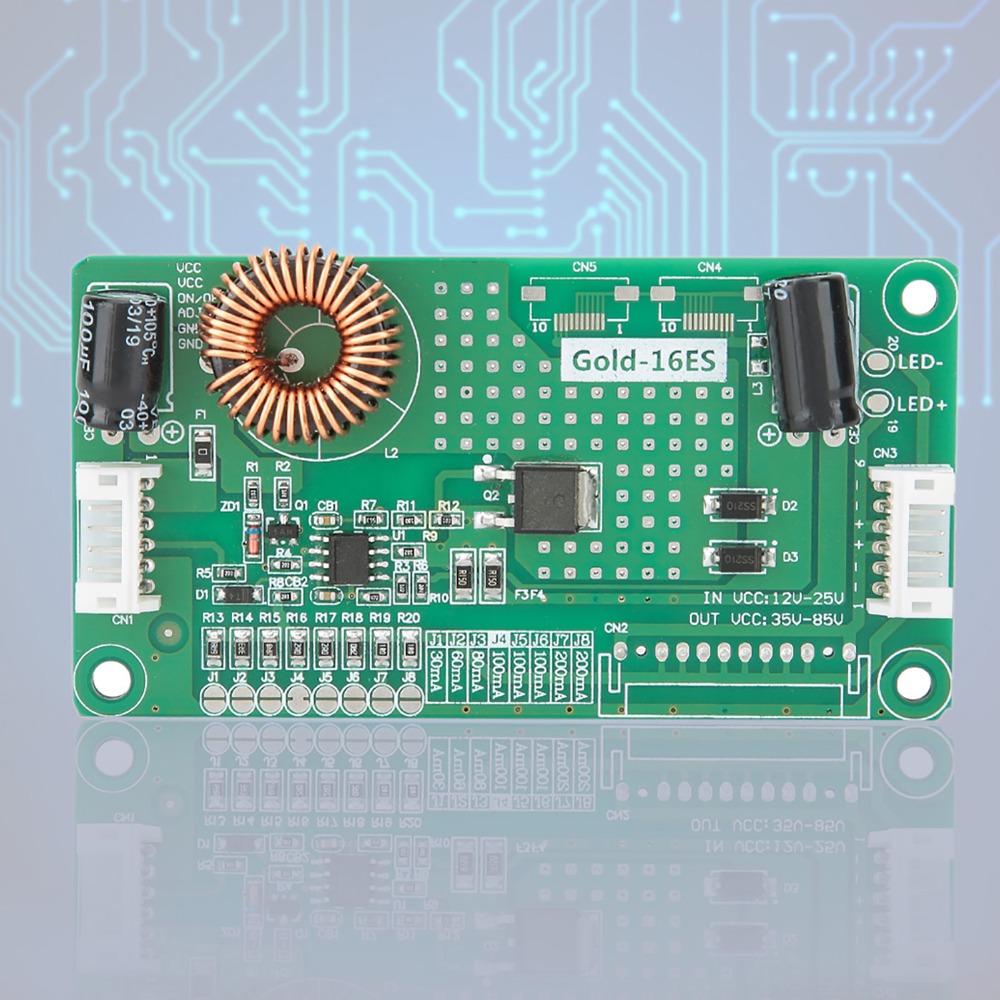

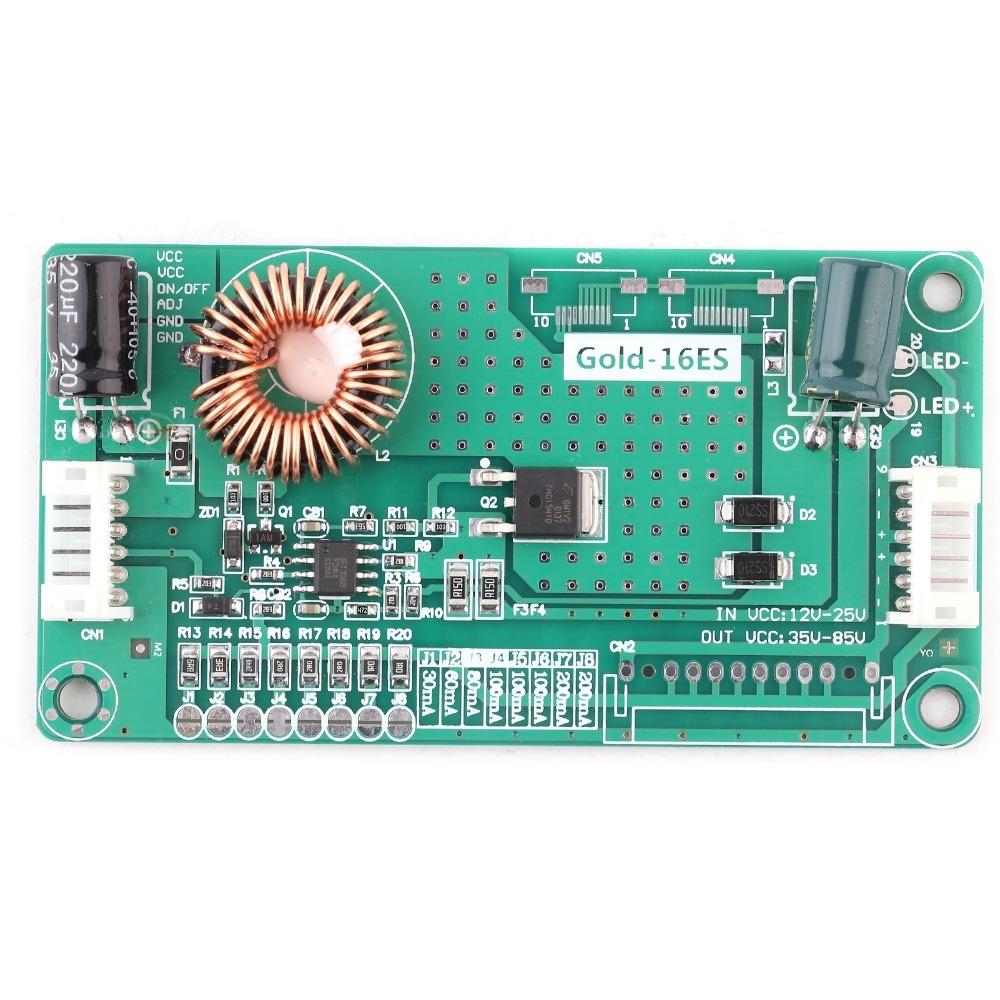

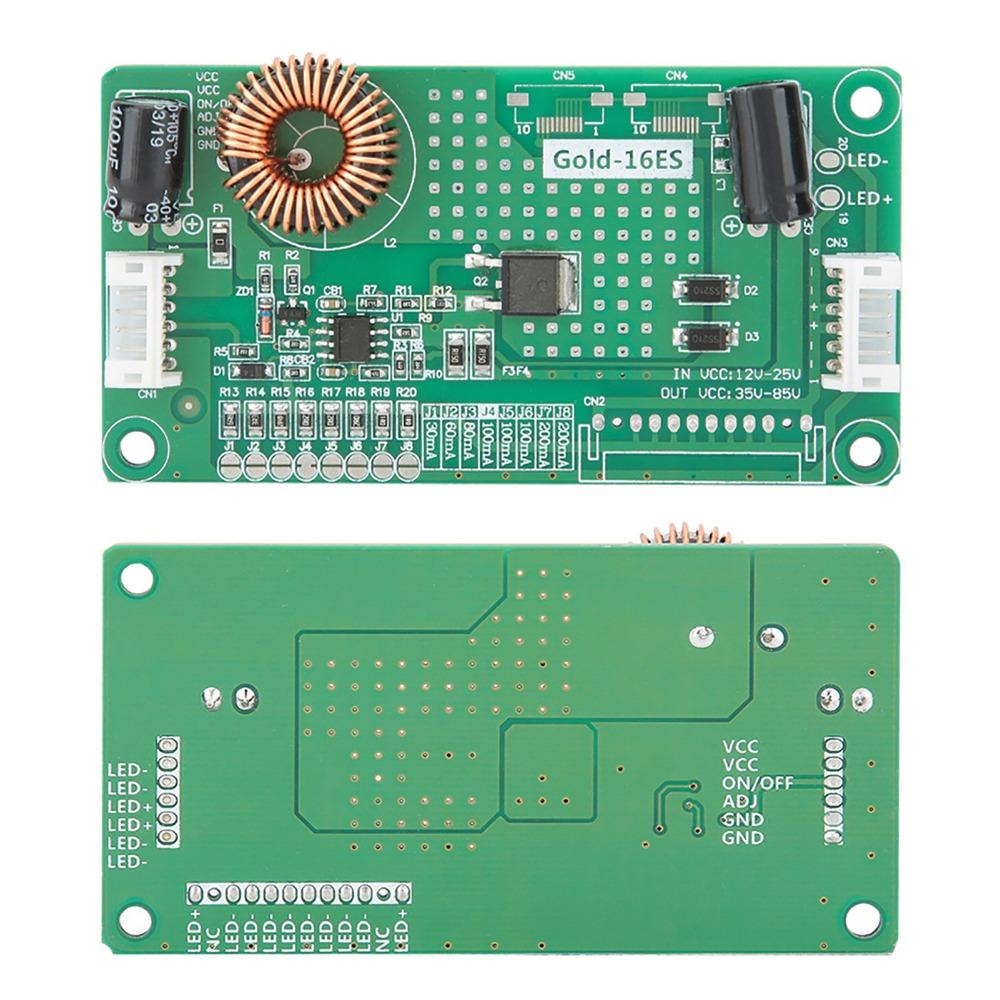

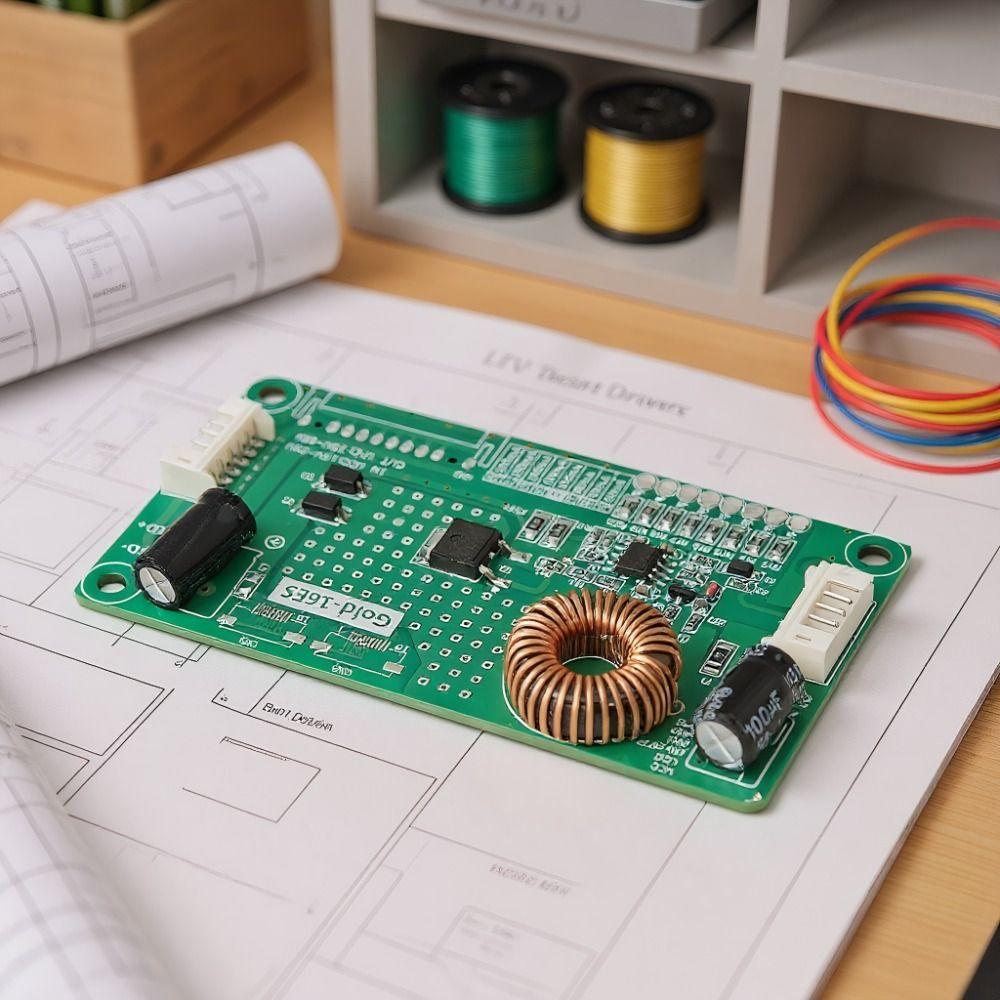

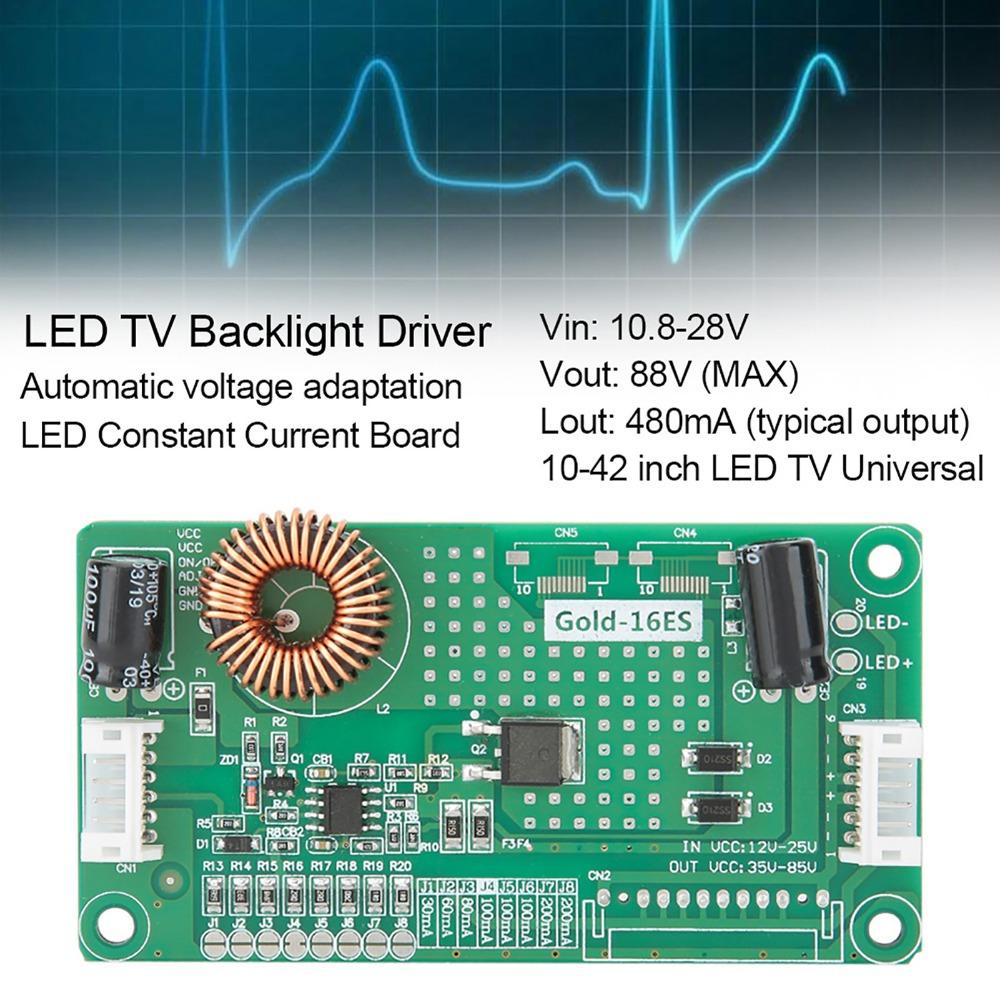

Uses: LED LCD TV boost constant current backlight driver board
Input voltage: 12-25V

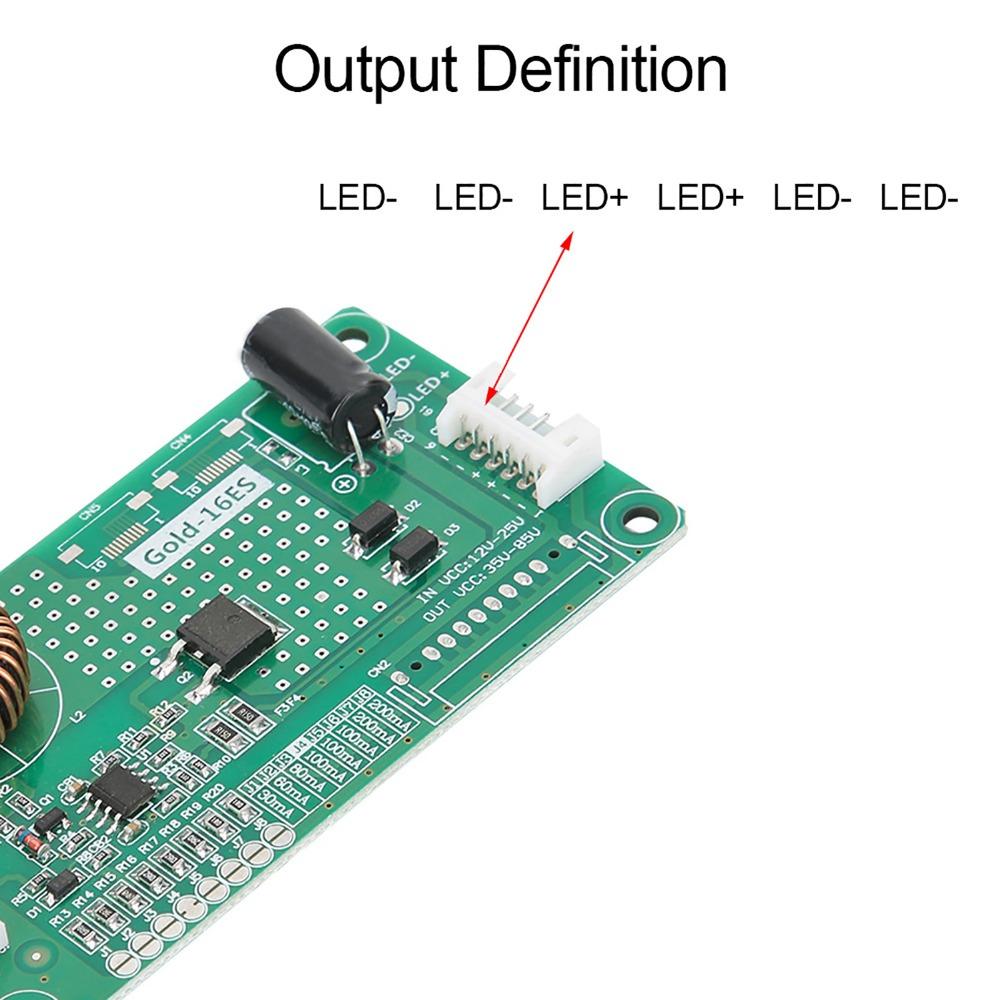

Output: 35-85V
Output current: 10-1000MA can be set, typical: 480MA

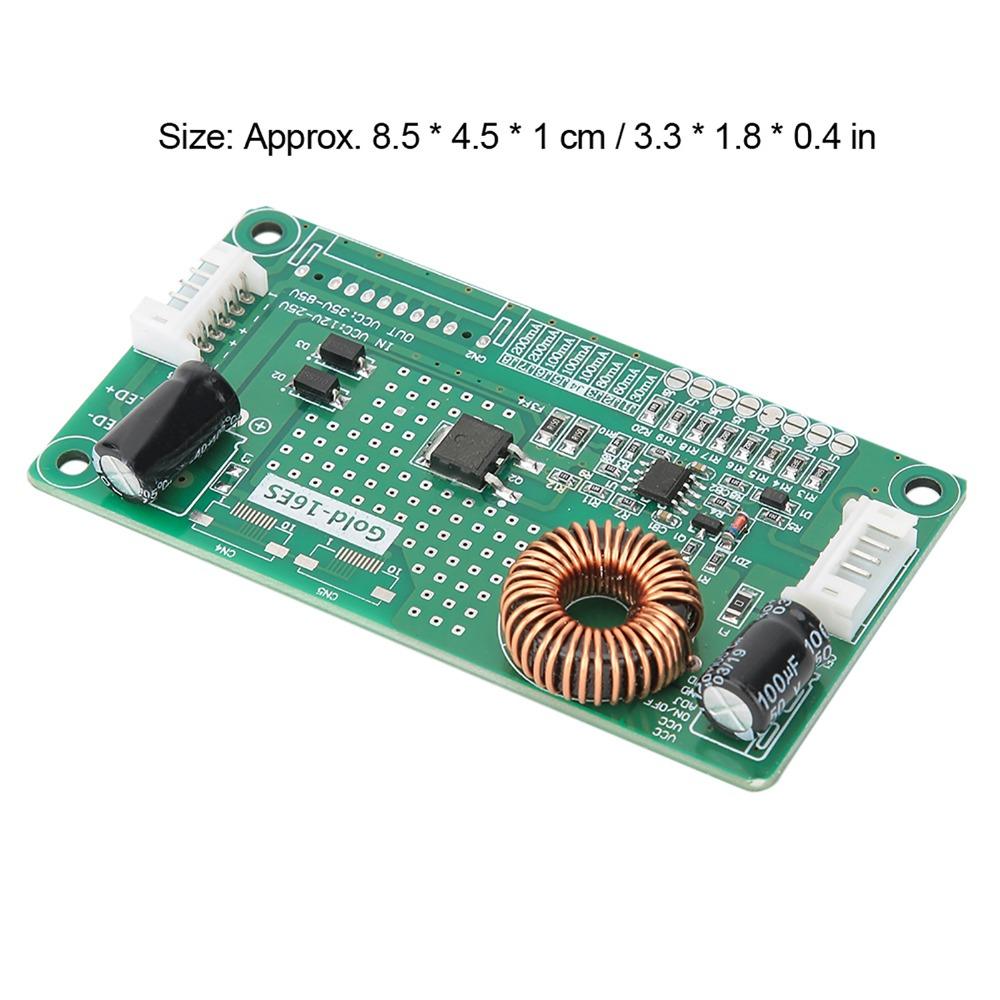

Size: Approx. 8.5 * 4.5 * 1 cm / 3.3 * 1.8 * 0.4 in
Features:
The product has low heat and stable products and has a longer life.
The PCB is small in size and ultra-thin design to meet the most demanding requirements.
Accurate current control error of ±5%, flexible and convenient current adjustment design can be easily modified to match different manufacturers, screen models.
The iron silicon aluminum magnetic coil winding system has a high temperature coefficient, a high magnetic saturation rate and a high stability.
Because the system conversion efficiency is very high, the heat of the equipment is very low, the temperature is controlled at 25 °C (Note: temperature = equipment surface temperature (ambient temperature), environment 25 °C, the surface temperature is the highest 50 °C (working conditions: input 24V, Output 64V 480ma).
Limit parameters:
24V input: Vout = 75V Iout = 720mA or 60W
12V input: Vout = 75V Iout = 400mA or maximum 30W
The limit parameter refers to the maximum bearing capacity of the product during the application process. In actual use, please use it below the limit parameter to ensure the reliability of the product.
Note:

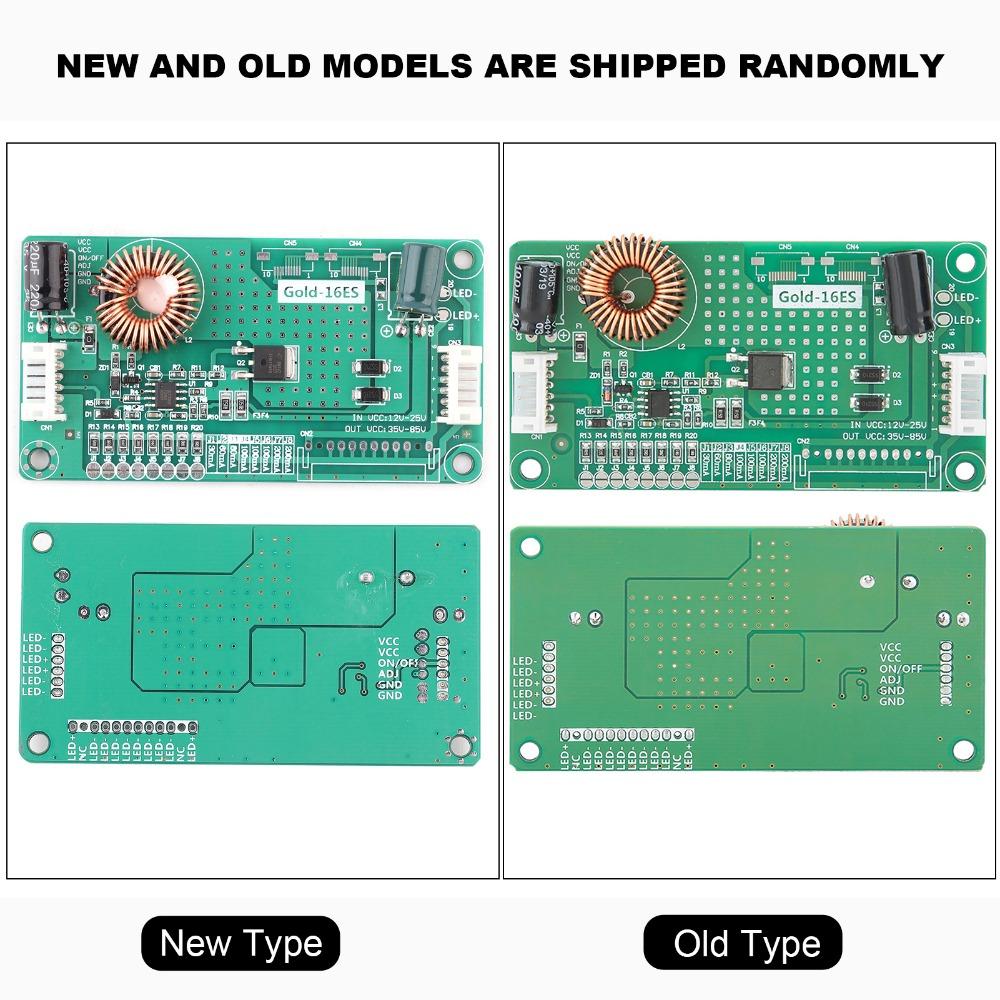

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package list:
1 * Constant Current Driver Board
